ikan PT4700S-TMWPEDESTAL 17-Inch SDI Turnkey Teleprompter System with Pedestal/Dolly & 19-Inch Widescreen Talent Monitor

ITEM #: IKAN-PT4700STMWP MFG #: PT4700S-TMW-PEDESTAL

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$12,099.00

Our Price:

$11,999.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipment of this item is subject to a separate oversized-package carrier surcharge.


PT4700S-TMW-PEDESTAL - Overview

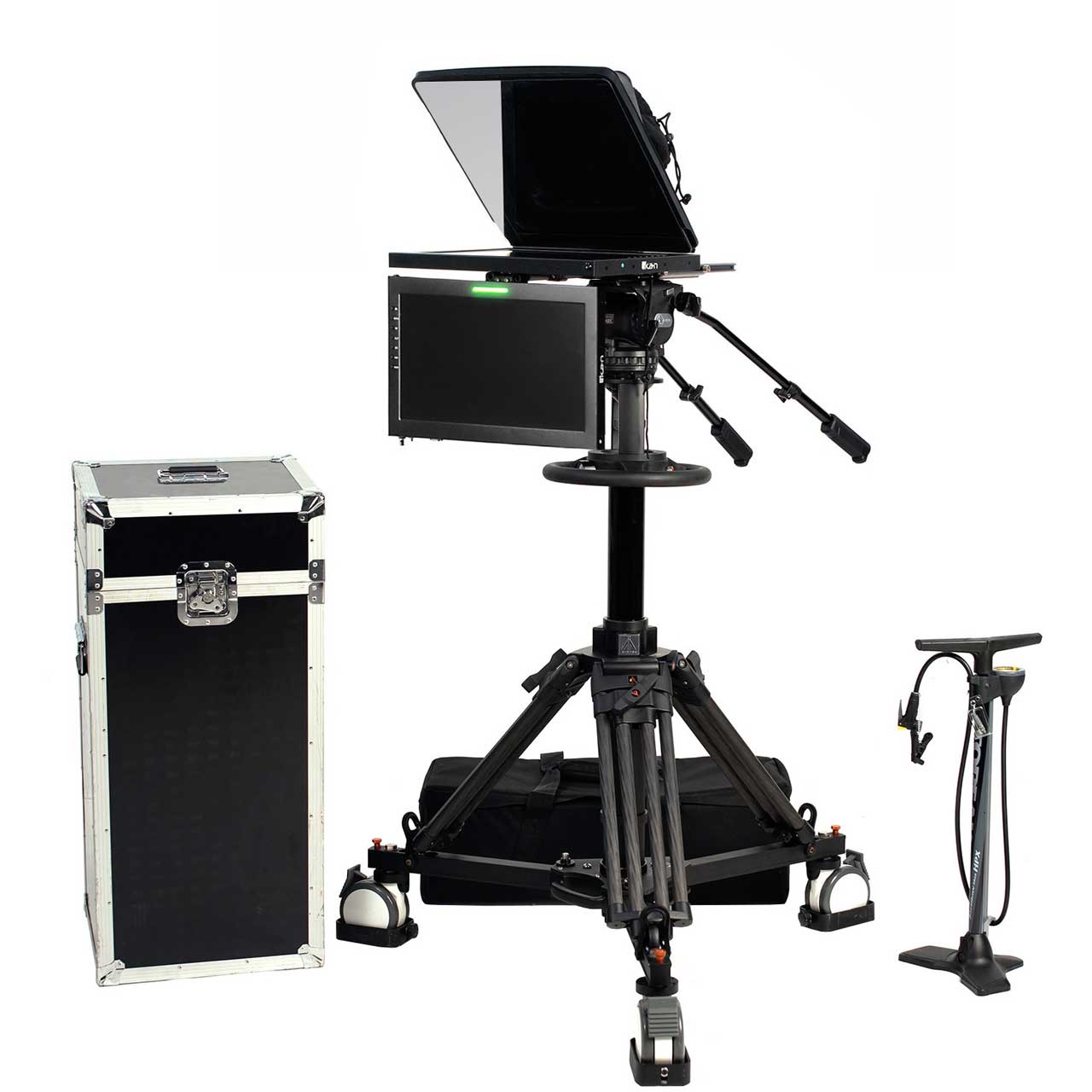

Ikan's Turnkey Broadcast Solutions include everything you need for your professional camera setup. This solution includes a 17" teleprompter, pedestal, and dolly. All Ikan systems have been tested internally for payload compatibility. The teleprompter features a 17" 1000 nit (cd/m²) monitor, 70/30 20" wide beamsplitter glass, and a 20' reading range.

The remaining payload capacity, after mounting the full 17" teleprompter without the counterweight, can accommodate camera setups up to 35.5 lbs. The pedestal, without the teleprompter system, can accommodate cameras up to 56.8 lbs. This solution also includes a hard case for the pedestal and a carrying bag for the dolly.

17-INCH TELEPROMPTER SYSTEM
Ikan’s 4th generation professional teleprompter series is designed for a quick and easy setup to work efficiently in outside broadcast applications or professional studios. The lightweight aluminum teleprompter has multiple 3/8-16" and 1/4-20" for mounting to a pedestal. The teleprompter monitor includes SDI, HDMI, & VGA inputs.

  • Features:

    • Includes 17" SDI Teleprompter, Pedestal, Dolly & 19" Widescreen Talent Monitor

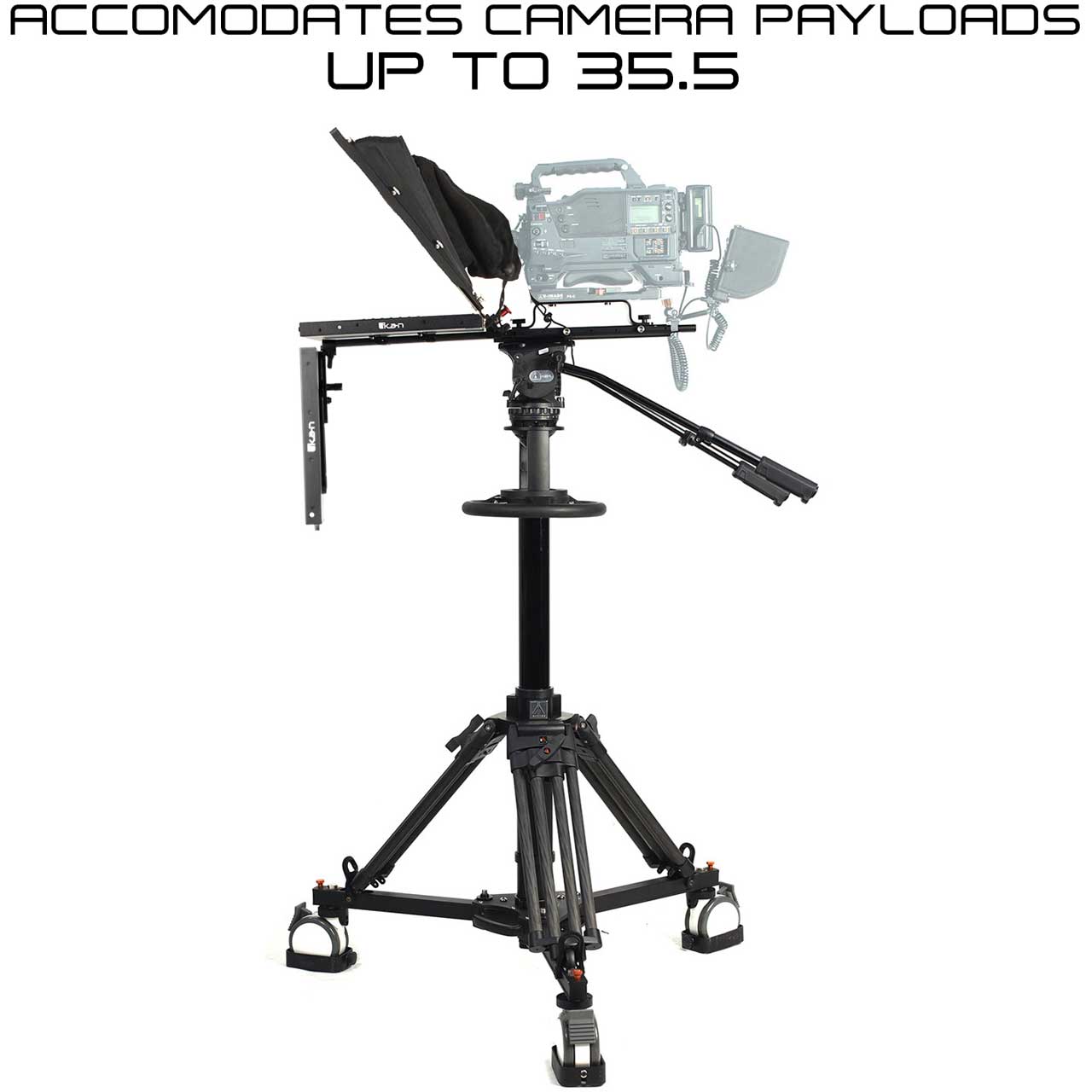

    • Accommodates Camera Payloads up to 35.5 lbs (w/o Counterweight)
    • For Use in Studios, Live Events, & Virtual Productions
    • Video Inputs: 3G-SDI, HDMI, VGA
    • PrompterPro Software for MAC & PC is FREE w/ this Teleprompter
    • Includes 1000-Nit High-bright Monitors
    • Pneumatic Pedestal w/ Fluid Head
    • Dolly w/ Cable Guards
    • Hard Case for Pedestal & Carrying Bag for Dolly

  • Specifications:

    • General Specs
    • Shipping Weight: 149Lbs
    • Shipping Dimensions: Box 1: 37x18x15 Box 2: 44x20x10 Box 3: 25x20x16
    • Available Payload: 31.3Lbs
    • Weight of Full System: 89.47Lbs
    • Max Height of Full System: 7.25' (2.20m)
    • Min Height of Full System: 4.65' (1.41m)

      17" Teleprompter
    • Riser Plate Height: Low: 2.06" (52.5mm) | Medium: 3.74" (95mm)| High: 5.31" (135mm) | DSLR: 6.29" (160mm)
    • Length of Rods: 15mm x 400mm
    • Build Material: Chassis: Anodized Aluminum | Rods: Carbon Fiber
    • Reading Range: 20' (6.1m)
    • Beamsplitter Ratio: 70/30
    • Beamsplitter Shape: Rectangular
    • Beamsplitter Material: Glass
    • Tripod Mounts: 8 x 1/4" -20 Female | 6 x 3/8" -16 Female
    • Product Weight w/Low Plate: 24.98Lbs
    • Product Weight w/Medium Plate: 25.38Lbs
    • Product Weight w/High Plate: 25.51Lbs
    • Product Weight w/DSLR Plate: 24.88Lbs
    • Sliding Range: 5.9" 150mm
    • 17 in. SDI Teleprompter Monitor
    • Aspect Ratio: 4:3
    • Maximum Brightness: 1000 cd/m2
    • Screen Size (Diagonal): 17"
    • Mount: VESA 100mm
    • Video Inputs: SDI, HDMI, VGA
    • Input Voltage: DC 12v / 4A
    • Power Consumption: 17W
    • Product Weight: 5Lbs
    • Product Dimensions: 15.5 in. x 13.75 in. x 1"
    • Native Resolution: 1280 x 1024
    • Viewing Angle: 160° (H) / 170° (V)
    • Build Material: Aluminum Chassis
    • Image Flip: Horizontal: Yes | Vertical: Yes

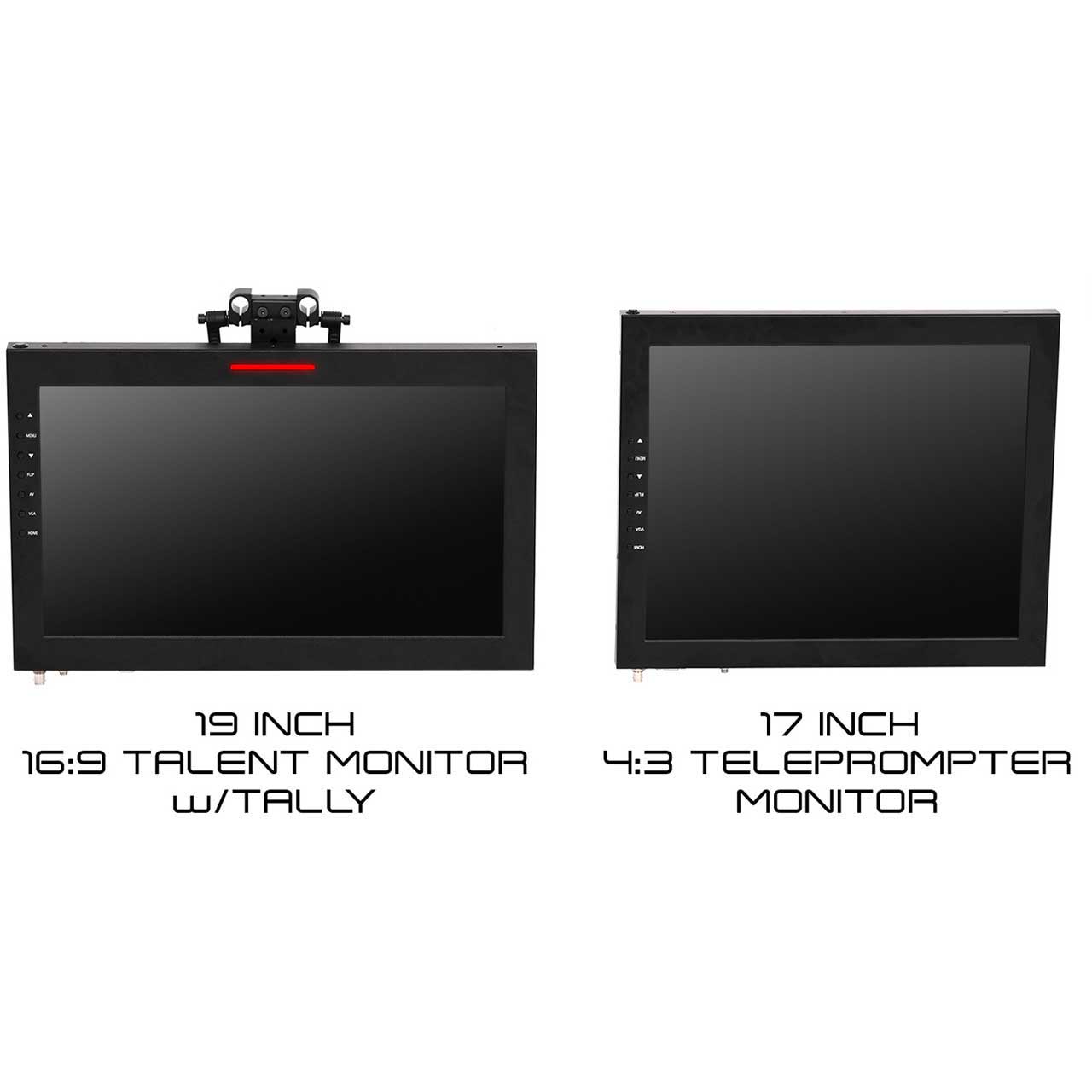

      19" Widescreen Talent Monitor
    • Aspect Ratio: 16:9
    • Maximum Brightness: 1000 cd/m2
    • Screen Size (Diagonal): 18.5"
    • Mount: VESA 100mm
    • Video Inputs: SDI, HDMI, VGA
    • Input Voltage: DC 12v / 5A
    • Power Consumption: 36W
    • Weight of Monitor: 5.73Lbs
    • Product Dimensions: 18.3 x 12.3 x 1.2"
    • Native Resolution: 1920 x 1080
    • Viewing Angle: 178° (H) / 178° (V)
    • Build Material: Aluminum Chassis
    • Image Flip: Horizontal: Yes | Vertical: Yes
    • Tally Interface: RJ45

      Talent Monitor Mount
    • Mounting System: 19mm Rod, 100mm VESA
    • Length of Height Adjustment: 1.2"
    • Weight of Mounting Bracket: 1Lbs
    • Dimensions of VESA Mount: 6 x 9.5 x .5"
    • Dimensions of 15mm Mount: 5 x 5.2 x 1"

      Pedestal
    • Bowl Size: 100mm
    • Payload Capacity: 66Lbs (30kg)
    • Height Range: 40.4 - 71.1" (with GH25 Head)
    • Build Material: Legs: Carbon Fiber | Column: Aluminum | Riser: Cast Iron
    • Net Weight: 52.7Lbs (23.9kg)
    • On-Shot Stroke: 15" (38cm)
    • Steering Ring Diameter: 12.04" (306mm)

      Fluid Head
    • Head Payload Capacity: 61.7Lbs (28kg)
    • Bowl Size: 100mm
    • Counterbalance System: Stepped, 1-15
    • Pan Drag Settings: 0-7
    • Tilt Drag Settings: 0-7
    • Tilt Lock: Thumb Lock
    • Tilt Range: -80°/+90°
    • Bubble Level: Yes- Illuminated
    • Pan Handle Length Range: 16.7 - 24"
    • Net Weight: 9.2Lbs (4.2kg)
    • Net Weight w/ Pan Handles: 11Lbs (4.98kg)
    • Sliding Plate Range: 5.7" (145mm)
    • Temperature Range: -40° to 194°F
    • Camera Plate Length: 6.3" (160mm)

      Dolly
    • Net Weight: 15Lbs (6.8kg)
    • Footprint Diameter: 39.4" (100cm)
    • Height: 7.3" (18.5cm)
    • Radius: 19.7" (50cm)
    • Wheel Width: 3.9" (100mm)
    • Lockable Wheels: Yes
    • Build Material: Legs: Aluminum | Wheels: Rubber | Screws: Steel
    • Payload: 220.5Lbs (100kg)

  • Item Includes:

    • 1x EP880S Rolling Carrying Case
    • 1x EP880S Pneumatic Pedestal Base

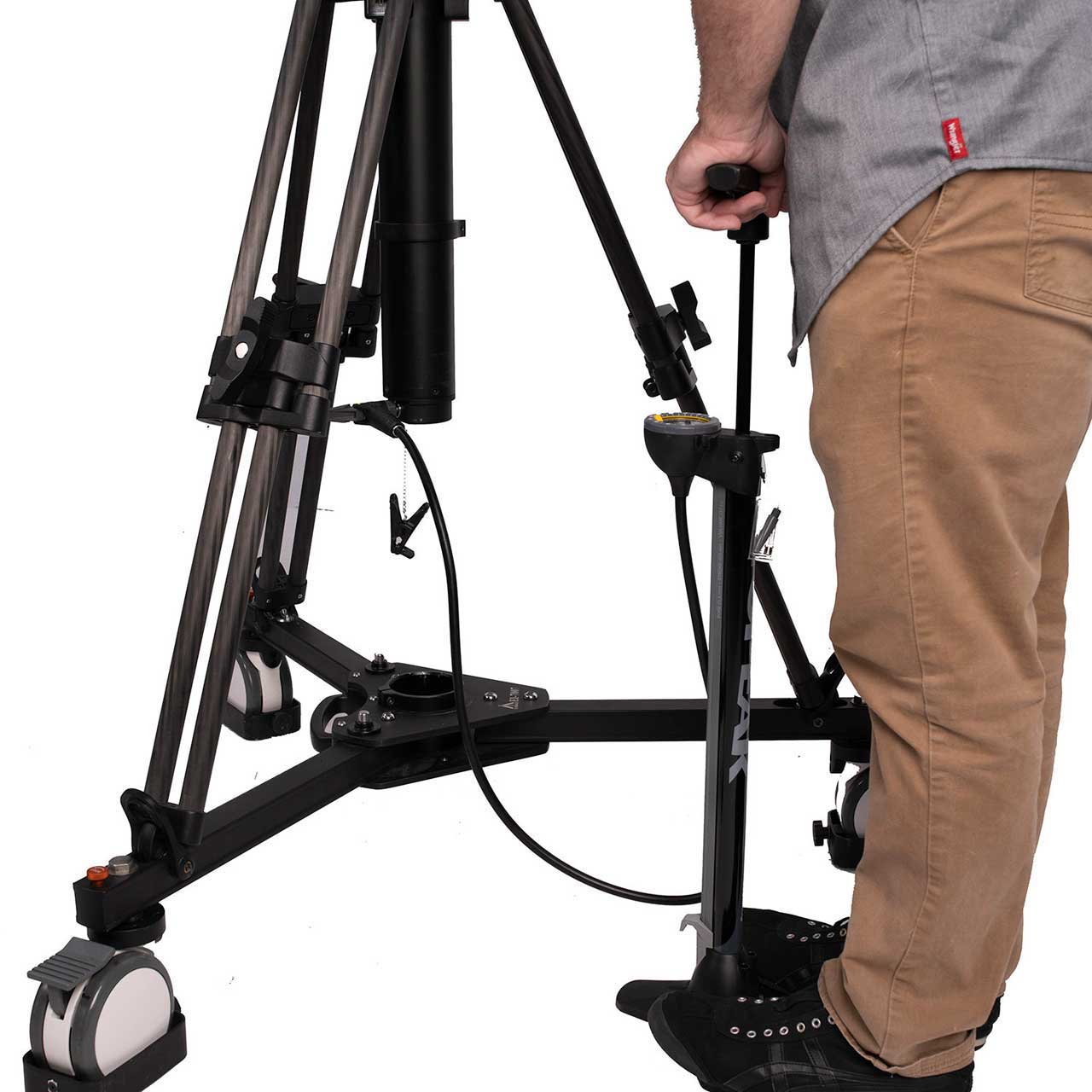

    • 1x Air Pump
    • 1x Center Support Column
    • 1x EI-7007 Track Lock Dolly Wheels w/ Cable Guard

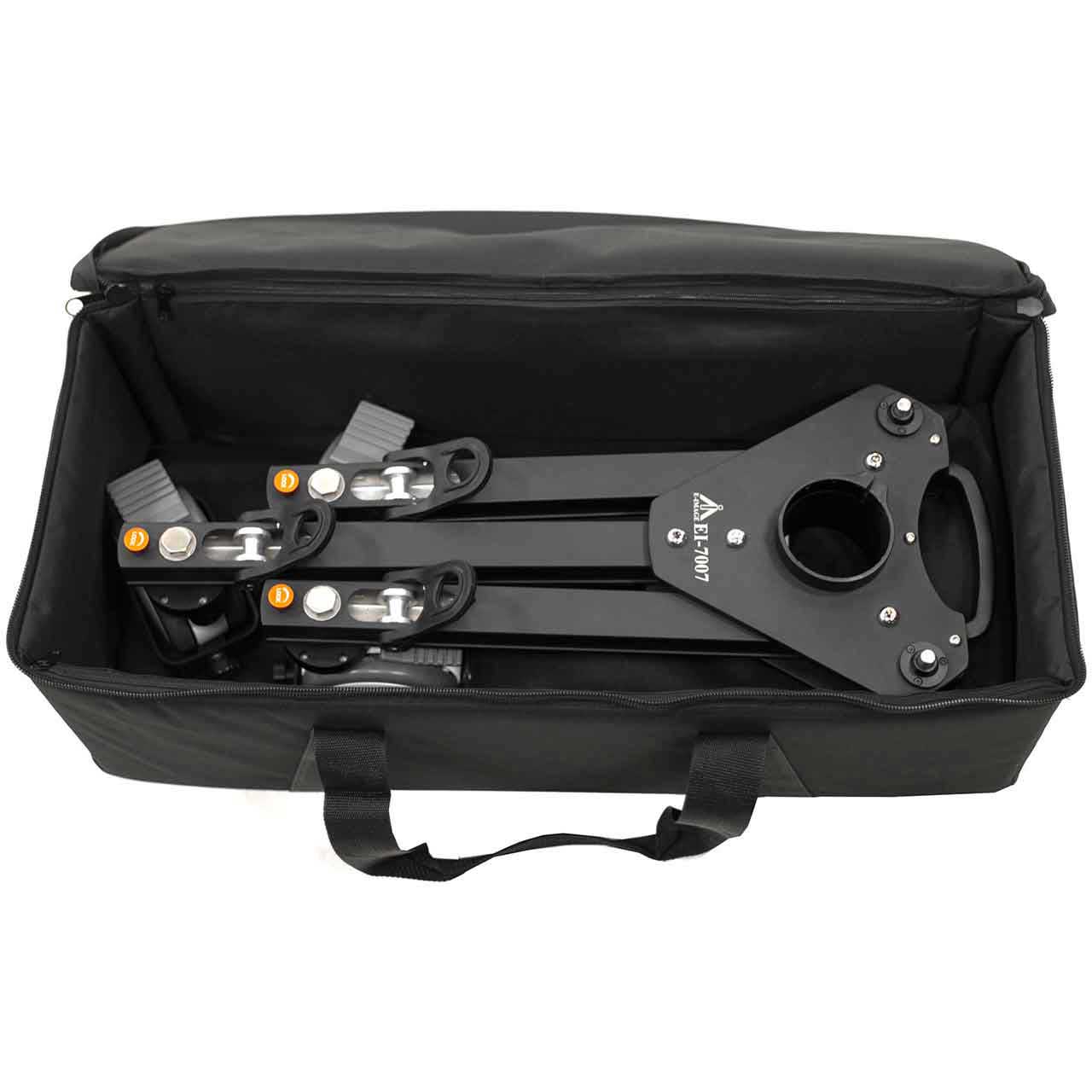

    • 1x Soft Carrying Case for EI-7007
    • 1x GH25 Head
    • 2x Pan Handle
    • 1x Base Plate
    • 1x Bottom Plate
    • 1x Base
    • 1x Glass Frame Holder Bracket
    • 1x 17 in. 70/30 Teleprompter Glass
    • 1x Hood Attachment Frame
    • 1x Teleprompter Hood Boot
    • 1x Silicone Teleprompter Hood
    • 1x Glass Holder
    • 2x 15mm Rod Clamps
    • 2x 15mm Rods
    • 1x Large Riser Camera Mount
    • 2x 3/8-16 D-Ring Screws
    • 2x D-Ring 1/4-20" Screws
    • 1x Counterweight
    • 1x Large Riser
    • 1x DSLR/Mirrorless Riser
    • 1x Medium Riser
    • 1x Short Riser Plate
    • 1x SDI 17 in. Teleprompter Monitor
    • 1x SDI 19 in. Widescreen Talent Monitor
    • 2x AC Adapter with Cord
    • 1x Teleprompter Glass
    • 1x PrompterPro Software (FREE with this teleprompter)
    • 1x Talent Monitor Mount
    • 1x Talent Monitor Attachment
    • 1x Rod Clamp with Screws

  • Warranty:

    • 1-Year Limited Warranty

  • GTIN:

    0847983034734
