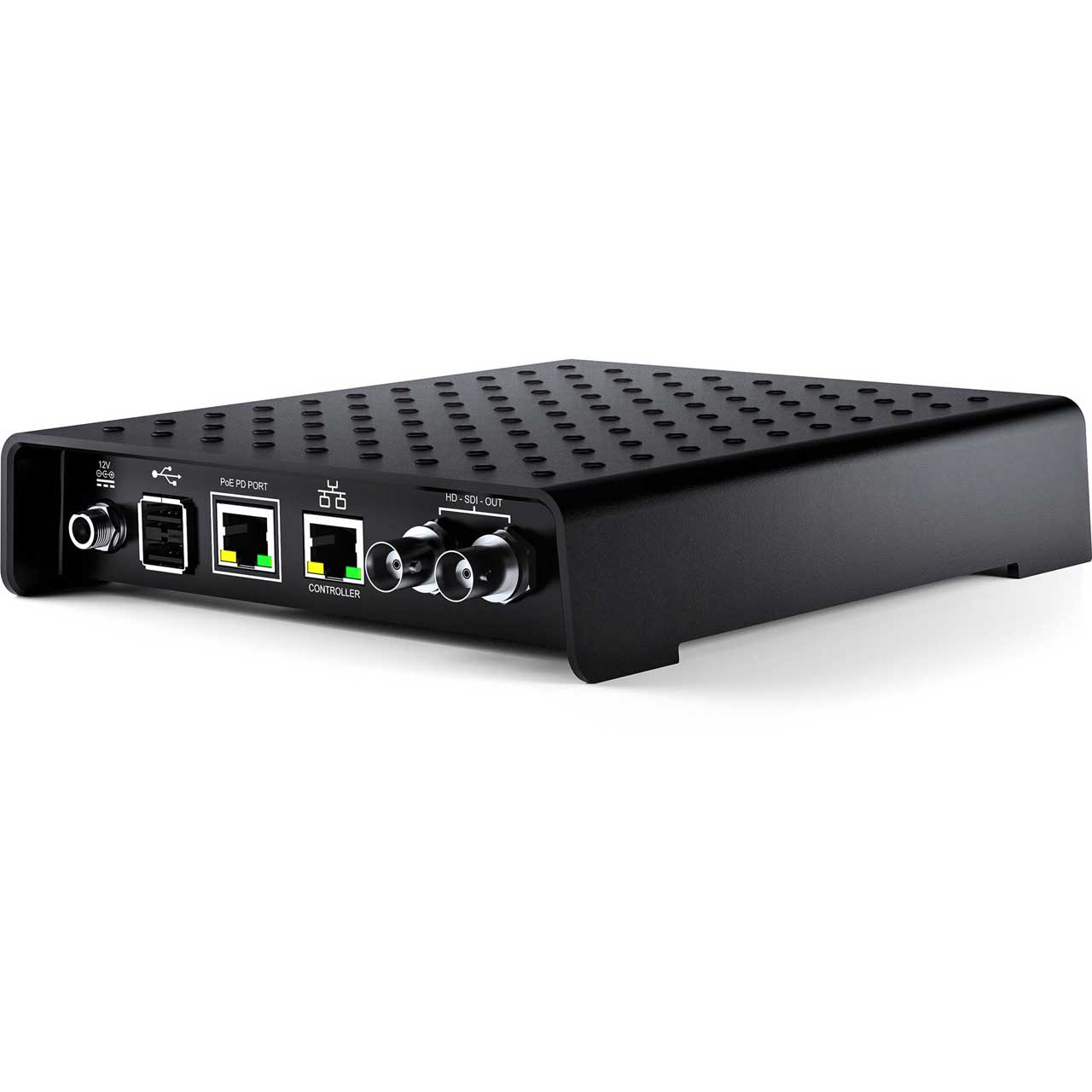

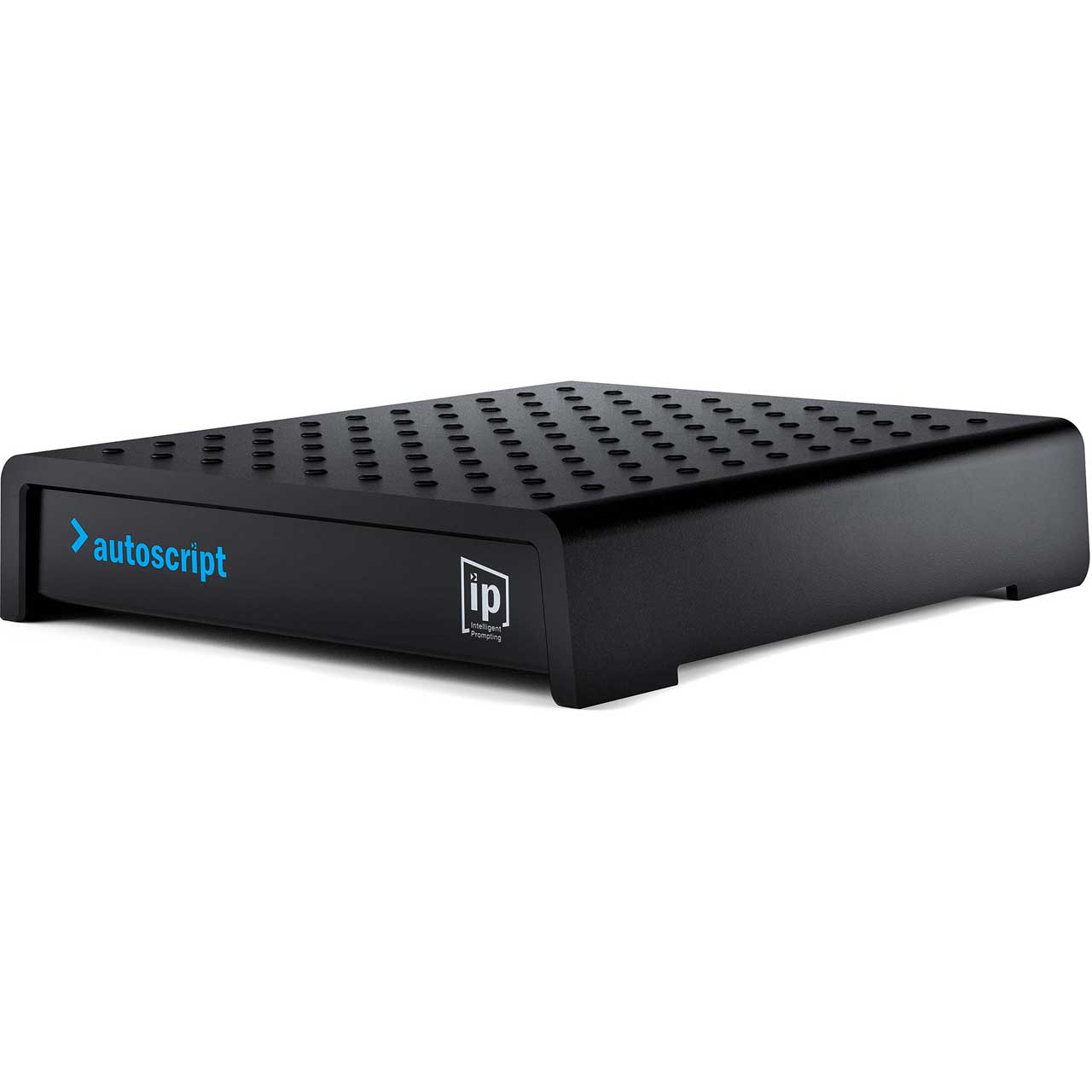

Autoscript XBOX-IP Compact Prompter Scroll Engine with Dual HD-SDI Output and PoE

ITEM #: XBOX-IP MFG #: XBOX-IP

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$1,945.00

Our Price:

$1,847.75

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    XBOX-IP - Overview

    The Inner Drive Of Intelligent Prompting

    The Autoscript XBox-IP is an extremely compact scroll engine. As an Intelligent Prompting device it networks via Ethernet to WinPlus-IP prompting software application, where users are able to monitor status, manage group updates and remote upgrades. Dual HD-SDI outputs support the distribution of the teleprompter video to traditional prompt monitors. In addition a Power over Ethernet output can be used to power an Intelligent Prompting scroll control - ideal for single controller setups. In a tough, portable casing with LED status indicator, the XBox-IP offers a modern solution for solo operators and users looking to retain HD/HD-SDI monitors.
    Cables must be purchased separately. Please note that PSU-SC power supply is required if the XBox-IP is being used as an independent unit without Power over Ethernet (PoE) switch. In all other cases the XBox-IP can be powered using a PoE port from the switch.

    • Features:

      • Compact, portable unit
      • Dual HD-SDI output distributes script video to traditional prompt monitors
      • Power over Ethernet output for scroll control avoids the need for 3rd party equipment in single controller setups
      • At a glance network and status indicator
      • Managed remotely in WinPlus-IP and auto detected for simple installation
      • Not required for EVO-IP and EPIC-IP prompt monitors

    • Specifications:

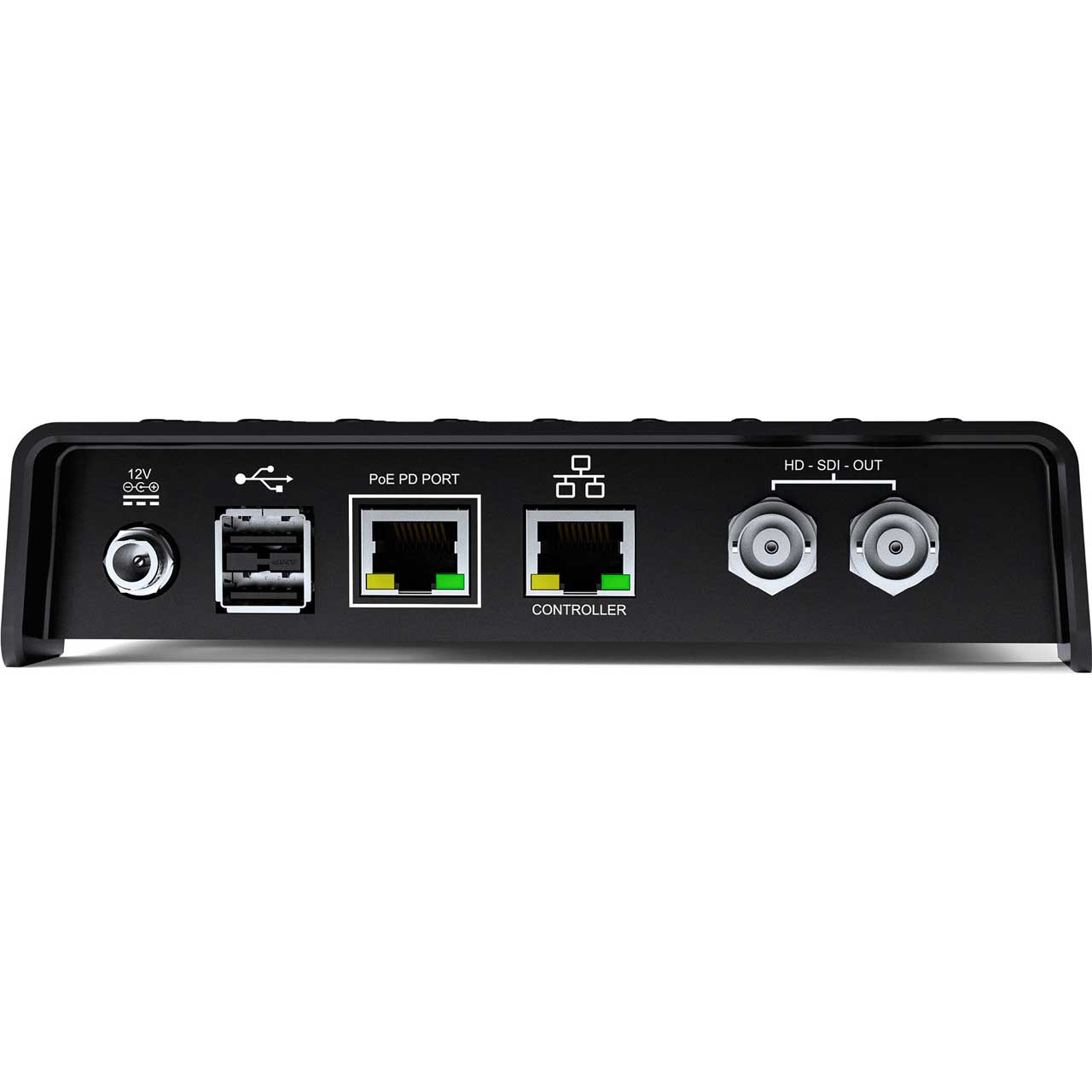

      • Input Connection
      • 1x 12V DC auxiliary input
      • 1x RJ45 Ethernet

        Power consumption
      • Max 8W
      • with PoE Controller 11W

        Output
      • 2x HD-SDI
      • 1x RJ45 Power over Ethernet

        Selectable Video Formats:
      • 1080i 50
      • 1080i 59.94
      • 1080i 60
      • 1080p 29.97
      • 1080p 50
      • 1080p 60
      • 720p 50
      • 720p 60

        Weight
      • 1.35Lbs (600g)

        Dimensions (HxWxL)
      • 1.46" x 6.38 x 7.17" (37 x 162 x 182mm)

    • Item Includes:

      • 1x XBox-IP Scroll Engine
      • 1x XBox-IP Installation Guide


    XBOX-IP - Required Accessories
