ikan PT4900-PTZOTTICA Professional 19-Inch High-Bright PTZ-Compatible Teleprompter with OTTICA PTZ Camera

ITEM #: IKAN-PT4900-PTZO MFG #: PT4900-PTZ-OTTICA

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order


Item unavailable.Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email


Availability: Sold Out
iAvailability Description Popup


PT4900-PTZ-OTTICA - Overview

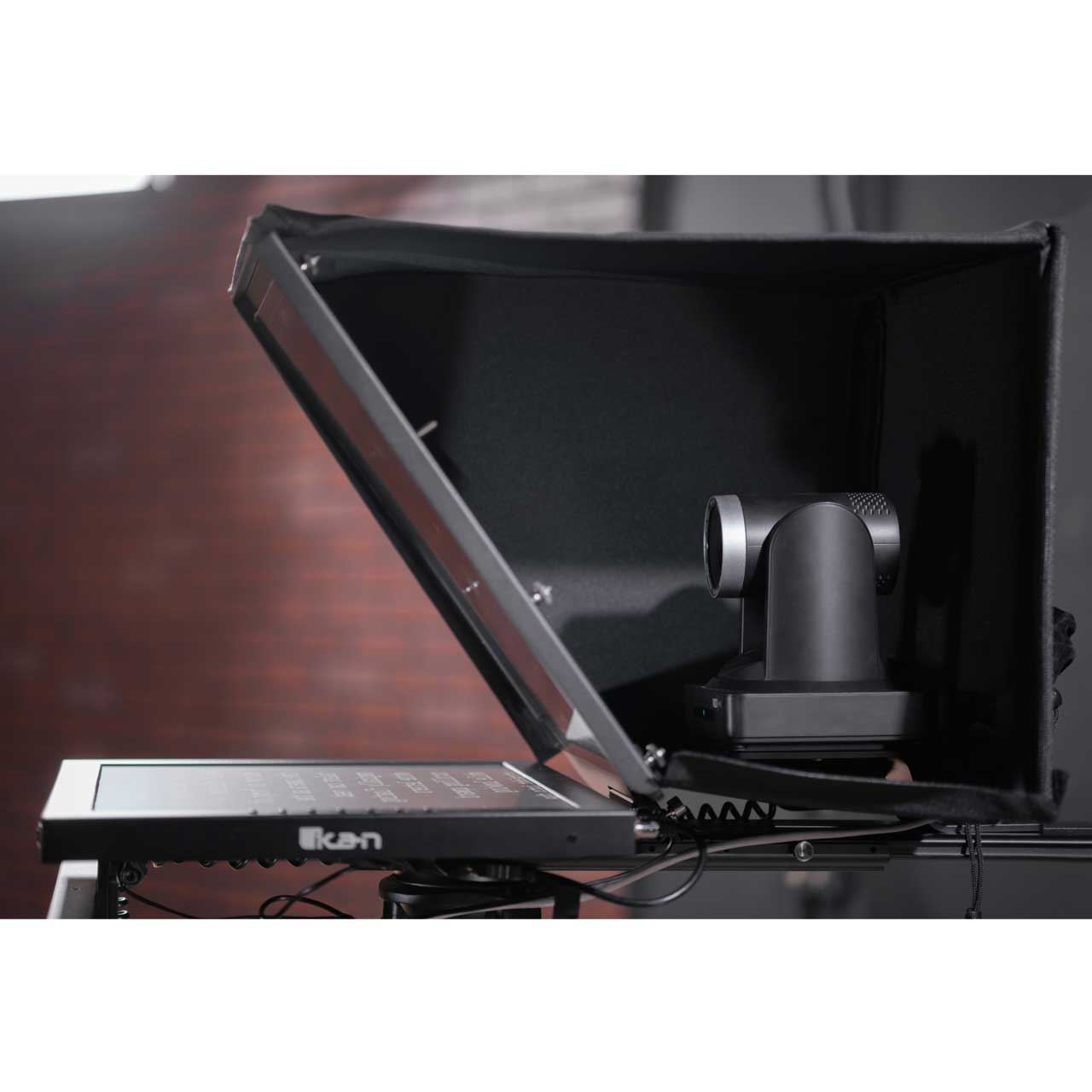

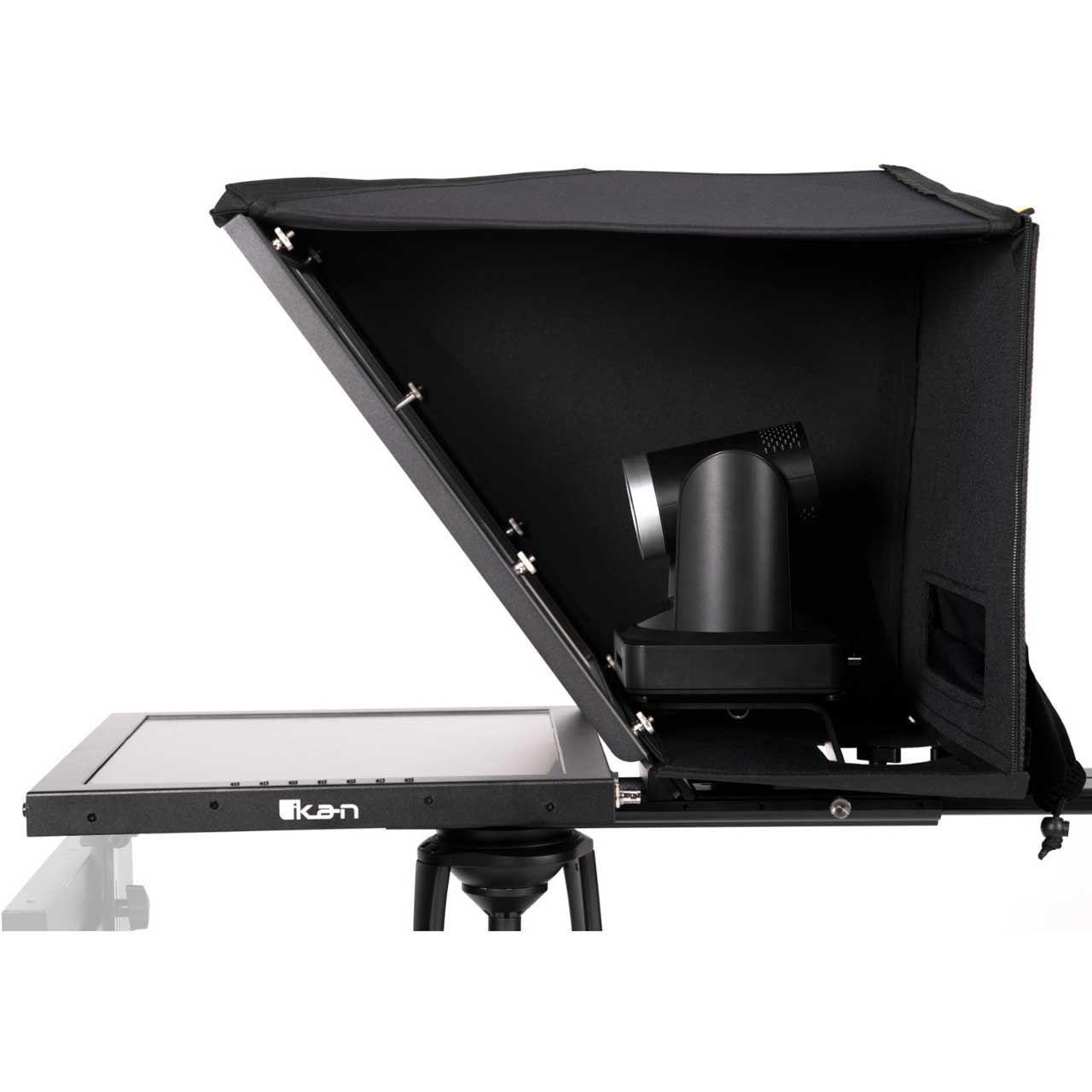

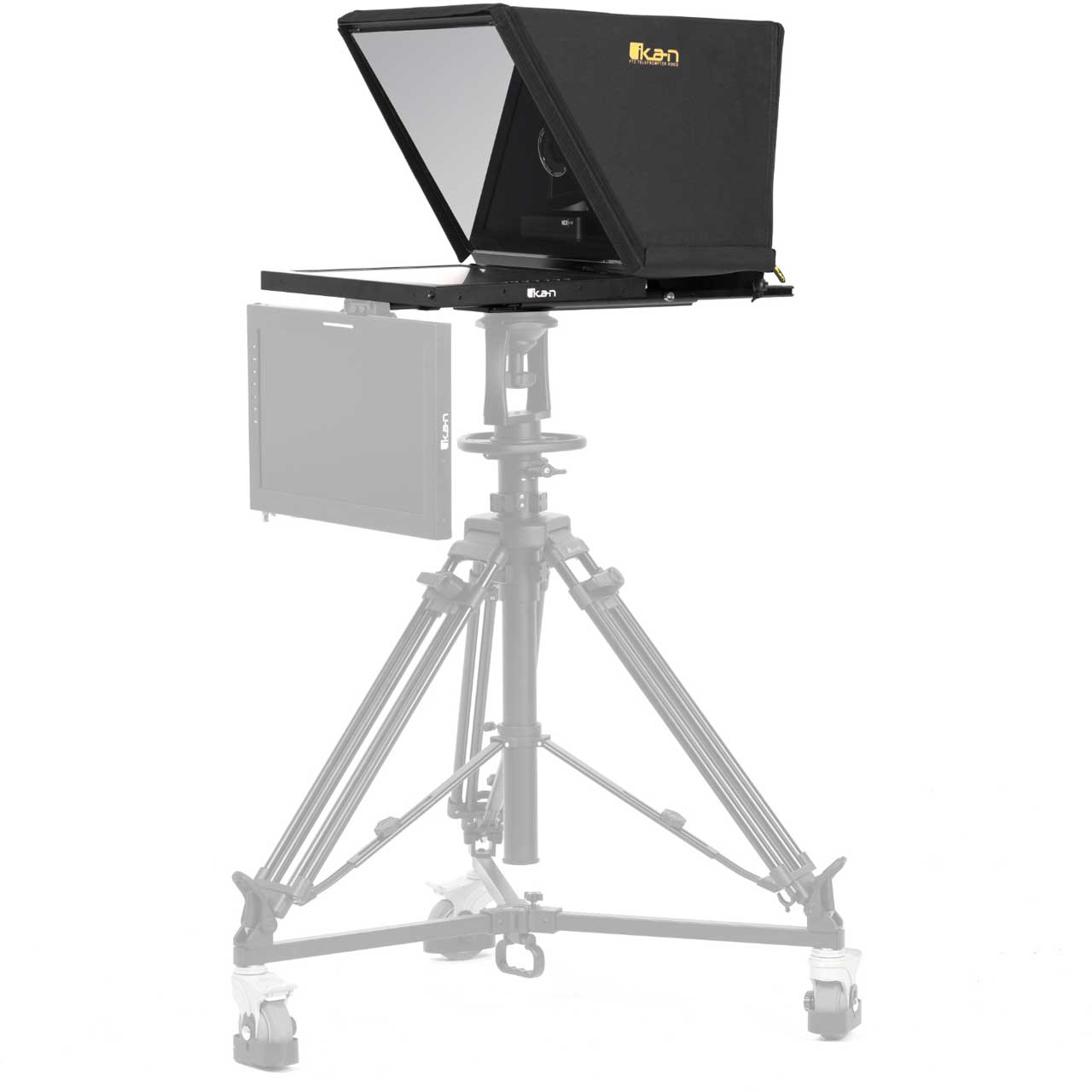

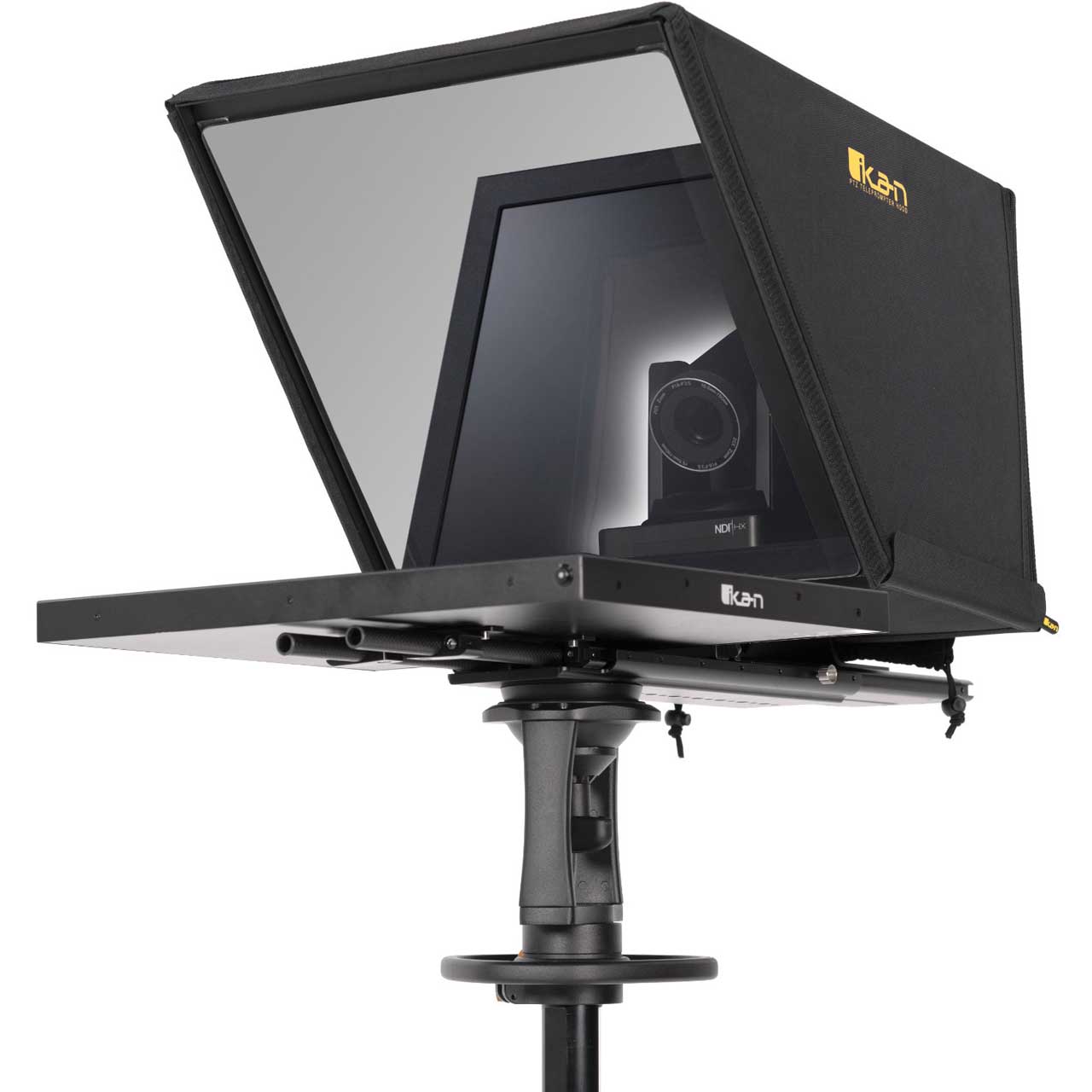

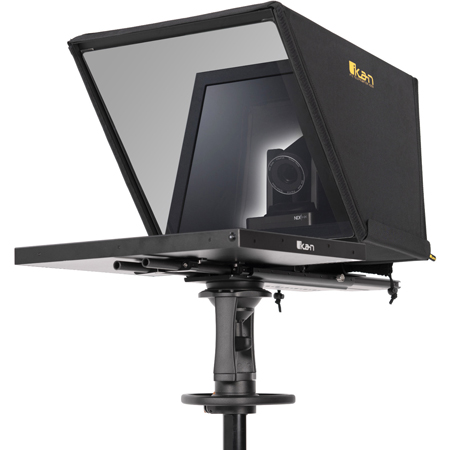

The ikan PT4900-PTZ-OTTICA 19" PTZ Teleprompter from Ikan is a professional solution for teleprompting with PTZ cameras. The package provides an extra-wide hood assembly to allow considerable movement of the camera within the wide beam splitter glass. The PTZ Teleprompter features a 19" 1000 cd/m² monitor, 70/30 20"-wide beamsplitter glass, and a 25' reading range. The teleprompter is designed for use with a wide range of PTZ cameras, as the wide beamsplitter provides for a wide amount of left-right panning. The teleprompter includes a base system that can be easily shifted forward and backwards, which enables mounting the camera to the prompter without requiring counterweights.

Ships In Reusable Foam
The professional teleprompter is shipped in reusable custom cut foam which will help keep the kit safe and organized when you set it up or break it down. The custom cut foam can also be re-purposed to perfectly fit in the SKB iSeries 3i-2217-12BE Waterproof Hard Case

Hard Case Not Included

  • Features:

    • Includes Teleprompter and PTZ Camera
    • 19-Inch Teleprompter Designed for PTZ Cameras
    • Hood Completely Encloses PTZ Camera Allowing it to Move Freely
    • Includes 1000-Nit High-bright Monitor
    • Compatible with Most PTZ Cameras
    • Multiple People Can Read Script Simultaneously
    • Heavy-Duty Aluminum Chassis Monitor
    • HDMI, VGA, and Composite
    • Screen Readable From Up To 25'
    • Easy Balancing with Adjustable Base

  • Specifications:

    • Shipping
    • Weight: 38Lbs
    • Dimensions: Box 1: 25 x 20 x 16" | Box 2: 15 x 12 x 10"

      19" Teleprompter
    • Riser Plate Height: Low: 2.06" | Medium: 3.74" | High: 5.31" | DSLR: 6.29"
    • Length of Rods: 0.59 x 15.74"
    • Build Material: Chassis: Anodized Aluminum | Rods: Carbon Fiber
    • Reading Range: 25'
    • Beamsplitter Ratio: 70/30
    • Beamsplitter Shape: Rectangular
    • Beamsplitter Material: Glass
    • Tripod Mounts: 11 x 1/4" -20 Female | 9 x 3/8" -16 Female
    • Product Weight w/Low Plate: 22.70Lbs
    • Product Weight w/Medium Plate: 23.10Lbs
    • Product Weight w/High Plate: 23.23Lbs
    • Product Weight w/DSLR Plate: 22.60Lbs
    • Height of Teleprompter: 16"/ 406mm

      PTZ Teleprompter Add-on Kit
    • Angle of Glass Frame Holder: 50°
    • Material of Hood: Polyester Canvas
    • Material of Riser Plates: Aluminum
    • Material of Glass Frame Holder: Aluminum

      19" Teleprompter Monitor
    • Aspect Ratio: 4:3
    • Maximum Brightness: 1000 cd/m2
    • Screen Size (Diagonal): 18.5"
    • Mount: VESA 100mm
    • Video Inputs: AV COMPOSITE, HDMI, VGA
    • Input Voltage: DC 12v / 4A
    • Power Consumption: 21W
    • Product Weight: 6Lbs
    • Product Dimensions: 17 x 15 x 1"
    • Native Resolution: 1280 x 1024
    • Viewing Angle: 160° (H) / 170° (V)
    • Build Material: Aluminum Chassis
    • Image Flip: Horizontal: Yes | Vertical: Yes

      PTZ Camera
    • AV: F1.6 - F3.5
    • Aspect Ratio: 16:9
    • Audio Compression Format: AAC/MP3/G.711A
    • Audio Input Interface: A-IN: Double Track 3.5mm Linear Input
    • Audio Output: Yes
    • Auxiliary Power: Yes
    • Base Connection Type: 1/4"-20 Screw Mount
    • BLC: ON/OFF
    • Body Color: Black
    • Communication BPS: 2400bps/4800bps/9600bps/19200bps/38400bps/115200bps
    • Control Interface: RS232 (input & output), RS485
    • Control Protocol: IP VISCA, VISCA, PELCO-D, PELCO-P, ONVIF; Baud Rate:115200/9600/4800/2400bps
    • Country of Origin: China
    • Digital Resolution: 1920x1080p
    • Digital Noise Reduction: 2D & 3D DNR
    • Effective Pixels: 16: 9, 2.07 megapixel
    • Focusing: Input Audio Format
    • Input Audio Format: 1/8"
    • Input Current: 1A (Maximum)
    • Input Voltage: DC12V±10%
    • Inputs: 1/8" Audio, RS-232 Cascade, DC12V
    • Interface: 3G-SDI, HDMI, LAN(NDI), RS232 (In & Out), RS485, A-IN
    • Modulation Mode: OFDM
    • Motor Type: Step-Driving Motor Mechanism
    • Network Protocol: RTSP, RTMP, ONVIF, NDI|HX (Optional), Network VISCA Control Protocol, Support Remote Upgrade, Reboot and Reset
    • Signal to Noise Ratio: >55dB
    • Optical Zoom: 20x f=5.5-110mm
    • Output Interface: HDMI, 3G-SDI, LAN (NDI|HX)
    • Output Video Format: LAN (NDI|HX), HDMI, 3G-SDI, 1080p60, H.264, H.265
    • Output Voltage: DC12V
    • Outputs: RS-232, RS485, 3G-SDI, HDMI, NDI|HX
    • Pan Control Speed: 0.1 -60°/sec
    • Pan Rotation: ±170°
    • Port Network: RJ45
    • Power Adapter: Input: AC110V-AC220V. Output: DC12V/1.5A
    • Power Consumption: 12W (Max) / CONTROLLER: 0.6 W (Max)
    • Power Interface: HEC3800 Outlet (DC12V), 2-pin Waterproof Aerial Socket (RF Model)
    • Power Supply: DC12V±10%
    • Preset Number: 255 presets (10 presets by Remote Controller)
    • Preset Speed: Pan: 60°/sec, Tilt: 30°/sec
    • Remote Control: IR Remote Included
    • Resolution: 1080p 60fp
    • Sensor: 1/2.8" HD CMOS sensor
    • Serial Port: RS422, RS232
    • Storage Temperature: 14° to 140°F
    • Storage Humidity: 20 to 95%
    • Tilt Control Speed: 0.1-30°/sec
    • Tilt Rotation: 30° to 90°
    • Video Compression Format: H.264, H.265
    • Viewing Angle: 3.3° to 54.7°
    • Voltage: DC12V
    • White Balance: Auto / Manual/ One Push/2400K - 7100K
    • Working Humidity: 20 to 80%
    • Working Temperature: 14° to 122°F

      Video Signals:
    • HDMI
    • 720x480i & 720x480p @ 59.94, 60 Hz
    • 720x576i & 720x576p @ 50 Hz
    • 1280x720p @ 50, 59.94, 60 Hz
    • 1280x1024 (Native)@ 50, 59.94, 60 Hz
    • 1920x1080i @ 50, 59.94, 60 Hz
    • 1920x1080psf @ 24, 25, 29.97, 30 Hz
    • 1920x1080p @ 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 Hz

  • Item Includes:

    • 1x Bottom Plate
    • 1x Base
    • 1x Glass Frame Holder Bracket
    • 1x 19in. 70/30 Teleprompter Glass
    • 1x Hood Attachment Frame
    • 1x Glass Holder
    • 2x 15mm Rod Clamps
    • 2x 15mm Rods
    • 1x 19 in. Teleprompter Monitor
    • 1x AC Adapter with Cord
    • 1x Teleprompter Glass
    • 1x PrompterPro Software (FREE with this teleprompter)
    • 1x PTZ Teleprompter Hood
    • 1x 50-Degree Glass Frame Holder Bracket
    • 1x PTZ Riser
    • 1x 1/4-20 Screw (Long)
    • 1x 1/4-20 Screw (Short)
    • 1x OTTICA PTZ Camera
    • 1x Lens Cap
    • 1x Power Adapter
    • 1x RS232 Cable
    • 1x IR Remote Controller
    • 1x Wall Mounting Bracket
    • 1x Mounting Screws
    • 1x RS485 Connector
    • 1x Cascade Cable
    • 1x User Manual
