ikan PT4900-PTZTM-OTTICA Pro 19-In High-Bright PTZ-Compatible Teleprompter w/OTTICA PTZ Camera & Tally Talent Monitor

ITEM #: IKAN-PT4900PTZTO MFG #: PT4900-PTZ-TM-OTTICA

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$4,899.00

Our Price:

$4,799.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    PT4900-PTZ-TM-OTTICA - Overview

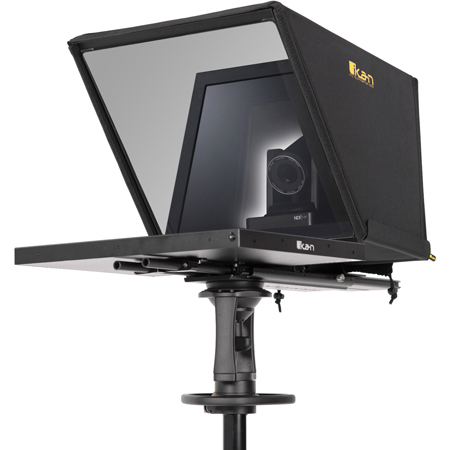

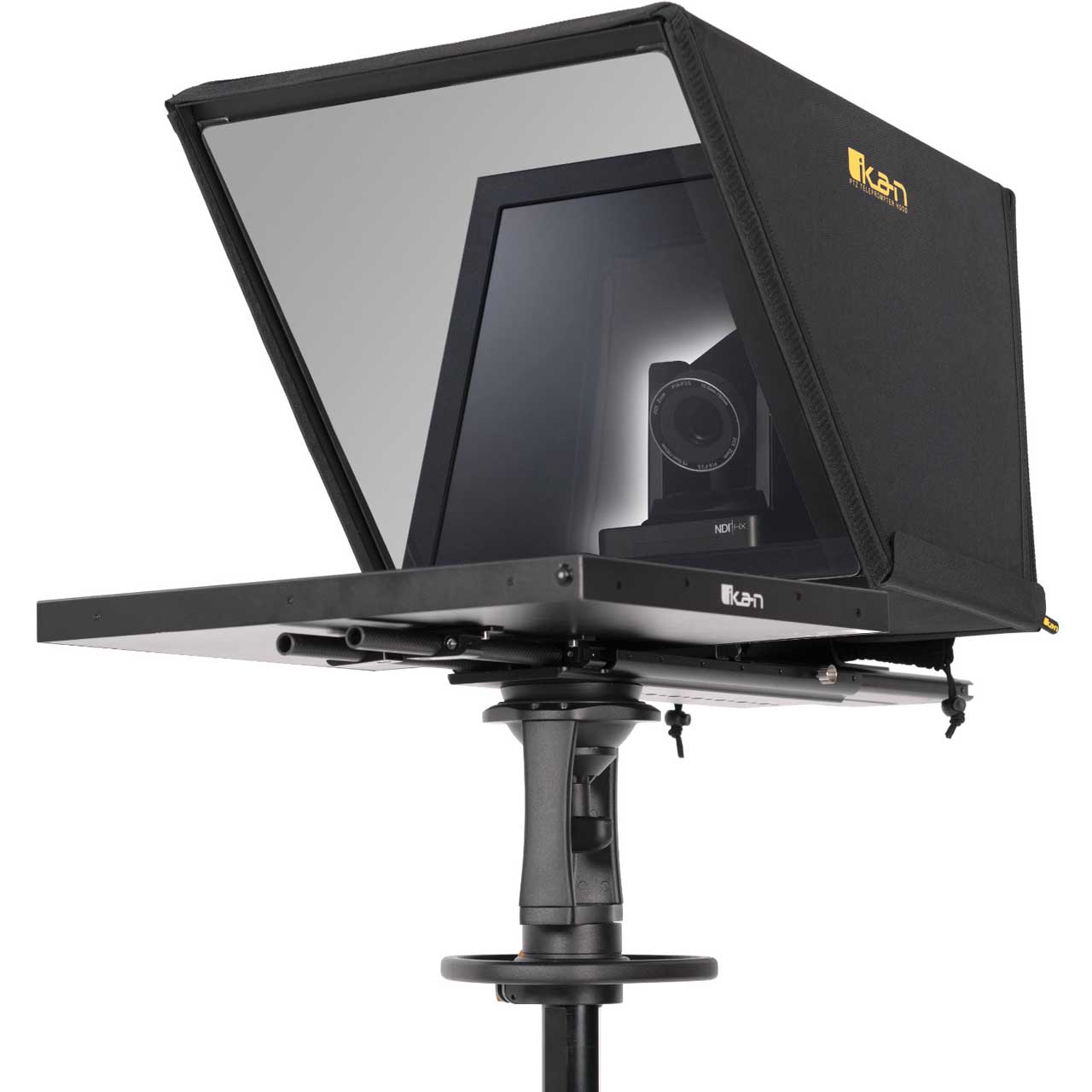

    The ikan PT4900-PTZ-TM-OTTICA 19" PTZ Teleprompter from Ikan is a professional solution for teleprompting with PTZ cameras. The package provides an extra-wide hood assembly to allow considerable movement of the camera within the wide beam splitter glass. The PTZ Teleprompter features a 19" 1000 cd/m² monitor, 70/30 20"-wide beamsplitter glass, and a 25' reading range. The teleprompter is designed for use with a wide range of PTZ cameras, as the wide beamsplitter provides for a wide amount of left-right panning. The teleprompter includes a base system that can be easily shifted forward and backwards, which enables mounting the camera to the prompter without requiring counterweights.

    Widescreen Talent Monitor
    The PT4900-PTZ-TM Talent Monitor includes a 19-inch widescreen 3G-SDI Talent Monitor. A new mounting system enables conveniently attaching the monitor right below the teleprompter to let on-camera talent see their presentations live. The monitor features 3D-SDI, HDMI, and VGA, inputs. The native resolution is 1920 x 1080 HD and max brightness is 1000 nits. The OSD adjustment menu allows adjustment for contrast, brightness, backlight, tint, chroma, sharpness. You can also adjust the intensity of each RGB color channel. Aspect ratio can be set as 16:9, 4:3, full, or it can be set to automatically detect the aspect ratio and set it accordingly. When plugged into a compatible video switcher, the talent monitor utilizes a red/green tally light that lets you know when your camera is live.

    • Features:

      • Includes Teleprompter, Talent Monitor, and PTZ Camera
      • 19-Inch Teleprompter Designed for PTZ Cameras
      • Hood Completely Encloses PTZ Camera Allowing it to Move Freely
      • Includes 1000-Nit High-bright Monitor
      • Compatible with Most PTZ Cameras
      • Multiple People Can Read Script Simultaneously
      • Heavy-Duty Aluminum Chassis Monitor
      • HDMI, VGA, and Composite

    • Specifications:

      • 19" Teleprompter
      • Riser Plate Height: Low: 2.06"/Medium: 3.74"/High: 5.31"/DSLR: 6.29"
      • Length of Rods: 0.59 x 15.74"
      • Build Material: Chassis: Anodized Aluminum/Rods: Carbon Fiber
      • Reading Range: 25'
      • Beamsplitter Ratio: 70/30
      • Shape: Rectangular
      • Material: Glass
      • Tripod Mounts: 11 x 1/4" -20 Female/9 x 3/8" -16 Female
      • Height of Teleprompter: 16"

        19" Teleprompter Monitor
      • Aspect Ratio: 4:3
      • Maximum Brightness: 1000 cd/m2
      • Screen Size (Diagonal): 18.5"
      • Mount: VESA 3.94"
      • Video Inputs: AV COMPOSITE, HDMI, VGA
      • Input Voltage: DC 12v / 4A
      • Power Consumption: 21W
      • Product Weight: 6Lbs
      • Product Dimensions: 17 x 15 x 1"
      • Native Resolution: 1280 x 1024
      • Viewing Angle: 160° (H) / 170° (V)
      • Build Material: Aluminum Chassis
      • Image Flip: Horizontal: Yes/Vertical: Yes

        19" Widescreen Talent Monitor
      • Aspect Ratio: 16:9
      • Maximum Brightness: 1000 cd/m2
      • Screen Size (Diagonal): 18.5"
      • Mount: VESA 100mm
      • Video Inputs: SDI, HDMI, VGA
      • Input Voltage: DC 12v / 5A
      • Power Consumption: 36W
      • Product Weight: 5.73 lbs.
      • Product Dimensions: 18.3 x 12.3 x 1.2""
      • Native Resolution: 1920 x 1080
      • Viewing Angle: 178° (H) / 178° (V)
      • Build Material: Aluminum Chassis
      • Image Flip: Horizontal: Yes/Vertical: Yes
      • Tally Interface: RJ45

        PTZ Camera
      • AV: F1.6 - F3.5
      • Aspect Ratio: 16:9
      • Audio Compression Format: AAC/MP3/G.711A
      • Audio Input Interface: A-IN: Double Track 3.5mm Linear Input
      • Audio Output: Yes
      • Auxiliary Power: Yes
      • Base Connection Type: 1/4"-20 Screw Mount
      • BLC: ON/OFF
      • Communication BPS: 2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 115200bps
      • Control Interface: RS232 (input & output), RS485
      • Control Protocol: IP VISCA, VISCA, PELCO-D, PELCO-P, ONVIF; Baud Rate:115200/9600/4800/2400bps
      • Digital Resolution: 1920x1080p
      • Digital Noise Reduction: 2D & 3D DNR
      • Effective Pixels: 16: 9, 2.07 megapixel
      • Focusing: Input Audio Format
      • Input Audio Format: 1/8"
      • Input Current: 1A (Maximum)
      • Input Voltage: DC12V±10%
      • Inputs: 1/8" Audio, RS-232 Cascade, DC12V
      • Interface: 3G-SDI, HDMI, LAN(NDI), RS232 (In & Out), RS485, A-IN
      • Modulation Mode: OFDM
      • Motor Type: Step-Driving Motor Mechanism
      • Network Protocol: RTSP, RTMP, ONVIF, NDI|HX (Optional), Network VISCA Control Protocol, Support Remote Upgrade, Reboot and Reset
      • Signal to Noise Ratio: >55dB
      • Optical Zoom: 20x f=5.5-110mm
      • Output Interface: HDMI, 3G-SDI, LAN (NDI|HX)
      • Video Format: LAN (NDI|HX), HDMI, 3G-SDI, 1080p60, H.264, H.265
      • Voltage: DC12V
      • Outputs: RS-232, RS485, 3G-SDI, HDMI, NDI|HX
      • Pan Control Speed: 0.1 -60°/sec - Rotation: ±170°
      • Port Network: RJ45
      • Power Adapter: Input: AC110V-AC220V. Output: DC12V/1.5A
      • Consumption: 12W (Max) / CONTROLLER: 0.6 W (Max)
      • Interface: HEC3800 Outlet (DC12V), 2-pin Waterproof Aerial Socket (RF Model)
      • Supply: DC12V±10%
      • Preset Number: 255 presets (10 presets by Remote Controller)
      • Preset Speed: Pan: 60°/sec, Tilt: 30°/sec
      • Remote Control: IR Remote Included
      • Resolution: 1080p 60fp
      • Sensor: 1/2.8" HD CMOS sensor
      • Serial Port: RS422, RS232
      • Storage Temperature: 14° to 140°F - Humidity: 20 to 95%
      • Tilt Control Speed: 0.1-30°/sec
      • Tilt Rotation: 30° to 90°
      • Video Compression Format: H.264, H.265
      • Viewing Angle: 3.3° to 54.7°
      • Voltage: DC12V
      • White Balance: Auto / Manual/ One Push/2400K - 7100K
      • Working Temperature: 14° to 122°F - Humidity: 20 to 80%

        Supported Video Signal:
      • HDMI: 720x480i & 720x480p @ 59.94, 60 Hz, 720x576i & 720x576p @ 50 Hz, 1280x720p @ 50, 59.94, 60 Hz, 1280x1024 (Native)@ 50, 59.94, 60 Hz, 1920x1080i @ 50, 59.94, 60 Hz, 1920x1080psf @ 24, 25, 29.97, 30 Hz, 1920x1080p @ 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 Hz

    • Item Includes:

      • 1x Bottom Plate
      • 1x Base
      • 1x Glass Frame Holder Bracket
      • 1x 19" 70/30 Teleprompter Glass
      • 1x Hood Attachment Frame
      • 1x Glass Holder
      • 2x 15mm Rod & Clamps
      • 1x 19 " Teleprompter Monitor
      • 1x AC Adapter with Cord
      • 1x Teleprompter Glass
      • 1x PrompterPro Software (FREE with this teleprompter)
      • 1x PTZ Teleprompter Hood & Riser
      • 1x 50-Degree Glass Frame Holder Bracket
      • 1x 1/4-20 Screw (Long & Short)
      • 1x OTTICA PTZ Camera
      • 1x Lens Cap
      • 1x Power Adapter
      • 1x RS232 Cable
      • 1x IR Remote Controller
      • 1x Wall Mounting Bracket
      • 1x Mounting Screws
      • 1x RS485 Connector
      • 1x Cascade Cable
      • 1x 19" SDI 16:9 Teleprompter Monitor w/ Tally
      • 1x Talent Monitor Mount & Attachment
      • 1x Rod Clamp with screws

    • GTIN:

      0847983034444
