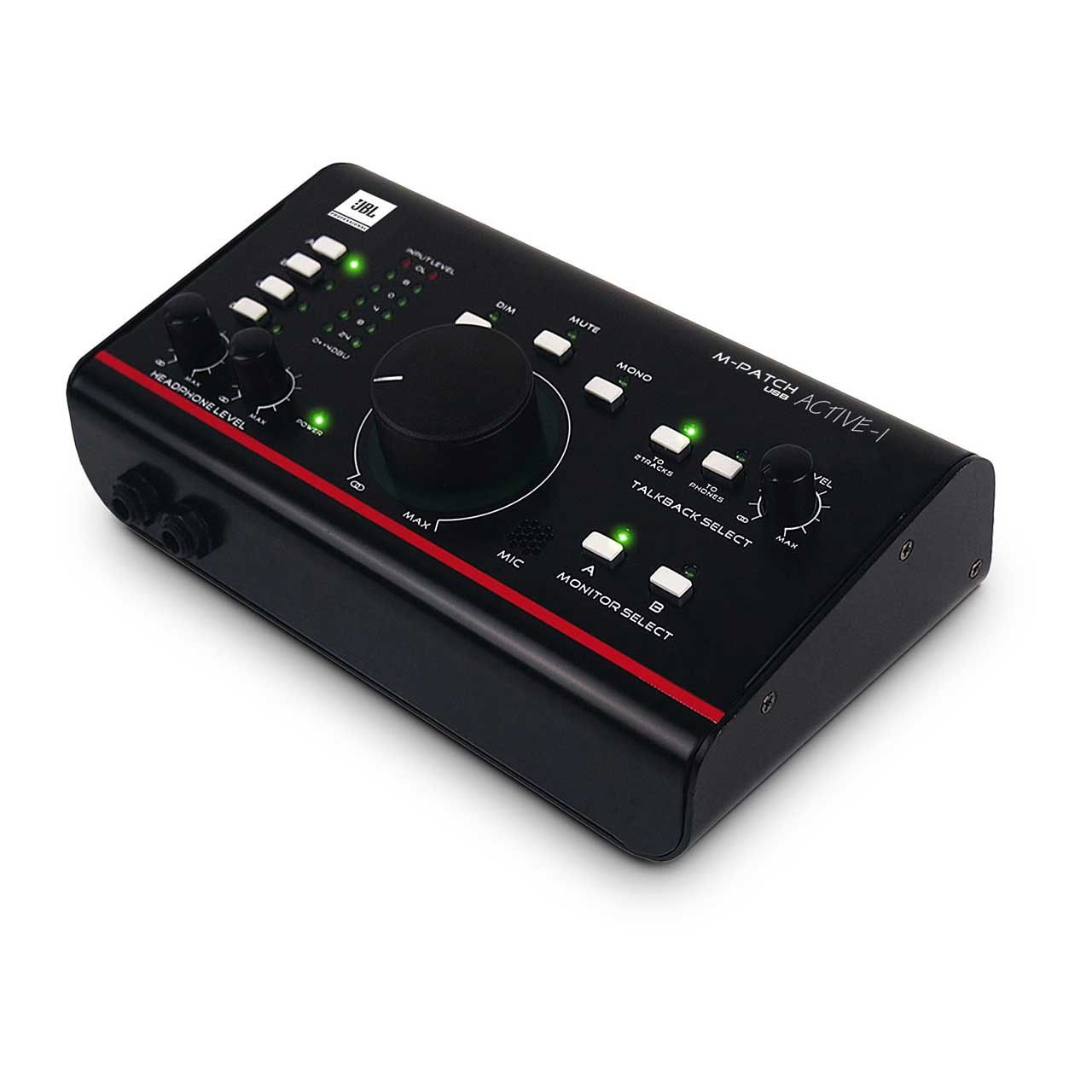

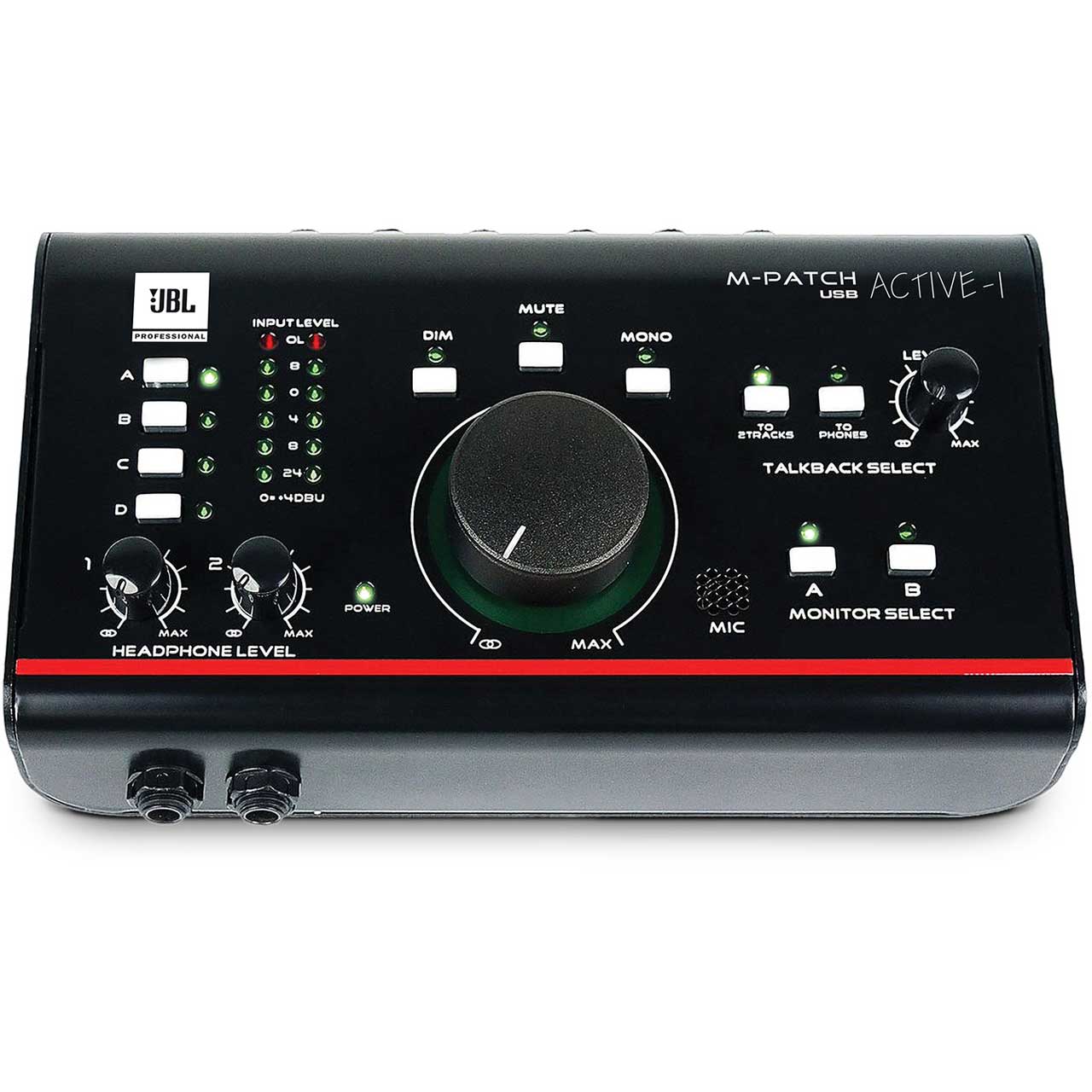

The M-PATCH ACTIVE-1 accommodates four input sources (3 x stereo analog and 1 x USB) and three stereo analog outputs plus USB. In addition to the core functionality of providing seamless A/B switching between input signals and output speaker monitor systems, the ACTIVE-1 delivers a full complement of audio monitoring functions, including precision volume control, mono summing, mute, and dim (ducking). A handy footswitch-activated talk-back function, complete with on-board condenser microphone and selectable routing, has also been integrated, making the ACTIVE-1 the ideal low-cost solution for a broad range of studio production applications.
Designed to provide the lowest-noise operation possible in an active monitor controller, the ACTIVE-1 is ideal for applications where both signal attenuation and boost is needed. In addition to the feature complement found on the PASSIVE-1, the ACTIVE-1 also includes LED level metering and convenient switch-selectable +4dBu/-10dBV input stage operation.
The ACTIVE-1 features on-board USB, allowing for direct digital audio recording and playback when used with a computer DAW. The USB output mirrors the signals appearing at the analog 2 Track outputs, while the computer's L/R output feeds the USB in.
Housed in a sturdy metal chassis and fitted with a durable array of switches and secure connectors, the ACTIVE-1 is built to provide years of worry-free operation.
