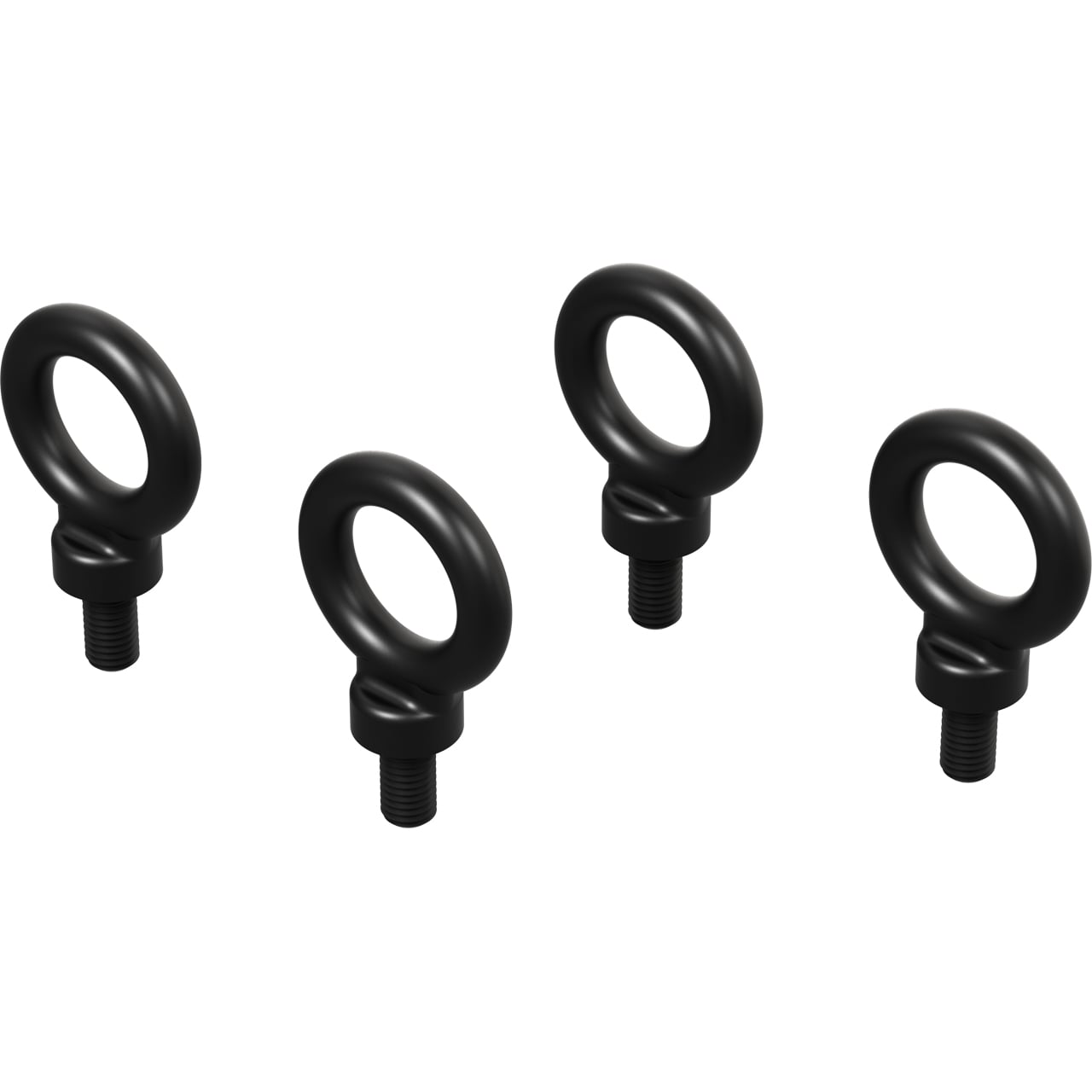

JBL Professional EBK4 M10-20 Universal M10 Eyebolt Kit

JBL-P3417MX - Overview

• Features:

  • Universal eyebolt kit
  • Compatible with QuickLink fitted products
  • Threads: M10
  • Shank length: 0.8" (20mm)
  • Includes 4x eyebolts and 4x washers


• Specifications:

  • Construction:
    - Eye bolt: Forged carbon steel
    - Washer: Stainless steel
  • Thread Type: M10 x 1.5
  • Shank Length: 0.8" (20mm)
  • Eyelet Opening: 1" (24mm)
  • Working Load Limit (WLL): 0° = 507lbs (230kg), 45° = 334lbs (170kg) | 90° = 253lbs (115kg)
  • Safety Factor: (10:1)
  • Dimensions (HWD): 2.5" (63mm) x 1.7" (44mm) x 1.0" (25mm)
  • Net Weight: 1.0lbs (0.4kg)
  • Shipping Weight: 1.1lbs (0.5kg)


• Item Includes:

  • 4x M10 Eyebolts
  • 4x Washers


• Warranty:

  • 5 Year Limited Warranty
