JBL SRX906LA AF Array Frame for SRX906LA - Support for up to 16 SRX906LA Cabinets

ITEM #: JBL-SRX906LA-AF MFG #: SRX906LA AF

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

Our Price:

$800.00

Availability: Direct Ship from manufacturer, contact us for availability
iAvailability Description Popup


    SRX906LA AF - Overview

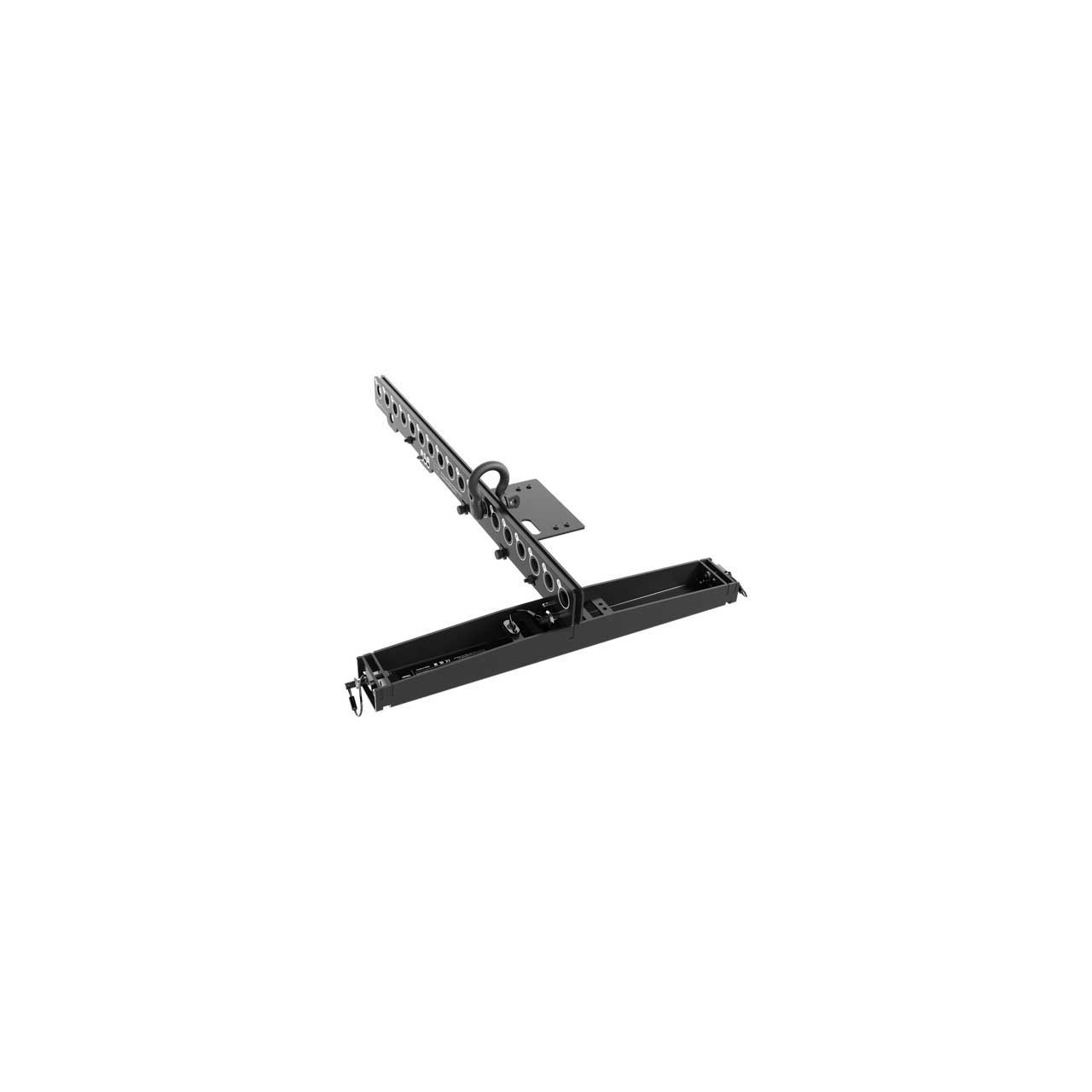

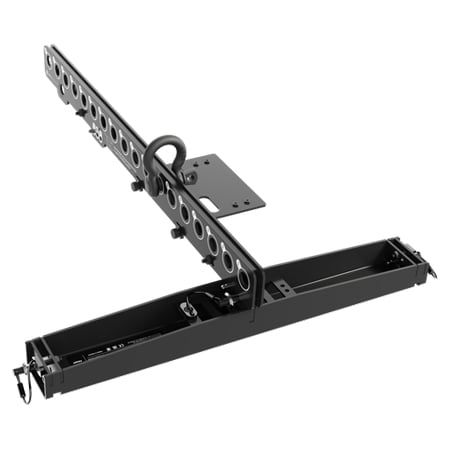

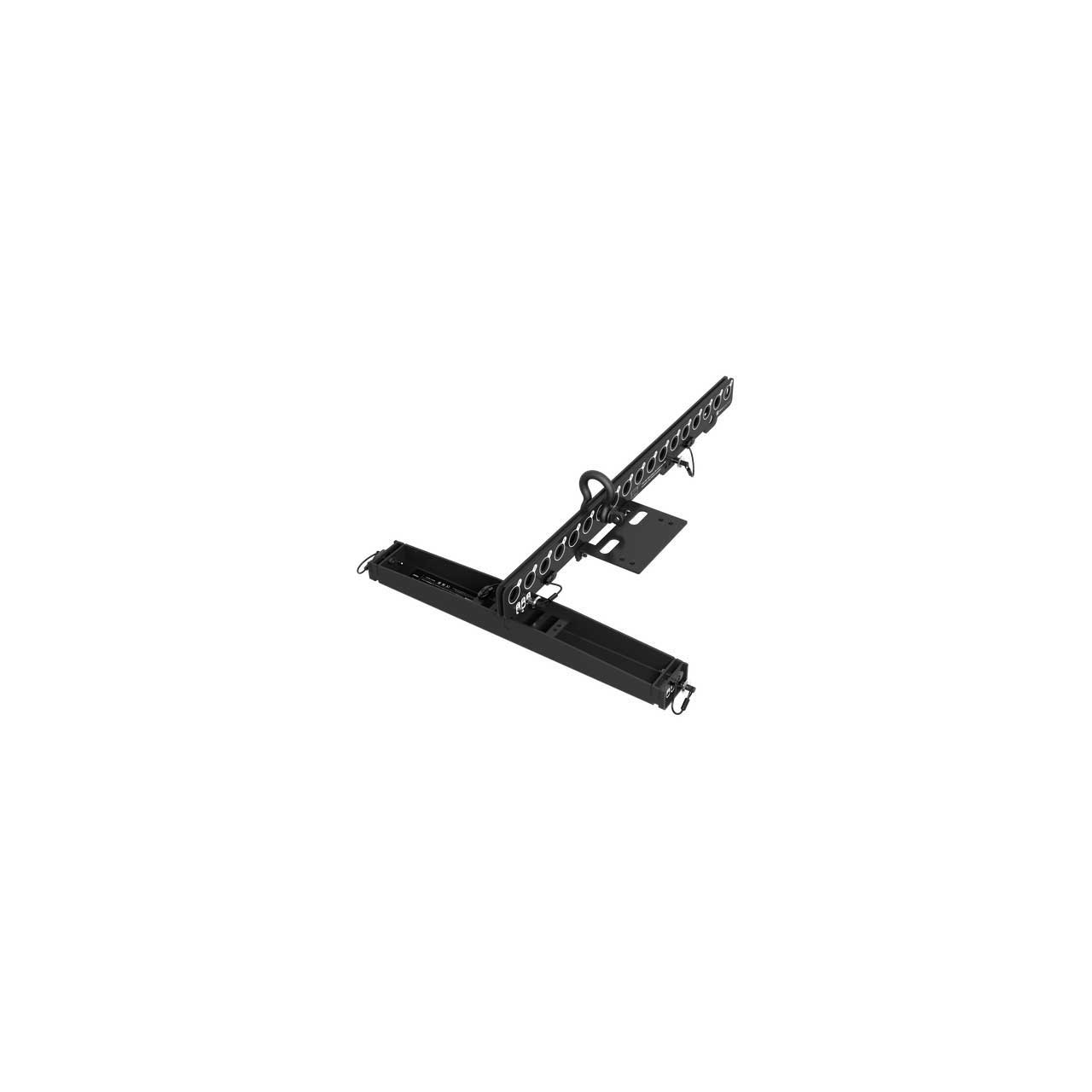

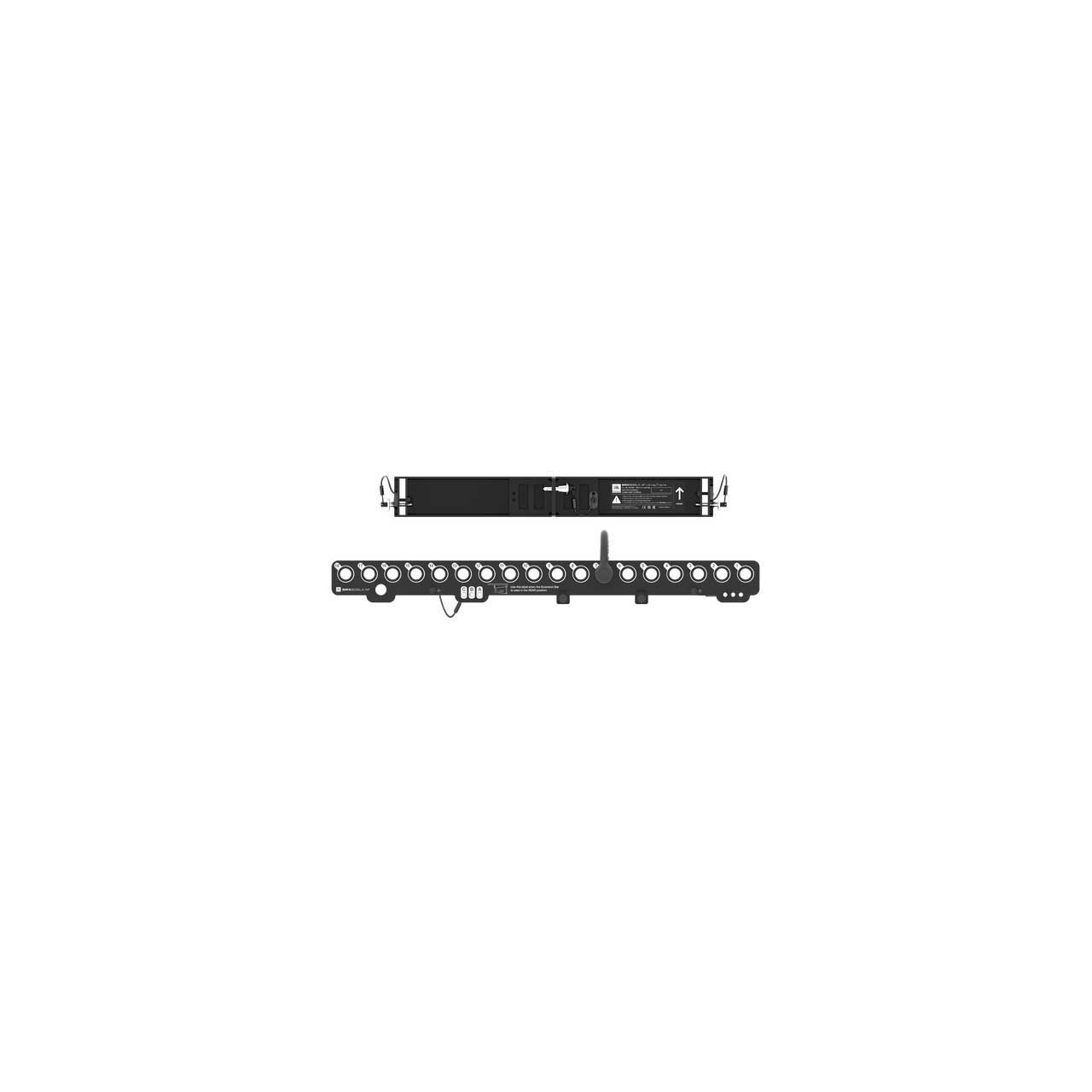

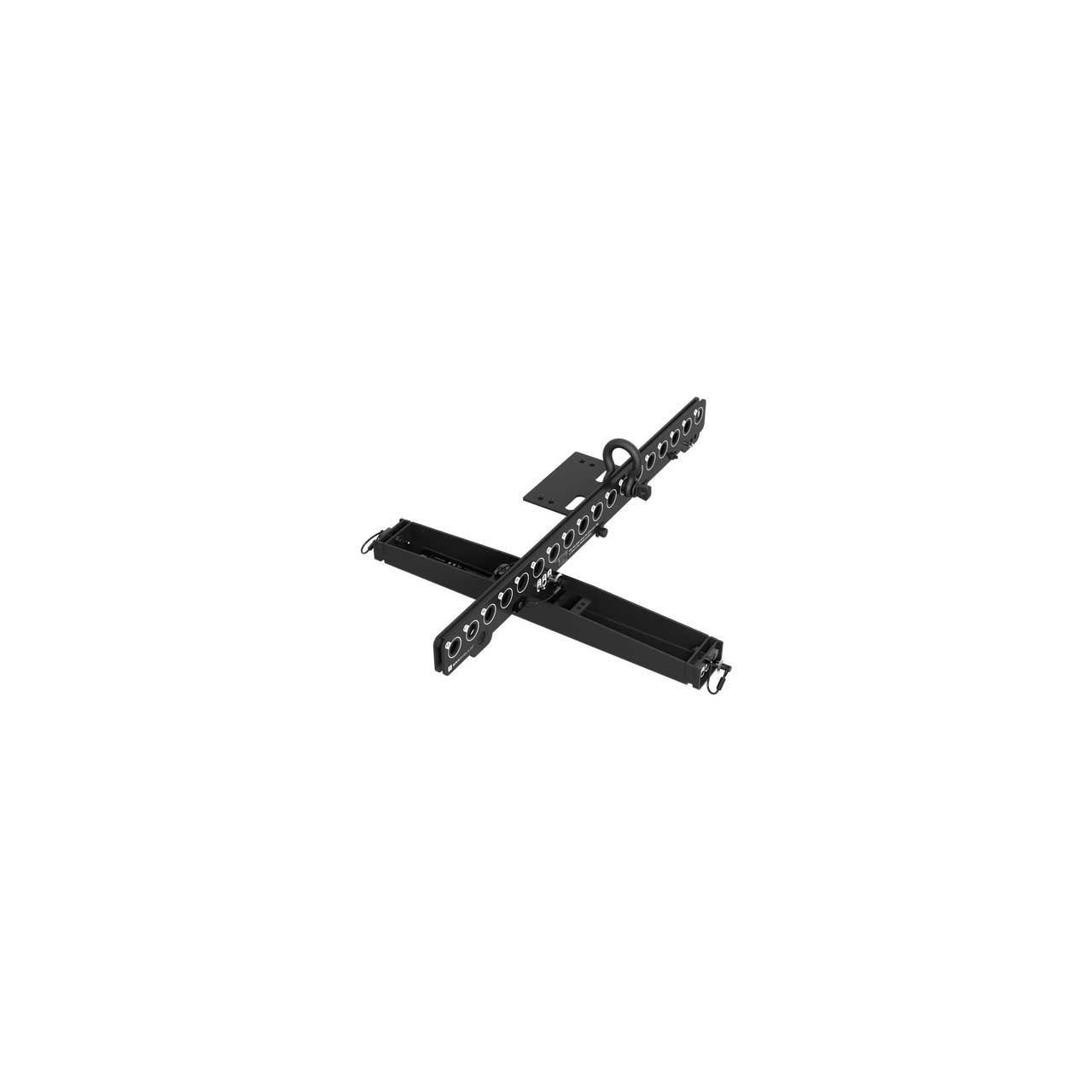

    The JBL SRX906LA AF is a lightweight and compact array frame for suspending SRX906LA arrays. The array frame was designed to work with single-point and front-back suspension methods. For single-point applications, the array frame can be used in conjunction with the VTX RC500 rotating clamp, allowing smaller SRX906LA arrays to be suspended from standard size trusses or pipes. The two-piece design is comprised of one extension bar and one spreader bar. The extension bar can extend to the front or rear of the frame to accommodate both uptilt and downtilt aiming options. Three connection points are available for attaching the extension bar to the spreader bar, allowing for precise control of shackle positioning for single-point applications. Support for third-party inclinometers is available using the included laser attachment bracket. The two parts can be collapsed easy for storage. For more information about the array frame and use cases, refer to the SRX900 Series Rigging Manual.

    SRX906LA AF - Required Accessories

      SRX906LA AF - Recommended Accessories
