JBL SRX922 3-Way Dual 1-Inch Powered Point-Source Speaker - 90 x 60

ITEM #: JBL-SRX922 MFG #: JBL-P3364MX

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$3,600.00

Our Price:

$2,499.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Shipped truck freight.


JBL-P3364MX - Overview

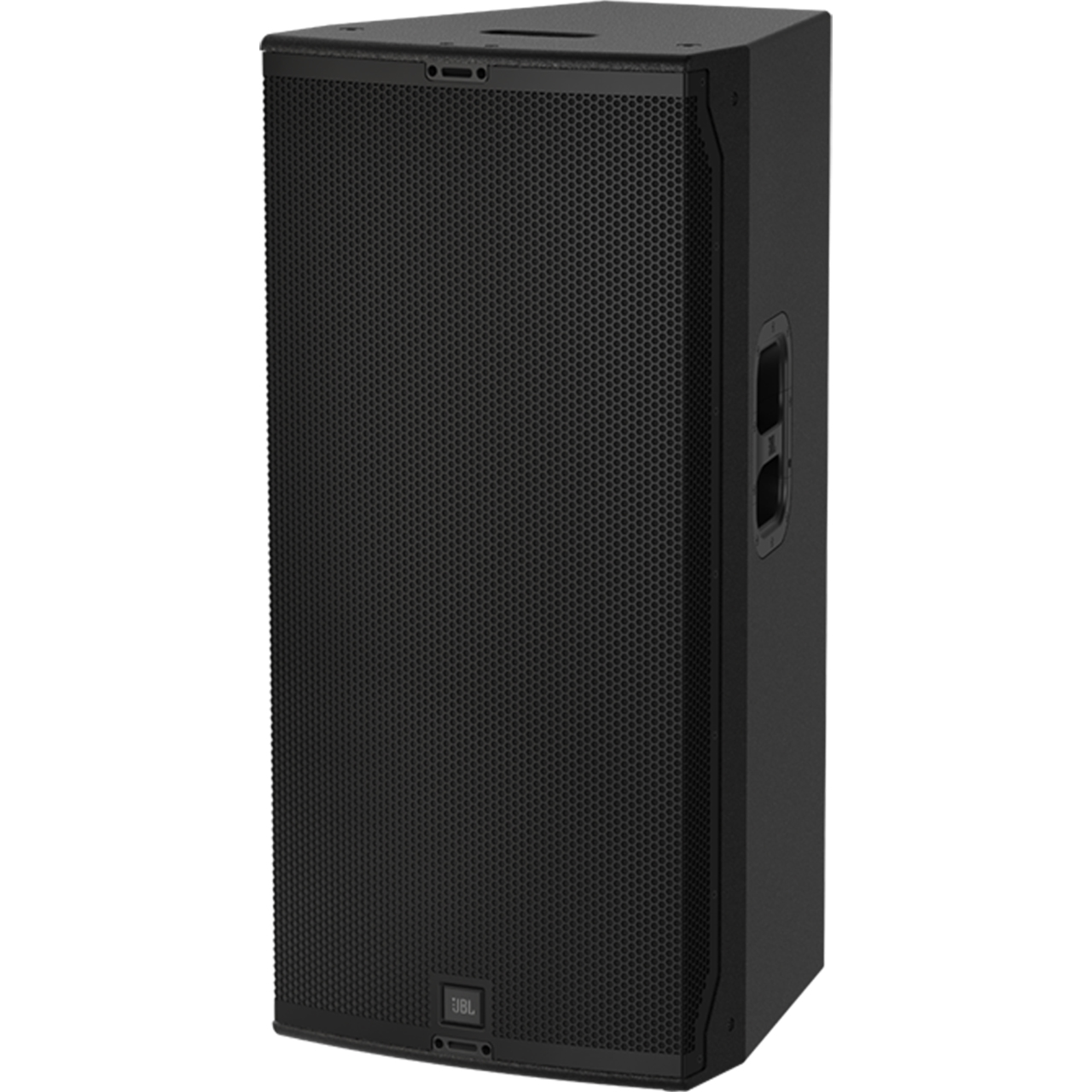

The JBL SRX922 is a compact, acoustically 3-way, dual 12" powered point-source loudspeaker engineered for applications requiring high output and precise directivity control from a trapezoidal full-range enclosure. It is an ideal choice for high-output mains systems, side-fills, or as a high-performance point-source element within larger SRX900 deployments. The system delivers an exceptional output-to-weight ratio thanks to its innovative acoustic design, with dual LF woofers providing higher output than traditional 15" 3-way systems in a significantly more compact enclosure. Multiple M10 QuickLink suspension points support fast, secure integration with a variety of dedicated accessories for touring and installed applications. Integrated DSP and amplification provide a true plug-and-play experience, ensuring consistent, optimized performance anywhere in the world. A full-featured software suite provides comprehensive control and monitoring across Windows, macOS, and iPadOS platforms.

  • Features:

    • Includes dual 12" LF woofers, a 6.5" horn-loaded MF driver, and a 1.5" annular-diaphragm compression driver
    • Symmetrically-arranged dual LF section provides double the low-frequency headroom of traditional single-woofer designs
    • Dipole configuration delivers enhanced vertical directivity control
    • Horn-loaded MF section enables LF drivers to operate in their most efficient and controlled bandwidth
    • Dual 90° x 60° Progressive Transition waveguides provide smooth, predictable coverage
    • 4 large, flared ports extend low-frequency response down to 50Hz
    • 80Hz high-pass preset available for applications using SRX900 subwoofers
    • Voicing and phase response carefully optimized to match SRX900 line-source products
    • Integrated amplification delivers plug-and-play operation

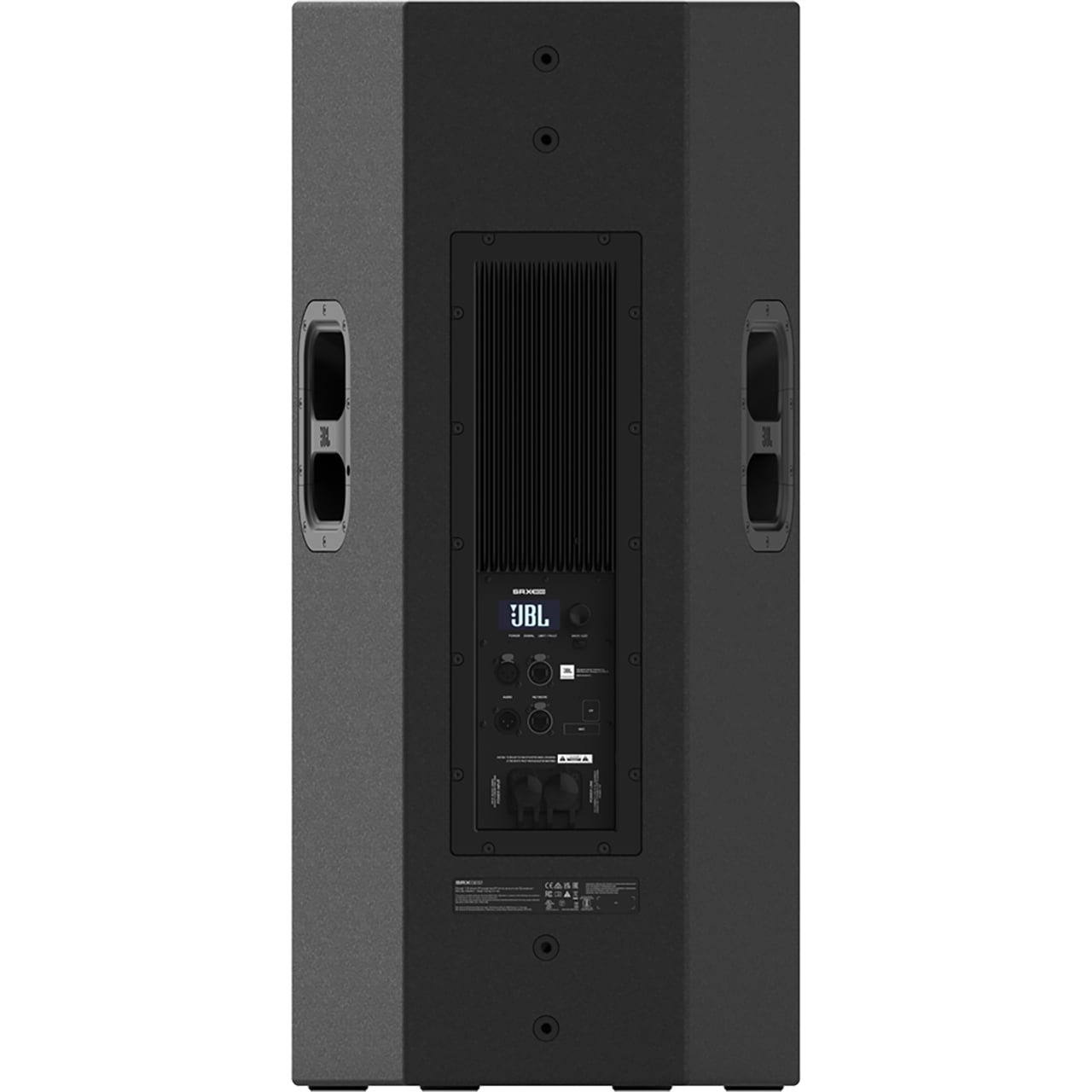

    • Rear LCD enables fast configuration
    • DSP includes 24 user-adjustable filters, 2,000ms delay, and essential loudspeaker management tools

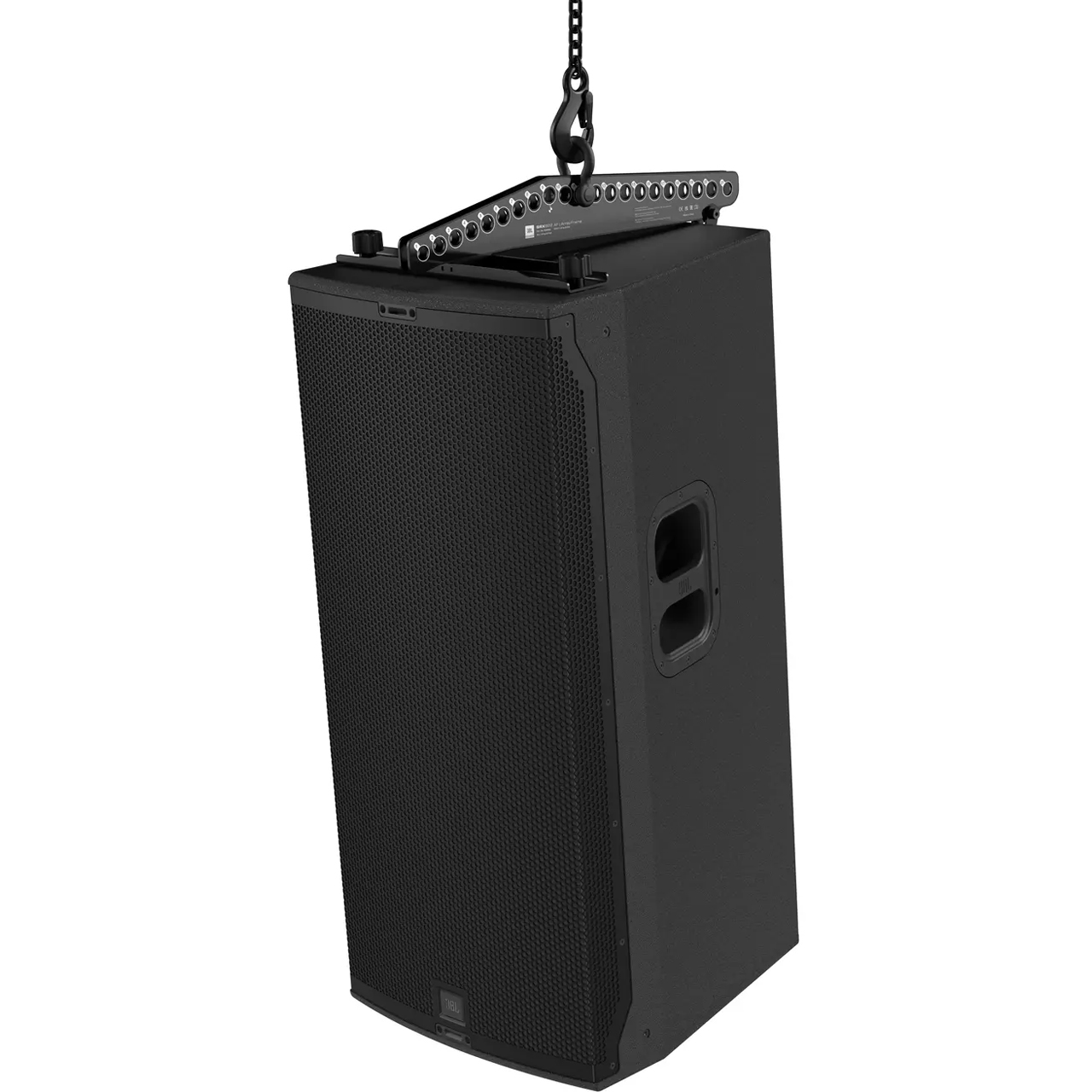

    • Eight M10 Quick-Link attachment points are provided for suspension using standard M10 eye bolts
    • Constructed from outdoor-grade Baltic birch plywood for excellent durability

  • Specifications:

      Acoustical
    • Frequency Range:
      - (-10dB): 40Hz - 17.5kHz
      - (-3dB): 48Hz - 17kHz
    • Coverage Pattern (-6dB):
      - Horizontal: 90° nominal
      - Vertical: 60° nominal
      - Rotatable: No
    • Maximum Peak Output: 138dB SPL
    • System Type: Point-source, acoustically three-way, bi-amplified, powered

      Transducers
    • Low Frequency: 2x JBL 2273G, 12" diameter, dual 3.0" diameter voice coil, ferrite Differential Drive
    • Mid Frequency: 1x JBL 196H-1, 6.0" diameter, 1.5" diameter voice coil, ferrite
    • High Frequency: 1x JBL 2408H-1, 1" exit neodymium compression driver with 1.5" voice coil

      Audio Input
    • Input Type: Balanced line level
    • Connectors: 2x Neutrik XLR (IN/OUT)
    • Nominal Input Sensitivity: +5dBu
    • Maximum Input Level: +21dBu
    • Input Impedance: 100kΩ

      Amplifier
    • Type: Class-D
    • Number of Channels: 2x
    • Continuous Power: 1100W (LF: 550W, MHF: 550W)
    • Peak Power: 1600 Watts (LF: 800W, MHF: 800W)
    • Cooling Type: Convection, external aluminum heat sink, internal on-demand fan

      DSP
    • Sample Rate: 48kHz
    • Bit Depth: 24 bit

      User Interface
    • Type: LCD, encoder, Back button, 4x LED Indicators (3x single color, 1x bi-color)

      Networking
    • Type: TCP/IP
    • Protocol: Harman HControl
    • Speed: Dual 100Mbps ports
    • Connectors: 2x Neutrik etherCON

      AC Power
    • Voltage Range:
      - Nominal: 100V - 240 VAC, 50/60Hz
      - Limits: 80V - 260 VAC, 50/60Hz
    • Connectors: Dual (IN/OUT) Neutrik powerCON TRUE1

      Current Draw
    • Standby:
      - 100V: 0.2A
      - 120V: 0.2A
      - 208V: 0.2A
      - 240V: 0.2A
    • Idle:
      - 100V: 0.3A
      - 120V: 0.3A
      - 208V: 0.2A
      - 240V: 0.2A
    • Continuous:
      - 100V: 3.7A
      - 120V: 3.0A
      - 208V: 1.7A
      - 240V: 1.5A
    • Maximum Instantaneous Peak:
      - 100V: 21.7A
      - 120V: 19.8A
      - 208V: 8.5A
      - 240V: 7.4A
    • Peak Inrush:
      - 100V: 2.6A
      - 120V: 3.1A
      - 208V: 5.2A
      - 240V: 6.0A

      Physical
    • Enclosure: Exterior grade birch plywood, DuraFlex finish, 2x integral handholds, 2x integral recessed handles
    • Color: Black, RAL9005
    • Environmental:
      - IP54: IEC 60529
      - ASTM: B11710
      - ASTM: G15510
    • Suspension: 8x JBL QuickLink M10 points

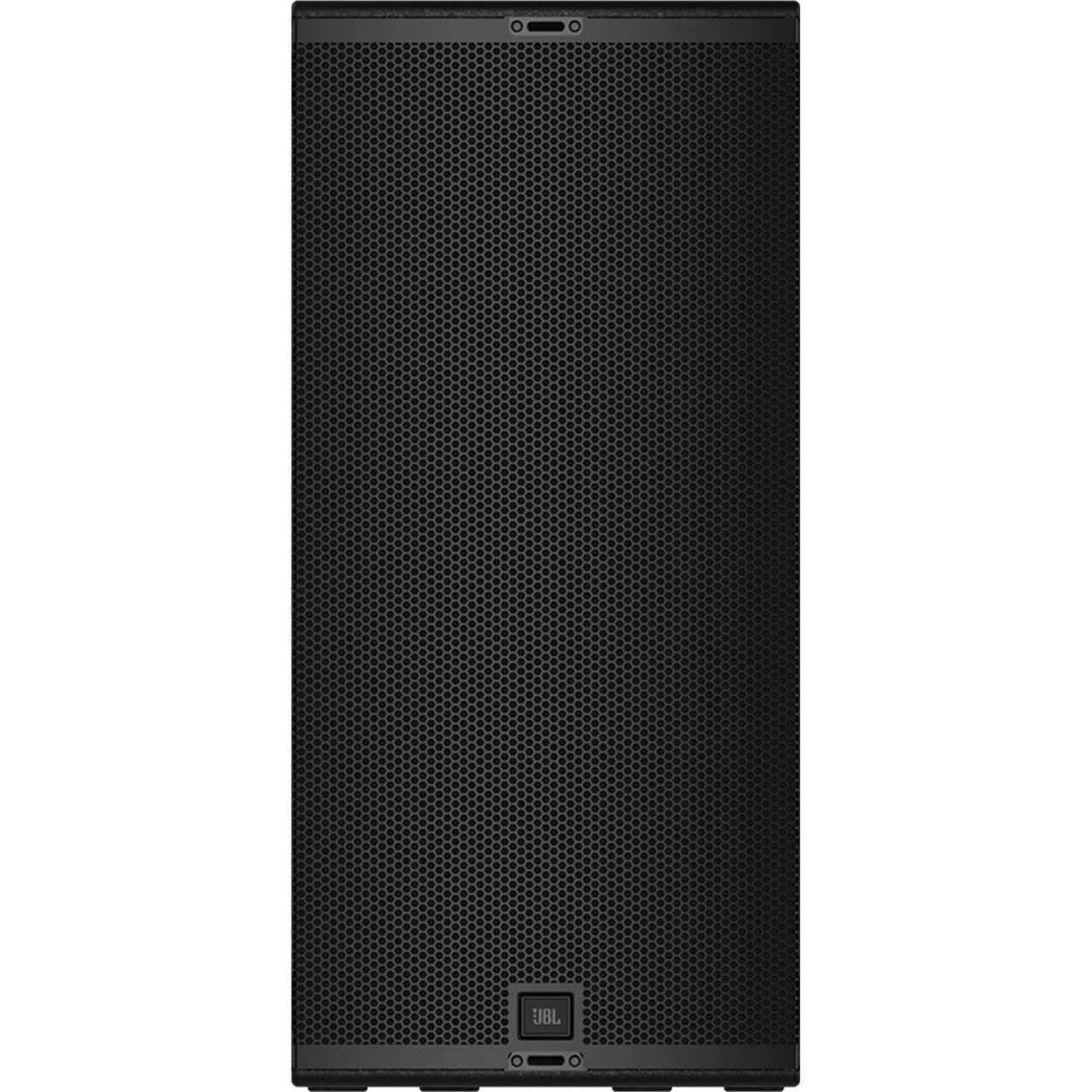

    • Grille: Powder coated 1.5mm (16 gauge) hex perforated steel with acoustically transparent black cloth backing
    • Dimensions (HxWxD): 37.2" x 17.3" x 19.9" (944mm x 440mm x 505mm)
    • Net Weight: 100lbs (45.5kg)
    • Shipping Weight: 117lbs (53.2kg)

  • Item Includes:

    • 1x SRX922
    • 1x Neutrik NAC3F-TRUE1-S
    • 1x Neutrik NAC3M-TRUE1-S

  • Warranty:

    • 5 Year Limited Warranty
