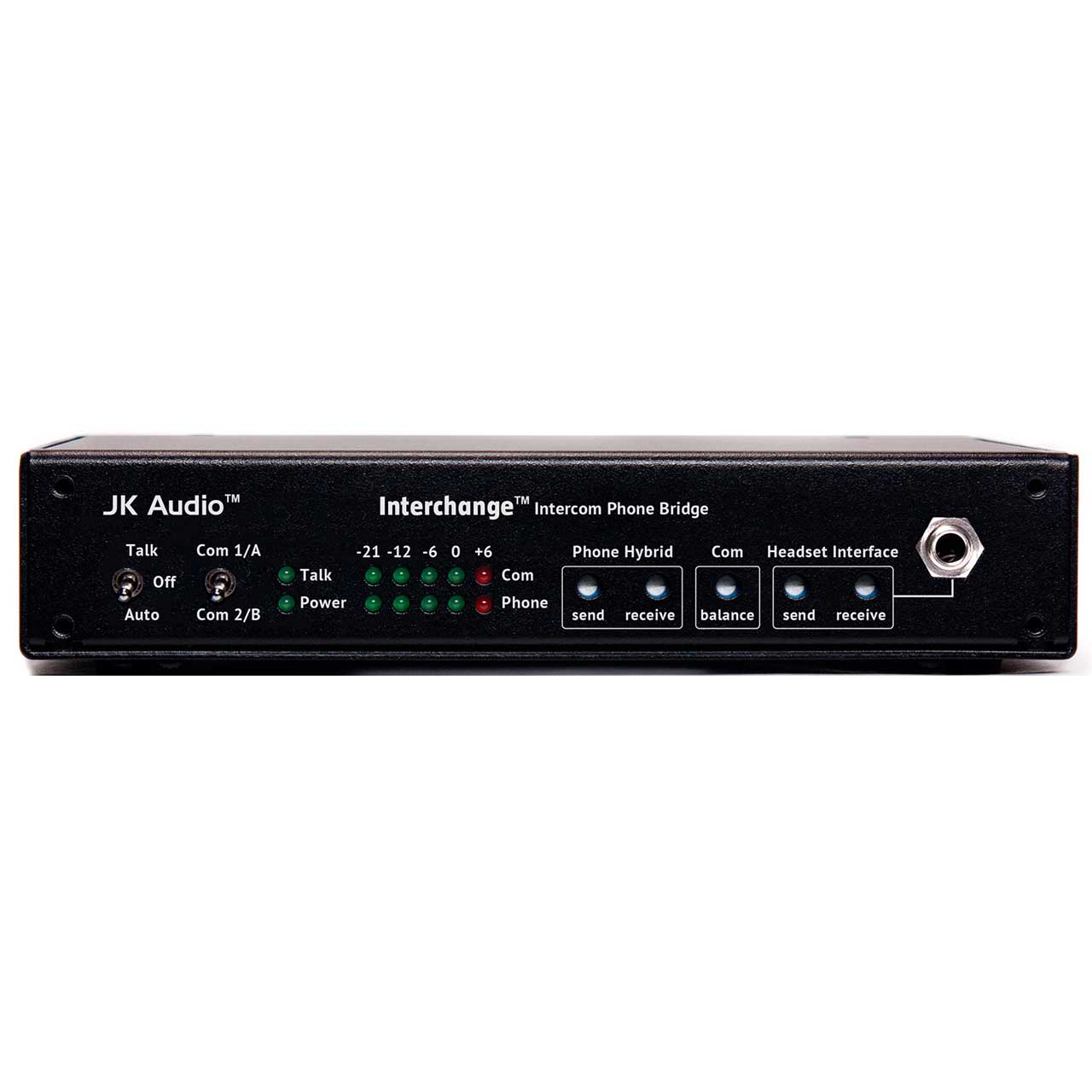

JK Audio Interchange Intercom Phone Bridge with HD Voice
  • JK Audio Interchange Intercom Phone Bridge with HD Voice
  • JK Audio Interchange Intercom Phone Bridge with HD Voice

Questions? Ask a Markertek Expert:
800-522-2025 Email

JK Audio Interchange Intercom Phone Bridge with HD Voice

Manufacturer: JK Audio

Item #: JK-INTCHG   •   MFG #: INTCHG



List Price:$840.00
Our Price:$798.00

free ship


Availability:
More on the way, usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The JK Audio Interchange allows remote access to your party-line intercom through JK Audio Innkeeper Series Digital Hybrids. This professional half rack interface provides a four wire audio interface and remote control connection for JK Audio innkeeper LTD, innkeeper 1x/1rx, or innkeeper 2 Digital Hybrids for POTS lines, or JK Audio AutoHybrid IP2 for VoIP lines. The front panel headset interface jack allows easy connection of your mobile phone, tablet, or computer allowing remote access through a wireless phone or conferencing app.

    Listen-Always Design
    The Listen-Always design allows both the phone hybrid / 4-wire connection and the mobile phone headset interface to monitor the intercom just like any other belt pack. Listen mode is a high impedance bridging tap on the intercom line. Talk mode is enabled via a front panel switch, either Off, On, or Auto. Auto follows the phone hybrid Auto-Answer mode.

    Conference
    The Innkeeper 2 or AutoHybrid IP2 conference feature allows two callers to share one intercom connection. Alternatively, the included cables allow Line 1 and Line 2 of the Innkeeper 2 or AutoHybrid IP2 to be connected to two separate Interchange units, allowing connection to separate intercom loops.


    • Features

      • HD Voice Compatible (7 kHz Wide-Band Speech)

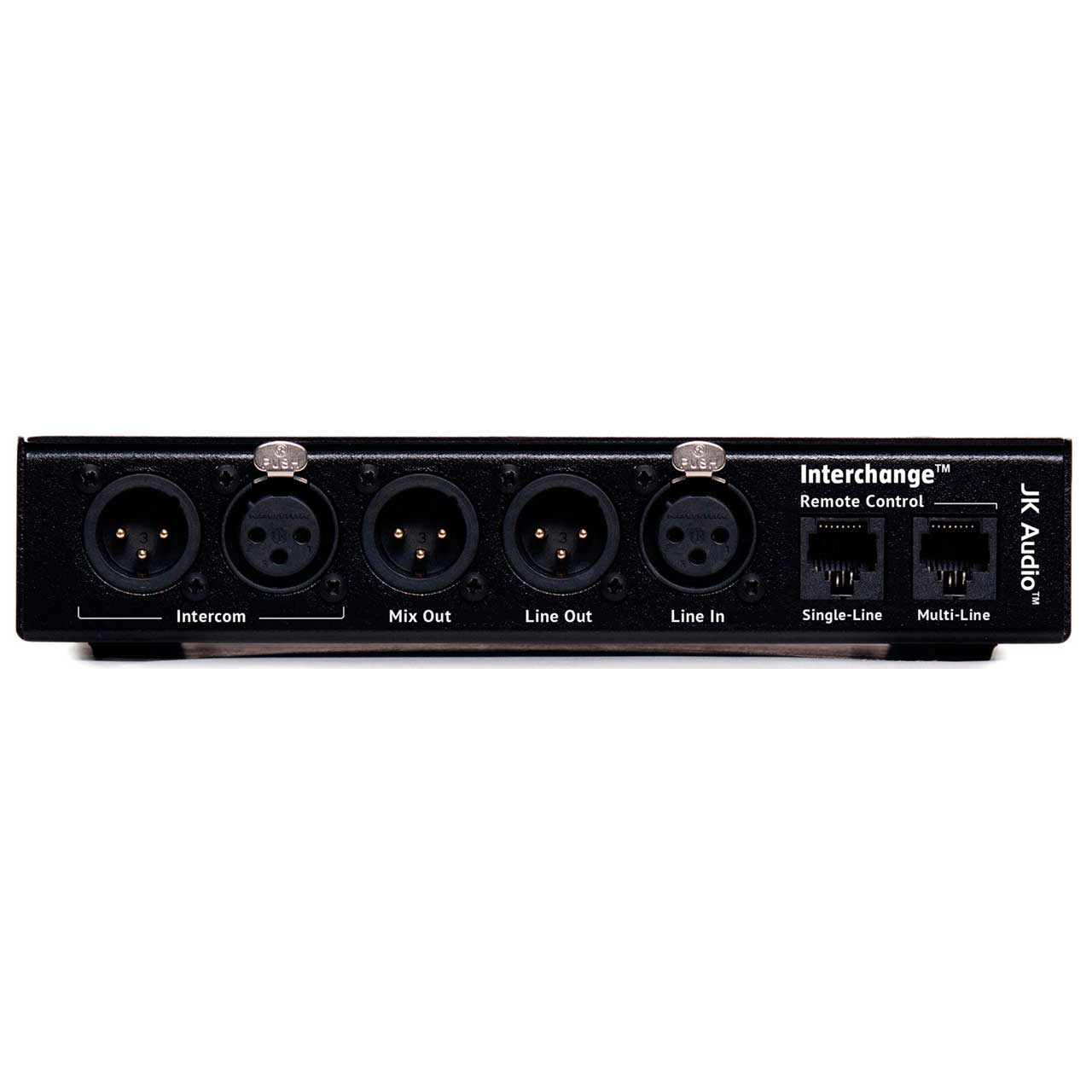

      • Male and Female 3 Pin XLR Intercom Loop Jacks
      • Male and Female 3-pin XLR 4-Wire Jacks
      • Male XLR Mix Line Out for Monitoring
      • Send and Receive LED Metering
      • Front Panel Screwdriver Level Controls
      • Front Panel Channel Select
      • Front Panel Cell Phone Interface
      • Listen Always, Talk when Talk-Enabled
      • Intercom Powered
      • Rack Mountable
      • Made in America
      • Approved for Sale in Europe

    • Specifications

      • Intercom Channel
      • Connection: Male & Female 3-pin XLR
      • Output Level: 0 dBu ( 775 mV ) nominal
      • Terminating Impedance: 200 ohms
      • Bridging Impedance: >15k ohms
      • Pin 1: Common
      • Pin 2: Audio + 30 VDC ( +12 VDC min ) 50 mA
      • Pin 3: Audio
      • Input
      • Balanced Female XLR:
      • 20k ohms /
      • 500 mV RMS (-4 dBu nom) +12 dBu max
      • Output
      • Balanced Male XLR:
      • 200 ohms /
      • 500 mV RMS (-4 dBu nom) +12 dBu max
      • Size: 7.6” x 5.3” x 1.5” (20 x 14 x 4 cm)
      • Weight: 1.2 lbs (0.5 kg)

    • GTIN:

      0814170010796
