JK Audio INTCHGLTD Interchange LTD Intercom Phone Bridge & Digital Hybrid
  • JK Audio INTCHGLTD Interchange LTD Intercom Phone Bridge & Digital Hybrid
  • JK Audio INTCHGLTD Interchange LTD Intercom Phone Bridge & Digital Hybrid
  • JK Audio INTCHGLTD Interchange LTD Intercom Phone Bridge & Digital Hybrid
Questions? Ask a Markertek Expert:
800-522-2025 Email

JK Audio INTCHGLTD Interchange LTD Intercom Phone Bridge & Digital Hybrid

Manufacturer: JK Audio



List Price:$1,575.00
Our Price:$1,496.25

free ship
Availability: Preorder
Item is not yet shipping from the manufacturer. We enjoy great relationships with our suppliers/manufacturers and take pride in our quick turnaround. Place your order today to ensure you will be one of the first to receive this item once it begins shipping from the manufacturer.

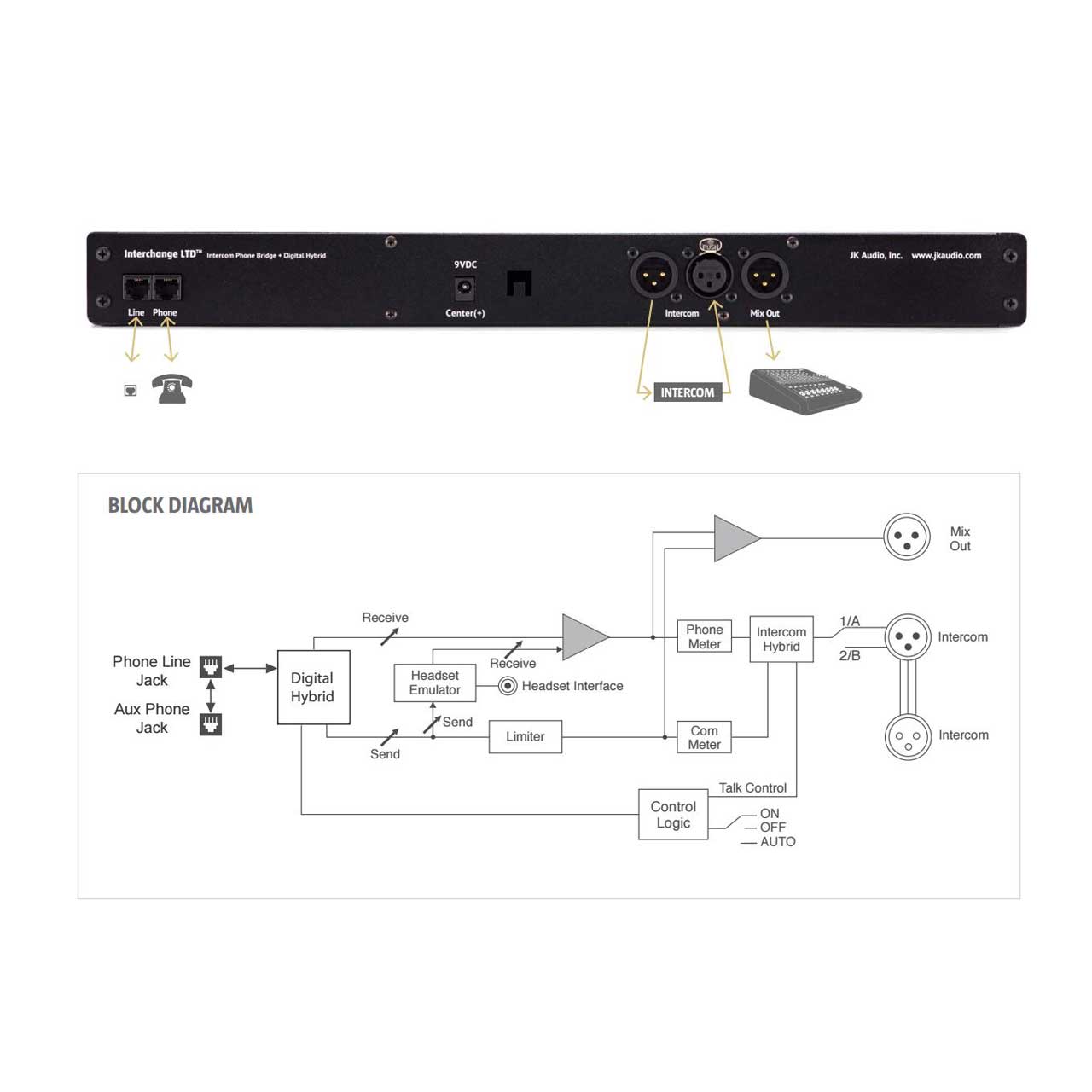

    Turn Your Phone Line Into a Party-Line. Interchange LTD allows remote access to your party-line intercom system. This 1RU rackmount interface includes a digital hybrid for connection to analog (POTS) phone lines. The front panel headset interface jack allows easy connection to your wireless phone, tablet, or computer allowing remote access through a phone call or conferencing app. The front panel DTMF keypad and headset jack allow easy call setup.

    The internal digital hybrid connects intercom audio to a standard analog telephone line without the transmit/receive crosstalk common to analog hybrids. Its DSP continuously monitors both the phone line and audio signals to deliver excellent separation. This proprietary, dual-convergence echo canceller algorithm can achieve excellent separation, typically exceeding 50 dB, without any setup and without sending a noise burst down the line.

    Listen-Always Design
    The Listen-Always design allows both the phone hybrid and the mobile phone headset interface to monitor the intercom just like any other belt pack. Listen mode is a high impedance bridging tap on the intercom line. Talk mode is enabled via a front panel switch, either Off, On, or Auto. Auto follows the phone hybrid Auto-Answer mode.

    • Features

      • HD Voice Compatible (7 kHz Wide-Band Speech)
      • Male and Female 3 Pin XLR Intercom Loop Jacks
      • Male XLR Mix Line Out for Monitoring
      • Send and Receive LED Metering
      • Front Panel Screwdriver Level Controls
      • Front Panel Channel Select
      • Front Panel Cell Phone Interface
      • Listen Always, Talk when Talk-Enabled
      • Auto-Answer
      • 16-bit DSP Technology
      • Front Panel Off-Hook LED
      • Send and Caller Signal Level LEDs
      • DTMF Keypad with Redial
      • Rack Mountable
    • Specifications

      • Intercom Channel
      • Connection: Male & Female 3-pin XLR
      • Output Level: -10 dBu (250 mV RMS) nominal
      • Terminating Impedance: 200 ohms
      • Bridging Impedance: >15k ohms
      • Pin 1: Common
      • Pin 2: Audio + 30 VDC ( +12 VDC min ) 50 mA
      • Pin 3: Audio

        Headset Interface
      • Connection: 3.5 mm TRRS
      • Frequency Response: Wireless Interface 50 Hz - 7 kHz (HD Voice)

      • Balanced Male XLR: 200 ohms / 500 mV RMS (-4 dBu nom) +12 dBu max

      • Ringer: 0.8B REN
      • Isolation: 1500 VAC
      • Frequency Response: Telephone Side 200 Hz - 3600 Hz
      • Monitor Headset Jack: 3.5 mm TRRS
      • Power: 120-240 VAC Power Supply (included)
      • Size: 19" x 5.4" x 1.75"
      • Weight: 5.2 lbs
