JLCooper ATLAS-GPI Smart Matrix GPI/Tally Programmable Crosspoint Switch Matrix and Logic Processor
  • JLCooper ATLAS-GPI Smart Matrix GPI/Tally Programmable Crosspoint Switch Matrix and Logic Processor
  • JLCooper ATLAS-GPI Smart Matrix GPI/Tally Programmable Crosspoint Switch Matrix and Logic Processor

Questions? Ask a Markertek Expert:
800-522-2025 Email

JLCooper ATLAS-GPI Smart Matrix GPI/Tally Programmable Crosspoint Switch Matrix and Logic Processor

Manufacturer: JLCooper Electronics

Item #: JLC-ATLAS-GPI   •   MFG #: ATLAS-GPI



List Price:$1,399.95
Our Price:$1,174.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    Atlas's™ ATLAS-GPI is Highly Programmable Crosspoint Smart Switch Matrix and Logic Processor for GPI and Tally. It's the ideal solution for correcting any GPI/Tally interface incompatibility, in that it provides a variety of connections and a number of methods of modifying them to perfectly suit the task at hand.

    Inputs

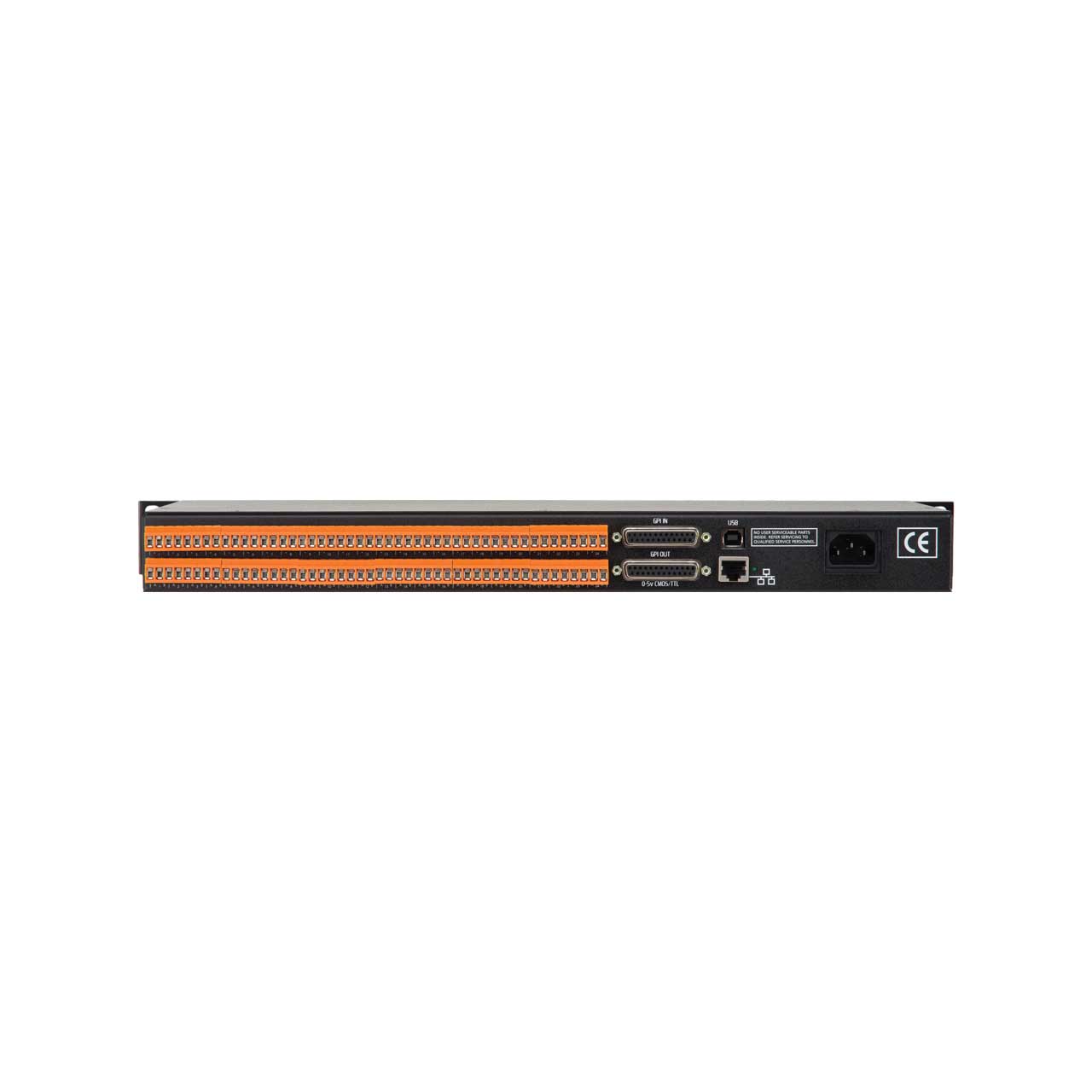

    Atlas offers 24 TTL/CMOS compatible inputs with internal pull-ups to +5 volts and referenced to ground on 25 pin D-sub connectors. It also has 24 parallel, Opto-isolated inputs, on high density, removable, terminal block screw connectors.

    Outputs
    The D-sub GPI Out connector has 24 TTL/ CMOS compatible outputs and there are 24 electrically isolated dry relay outputs on high density, removable, terminal block screw connectors. CMOS GPI outputs can deliver 0 to 5 volts at up to 6 mA and referenced to ground. Relay Outputs can handle up to 500 mA @ 200 VDC max. Opto-isolated inputs and Relay outputs use high quality removable terminal block connectors (pairs).

    Connections
    Interfacing options include CMOS In to CMOS Out, CMOS in to Relay Out, Opto-Isolator In to CMOS Out and Opto-Isolator In to Relay Out functionality.

    Logic Processing
    Outputs can be programmed to use a boolean expression of input or inputs including functions AND, OR, and XOR, with inversion of inputs and/or outputs. Modification of output characteristics include inversion, delay (up to 999 minutes with millisecond resolution) and pulse (up to 999 minutes with millisecond resolution).

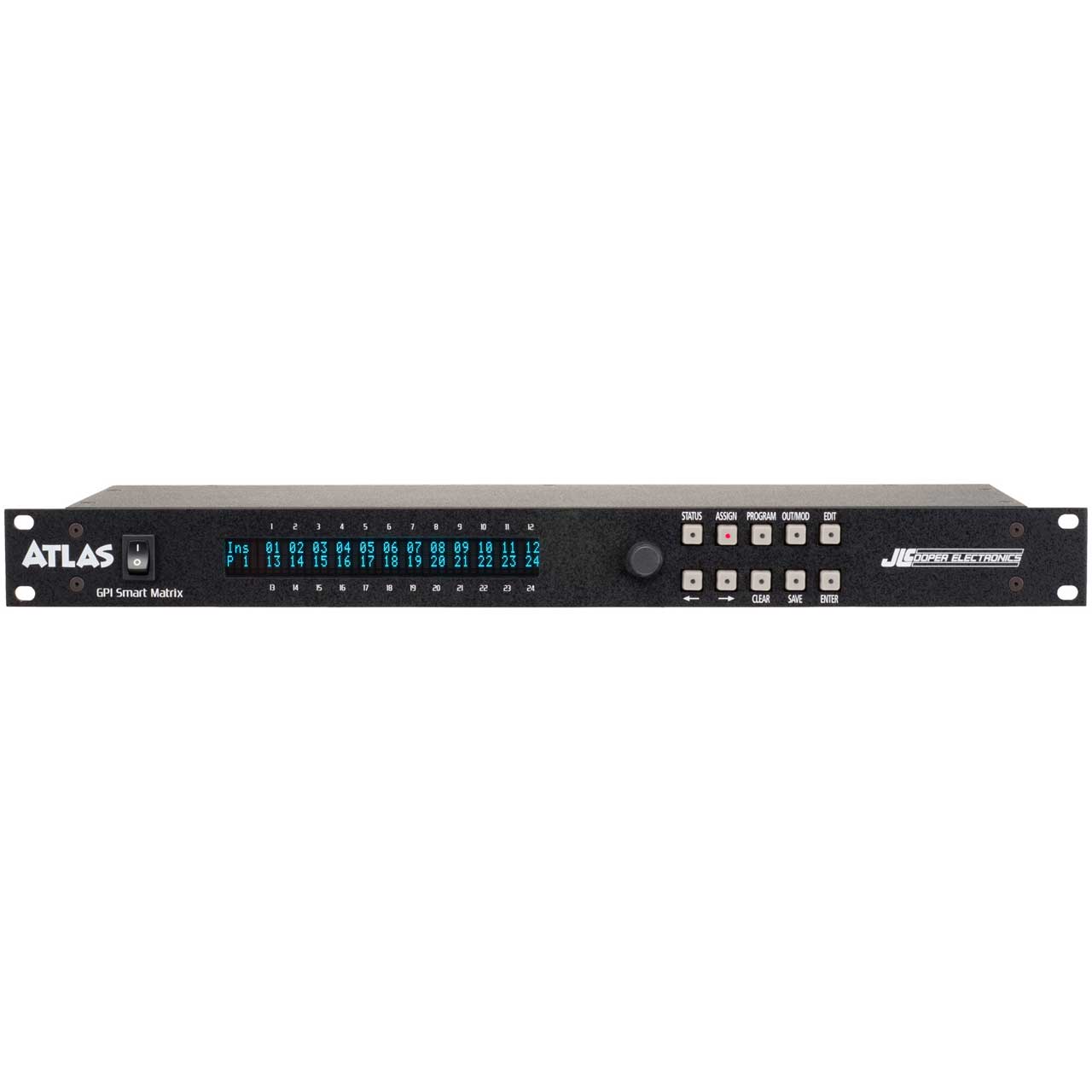

    Program and review all functions using front panel controls and 2 x 40 backlit LCD or via free software application for Mac and Windows.

    It's ideal for broadcast television, streaming media networks, broadcast video editing facilities, news production, alert systems, monitor switching or in any audio/video/multimedia studios and more.

    Includes internal universal switching power supply with detachable IEC connector and cable.

    Modification of output characteristics include inversion, delay (up to 999 minutes with millisecond resolution) and pulse (up to 999 minutes with millisecond resolution). Program and review all functions using front panel controls and 2 x 40 backlit LCD or via free software application for Mac and Windows.

    It's ideal for broadcast television, streaming media networks, broadcast video editing facilities, news production, alert systems, monitor switching or in any audio/video/multimedia studios and more.

    Applications:
    Broadcast Facilitlies
    Remote Trucks


    • Features

      • 24 CMOS GPI Inputs and Outputs
      • 24 GPI Opto-Isolated Inputs
      • 24 GPI Relay Outptus
      • Built In USB and 10/100 Ethernet
      • 99 Memory Presets
      • Software for Mac and Windows
      • 2 x 40 Backlit LCD Display
      • Detachable terminal strip connectors
      • Front panel power switch
      • Single 19" rack space
      • Heavy duty rack enclosure

    • Specifications

      • Single 19" rack space
      • Heavy duty rack enclosure
      • Dimensions: 19" x 1.75" x 3.87"
      • Weight: 3.25 lbs

    • Item Includes

      • 1x ATLAS-GPI
      • Internal universal switching power supply with detachable IEC connector and cable.
