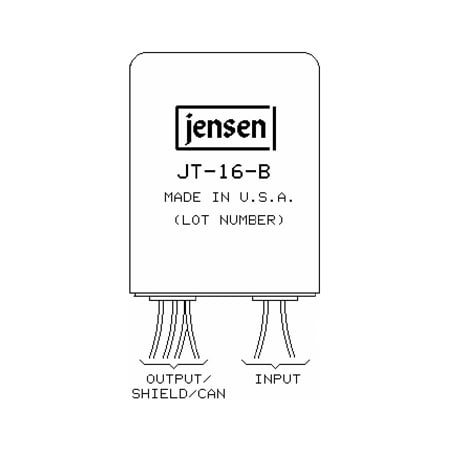

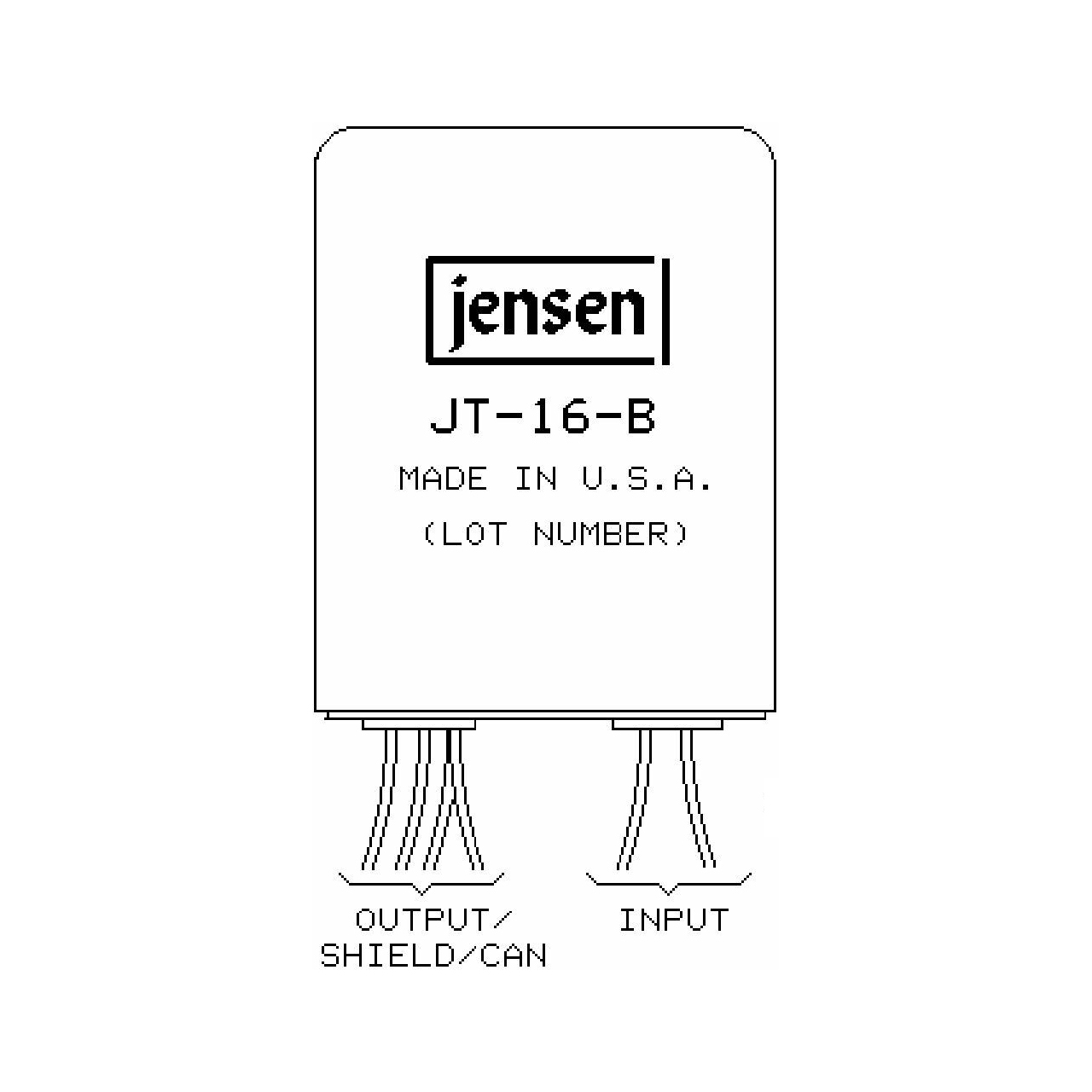

JT-16-B Microphone Input Transformer

ITEM #: JT-16-B MFG #: JT-16-B

Primary Image

This item is no longer available.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the JT-16-B

JT-16-B - Overview

1:2 Step-Up for Ultra-Low Noise Amplifiers

This transformer, with its 750 Ohm secondary source impedance, will produce thebest signal-to-noise performance with ultra-low en amplifiers such as the Jensen JT-990-C module. The primary is fully balanced and its leads may be reversed toinvert polarity, if required. A 30 dB magnetic shield package is standard.

  • Features:

    • Wide Bandwidth: 13 dB at 0.45 Hz and 220 kHz
    • Excellent Time Domain Performance: DLP +1E typical
    • Transformer Related Noise Figure: only 1.7 dB
    • High Common-Mode Rejection: 117 dB at 60 Hz
