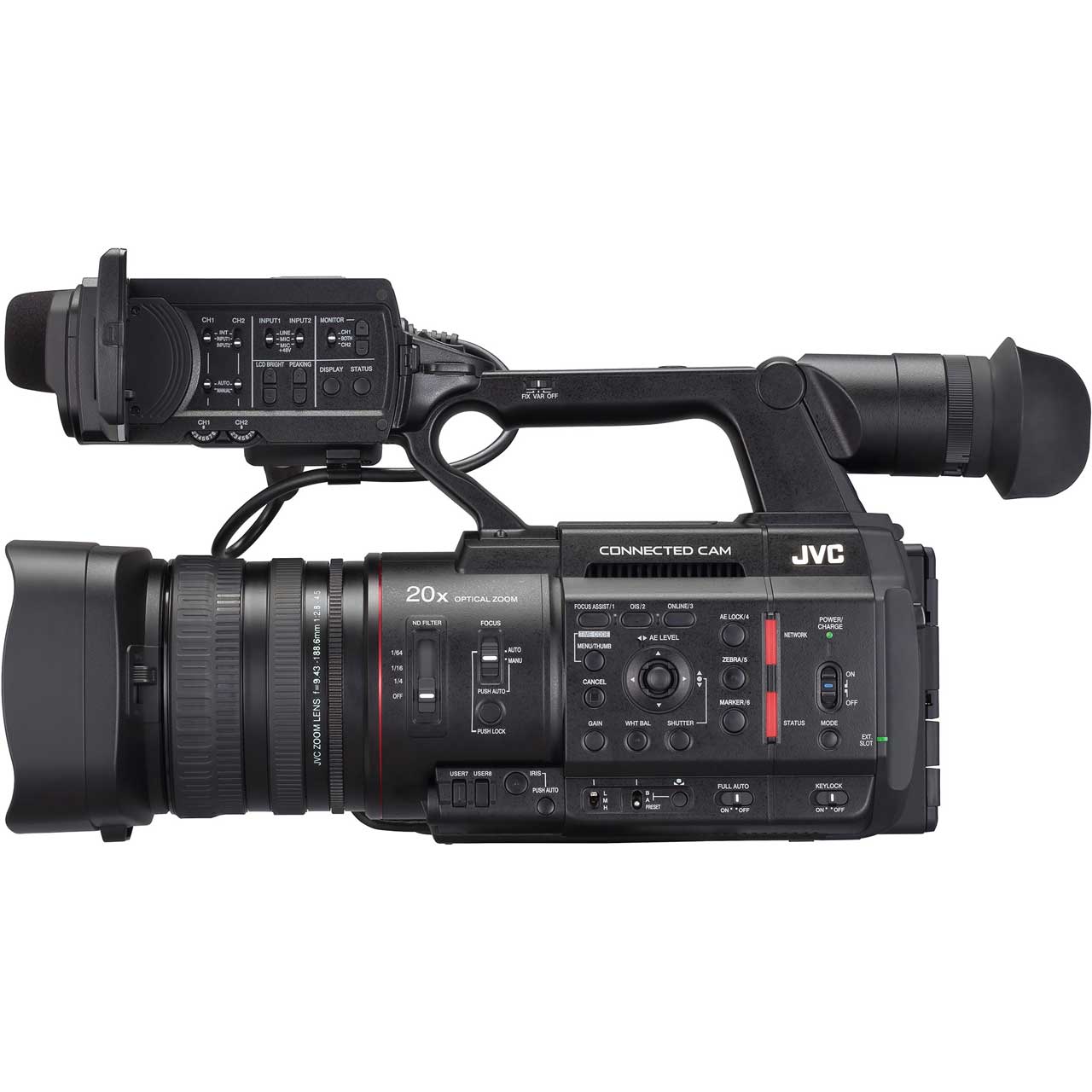

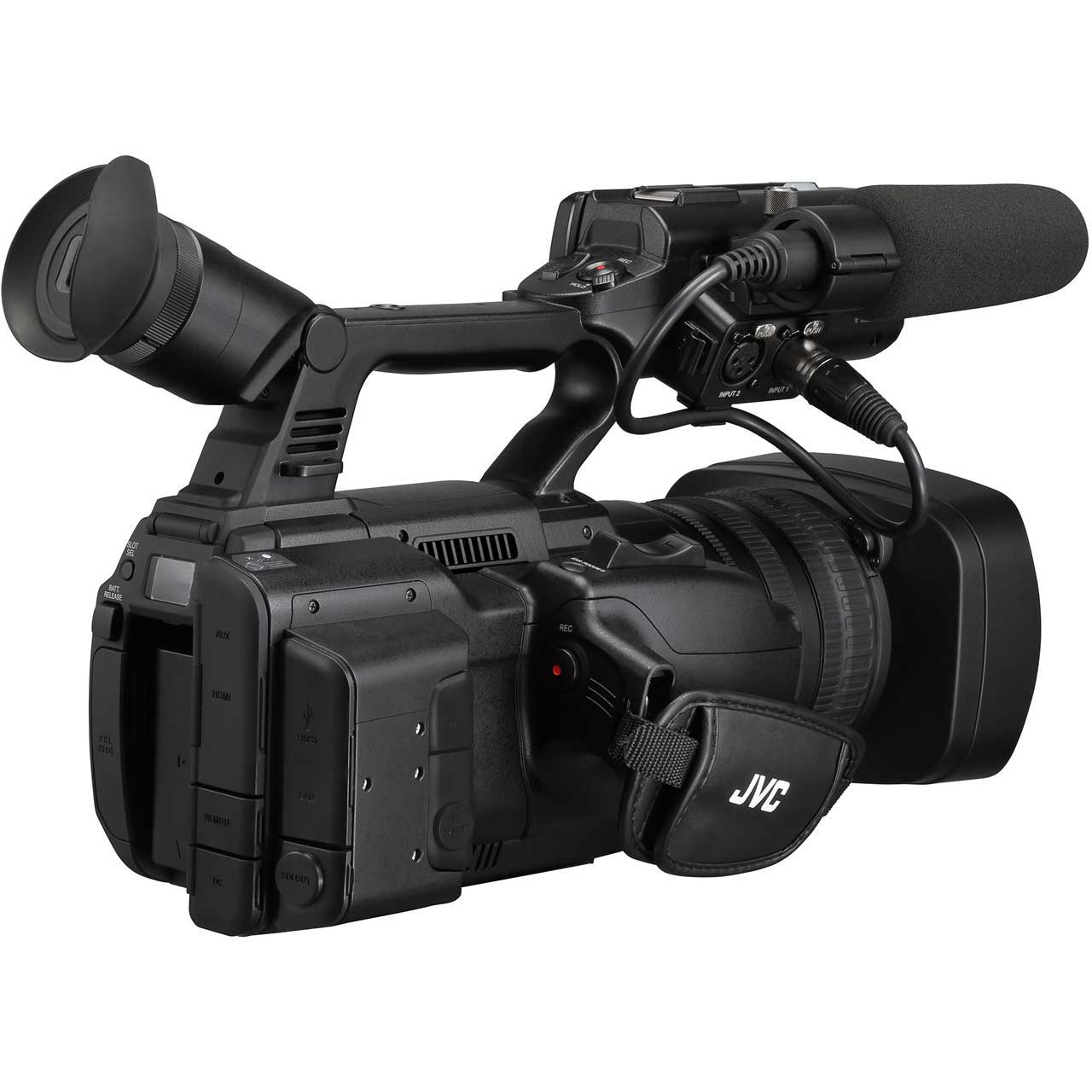

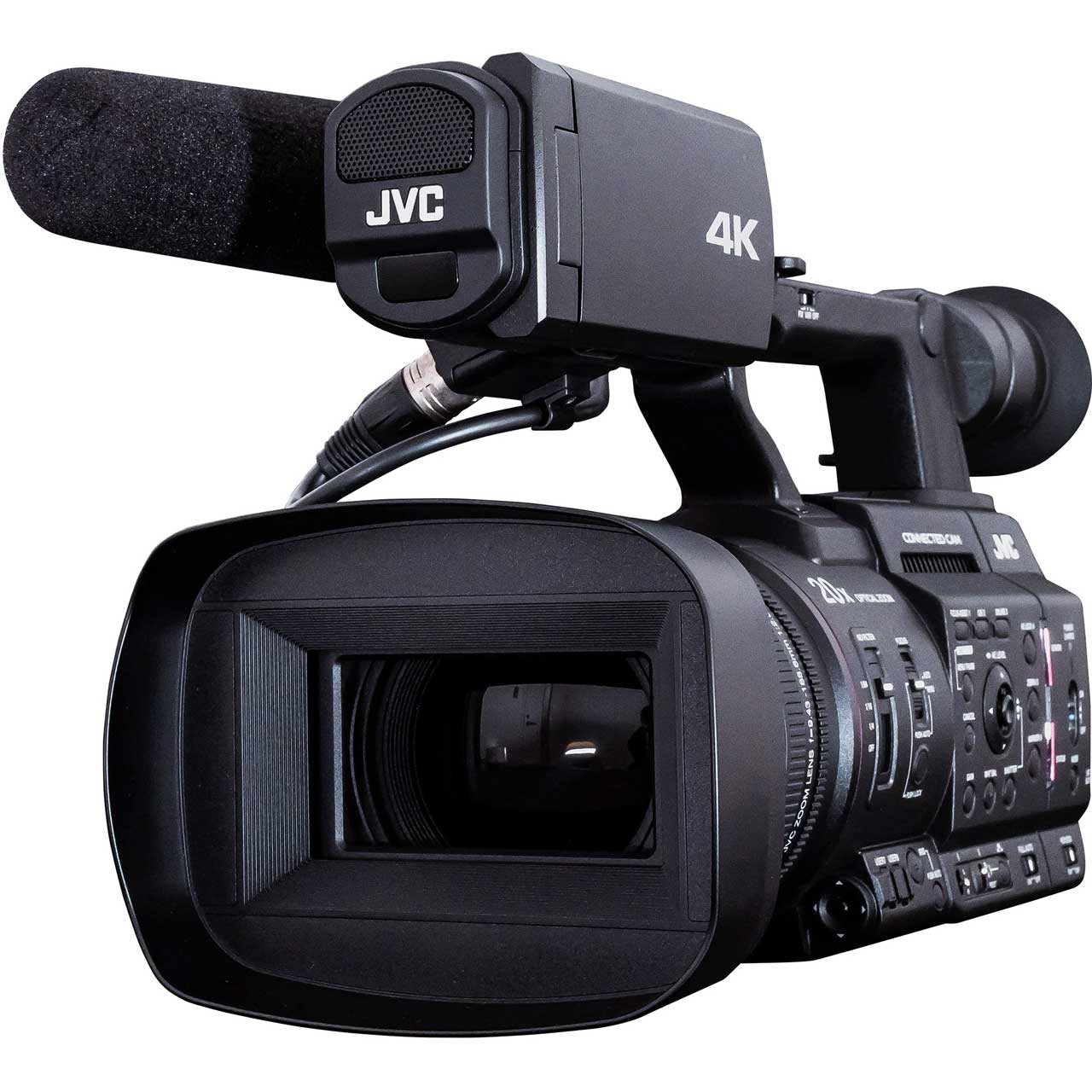

JVC GY-HC500MC CONNECTED CAM Handheld 4K 1-INCH Camcorder with KA-MC100G

GY-HC500MC - Overview

• Features:

  • 10-bit ProRes 422/422HQ/422LT, at 4K UHD resolution and 59.94p/50p/29.97p/25p/23.98p - recording to M.2 SSD**
  • 4K UHD 29.97p/25p/23.98p 4:2:2 10-bit or 4:2:0 8-bit (150Mbps) and various HD recording to SDHC/SDXC card*
  • HDR recording, HLG or J-Log1 (10-bit)
  • Backup recording to M.2 SSD**
  • Clip Continuous Record mode
  • 1-inch (effective) CMOS sensor with high picture quality
  • F11 Sensitivity
  • Newly-developed 3-ring 4K lens with 20x zoom (f=28mm-560mm 35mm equivalent)
  • 40x lossless dynamic zoom
  • 4-inch high resolution LCD monitor
  • LCOS Quad VGA viewfinder
  • XLR audio connectors
  • High performance 1080 60p/50p live streaming (4K Rec + HD streaming + 4K HDMI output)
  • Secure Reliable Transport (SRT) QoS for reliable, quality streaming
  • Facebook Live streaming with secure RTMPS protocol
  • Low latency and high-quality streaming up to 20Mbps with SMPTE 2022 Forward Error Correction
  • LAN terminal (Streaming/IFB/Remote) in addition to USB host
  • HEVC/H.265 encoding for streaming with 50% reduction in bit rate-or-contribution quality 4:2:2 10-bit streaming at up to 24Mbps (via optonal KA-EN200G)
  • Return over IP (Return video and IFB)
  • Auto FTP to upload native video clips automatically
  • * Recording media not included

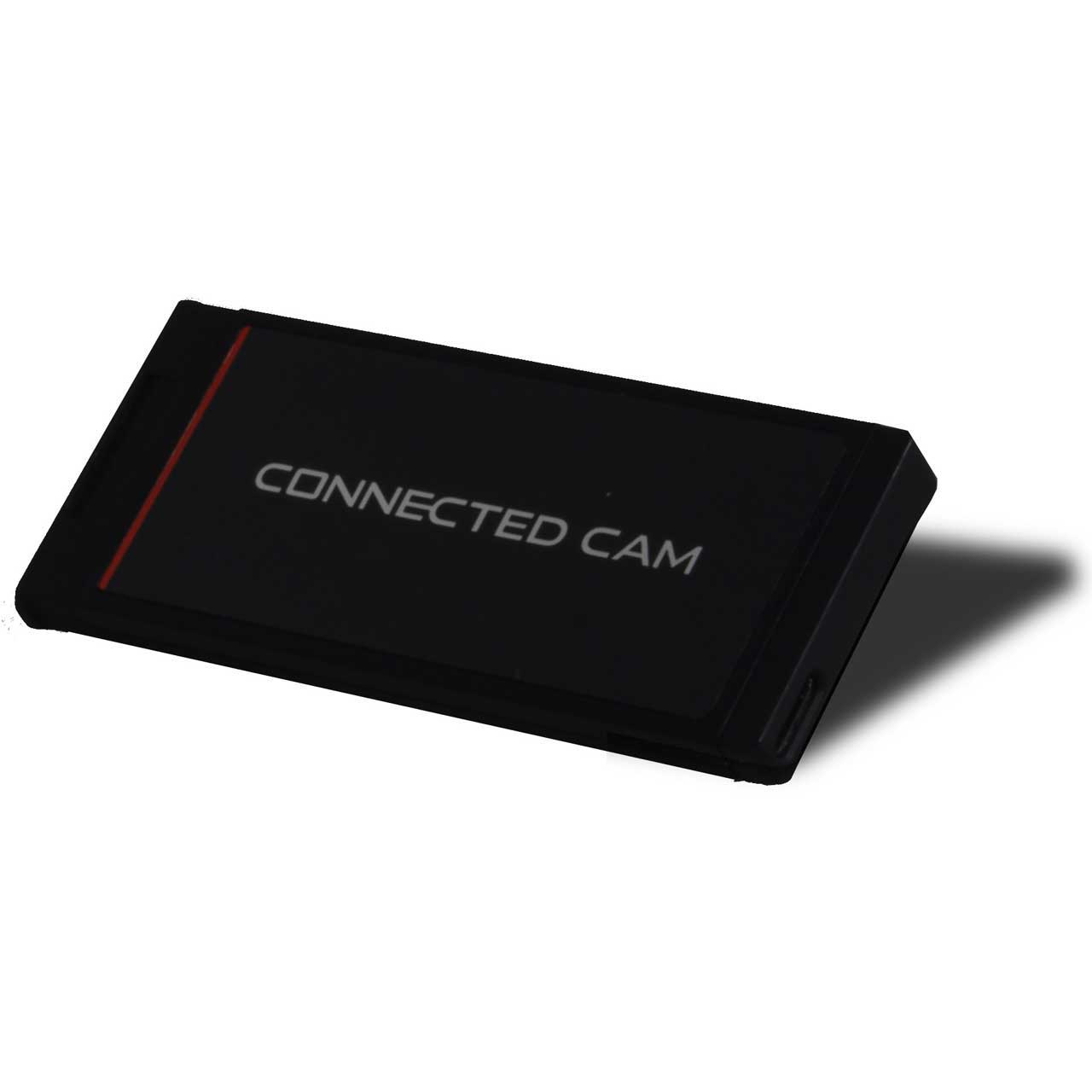

  • ** M.2 SSD media not included with KA-MC100G media adapter.


• Specifications:

  • Video Output:
  • 3G-SDI output (BNC x 1)
  • HDMI output x 1
  • AV output (o3.5mm mini jack x 1)

    Audio input:
  • XLRx 2 (MIC, +48V/LINE), o3.5mm mini jack x 1

    Audio output:
  • AV output (o3.5mm mini jack x 1)

    USB:
  • HOST x 1 (network connection)

    Ethernet:
  • RJ-45 x 1

    Built-in slot:
  • Optional SSD media case and for future expansion
