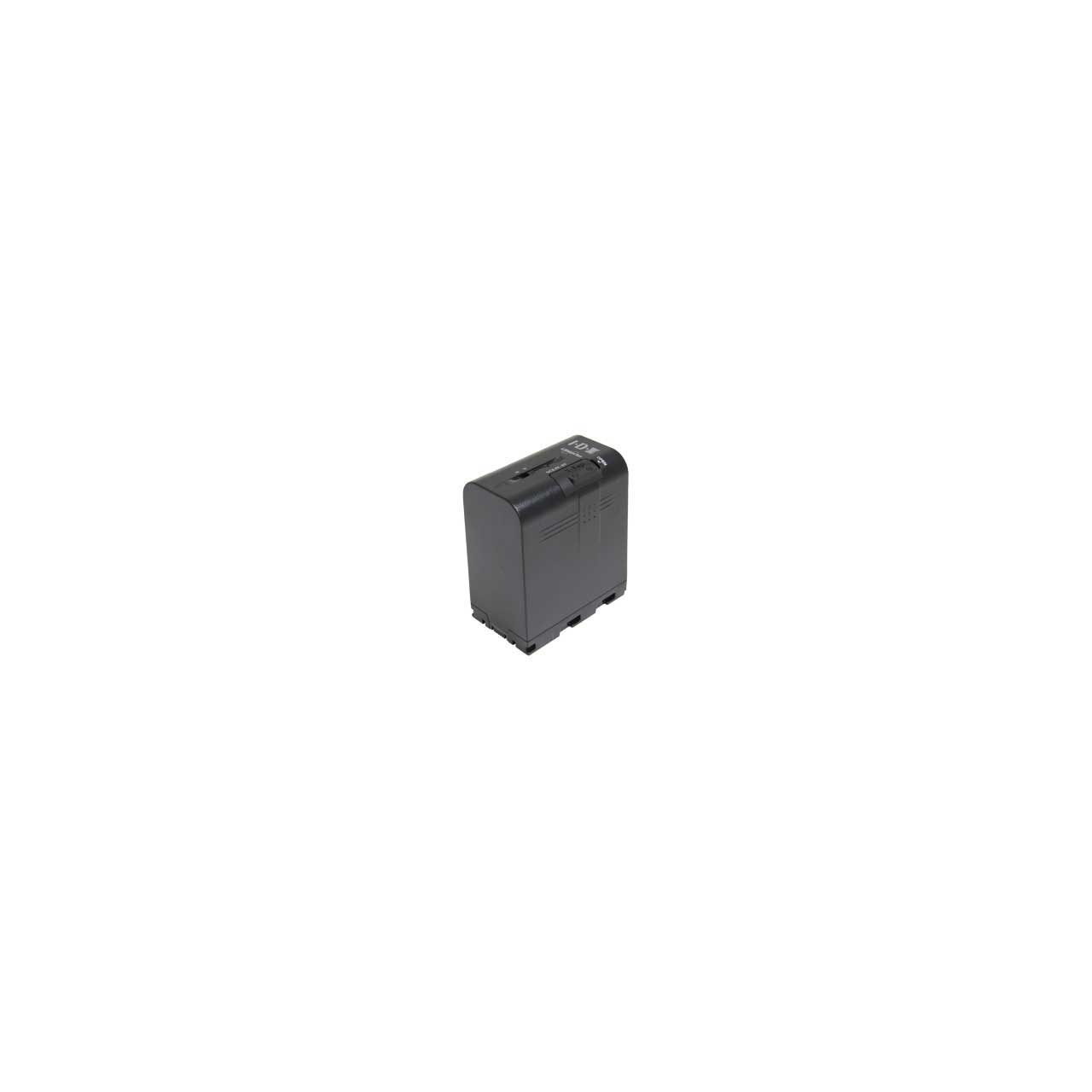

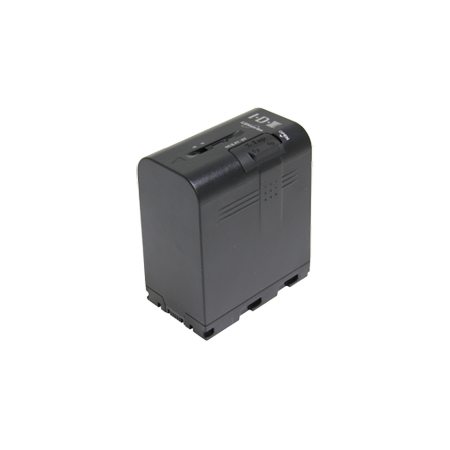

JVC SSL-JVC75 7.4V/7.35Ah/55Hh Lithium Ion Battery for GY-HM250/620/660 & DT-X Monitors

SSL-JVC75 - Overview

• Features:

  • Compatible with JVC professional camcorders series
  • 7350mAh Highest Capacity Battery for longer running times
  • DC out via X-Tap connector
  • Marker Empty/Full Physical sliding switch to indicate battery status


• Specifications:

  • Battery Voltage: 7.4 Volts
  • Battery Capacity: 7350 mAh - 55 Wh
  • Max. Output Voltage: 8.4 V DC - 0 V AC
  • Nominal Voltage: 7.4 V DC - 0 V AC
  • Extra Connectors: Yes, X-Tap
  • Extra Connectors Max Voltage: 6,0V to 8,4V
  • Extra Connectors Max Load: 3.3A / 20W
  • Battery Status Indication: Yes, Mechanical slider indication (manual marker)
  • Over Charge: Yes, reset
  • Over Discharge: Yes, reset
  • Over Current: Yes, reset
  • Temperature Monitoring and Protection: Yes
  • Battery Charge Time Approximate: approx. 340 min with LC-2J charger
  • Typical Run-Time: approx, 4,5 hours with GY-HM6x0 series
  • Battery Compatible Chargers: LC-2J
  • Battery can be Charged in Camera: Yes
  • Charge Temperature: 32° to 113°F (0° to 45°C)
  • Discharge Temperature: 68° to 113°F (20°C to 45°C)
  • Storage Temperature: -4° to 122°F (-20°C to 50°C)
  • Battery Dimensions (WxHxD): (43 x 80.5 x 70.4mm)
  • Battery Weight: (350g)
  • Note: Simulated pictures.The values for weight and dimensions are approximate.E.&O.E. Design and specifications subject to change without notice.
