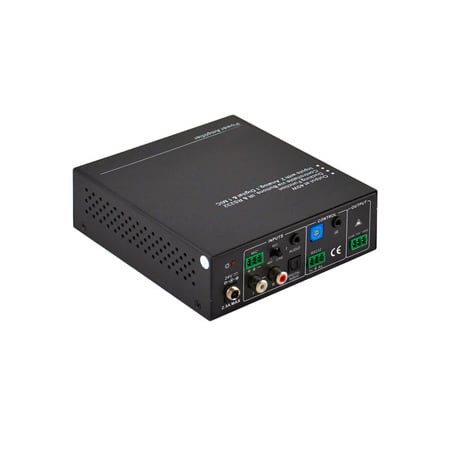

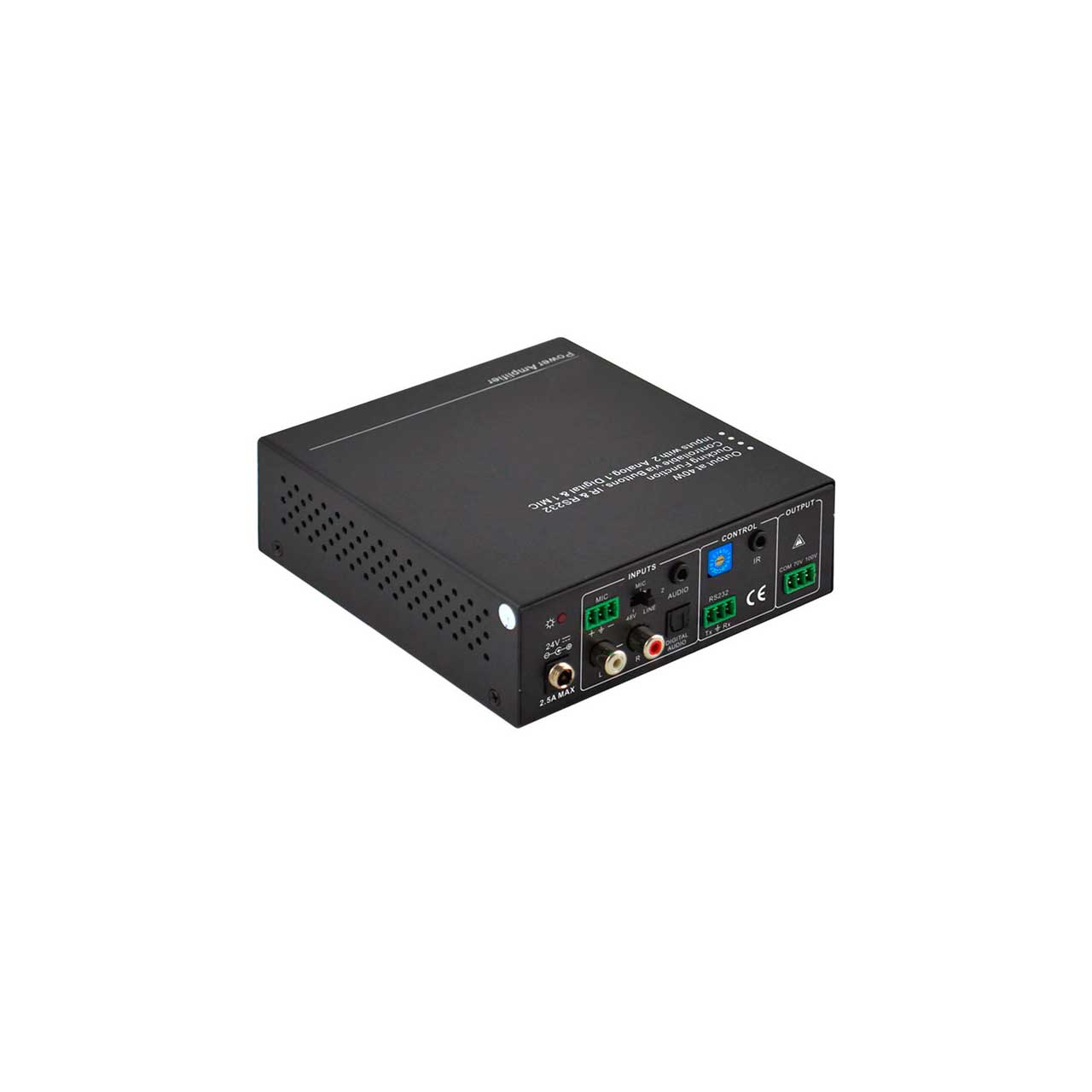

KanexPro AP3DBL Mini 3-input Audio Amplifier with Mic Mixer - 40 Watt Power Amp 70V/100V

AP3DBL - Overview

• Features:

  • Fast switching 3 audio inputs (1 digital, 2 analog)
  • One 3-level MIC input with mixer function
  • 40 Watt amplifier output at 70V or 100V
  • Ducking function for auto detect
  • ID loop for RS232 looping control
  • Adjustable volume with Bass & treble
  • Locking power supply
  • Control via front panel, RS232 & IR control
  • Supports Dual-mono output
  • Built-in Microphone mixer (separately controllable)
  • Line audio output, with volume controllable.
  • MIC input supports 48V phantom power
  • Supports balanced/ unbalanced signals
  • Ultra low inrush current
  • Convection cooled, antistatic case design
  • LED indicator, for power and operating status
  • IR remote & sensor included
  • Internal Universal power adaptable (100-240 volt AC, 50/60Hz)


• Specifications:

  • Audio Input
  • 2 x stereo audio (RCA, 3.5mm)
  • 1 x digital audio (TOSLINK)
  • 1 x MIC (captive screw connector)


  • Audio Output: 1x mono amplifier (3-pin captive screw connector)
  • Output Type: 40W, 70V or 100V
  • Input Impedance for Inputs 1&2: >10KΩ
  • Output Impedance: 50Ω/stereo, 4~8Ω/Amplifier

    Audio General
  • Frequency Response: Input: 120Hz - 20KHz
  • Output: CMRR >70dB@20Hz~20KHz
  • Signal to Noise Ratio: 80dB at maximum output
  • Bandwidth: 120Hz - 20KHz

    Stereo Channel Separation
  • Input: >75dB@20Hz to 20KHz
  • Output: THD + Noise 1%(1KHz), 0.3%(20KHz) at nominal level


  • Voltage Gain: 32dB
  • Mic Input Impedance: 48V: 35 Kilo Ohms
  • Mic: 10 Kilo Ohms
  • Line: 75 Kilo Ohms
  • Mic Audio Detection Delay: < 1ms
  • Common Mode Rejection Ratio: >70dB (20Hz- 20KHz)

    Control
  • RS-232 Serial
  • 9-pin female D connector
  • IR remote sensor

    Other
  • Pin Configurations: 2 = TX, 3 = RX, 5 = GND
  • TCP/IP control through TCPRS2
  • Power consumption: 3.6 Watts
  • Power supply: 24V DC
  • Dimensions: 1.5" x 3.78" x 3.45" (HWD)
  • Weight: 0.67 lbs


• GTIN:

  0814556016077
