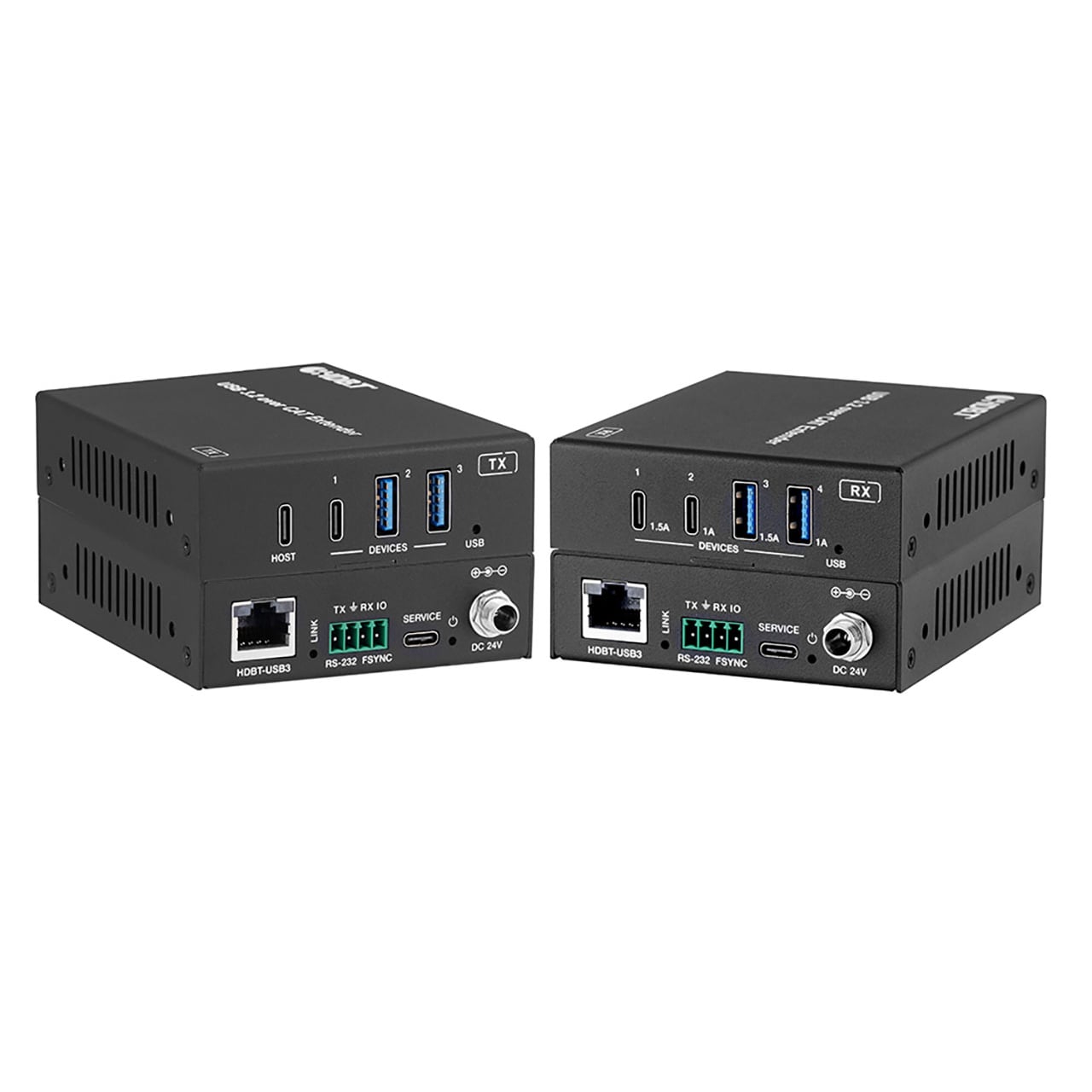

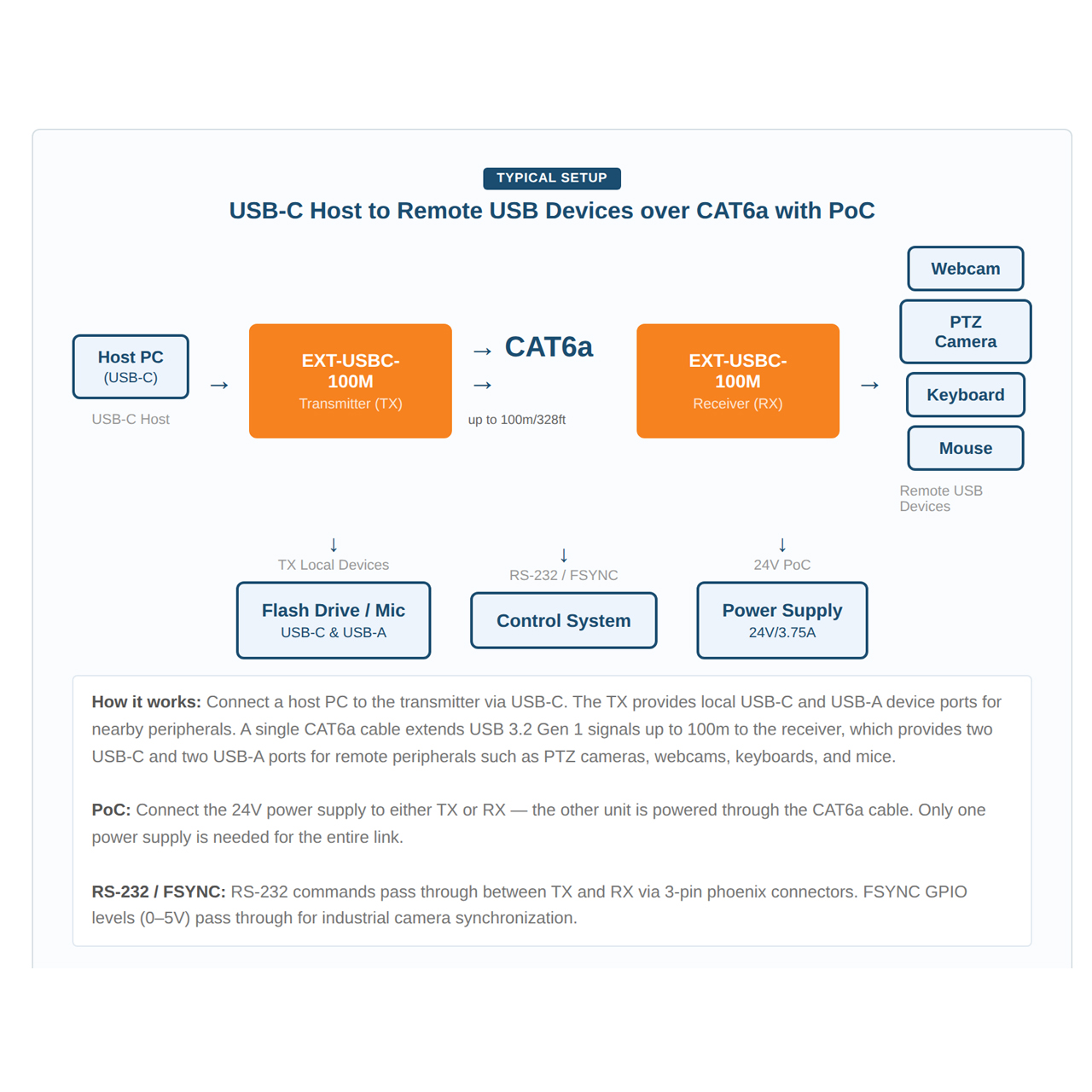

Extend USB 3.2 Gen 1 signals up to 100 meters over a single CAT6a cable - with bi-directional Power over Cable that eliminates the need for a power supply at the remote end. The KanexPro EXT-USBC-100M is a transmitter/receiver USB extender kit that delivers 5Gbps USB-C and USB-A connectivity to remote locations using standard network infrastructure, ideal for conference rooms, classrooms, digital signage, and industrial camera installations.

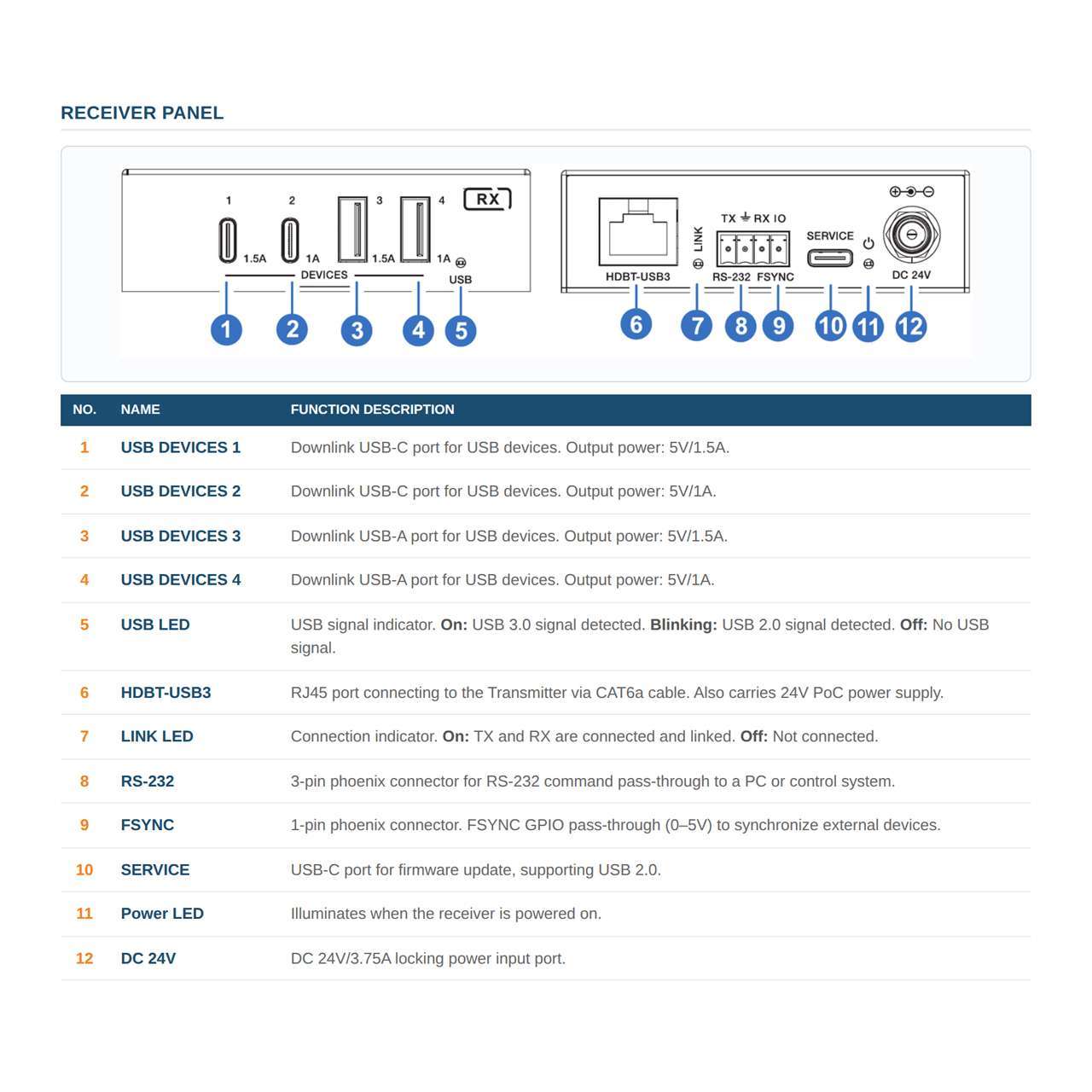

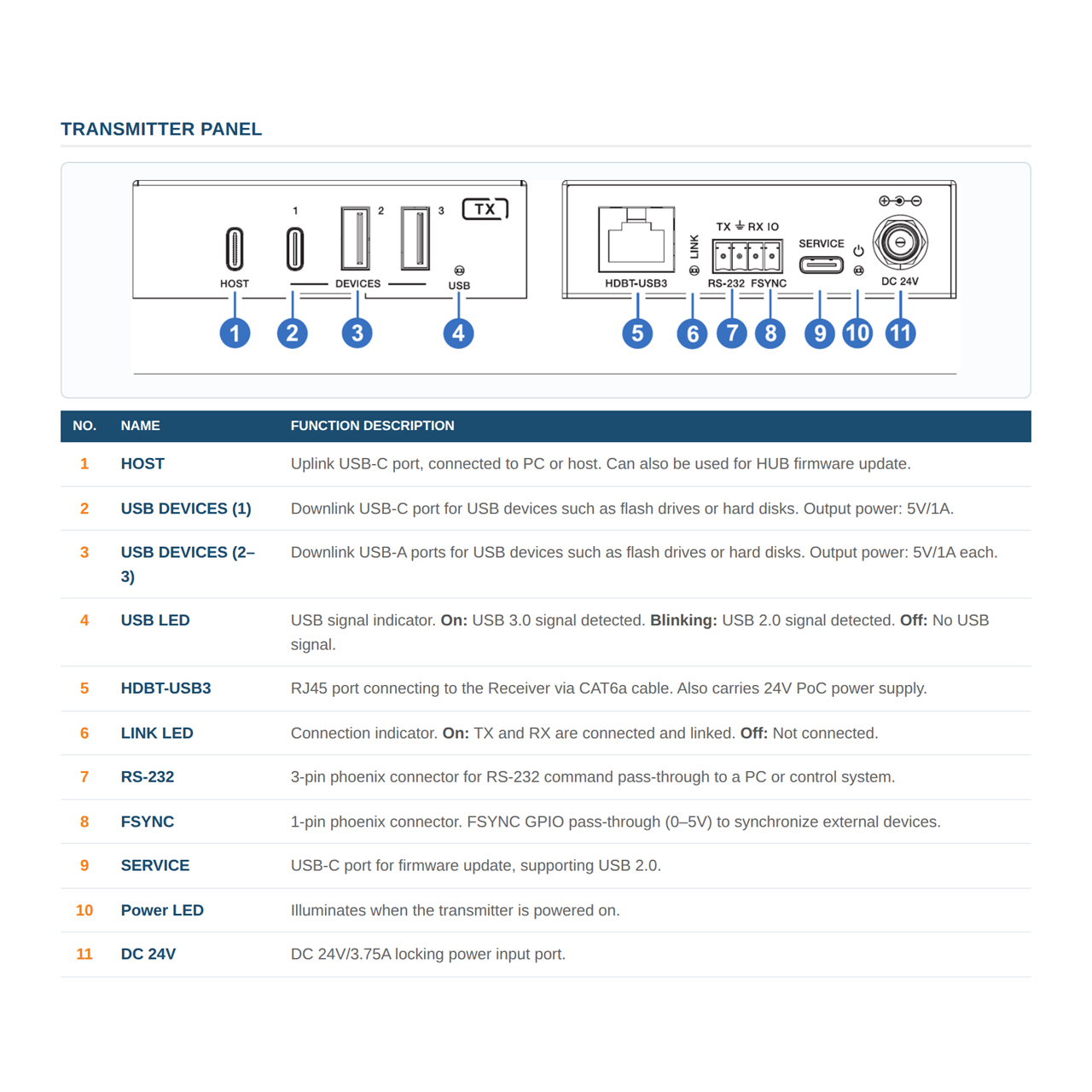

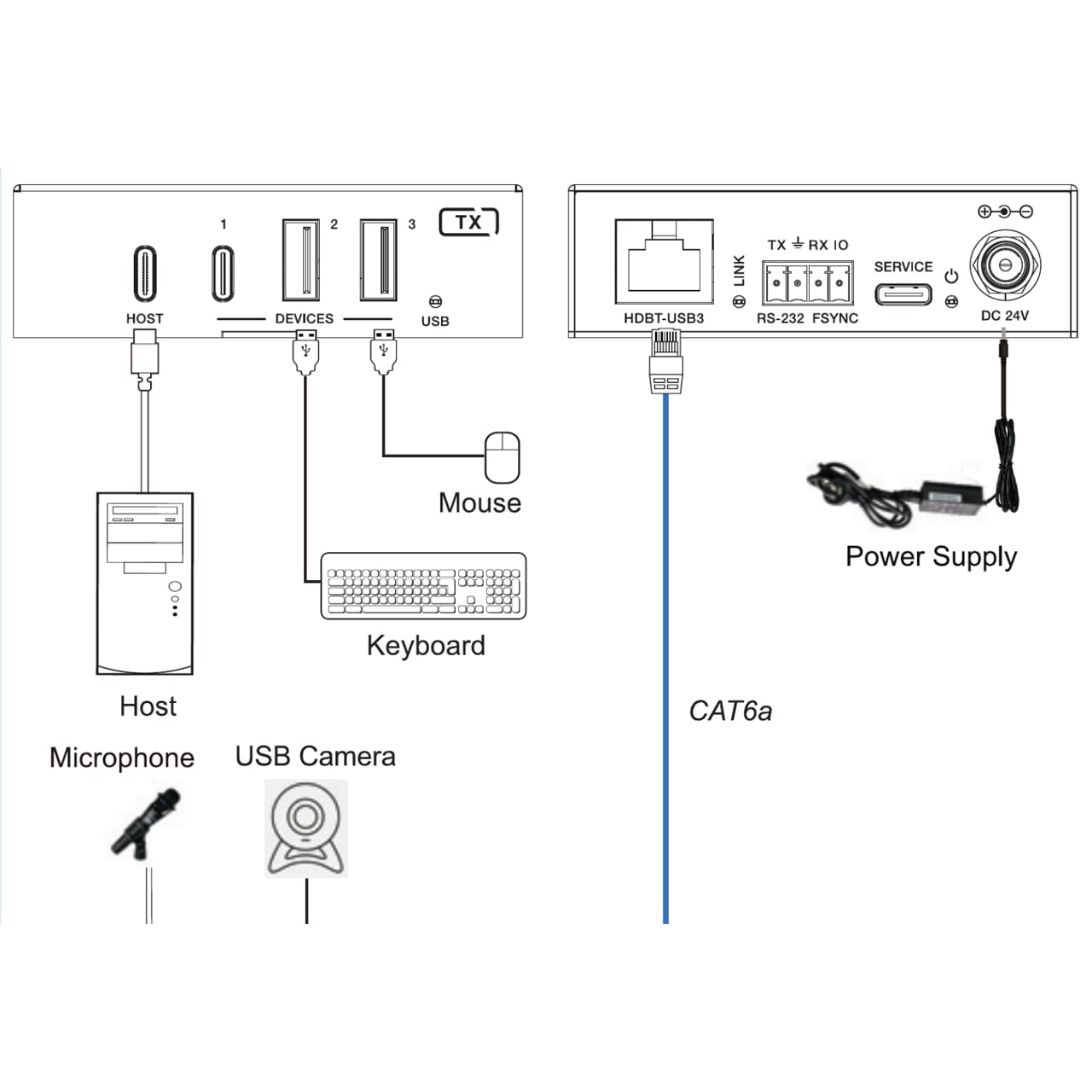

The transmitter connects to a host PC via USB-C and provides 1x USB-C and 2x USB-A device ports locally. The receiver extends an additional 2x USB-C and 2x USB-A device ports at the far end - supporting webcams, PTZ cameras, keyboards, mice, microphones, printers, and flash drives. RS-232 pass-through enables control system integration at both ends, while FSYNC GPIO support synchronizes industrial cameras. Bi-directional 24V PoC powers either unit through the CAT6a link. Plug-and-play with no drivers required.
