Klein Tools CL390 AC/DC Digital Clamp Meter/Auto-Ranging 400 Amp

ITEM #: KLT-CL390 MFG #: CL390

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$133.30

Our Price:

$99.97

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    CL390 - Overview

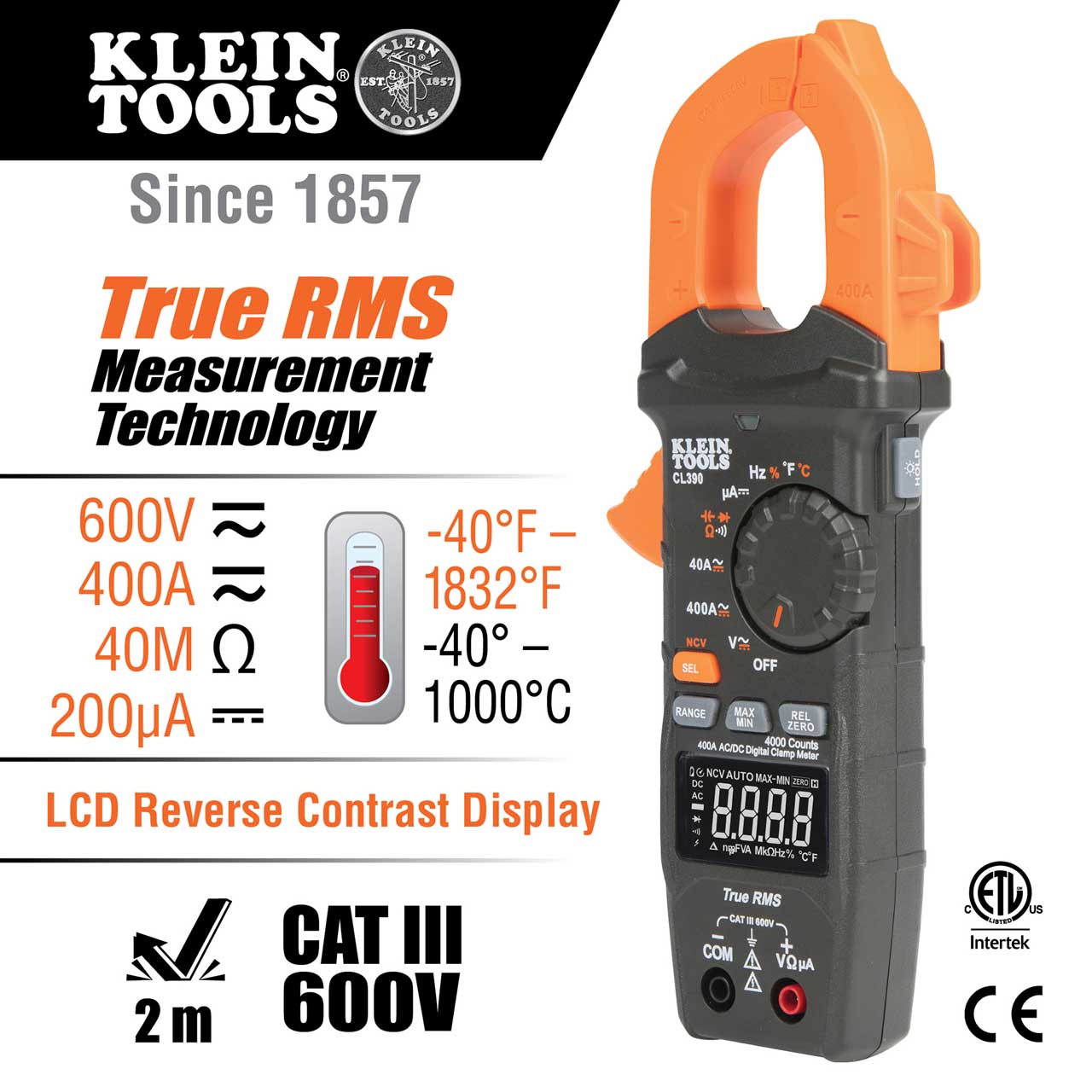

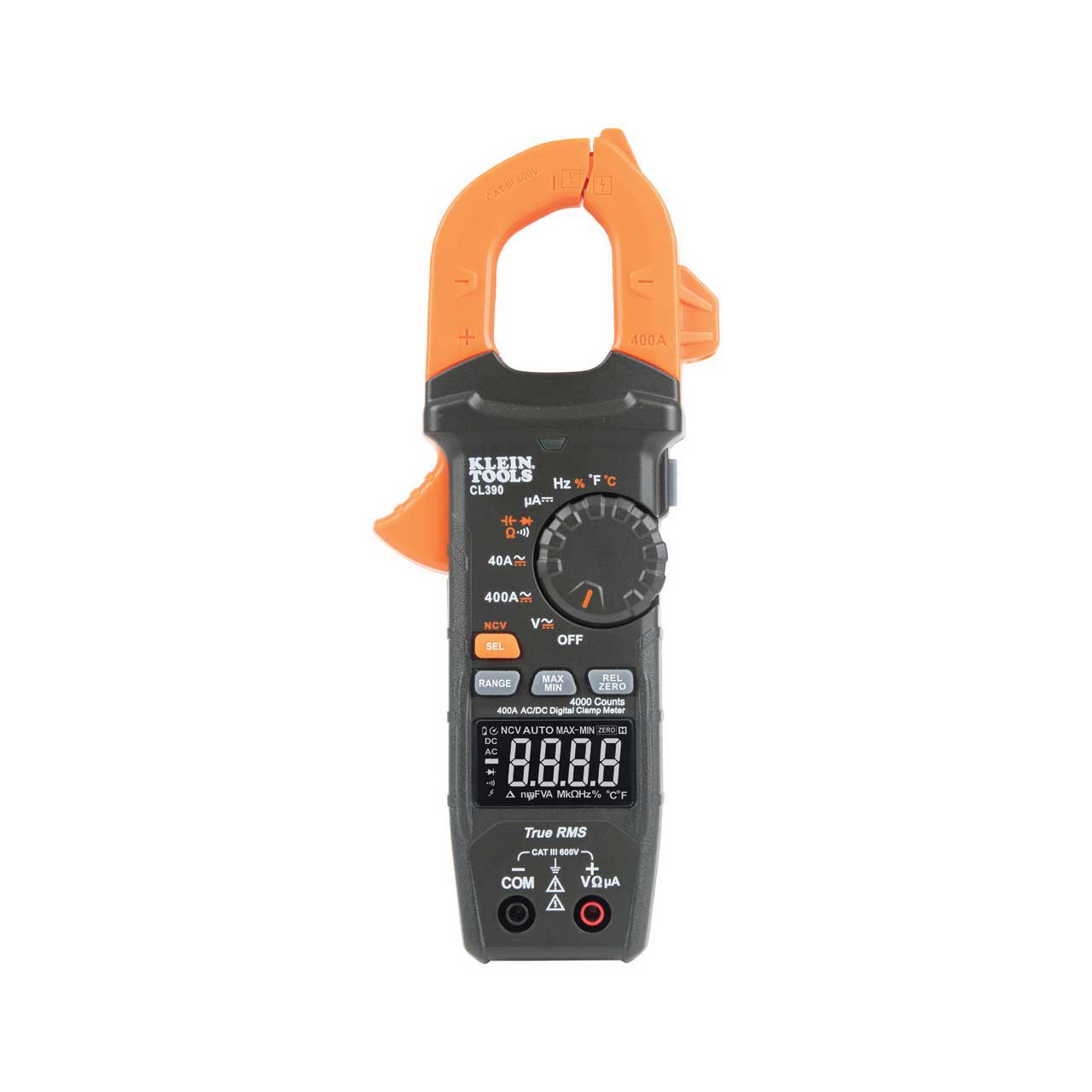

    The Klein Tools CL390 is an automatically ranging true root mean squared (TRMS) digital clamp meter. It measures AC/DC current and NCVT via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and diodes via test leads, and temperature via a thermocouple probe. It features a high visibility, reverse contrast LCD display that optimizes view ability both in dark or bright ambient lighting.

    • Features:

      • Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
      • Non-contact voltage tester integrated into the clamp jaw
      • High-visibility reverse contrast LCD display for improved view ability in all ambient lighting conditions
      • Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
      • Measures AC/DC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple
      • Measures temperature with a K-Type thermocouple probe
      • Max/Min, Rel/Zero and Data Hold capability
      • Auto-power off after 10 minutes to conserve battery life
      • Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3x AAA batteries
      • Low battery indicator and easily accessible battery compartment
      • Built to withstand a 6.6-Foot (2 m) drop
      • CAT III 600V, Class 2, Double insulation safety rating
      • Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations

    • Specifications:

      • Material: ABS/Electronics
      • Batteries: 3x AAA
      • Auto-Power Off: Yes
      • Jaw Size: 1.6'' (4.1cm)
      • Drop Protection: 6.6' (2m)
      • Display: 4000 Count Reverse Contrast LCD
      • Functions: TRMS, AC/DC Current, NCVT, AC/DC Voltage, Resistance, DC microamp, Frequency, Capacitance, Continuity, Duty Cycle, Diode Test, and Temperature
      • Voltage: 600V AC/DC
      • Frequency: 10Hz - 60kHz for 8V - 220V AC RMS
      • Current: 400A AC/DC
      • Capacitance: 4000µF
      • Ohms (Resistance): 40MΩ
      • AC Voltage: 600V
      • DC Voltage: 600V
      • DC Polarity Indicator: Yes
      • DC Micro-Amp: 200µA
      • Temperature Range: -40°F - 1832°F (-40°C - 1000°C)
      • Standard: CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
      • Dimensions (LxWxH): 8.45" x 3.5" x 1.5" (21.5cm x 8.9cm x 3.8cm)
      • Weight: 11oz (314g)

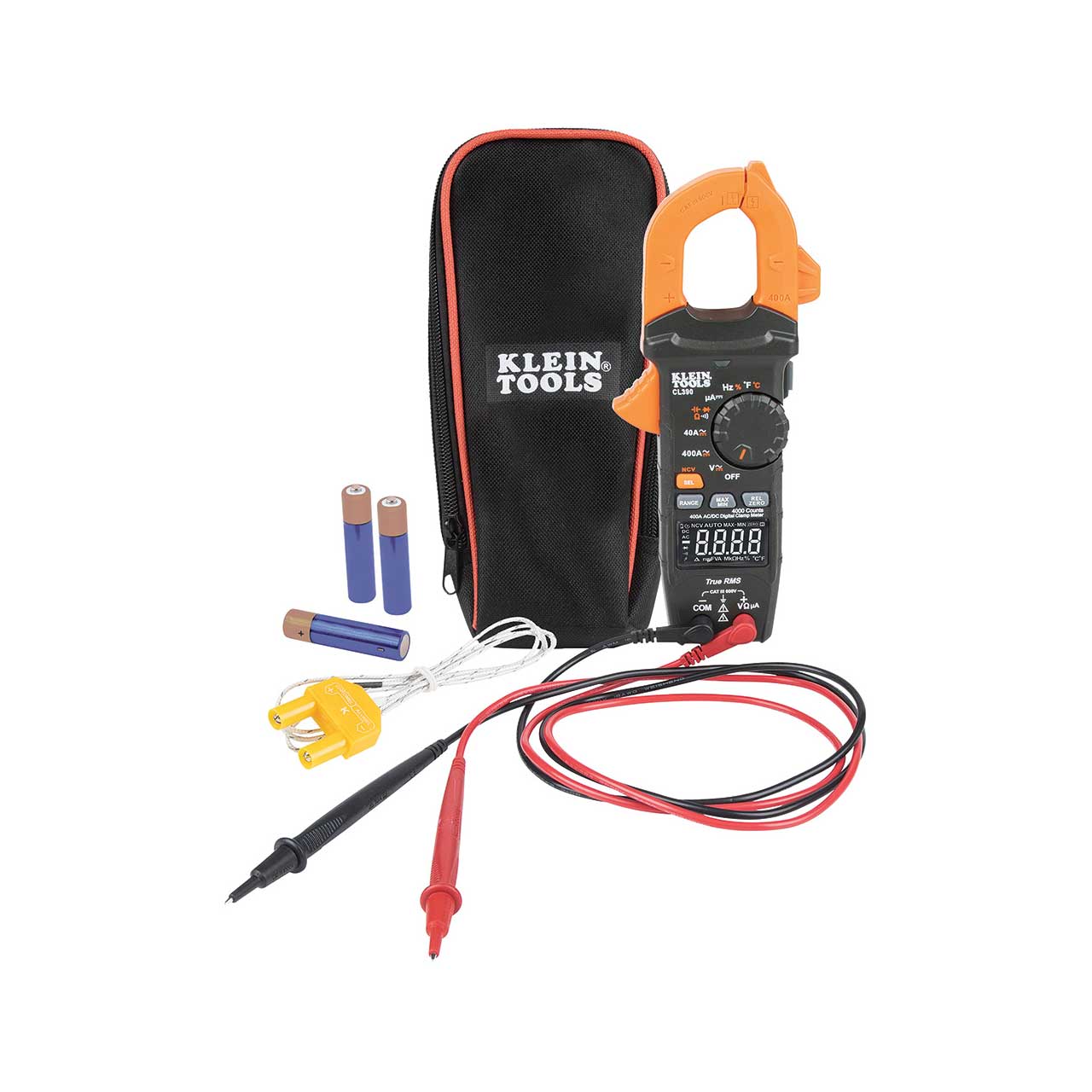

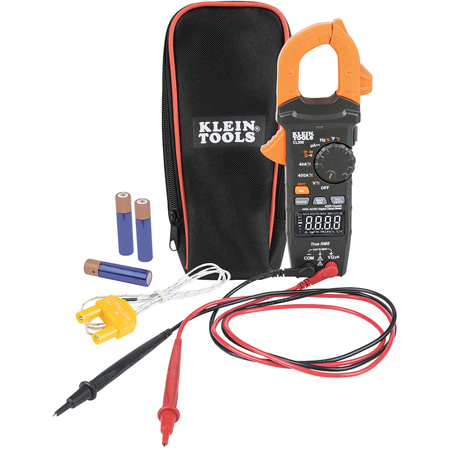

    • Item Includes:

      • 1x Clamp Meter
      • 1x Carrying Case
      • 1x Instructions
      • 1x Test Leads
      • 1x Thermocouple
      • 3x Batteries

    • GTIN:

      0092644692871
