Triplett CM650 600A True RMS AC/DC Clamp Meter

ITEM #: TRIPL-CM650 MFG #: CM650

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$89.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    CM650 - Overview

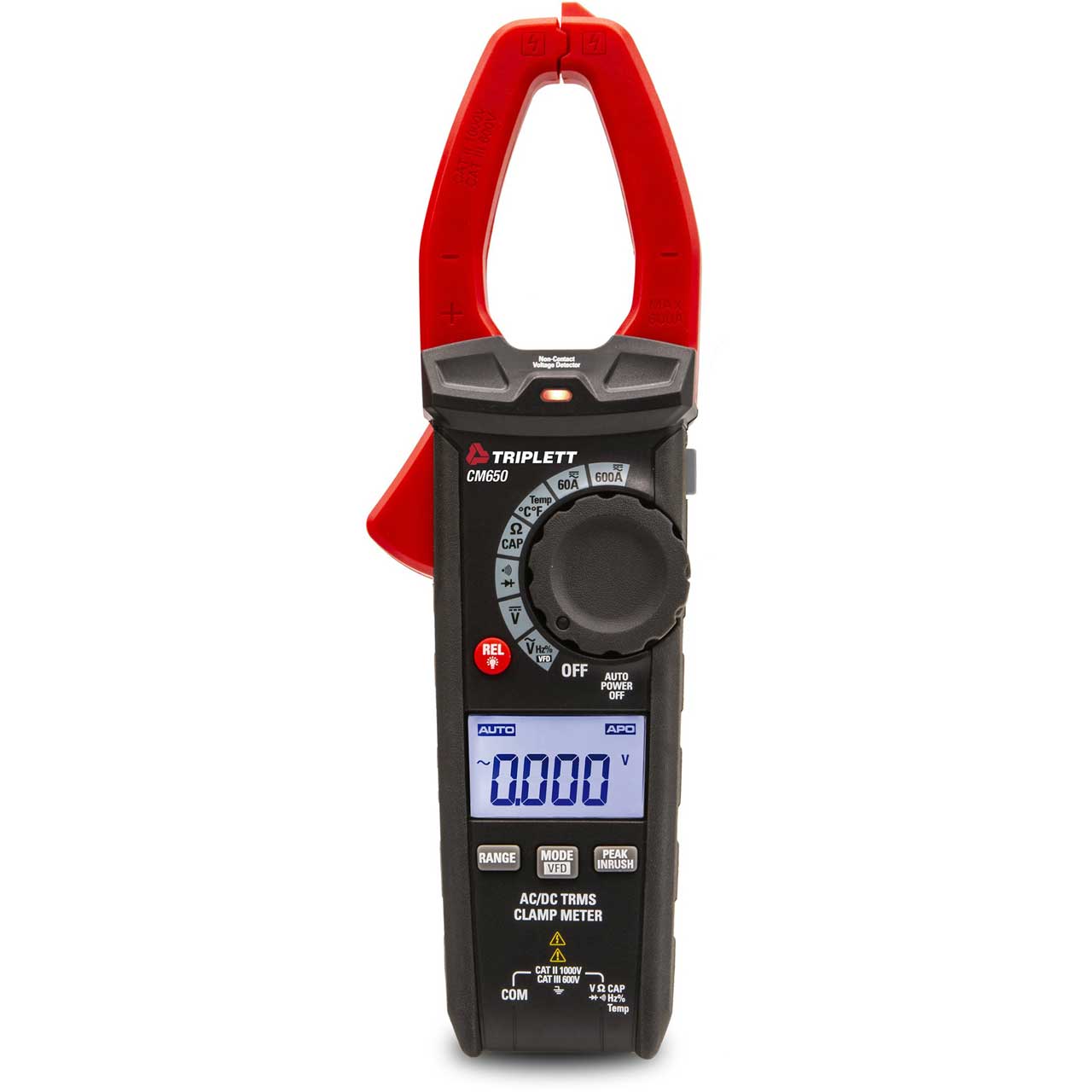

    The Triplett Model CM650 True RMS Clampmeter can measure AC and DC current up to 600A without breaking the circuit by clamping around a single conductor. This saves time and the circuit will not be damaged. True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms. Additional measurements include Resistance, Capacitance, Frequency, Temperature, Diode Test, and Continuity. Measurements can read on the 4000 count backlit LCD. It has an Inrush current function that captures the instantaneous surge (inrush) current when power equipment is turned on. Features include: Peak voltage capture with min/max, NCV Detector with LED, Relative/DC zero function, Auto power off, and a built-in flashlight. Data Hold freezes the display for easy viewing. CAT III-600V safety category.

    Applications:

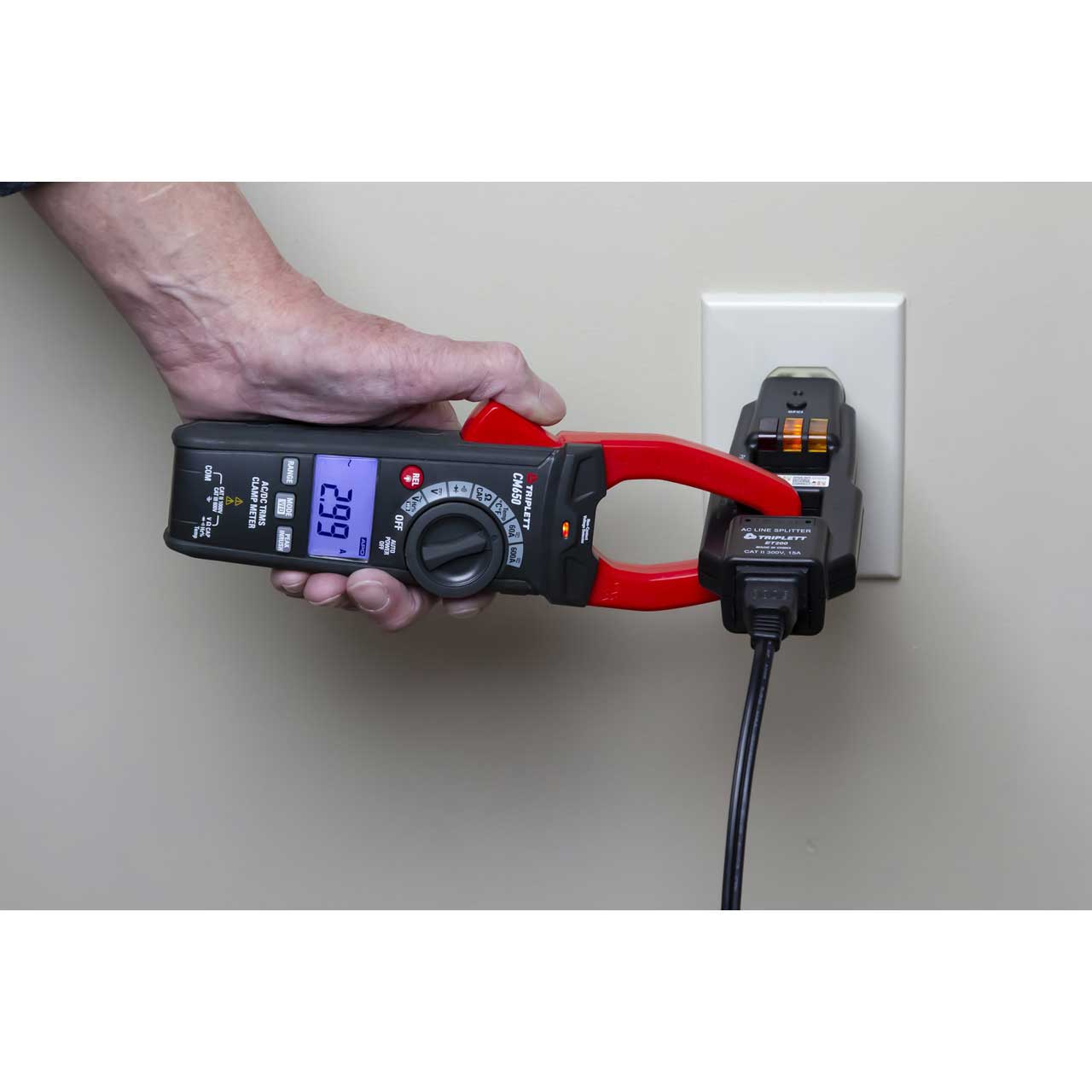

    Typically when using a multimeter to measure current, you would have to "break the circuit" and place the meter in series with it, so that voltage and current would pass through it. A clamp meter allows you to easily measure current without breaking the circuit by clamping around a single conductor. This saves time and the circuit will not be damaged.

    • Features:

      • True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms
      • Captures the instantaneous surge (inrush) current when power equipment is turned on
      • 1.2" (30mm) clamp jaw
      • Built-in Non-Contact Voltage Detector with LED
      • Low Pass Filter (LPF) for filtering frequency and harmonic interference when measuring variable frequency drives
      • Peak voltage measurement with Min/Max
      • Data Hold freezes the display
      • Relative Mode for making comparisons to a stored reference value and DC Zero
      • Auto power off with disable
      • Built-in Flashlight
      • Includes test leads, Type K thermocouple bead probe, 3 AAA batteries, and carrying case

    • Specifications:

      • Display counts: 6000 count
      • AC Current: 600A
      • ACA Accuracy: ±2.5%
      • DC Current: 600A
      • AC/DC Voltage: 1000V
      • Resistance: 40MΩ
      • Temperature: -4 to 1832°F (-20 to 1000°C)
      • Capacitance: 100mF
      • Frequency: 100kHz
      • Duty Cycle: 20.0 to 80.0%
      • Continuity: <50Ω
      • Lo Pass Filter (LPF): Yes
      • NCV Detector: >90V
      • Inrush Current: 100ms
      • Safety Category: CAT III-600V
      • Dimensions: 8.8 x 3 x 1.6" (223.8 x 76.5 x 39.4mm)
      • Weight: 10.3oz (290.6g)

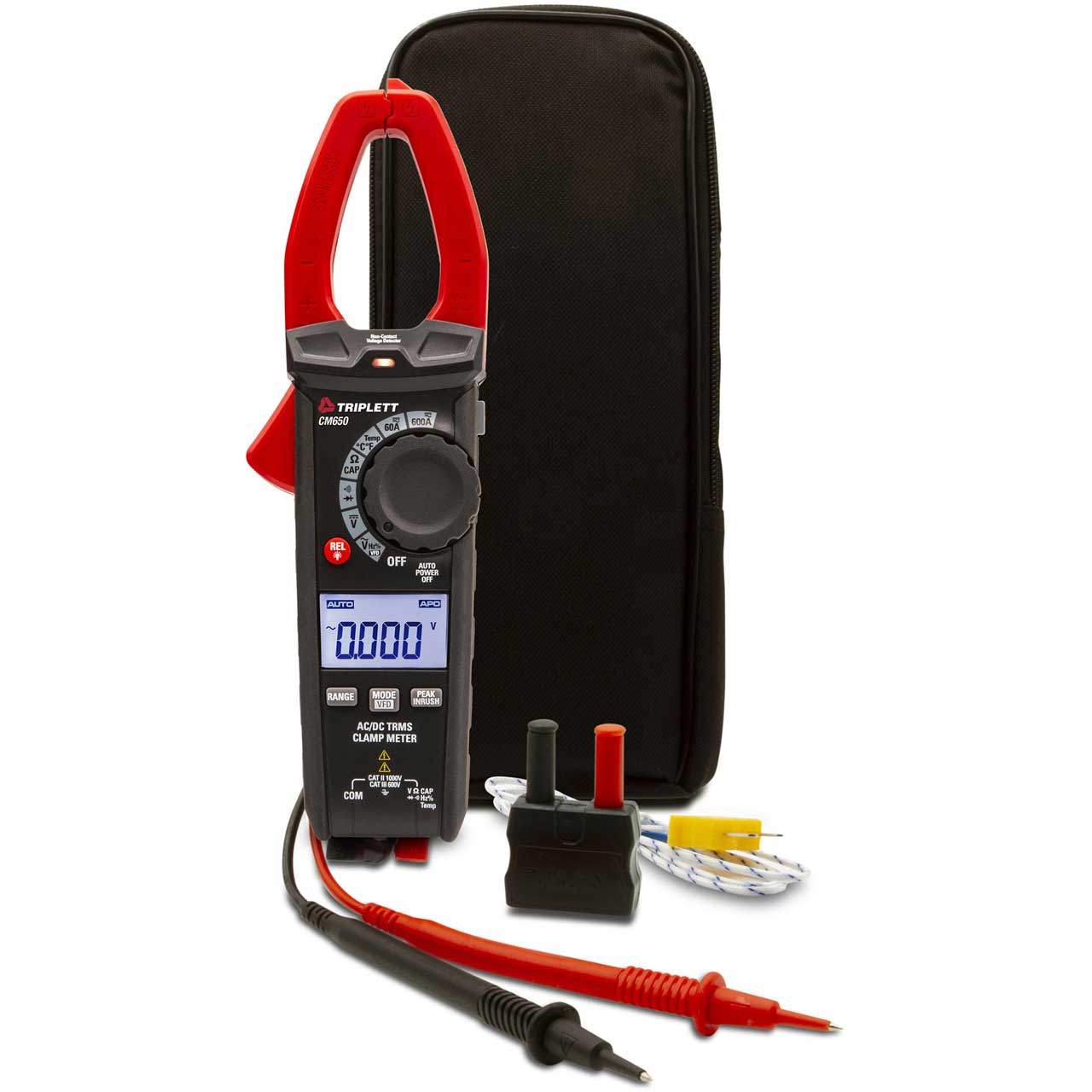

    • Item Includes:

      • 1x CM650 600A True RMS AC/DC Clamp Meter
      • 1x Test leads
      • 1x Type K thermocouple bead probe
      • 3x AAA batteries
      • 1x Carrying case

    • Warranty:

      • 1 year warranty.

    • GTIN:

      0614395003050
