Klein Tools VDV501-852 Scout® Pro 3 Tester with Locator Remote Kit

VDV501-852 - Overview

• Features:

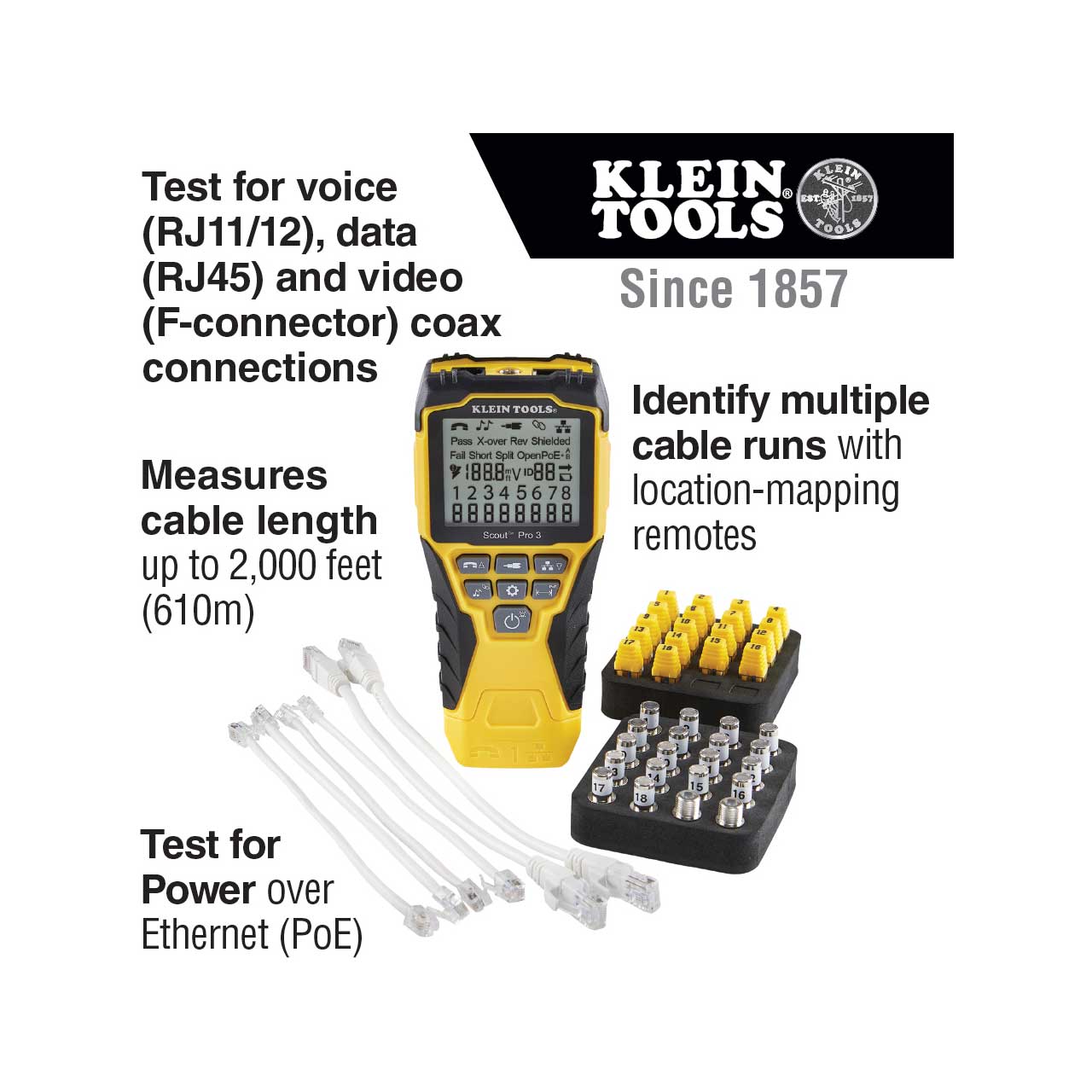

  • Cable tester for voice (RJ11/12), data (RJ45) and video (F-connector) coax connections

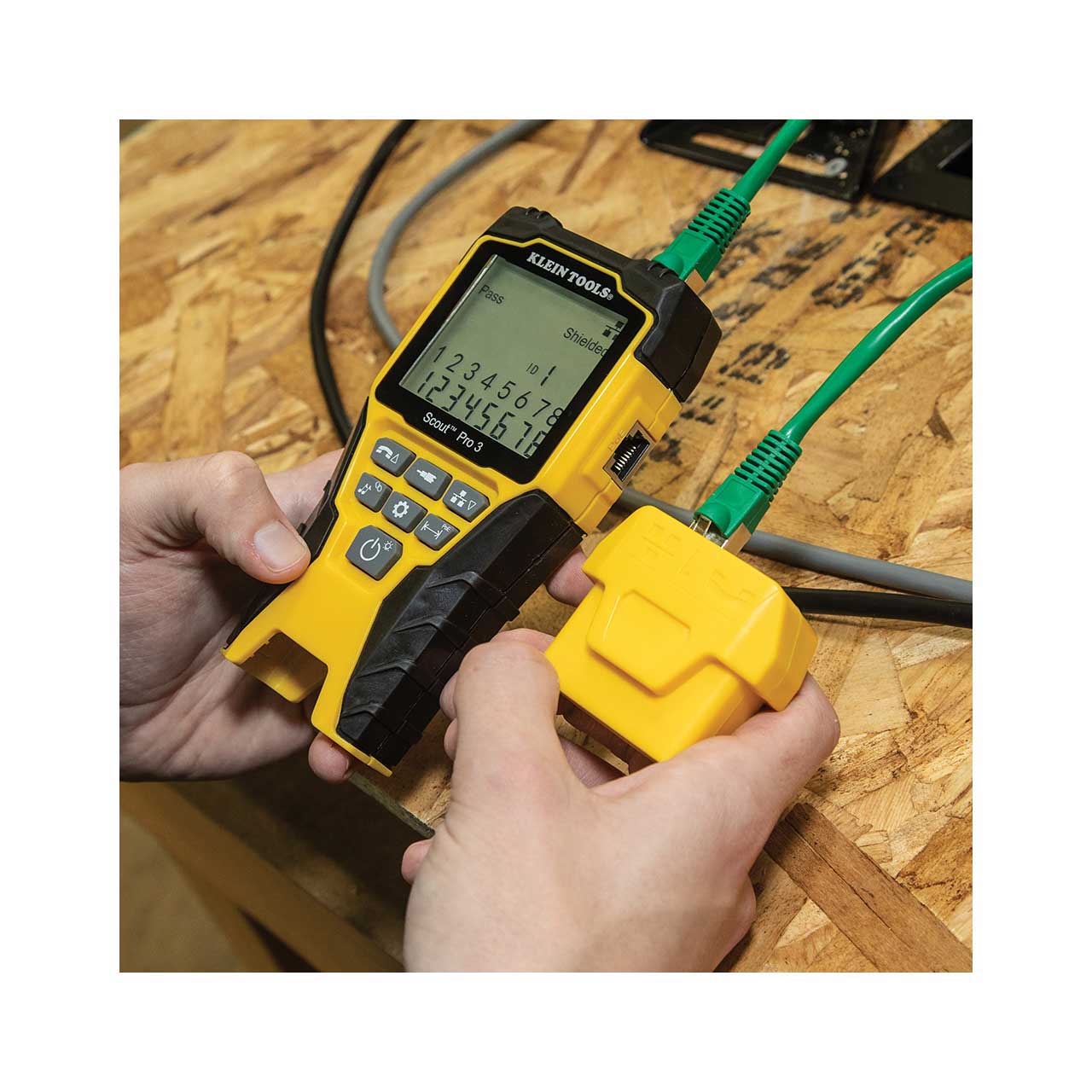

  • Self-storing Test + Map™ Remote (#1) tests, maps and IDs a cable run in a single step

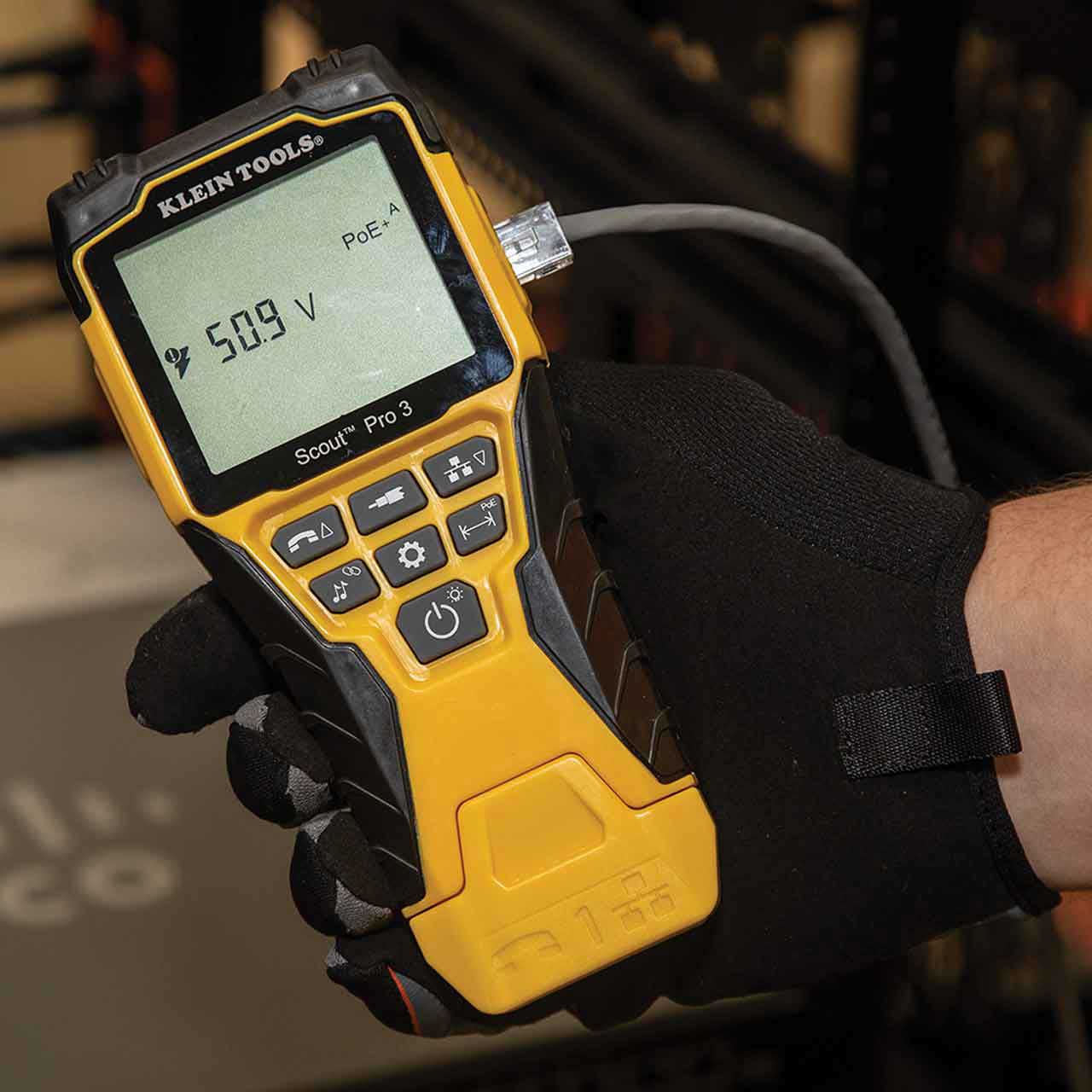

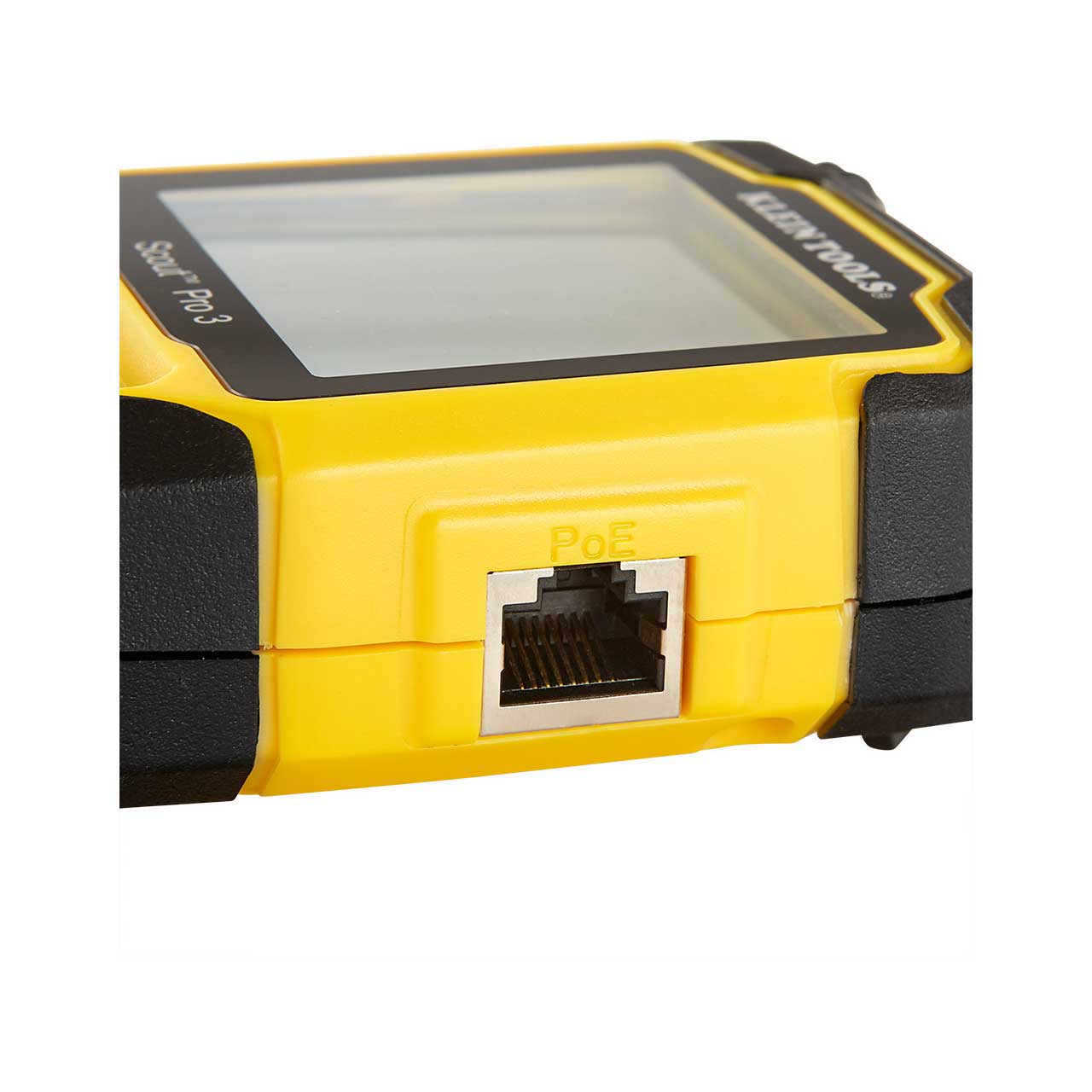

  • Power over Ethernet Tester that displays PoE wire and Voltage
  • Trace cables, wire pairs and individual conductor wires with a tone generator (requires analog probe Cat. No. VDV500-123; sold separately)
  • Measures cable length up to 2,000 feet (610m)
  • Identify multiple cable runs with location-mapping remotes Identify
  • Kit includes 18 RJ45 LAN locator remotes, 18 F-coax locator remotes, 2 female-to-female coax barrel adaptors, 2 RJ45, RJ11 and RJ12 jumper cables (6-Inch), carrying case and 9V battery
  • Detect, identify and test Power over Ethernet (PoE)
  • Backlit LCD screen displays cable length, wiremap, cable ID and test results
  • Hub blink mode to identify port location on a hub or a switch
  • Identify 18 RJ45 and 18 F-connector drop locations with large easy-to-read numbers
  • Includes a 9V battery and convenient carrying case


• Specifications:

  • Type: Twisted Pair, DATA, Voice, LAN, and Coaxial
  • Application: Cable Testing
  • Cable Type: DATA, Shielded or Unshielded, CAT3, CAT5E, CAT6, CAT6A, CAT7; COAXIAL: RG59, RG6/6Q
  • Material: Plastic and Metal
  • Test-n-Map ID Remotes: 1x Self-Storing
  • Location ID: 18x RJ45 Data and 18x F-Coax Locator Remotes
  • Batteries: 9V Alkaline
  • Battery Life: Active: 50hr
  • Drop Protection: 2m
  • Supported Remotes: 18
  • Connection & Adapter Types: RJ11, RJ12, RJ45, Coax F
  • Display: Backlit LCD
  • Multiple Style Tone Generator: Yes (5); Requires Tracing Probe (Cat. No. VDV500-123); Sold Separately
  • Faults Detected: Open, Short, Miswire
  • Test & Measure Types: Ethernet, Data, Coaxial
  • Accuracy: Length Measurement: +/- 5% (ft) or 5% m
  • Standard: CE
  • Dimensions (LxWxH): 7" x 1.5" x 3.2" (17.8cm x 3.8cm x 8cm)
  • Weight: 1.2lbs (0.5kg)

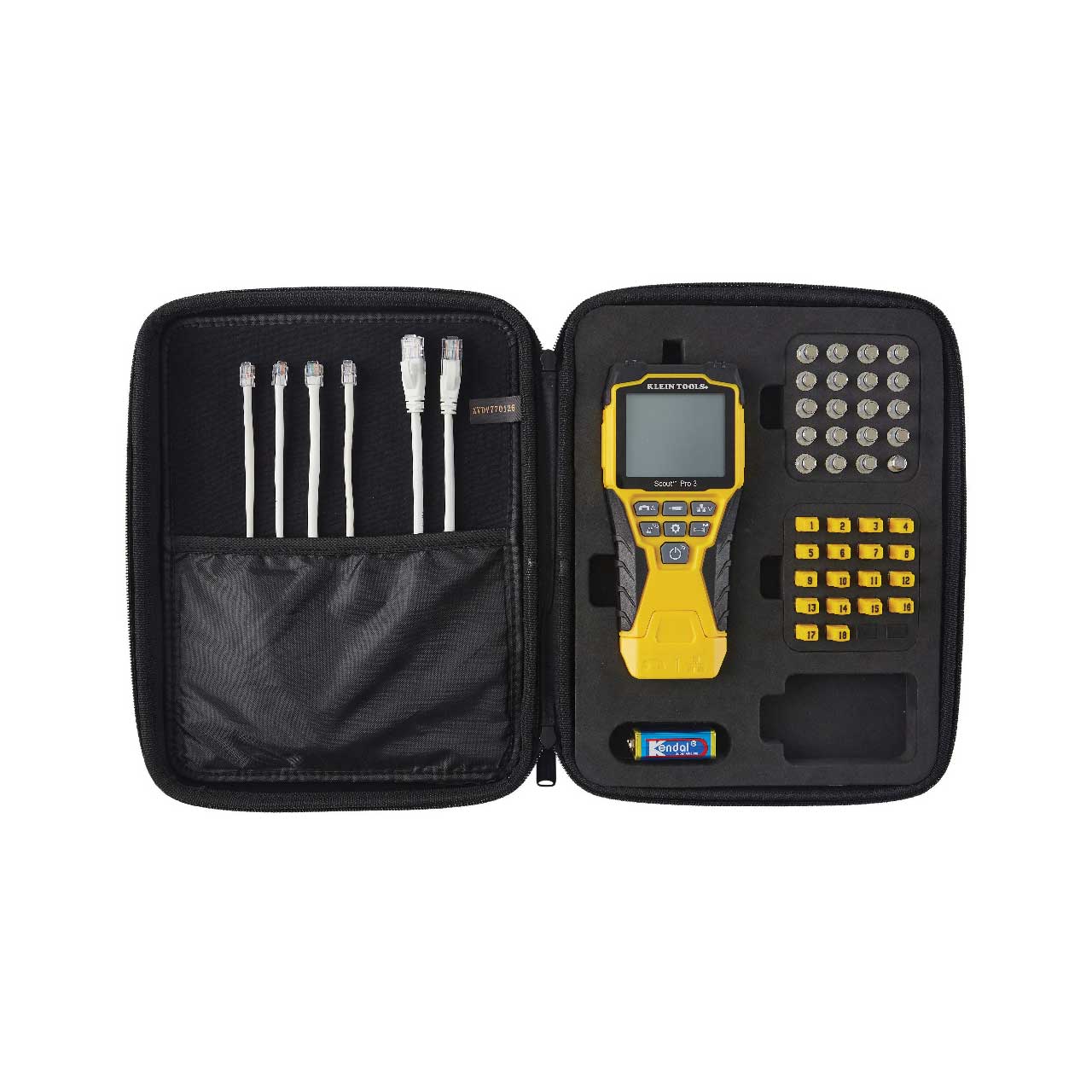

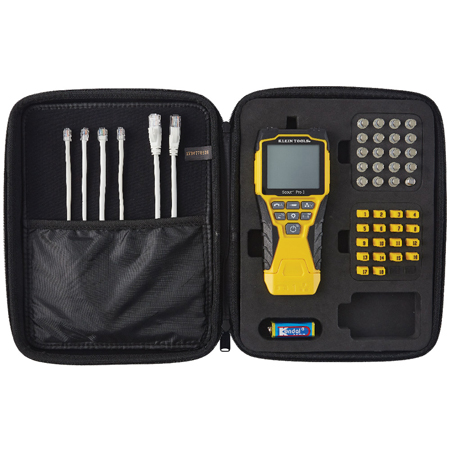

• Item Includes:

  • 1x Tester
  • 1x Self-storing Test + Map™ Remote (#1)
  • 18x RJ45 LAN Locator Remotes
  • 18x F Coax Locator Remotes
  • 2x Coaxial Barrel Adapters (female-to-female)
  • 2x RJ45 Jumper Cables (6'')
  • 2x RJ11 Jumper Cables
  • 2x RJ12 Jumper Cables
  • 1x Carrying Case
  • 1x 9V Battery


• GTIN:

  0092644583261
