Rack-A-Tiers KO25W Multiport NM Cable Connector / Fitting Wire Waffle

ITEM #: KO25W MFG #: KO25W

Primary Image
Rack-A-Tiers
Free Shipping with $49 Minimum Order

Our Price:

$12.49

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
Report Lower PriceLarge Quantity Quote

KO25W - Overview

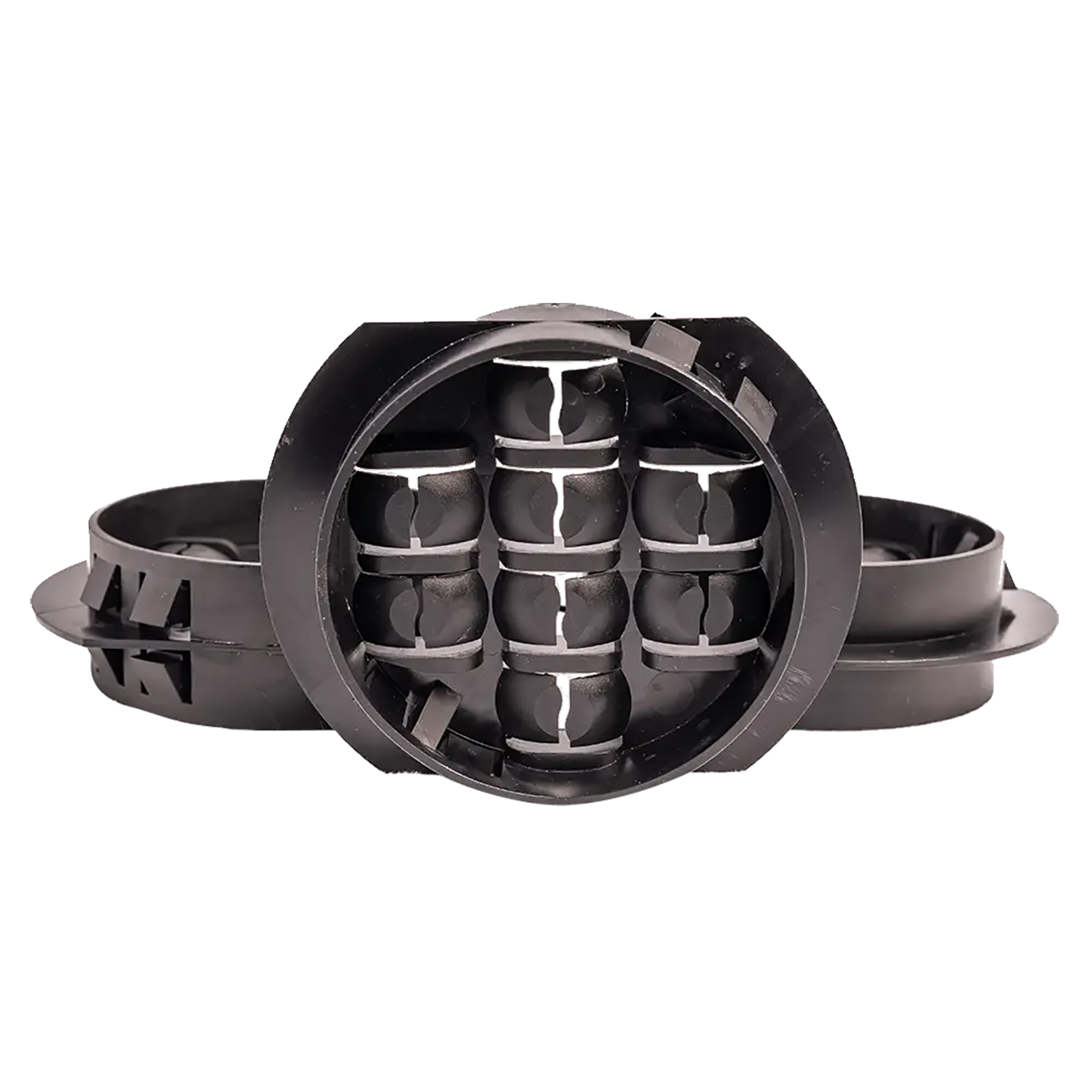

Multiport NM Cable Connector/Fitting

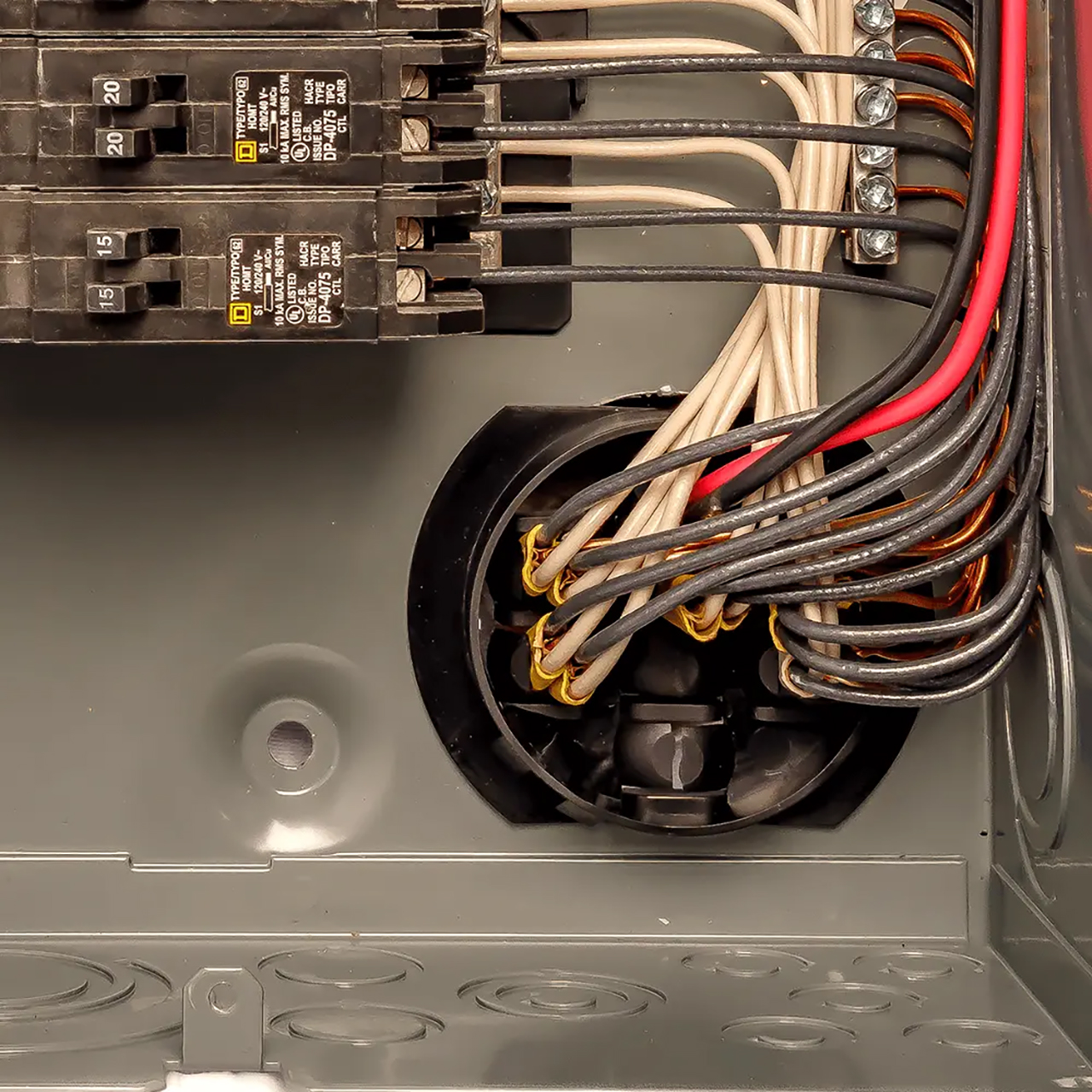

The Rack-A-Tiers KO25W is installed in 2.5" panel knockouts to connect up to 16x different cables through a single hole. Cut labor time down by reducing the number of KO’S electricians will have to open. This one-of-a-kind connector will reduce wear and tear on tools, clean up panels, make panel upgrades significantly easier, reduce damage to walls, and satisfy code.

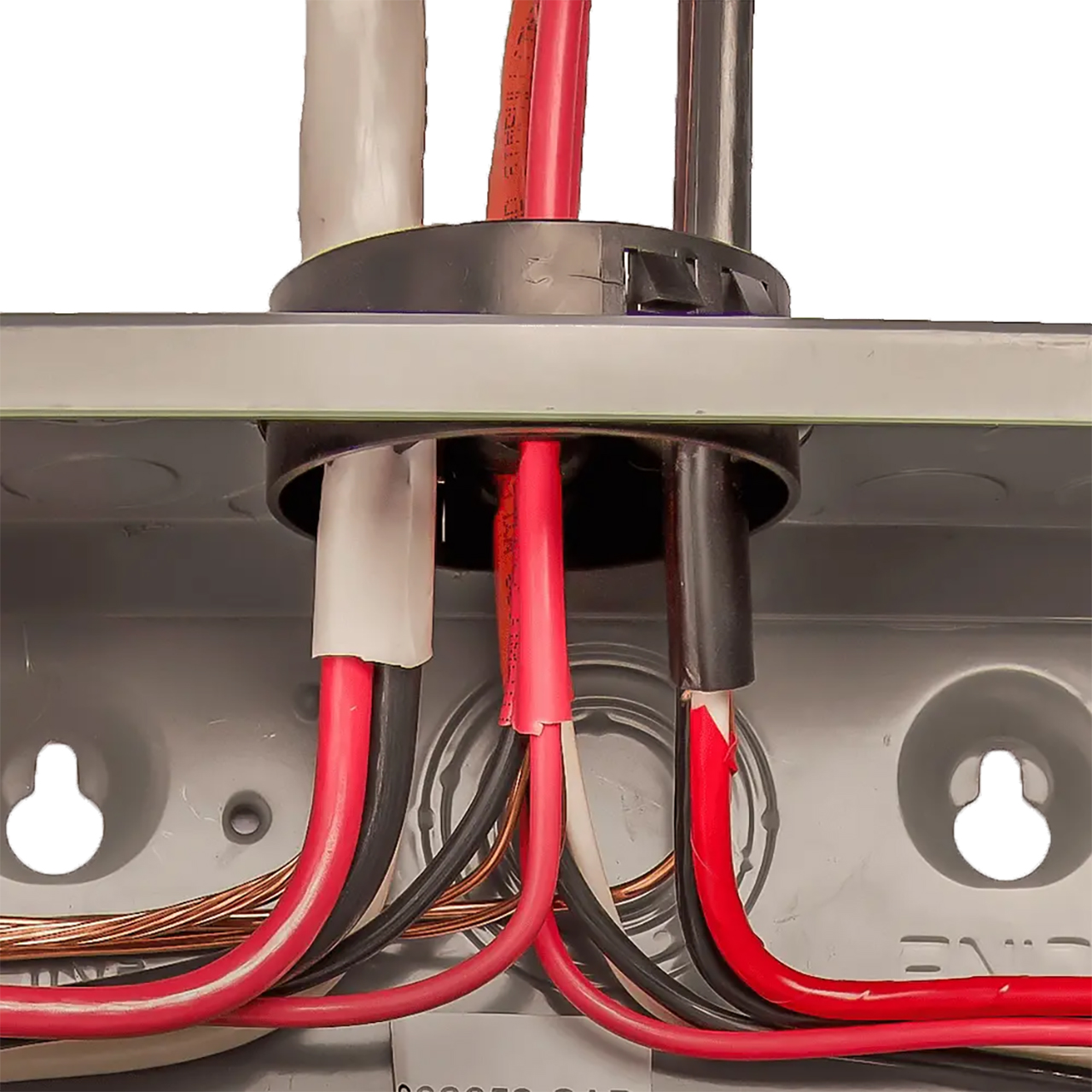

Snap the Wire Waffle into a panel knockout from the inside of the panel to secure all cables with minimal stress and effort. Perfect for performing a panel change in a finished wall without damaging the drywall.

  • Features:

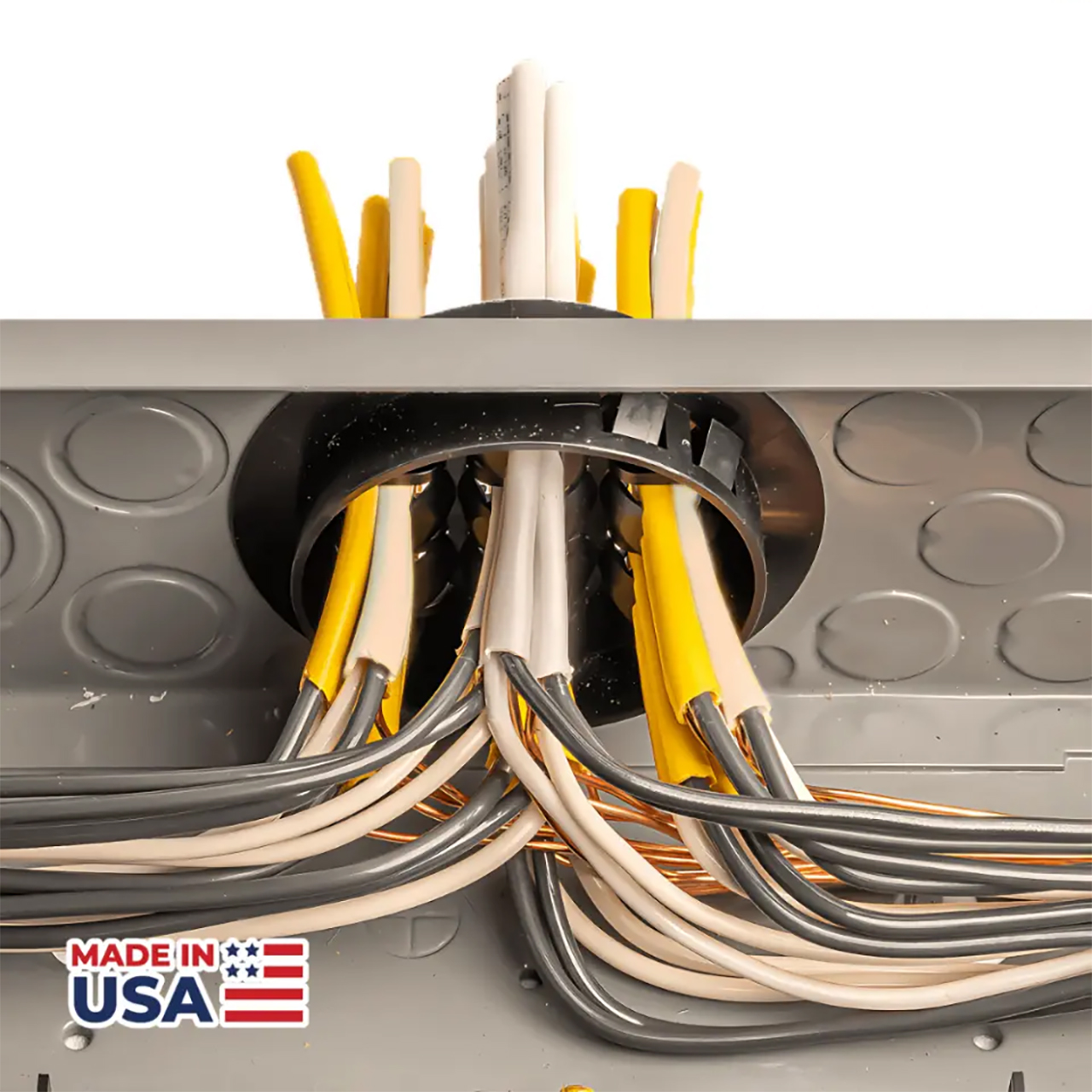

    • Install up to 16x NM cables in a single 2.5" KO

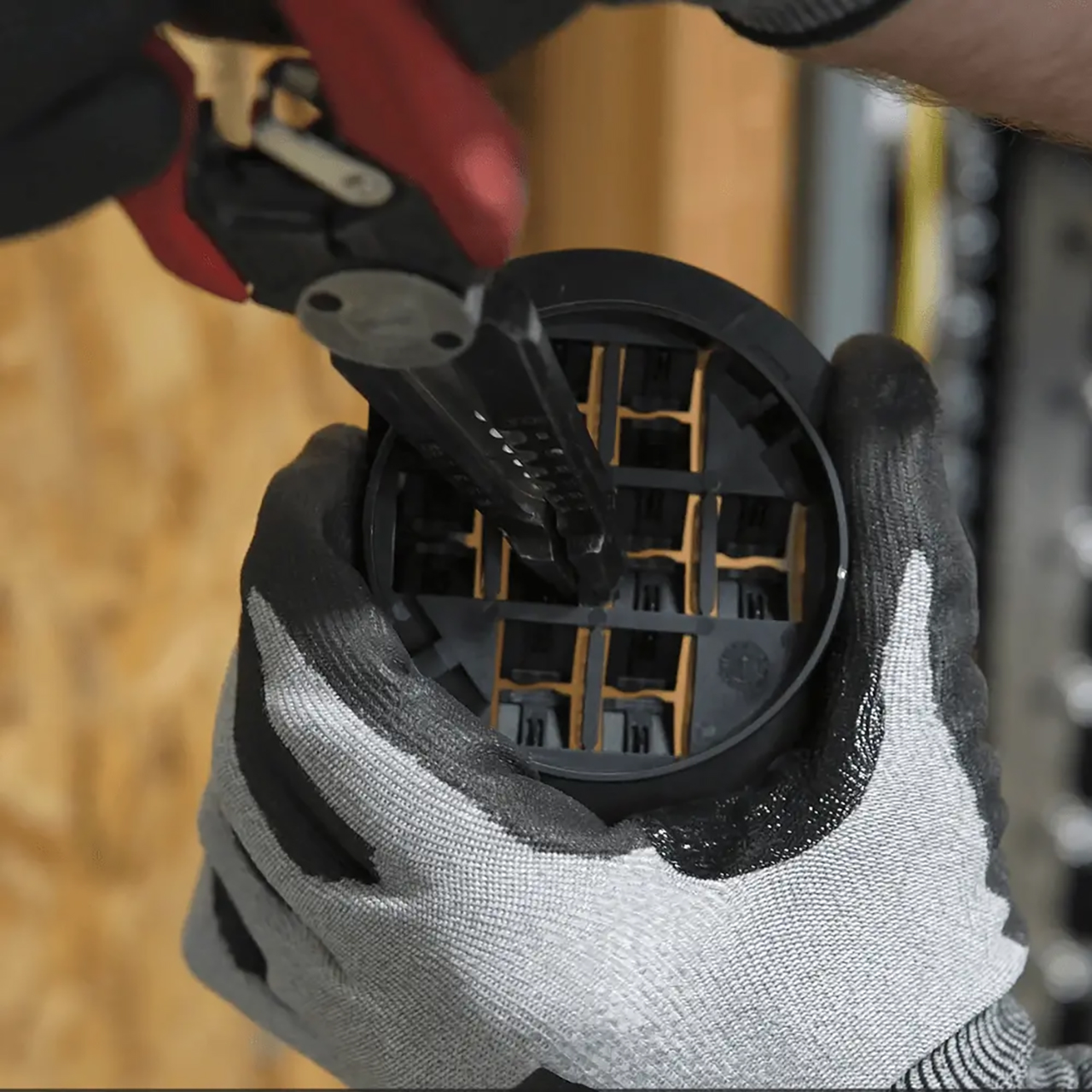

    • Allows for 14/2 through 10/3 cables with break-off tabs for cables sized 8/2 through 6/3
    • Patented design


  • Specifications:

    • Weight: 0.5lbs
    • Dimensions: 3.74" x 1.18" x 2.95" (95mm x 30mm x 74.93mm)
    • Product Material: Nylon
    • Product Type: NM Cable Connector
    • Color: Black
    • UL Listing: UL Standard E540749
    • Single Cables per hole: 14/2, 14/3, 14/2/2, 12/2, 12/3, 12/2/2 & 10/2
    • Dual Cables per hole: 14/2+14/2, 14/2+14/3, 14/3+14/3, 14/2+12/2, 14/3+12/2, 12/2+12/2 combination in single hole not ULC approved for USA
    • Single Cables per double opening: 10/3, 8/2, 8/3, 6/2 & 6/3


  • Item Includes:

    • 1x Wire Waffle


  • Warranty:

    • 1-Year Limited Warranty


  • GTIN:

    0625912920255
