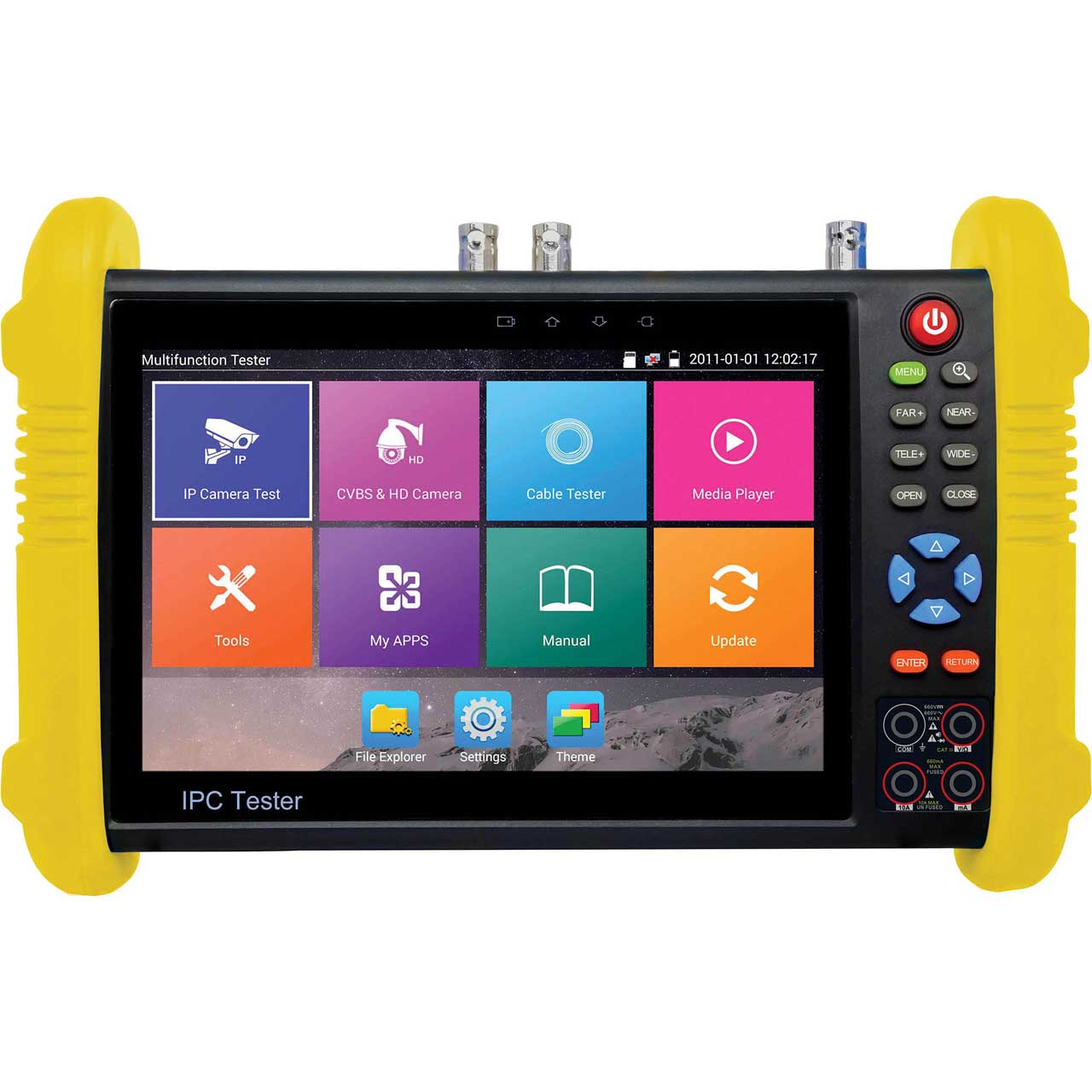

Securitytronix ST-ALLIN1-TEST2 7 Inch Touch Screen IP Camera Monitor and Tester with Li-ion battery

ITEM #: ST-ALLIN1-TEST2 MFG #: ST-ALLIN1-TEST2

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$795.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    ST-ALLIN1-TEST2 - Overview

    The Securitytronix ST-ALLIN1-TEST2 7 inch touch screen IP camera monitor and tester is designed for maintenance and installation of IP cameras, HD over coax cameras (TVI, CVI, SDI, AHD), and analog cameras as well as other security equipment. The 1280 x 800 resolution enables it to display HD cameras and analog cameras in high resolution. The unit supports many HD over coax PTZ, ONVIF PTZ and analog PTZ controls. The tester is also a great tool for Ethernet network testing. It can test PoE power voltage, perform PING tests and IP address scanning. You can use the blue cable tester to check the termination and cable type of network cables. Other functions include providing 24W PoE power to your IP camera, an LED Flashlight, 12VDC 2A power output and much more. Its portability, user-friendly design and many other functions make the IP buddy+ all in 1 an essential tool for all installers or technicians.

    • Features:

      • Easily aim and focus your camera at the camera
      • View IP, TVI, SDI, CVI, AHD & Analog cameras
      • HDMI Input & HDMI output
      • H.264 / H.265
      • IP Camera discovery
      • IP address scanning
      • ONVIF 2.4 & RTSP compatible
      • PoE and 12VDC 2A power outputs supply power directly to cameras
      • Built-in WiFi
      • Built-in web browser
      • CoC (Control over Coax)
      • PTZ Control: pan, tilt & zoom, focus
      • adjustment
      • Supports Pelco D/P
      • Video record and playback, camera image snapshot
      • PTZ Data Monitor: Control protocol commands are displayed to check RS485 transmission
      • 8GB Micro SD card (included)
      • Enhanced PAL/NTSC color bar generator
      • Ping testing, port flashing
      • PoE switch voltage testing
      • Cat5 Continuity testing
      • Cable search
      • 2 Year limited warrant

    • Specifications:

      • Signal Format: NTSC / PAL (Auto-Selecting)
      • Display: 7 inch IPS touch screen, 1280 x 800 resolution
      • IP Camera Type: 4K, H.264, H.265, ONVIF, ONVIF PTZ, ACTi etc.
      • Rapid Video: Auto view video, create test report
      • Network Test: FTP Server, Static IP address, DHCP, simultaneously test different segments' IP cameras, Network bandwidth testing, IP discovery
      • IP Camera Apps: Supports video management software to view IP camera images
      • RTSP: Supports RTSP to view IP camera images
      • LCD Adjust: Adjustable brightness, contrast, color
      • HDMI Input: 1 channel HDMI input, supports 1080P
      • HDMI Signal Output: 1 channel HDMI output, supports 1080P
      • Network Port: 10/100/1000M auto adjust, RJ45
      • Wifi: Built in Wifi, speeds 150M, receives wireless camera images, create wifi hotspot
      • PoE Power Output: PoE 24W power supply to IP cameras
      • Video Input/Output: 1 channel BNC input & 1 channel BNC looped output
      • Video Output Mode: 1.0 Vp-p
      • CVBS Loop Test: The tester sends and receives color bar generator signals to check BNC cables
      • Power Adapter: 5V DC, 2A input supply
      • Power Output: 12V DC, 2A power output for cameras
      • Audio Input: 1 channel audio signal input to test pickup device, 1 channel audio signal output to connect headphones
      • USB Power Output: USB 5V 2A power output to mobile phone
      • Communication: RS485
      • Baud Rate: 150, 300, 600, 1200, 2400, 4800, 9600, 19200bps
      • Power Saving Features: Sleep mode, Battery level indicator
      • PTZ Address Scanning: Scan for local PTZ address over data cables
      • Rechargeable Battery: 6 hour charge, works for 10 hours
      • Battery: 1 pcs Lithium Ion Polymer Battery; 7.4V DC, 5000mAh
      • Video Display: Displays video signal from analog input
      • Video Signal: Color bar generator for monitor testing
      • Cable Test: Checks connections of UTP cables, RJ45 cable TDR test
      • PTZ Protocol: Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, TeleEye etc.
      • PTZ Data Capture: Reads and displays commands sent from controllers
      • Image 4x Zoom: 4x zoom image display and video out
      • Photograph: Snapshot and save the image as JPG file and screenshot
      • Video Record: Video recording and playback from the SD card
      • Port Finder: Find a connected PoE port quickly
      • IP Scan: Find a connected IP camera or network equipment's IP address
      • Link Monitor: Check to see if an IP address is being used
      • Ping Testing: Network and Ip camera ping test
      • PoE Tester: PoE voltage testing, PoE port flicker, PoE link monitoring
      • Night LED: Built in LED lamp
      • SD Card: With 8G Micro SD card, supports Micro SD card for recording, max supported 32G SD card
      • Tester Play: Screen projection: tester, mobile phone and PC display at the same time (For android version mobile phone)
      • Drop-Down Menu: User can select PoE power switch, IP setting, WLAN switch, HDMI In functions etc in any interface
      • HD-TVI Input: 8MP TVI camera test, 3840 x 2160, 15 FPS, image display, zoom, video record and playback, coaxial PTZ control and camera OSD menu
      • HD-CVI Input: 8MP CVI camera test, 3840 x 2160, 12.5/15 FPS, image display, zoom, video record and playback, coaxial PTZ control and camera OSD menu
      • AHD Input: 5MP AHD test, 2592 x 1944P, 12.5/20FPS, image display, zoom, video record and playback, coaxial PTZ control and camera OSD menu
      • HD SDI/EX-SDI Input: HD-SDI / EX-SDI camera t

    • Item Includes:

      • 1x ST-ALLIN1-TEST2
      • 1x 12VDC 2A Power Adapter
      • 1x Network Cable Tester
      • 1x Polymer Lithium Ion Battery (7.4V DC 5400mAh)
      • 1x BNC Cable
      • 1x Multi-Meter Test Leads One Pair of Red and Black
      • 1x 12V DC Output Power Cable
      • 1x 3.5mm Audio Cable
      • 1x Safety Lanyard
      • 1x Tool Bag
      • 1x Manual
      • 1x 8GB SD card
