Kramer C-UNIKAT-6 Four-Pair 4K HDBaseT CAT6A U/FTP 23AWG DGKat Cable - 10 Feet

ITEM #: KR-C-UNIKAT-10 MFG #: 99-3460010

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Kramer
Free Shipping with $49 Minimum Order

List Price:

$16.00

Our Price:

$14.40

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

99-3460010 - Overview

Low Smoke & Halogen Free

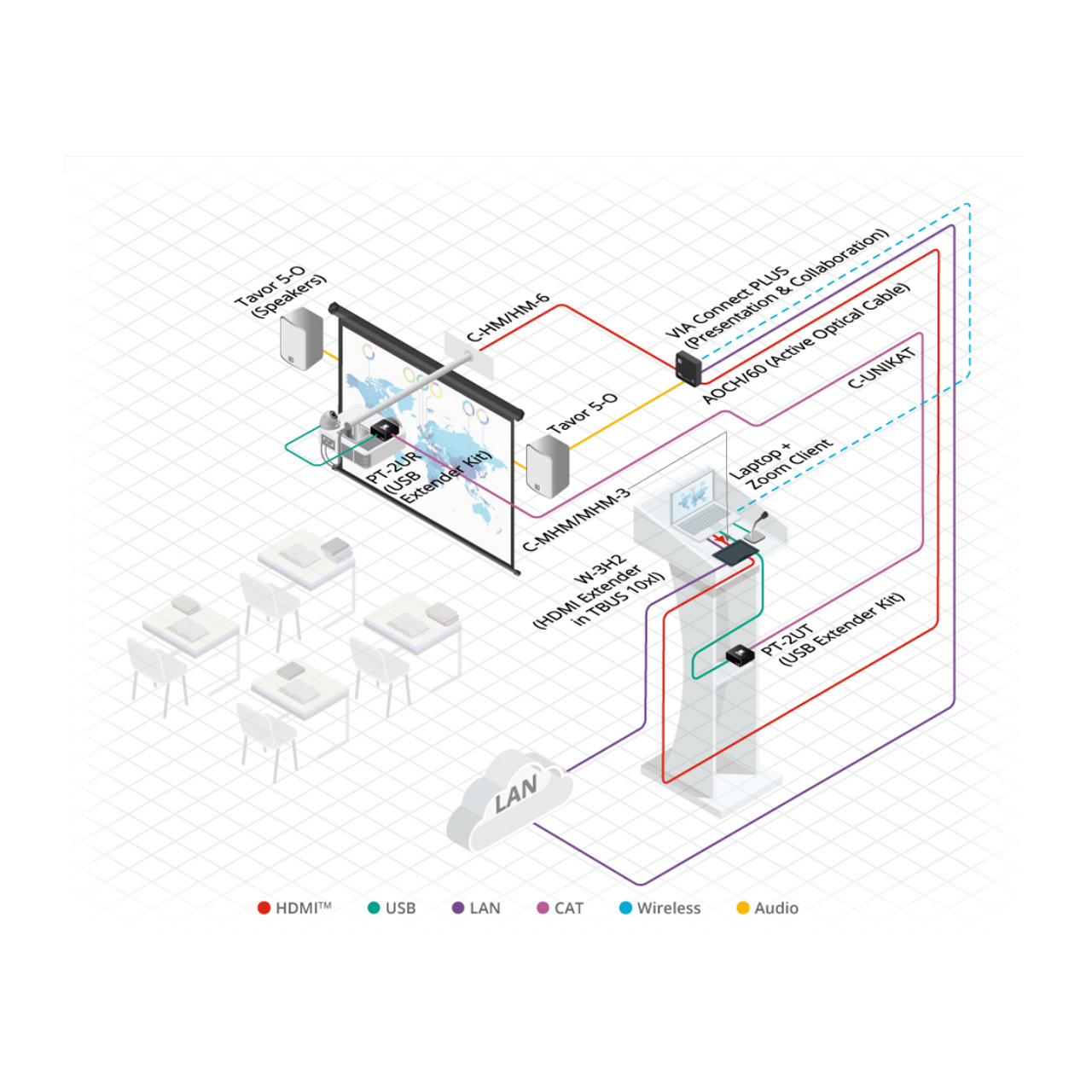

Kramer's C-UNIKAT cable is a unified CAT6a cable that handles all the latest technology signals. Over four individually screened twisted pairs, this U/FTP CAT6a cable runs Kramer's DGKat™ technology, 4K HDBaseT™ technology or LAN applications and ensures optimum signal performance.

  • Features:

    • Quality Construction - 4 shielded twisted pairs (U/FTP) of 23AWG solid copper conductors are cabled together in an unshielded outer jacket.
    • Optimized for Kramer Hardware - Use with any of Kramer's wide range of twisted pair digital transmitter-receiver sets (DGKat™ and HDBaseT).
    • High-Quality Shielded RJ-45 Connectors - 50u gold plated contacts.
    • Varied Selection of Length - 1.8 to 60m (6, 10, 15, 25, 35, 50, 75, 100, 125, 150, 164, 200ft).


  • Specifications:

      Construction
    • Conductors: 4 x 2 x 23AWG, annealed copper
    • Outer Diameter: 0.56 ±0.022" (0.01mm)
    • Insulation Material: Skin/Foam/Skin HDPE
    • Outer Diameter: 1.33 ±0.052" (0.10mm)
    • Color: Per TIA/EIA 568-B
    • Screening: Alu/PET per pair (Alu side out)
    • Drain Wire: 90% tinned copper, outer diameter: 0.4 ±0.016" (0.01mm)
    • Jacket: LSHF, blue RAL5012

      Physical
    • Diameter: 7.2 ±0.284" (0.2mm)
    • Thickness: = 0.020" (0.5mm)
    • Maximum Pulling Tension: 100N
    • Bending Radius: Installation 2.36" (60mm), Installed 1.97" (50mm)
    • Thermal Characteristics:
      - Storage/Transport/Installation: 32°F - 122°F (0°C - 50°C)
      - Operation: -4°F - 140°F (20°C - 60°C)

      Regulatory
    • Electrical: EIA/TIA 568A, ISO/IEC 11801
    • Fire Performance: IEC 60332-1
    • Smoke Density: IEC 61034
    • Halogen Free: IEC 60754

      Electrical
    • Impedance: 1-100MHz : 100 ±15Ω
    • Impedance: 100-250MHz : 100 ±20Ω
    • Impedance: 250-500MHz : 100 ±50Ω
    • Propagation Velocity: 76%
    • Mutual Pair Capacitance: = 42pF/m
    • Capacitance Unbalanced Pair/Ground: = 1500pF/km
    • Max. Conductor DC Resistance: < 79.8Ω/km
    • Pair Resistance Unbalance: DC < 1.5%
    • Dielectric Strength: 2.5kV DC (2s)
    • Insulation Resistance: > 5000MΩ/km
    • Voltage Rating: 30V


  • Item Includes:

    • Kramer C-UNIKAT-3 Four-Pair CAT6A U/FTP 4x2x23AWG DGKat Cable - 10 Feet


  • Warranty:

    • Lifetime Warranty


  • GTIN:

    7291063081317
