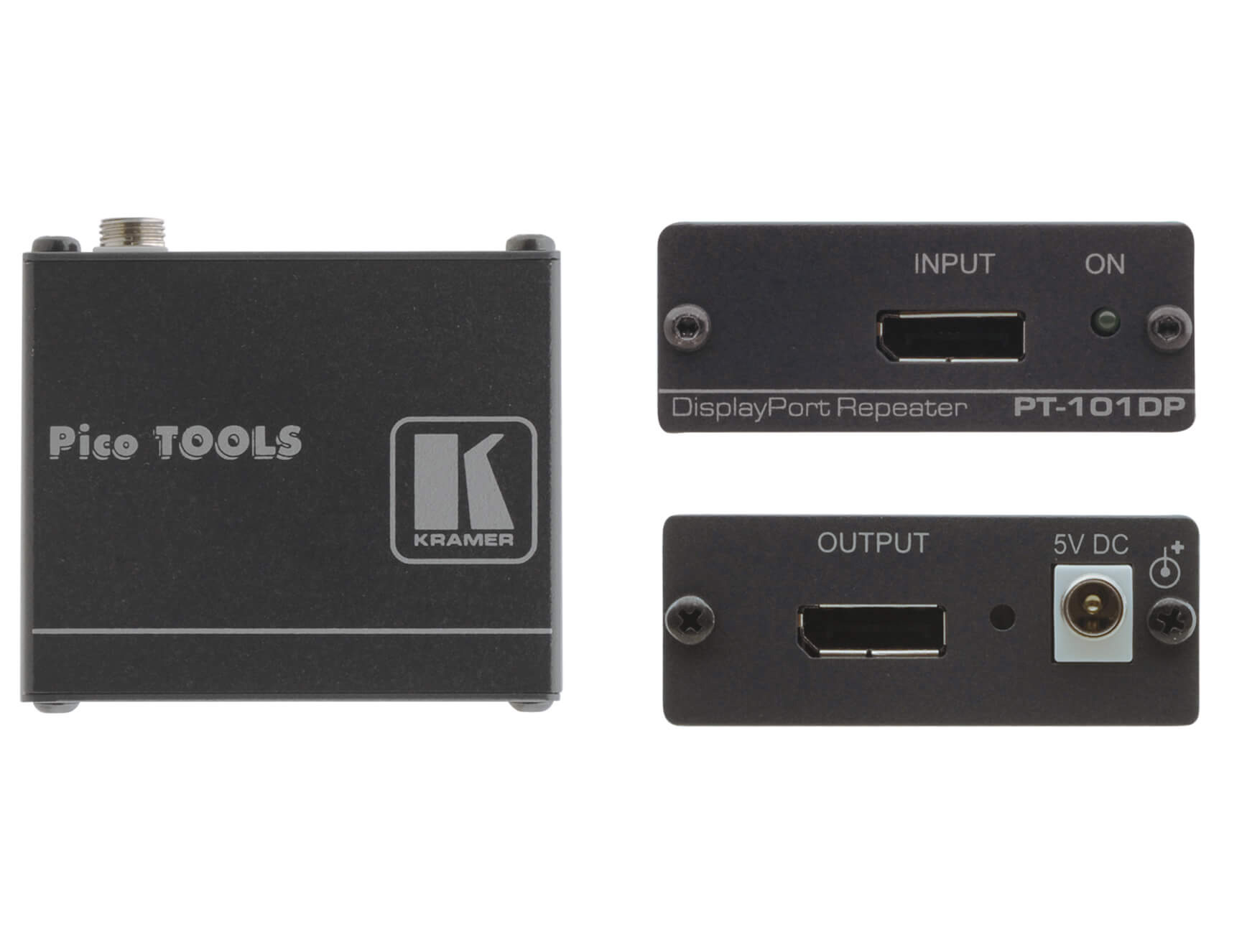

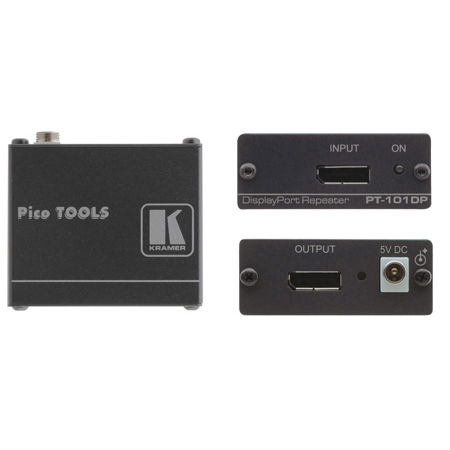

Kramer PT-101DP DisplayPort v1.1 Repeater

Manufacturer: Kramer

Item #: KR-PT-101DP   •   MFG #: PT-101DP



List Price:$320.00
Our Price:$256.00

free ship


Availability:
Direct Ship from manufacturer, contact us for availability
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

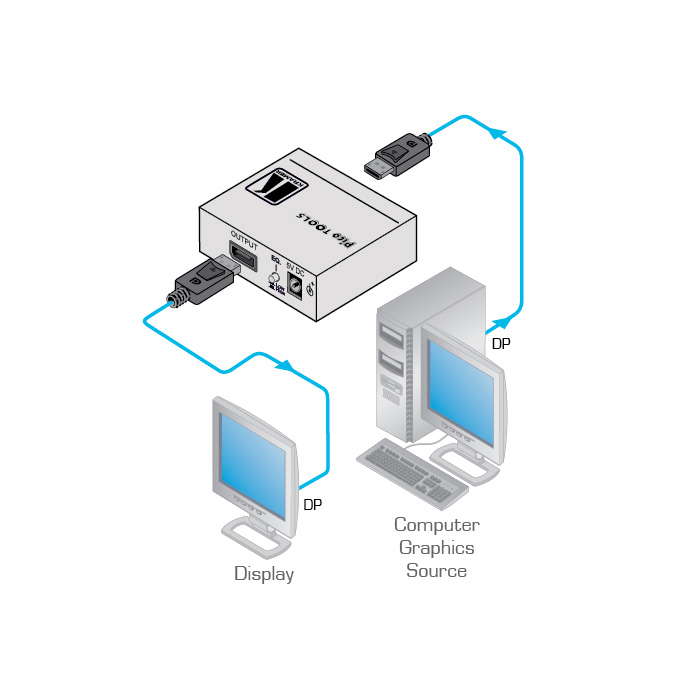

    The Kramer PT-101DP is a repeater for DisplayPort video signals. The unit reclocks and equalizes the signal and can extend the length of a DisplayPort line up to a combined length of 35m (115ft) at resolutions of UXGA/1080p. Multiple units can be cascaded. Applications include multimedia installations and home cinema installations.


    • Features

      • Max. Data Rate - 2.7Gbps per lane
      • HDTV Compatible
      • HDCP Compliant
      • Kramer Equalization & re-KlockingTechnology - Rebuilds the digital signal to travel longer distances
      • Total Range - 35m (115ft) for video transmission at a resolution of 1080p/60 hertz
      • Ultra-Compact Pico TOOLS 4 units can be rack mounted sidebyside in a 1U rack space with the optional RK4PT rack adapter

    • Specifications

      • Input: 1 DisplayPort connector
      • Output: 1 DisplayPort connector
      • Bandwidth: Supports up to 1.62 Gbps or 2.7Gbps per lane Note: Transmission range is very limited for resolutions approaching 2560x1650.
      • Range: 35m (115ft) @UXGA/1080p using Kramer cables.
      • Compliance with Standards: Supports DisplayPort 1.1a and HDCP 1.3.
      • Indicator: ON LED
      • Power Consumption: 5V DC, 1.1A
      • Operating Temperature: 32° to 104°F (0° to 40°C)
      • Storage Temperature: -40° to 158°F (-40° to 70°C)
      • Humidity: 10 to 90%, RHL non-condensing
      • Included Accessories: Power supply
      • Product Dimension (WxDxH): 2.45 x 2.04 x 0.96" (6.22 x 5.18 x 2.44cm)
      • Product Weight: 0.2Lbs (0.1kg) approx.
      • Shipping Dimension (WxDxH): 6.85 x 4.72 x 3.39" (17.40 x 12 x 8.60cm)
      • Shipping Weight: 1.11Lbs (0.5kg) approx.

    • GTIN:

      7291063057145
