Kramer VGAA-IN2-F16 2-Channel VGA with Analog Audio Input Card for VS-1616/34FD Switchers

ITEM #: KR-VGAA-IN2-F16 MFG #: VGAA-IN2-F16/STANDALONE

Primary Image
Kramer
Free Shipping with $49 Minimum Order

List Price:

$1,595.00

Our Price:

$1,276.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    VGAA-IN2-F16/STANDALONE - Overview

    HDTV Compatible

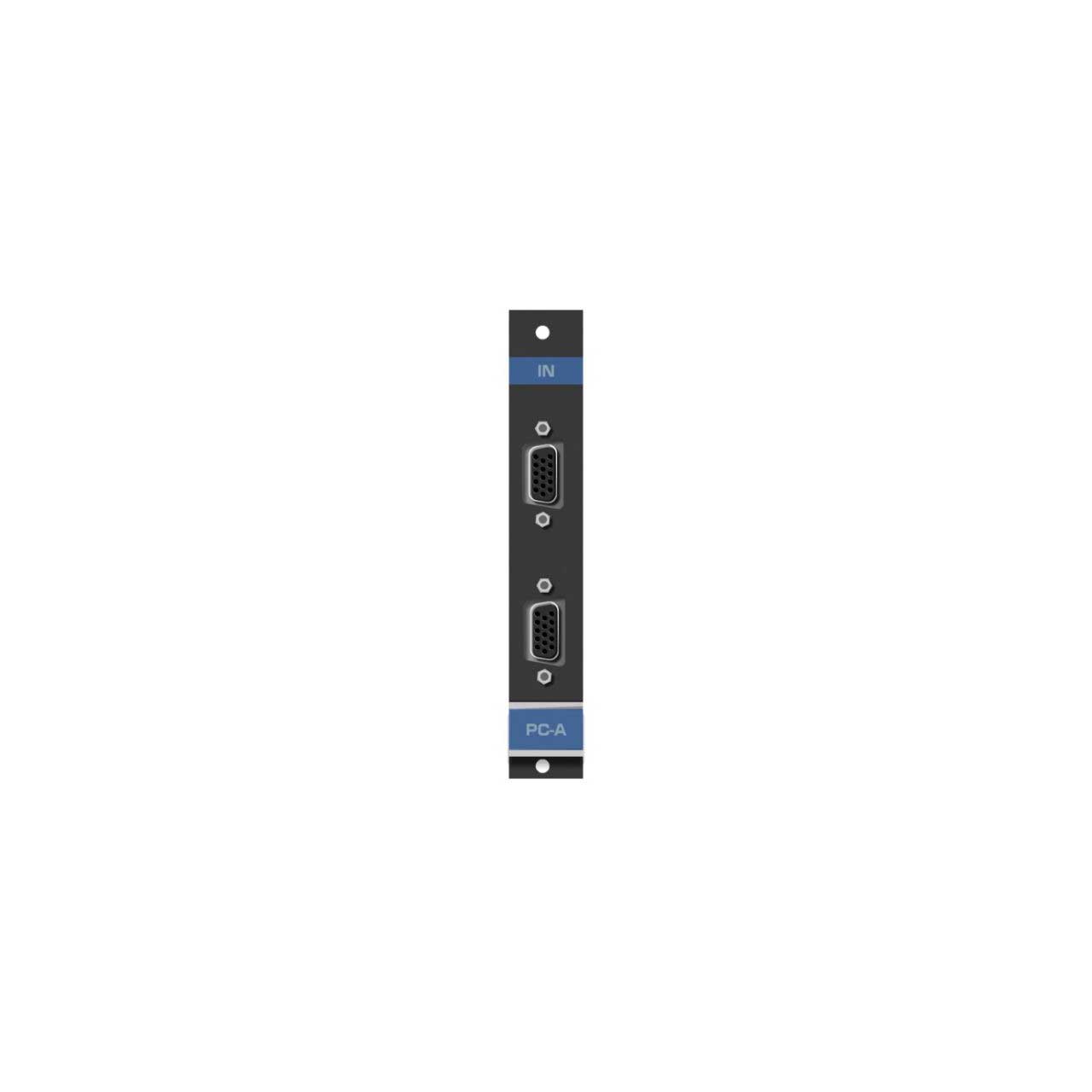

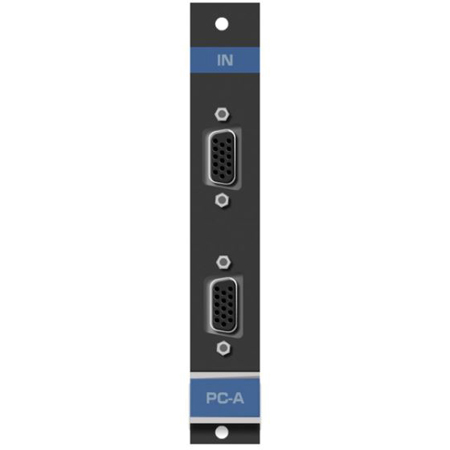

    The Kramer VGAA-IN2-F16 is a two-channel VGA with analog audio input card for the VS-1616 or VS-34FD Series Modular Multi-Format Digital Matrix Switchers. The VGAA-IN2-F16/F34 inputs two VGA with analog audio signals into the chassis. Audio is accessed by connecting the supplied Kramer VGA with audio cables to each VGA port.

    Perfect for:
    Professional display systems
    Multimedia and presentation
    Rental/staging applications

    • Features:

      • Max. Bandwidth - 450MHz.
      • HDTV Compatible.
      • Analog Audio Over Breakaway Connector.


    • Specifications:

      • PORTS
      • 2 VGA on 15-pin HD connectors, 2 unbalanced analog audio on 3.5mm mini jack connectors (accessible via C GF/GMAF-30 cables)

      • BANDWIDTH
      • 450MHz

      • MAXIMUM RANGE
      • 10m (32ft)

      • POWER CONSUMPTION
      • 9.5W

      • OPERATING TEMPERATURE
      • 0° to +40°C (32° to 104°F)

      • STORAGE TEMPERATURE
      • -40° to +70°C (-40° to 158°F)

      • HUMIDITY
      • 10% to 90%, RHL non-condensing

      • SAFETY REGULATORY COMPLIANCE
      • CE

      • ENVIRONMENTAL REGULATORY COMPLIANCE
      • Complies with appropriate requirements of RoHs and WEEE


    • Item Includes:

      • VGAA-IN2-F16 2-Channel VGA with Analog Audio Input Card
      • C-GF/GMAF-30 VGA/Audio cables (2)


    • Warranty:

      • Limited 7 Year Warranty


    • GTIN:

      7291063069520
