Kramer VP-794 8-Input Universal Live Event Image Processor/Scaler/Switcher
  • Kramer VP-794 8-Input Universal Live Event Image Processor/Scaler/Switcher
  • Kramer VP-794 8-Input Universal Live Event Image Processor/Scaler/Switcher
Questions? Ask a Markertek Expert:
800-522-2025 Email

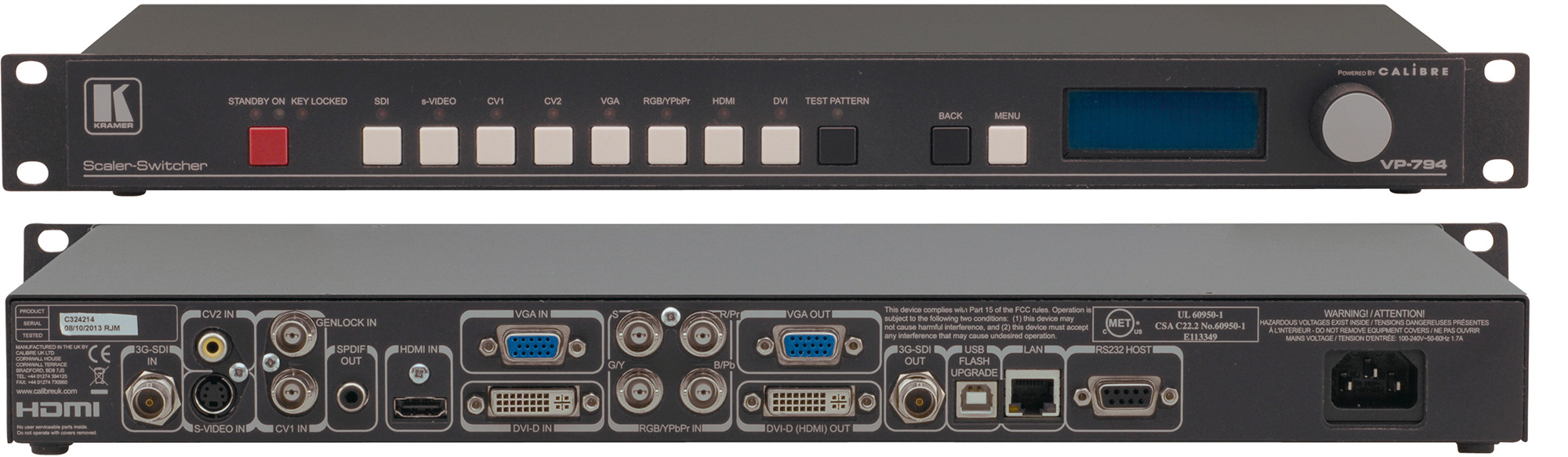

Kramer VP-794 8-Input Universal Live Event Image Processor/Scaler/Switcher

Manufacturer: Kramer

Item #: KR-VP-794   •   MFG #: VP-794


List Price:$8,695.00
Our Price:$6,956.00

free ship
Availability: Direct Ship From Manufacturer
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.



This high performance digital and analog 8-Input Kramer VP-794 Scaler/Switcher is ideal for projection and LED video wall, live events and broadcast scaling applications. The Kramer universal live events scaler was designed and developed specifically for getting video and graphic sources to large screen displays and multiple screen applications. The Kramer VP-794 scales the incoming signal up or down, processes the image with HQV or warping, geometry correction and edge blending and outputs the signal to 3G HD-SDI, DVI/HDMI, VGA and S/PDIF connectors featuring a special mode for driving LED video walls with pixel-accurate output image sizing.

  • Features

    • Optimized Operating Modes - For LED video walls, or soft edge-blend and warp for projection, or scan conversion/scaling for general purpose scaler/switcher use.
    • Multi-Format Operation - 3G HD-SDI, HDMI, DVI, computer graphics, component, composite and s-Video inputs for signals up 1080p & WUXGA.

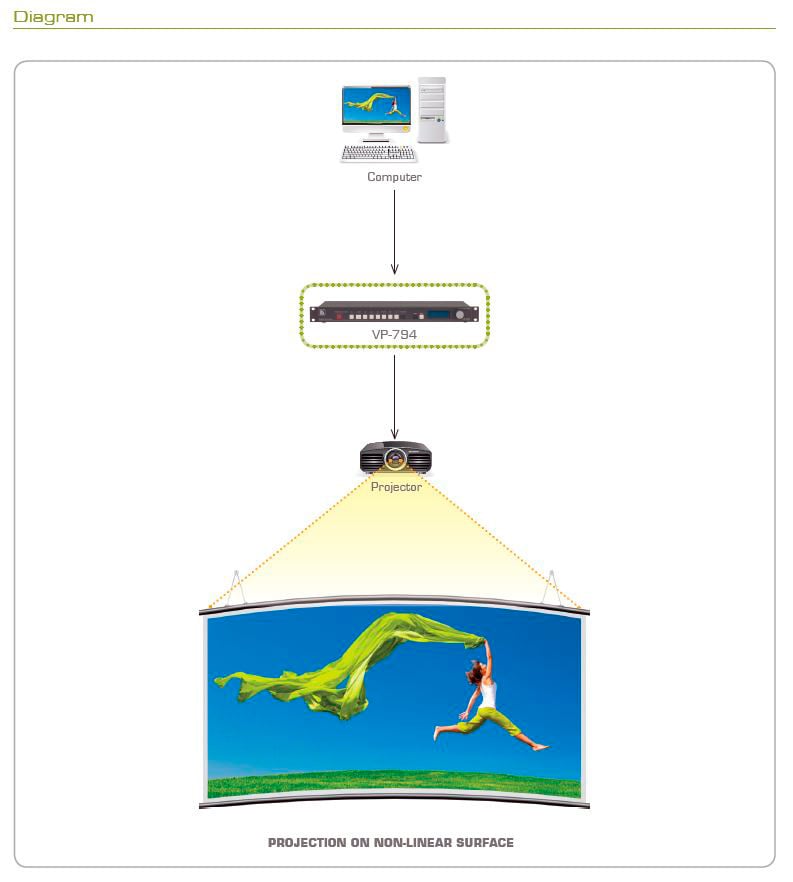

    • Full Warp Mapping - Easy warp map creation for stacked projector alignment and curved screen multi-projector tiling via an included PC application.
    • Powerful Geometry Correction - For off-axis projection, pin/barrel and image rotation, pan, tilt and zoom.
    • Edge Blending - 4-sided professional grade edge blend with 48-bit processing, degamma & multi-region black level correction.
    • HQV Video Processing - HQV (Hollywood Quality Video) processing represents the state-of-the-art in video processing technology, with the highest quality de-interlacing (with 3:2 & 2:2 pull down), 4D motion adaptive SD noise reduction and outstanding scaling performance for both standard-definition and high-definition signals.
    • HDTV Compatible.
    • HDCP Compliant.
    • Supported Resolutions - HD 720p, 1080i, 1080psf (psf digital only), 1080p23.97/24/25/30, 1080p30, 1080p50, 1080p59.94, 1080p60; ED 480p, 576p (not via SDI); SD 625i (576i), 525i (480i);
    • common VESA graphics formats from 640x480 to 1920x1200 (with reduced blanking for 1920x1200 and 1600x1200 modes).
    • Genlock (V-Lock) - Accepts bi-level, tri-level sync or black & burst.
    • Selectable Lock Modes - Genlock (V-Lock), I/O lock or frame rate conversion.
    • HDMI Support - Deep color up to 12 bit.
    • Multi-Standard Support - For CVBS & YC in PAL, NTSC, SECAM formats with selectable 3D comb for composite.
    • Superior De-interlacing - Motion adaptive per pixel video de-interlacing with multi-directional diagonal de-interlace filter reduces HD & SD image flicker and artifacts.
    • Live Image Capture - Logo/still/backdrop capture with full scale warp/blend of the captured image, 4 memories.
    • Selectable Processing Versus Latency - Best picture and low latency modes; latency as low as 0.25-frame progressive inputs, 1.25-field interlaced inputs.
    • Selectable Aspect Ratio Conversion - Or incoming aspect ratio preserve mode.
    • Built-in Time Base Corrector - Stabilizes unstable video sources.
    • Flexible Colour Calibration Controls - RGB Gains, RGB Cut-Off/Black Level, Saturation, Hue, Brightness, Contrast controls, Gamma selection with separate calibration memories per input channel.
    • Audio De-embedding - From HDMI & 3G HS-SDI to S/PDIF compatible formats.
    • Built-in Test Pattern Generator.
    • USB Port - For software updates.
    • Non-Voltatile Memory - Auto-saves and recalls settings.
    • Flexible Control Options - Front panel buttons, jog wheel and LCD menu display, RS-232, TCP/IP API and Web Server, PC-based Warp Map Generator tool.
    • Standard 19" Rack Mount Size - 1U.
    • Setting Backup - Save complete system config to disk via web browser interface to clone or restore units.
    • Front Panel Lockout.
    • Picture In Picture - In LED and scaler modes with flexible pixel-accurate PIP sizing.
  • Specifications

    • INPUTS: 2 composite video on BNC and RCA connectors,
    • 1 YC/s-Video on a 4-pin connector,
    • 1 component video YPbPr(S) or RGsB/RGBS on 3/4 BNC connectors,
    • 1 HDMI connector,
    • 1 DVI with HDCP,
    • 1 VGA on a 15-pin HD connector,
    • 1 SD/HD/3G HD-SDI on a BNC connector,
    • 1 genlock (V-Lock) accepts bi-level, tri-level sync or black & burst, 50/59.94/60Hz formats on a BNC connector.
    • OUTPUT: 1 SD/HD/3G HD-SDI on a BNC connector, 1 DVI/HDMI on a DVI connector, 1 VGA on a 15-pin HD connector, 1 S/PDIF on an RCA connector.
    • OUTPUT RESOLUTIONS: DVI/VGA common VESA formats 640x480 to 1920x1200, 720p, 1080p; 3G HD-SDI in SMPTE formats 480i, 576i, 720p, 1080i, 1080p with selectable audio embed.
    • OPERATING MODES: LED video wall, projection, scaler/switcher/scan converter.
    • MINIMUM LED VIDEOWALL SIZE: 128X96 pixels.
    • PROJECTION MODE WARP APPS: Full Warp Mapping, 4-Corner, Rotate, Pin/Barrel, Portrait, Keystone.
    • PROJECTION MODE EDGE BLENDING: 48-bit per pixel, 4:4:4 16-bit per color edge blend with de-gamma processing and multi-region black level correction.
    • LATENCY: As low as 0.25-frame progressive inputs, 1.25-fields interlaced inputs.
    • SIGNAL PROCESSING: 10-bit signal inputs, 12-bit accurate internal processing; 4-field full resolution SD & HD processing.
    • DE-INTERLACING: Motion adaptive per pixel video de-interlacing, multi-directional diagonal de-interlace filter.
    • POWER SOURCE: 100-264V AC, 35W typical.
    • OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F).
    • STORAGE TEMPERATURE: -30° to +70°C (-22° to 158°F).
    • HUMIDITY: 10% to 90%, RHL non-condensing.
    • DIMENSIONS: 19" x 7.2" x 1U W, D, H, rack mountable.
    • WEIGHT: 2.5kg (5.5lb).
    • ACCESSORIES: DVI-D cable, user manual/CD, power cord.
