Kamesan KS1017 Lip Checker Audio/Video Sync Measuring Tool

ITEM #: KS1017 MFG #: KS1017

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the KS1017

KS1017 - Overview

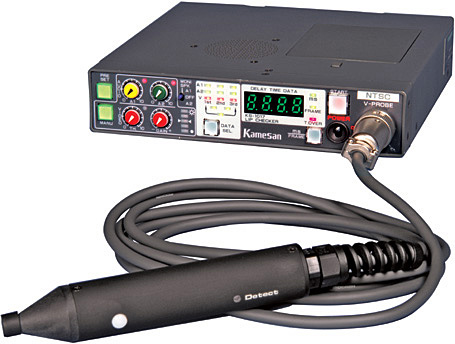

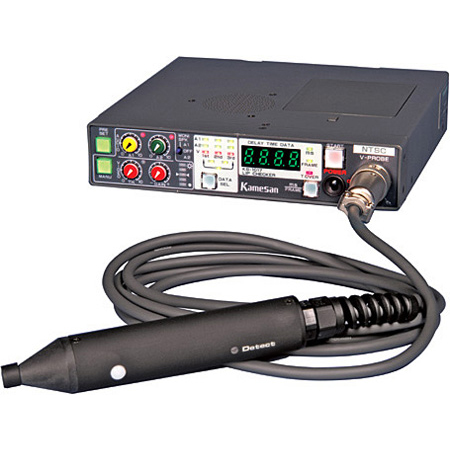

The KS-1017 measures any lag between audio and video signals. Lag times are commonly slid because of additional video processing, or because audio and video are transmitted over different paths (i.e., video over satellite, audio over phone or internet).

The KS-1017 works from a reference synchronous pulse of audio and light generated on location. Simply plug the audio to the rear panel (which accepts mic or line level on XLR connections), and hold the optical wand up to the monitor where the light pulse will occur. For ease of operation, the built-in speaker can be used to hear the feed, and a meter on the front panel of the KS-1017 shows the intensity detected on the optical meter.

The KS-1017 will measure the difference, display which came first, second and third (audio L, R, and video), and show the difference in time. The lag time can be displayed in milliseconds or frames.

4-AA batteries power the KS-1017, allowing it to be carried around a facility to use on multiple feeds.

PLEASE NOTE: This item generally ships within 3 - 5 weeks.

  • Features:

    • Measures Lag Between Audio and Video Sources
      Lag Time Shown in Milliseconds or NTSC Frames
      1-Button Reset on Front Panel
      Portable Device Runs on 4-AA Batteries
      2 Mic/Line Audio Inputs on XLR
      Gain Controls Adjust Audio Input Level for Detection
      Built-in Speaker Allows Audio Source to be Heard
      Optical Sensor Wand Included with KS-1017
      Sensor Sensitivity Adjustment for Reliable Readings
      Meter Displays Reading on Optical Sensor

  • Specifications:

    • Audio Inputs
      Input levels:MIC Ð60 dBs (balanced inputs) LINE Ð10 dBm (balanced inputs)
      Input impedance: MIC 30 kΩ (dynamic microphone) LINE 600 Ω
      Frequency response
      400 Hz (Ð12 dB) to 6 kHz (Ð6 dB)
      Detectable input level: From Ð∞ to+16 dB (controllable)
      Monitoring (internal speaker): Off, AUDIO 1, AUDIO 2

      Video Input
      Connection: Through dedicated video probe
      Sensitivity:To light with 350 nm to 800 nm wavelength; peak sensitivity at 560 nm

      Measurments
      Timing: Up to 5999 ms to 1 ms accuracy
      Timeout: Over 6 s
      Units: Milliseconds or frames
      Accuracy: < ±1 frame (NTSC)

      Other characteristics
      Internal power supply: 4 x type 3 (AA) batteries
      Battery life: Better than 6 hours with alkaline batteries at normal termperature conditions: (20˚C, 68˚F)
      External power:Through ÒjointÓ connector
      Voltage: +9.0 V to +15.0 V
      Current: > 0.5 A
      Dimensions (w x h x d); 159 x 33 x 150 (mm) 6.25 x 1.3 x 5.9 (in)
      Weight (main unit): 950 g (approx 2 lb) without batteries
      Weight (probe): 180 g (including 2 m (>6 ft) cord) (6.5 oz)
