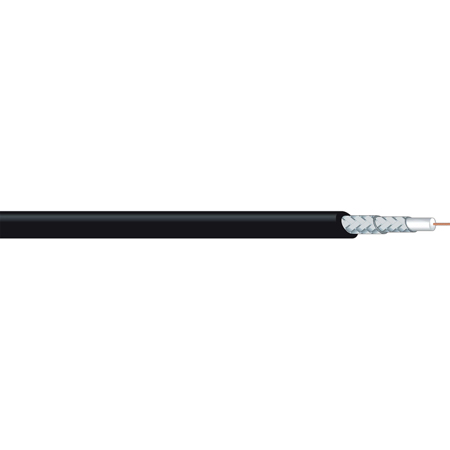

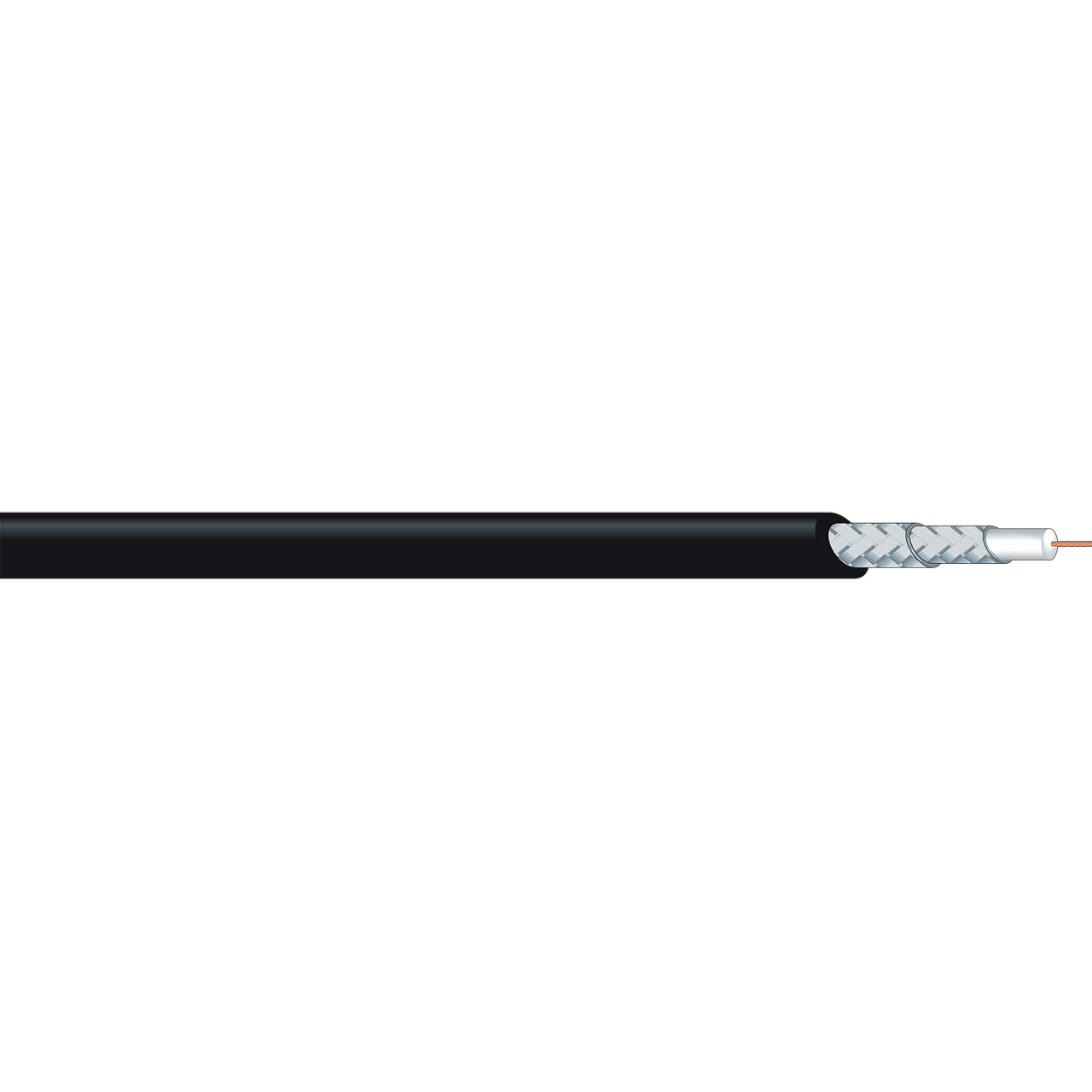

Canare L-3.3CUHWS 75 Ohm 22AWG 12G Coaxial Cable for 12G-SDI Mobile Applications - 130ft Max Distance - Black - 656 Foot

L-3.3CUHWS 200M - Overview

• Features:

  • Specially designed for 12G-SDI mobile applications
  • Flexible and low loss structure
  • High-density double-braided shield
  • Highly-foamed PE insulation


• Specifications:

  • Nom. O.D.: 5.8mm
  • Weight: 4.8kg/100m
  • AWG: 22
  • Inner Cond. O.D.: 0.78mm
  • Inner Cond. Resist: 5.0Ω/100m
  • Insulation O.D.: 3.30mm
  • Outer Conductors - Braid Comp. (mm/ends/carriers): 0.10TA/ 6/24 (92%), 0.10TA/7/24
  • Static Capacity: 57pF/m
  • Attenuation: 98.7dB/100m-750 MHz
  • BNC Connector Type: BCP-D33UHW
  • Crimping Tool: TC-1 Hand Crimp
  • Crimp Die: TCD-451CA


• Item Includes:

  • 1x Canare L-3.3CUHWS 75 Ohm 12G Coaxial Cable for 12G-SDI Mobile Applications - 130 Foot Max Distance - Black - 984 Foot
