L-Com HG245806U-4RSP 2.4/5 GHz 4/6 dBi Dual Band Omni-Directional MIMO Antenna - RP-SMA Plug

ITEM #: LCOM-HG245806U4R MFG #: HG245806U-4RSP

Primary Image
L-COM CONNECTIVITY PRODUCTS
Free Shipping with $49 Minimum Order

List Price:

$182.59

Our Price:

$177.95

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

HG245806U-4RSP - Overview

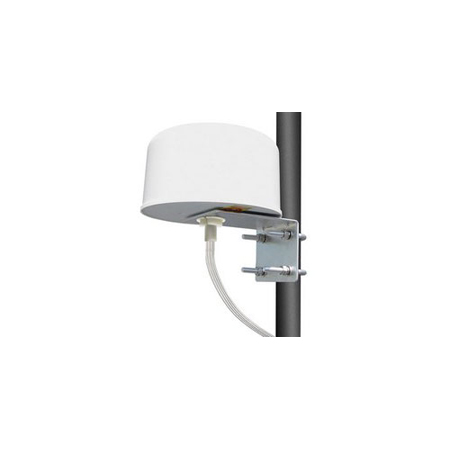

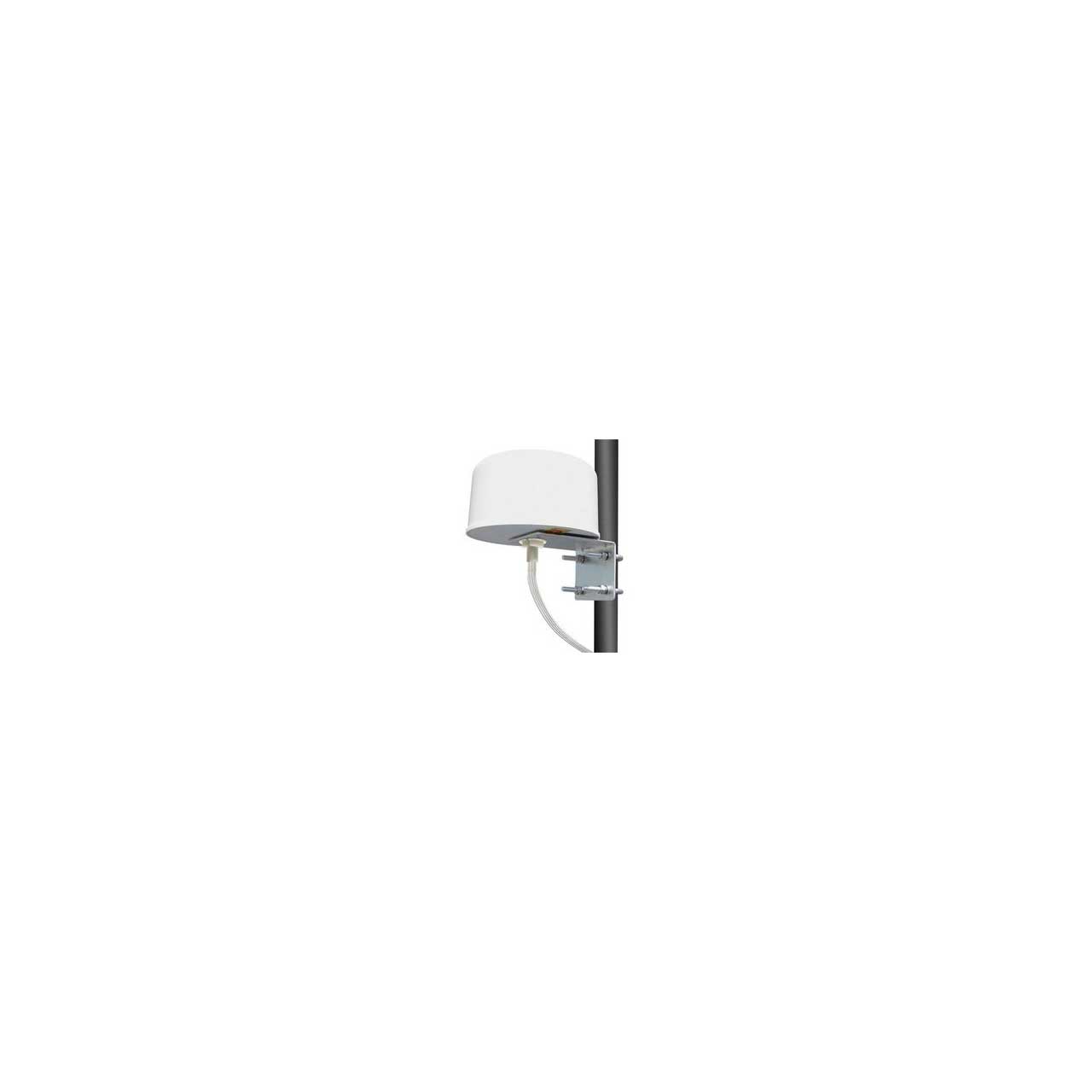

The HyperLink HG245806U-4RSP is a compact dual band omni-directional antenna specifically designed for MIMO (Multiple In / Multiple Out) applications.

Unlike typical pole style omni-directional antennas, the HG245806U-4RSP features a compact and unobtrusive UV resistant radome. Its modern design and aesthetics helps it blend into almost any environment or structure.

The HG245806U-4RSP operates on both 2.4 GHz and 5.8 GHz frequencies. It is ideal for use with 4x4 MIMO radios since the HG245806U-4RSP features four separate 3 foot antennas leads terminated with RP-SMA Plug connectors. Each lead is dual band and supports both 2.4 GHz and 5.8 GHz.

This antenna's construction features a durable UV resistant ABS radome for durability and ruggedness. Its mounting system features a heavy-duty mounting bracket and U-Bolts for superior strength.

  • Features:

    • Compact design
    • Four dual band inputs via 3 foot antenna leads with RP-SMA Plug connectors
    • All weather operation
    • Dual frequency - 2.4 GHz & 5 GHz
    • Heavy duty steel mounting bracket

      Applications
    • 2x2, 3x3 and 4x4 MIMO applications
    • 5.8 GHz UNII and ISM applications
    • 4.9 GHz Homeland Security and Public Safety band
    • IEEE 802.11a/b/g/n and 802.11ac wireless networks
    • Point-to-multipoint applications


  • Specifications:

    • Frequency Range: 2400-2500 MHz / 4900-5850 MHz
    • Gain: 4 dBi / 6 dBi
    • Horizontal Beam Width: 50° / 45°
    • Polarization: Vertical
    • Impedance: 50 Ohm
    • Max. Input Power: 10 Watts
    • VSWR: Typical ≤ 1.5 - 1.8
    • Lightning Protection: DC Ground
    • Connector: (4) RP-SMA Plug or (4) RP-TNC Plug
    • Cable Length: 2.9ft (90cm)
    • Weight: 2.4 lbs (1.1 kg)
    • Radome Height / Radome Diameter: 3.9 in (100mm) / 7.3 in (186mm)
    • Radome Material: UV Resistant ABS
    • Radome Color: White
    • Mounting Mast Size: 1.4 - 2.0 in. (35 - 50mm)
    • Operating Temperature: -40° to 140°F (-40° to 60°C)
    • RoHS Compliant: Yes


  • Item Includes:

    • 1x 2.4/5 GHz 4/6 dBi Dual Band Omni-Directional MIMO Antenna
