Laird PCTAM-PCTBM2 Power Distribution Box Neutrik powerCON Type A to Two (2) Type B

ITEM #: LDC-PCTAM-PCTBM2 MFG #: LDC-PCTAM-PCTBM2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$114.95

Our Price:

$100.95

Availability: In Stock
iAvailability Description Popup


LDC-PCTAM-PCTBM2 - Overview

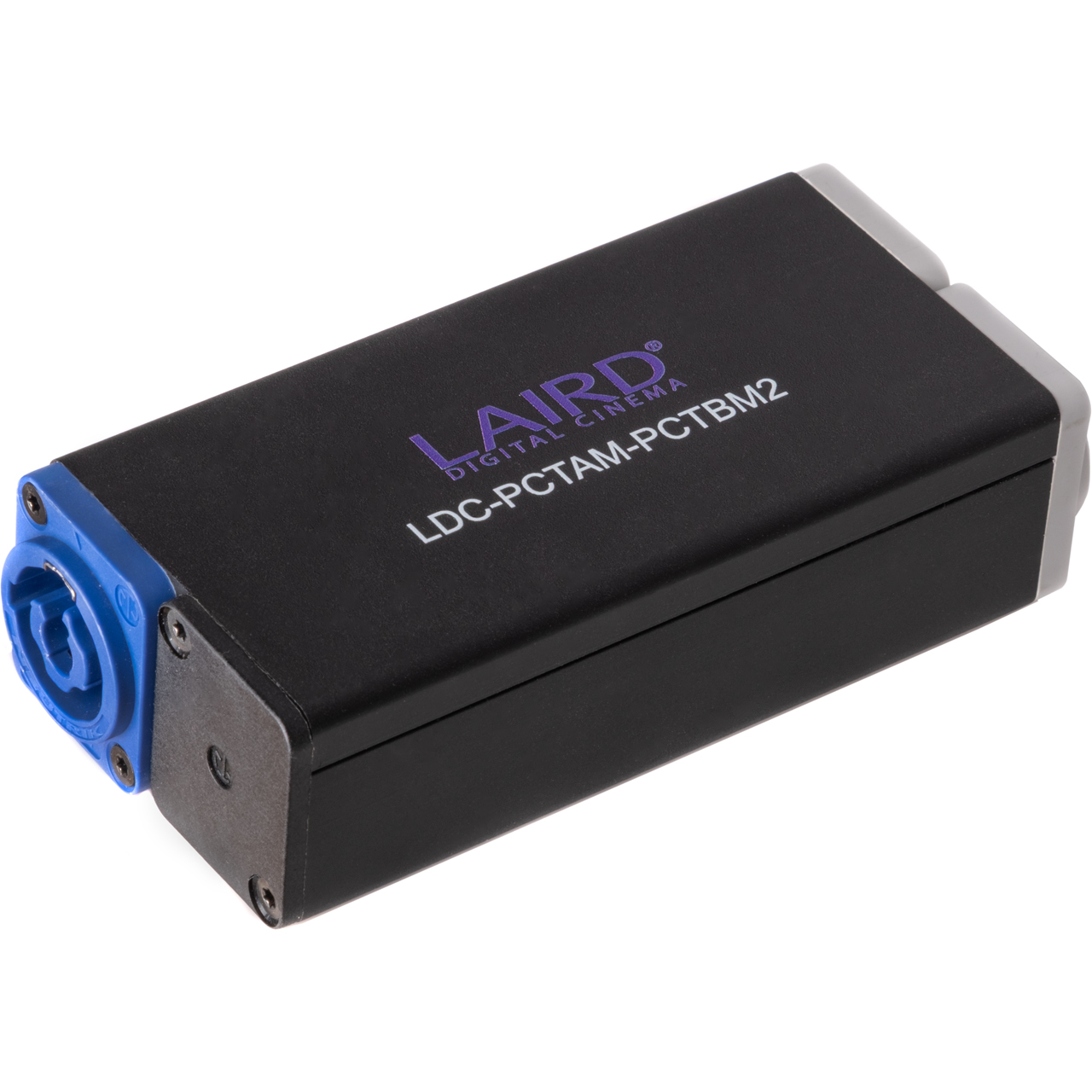

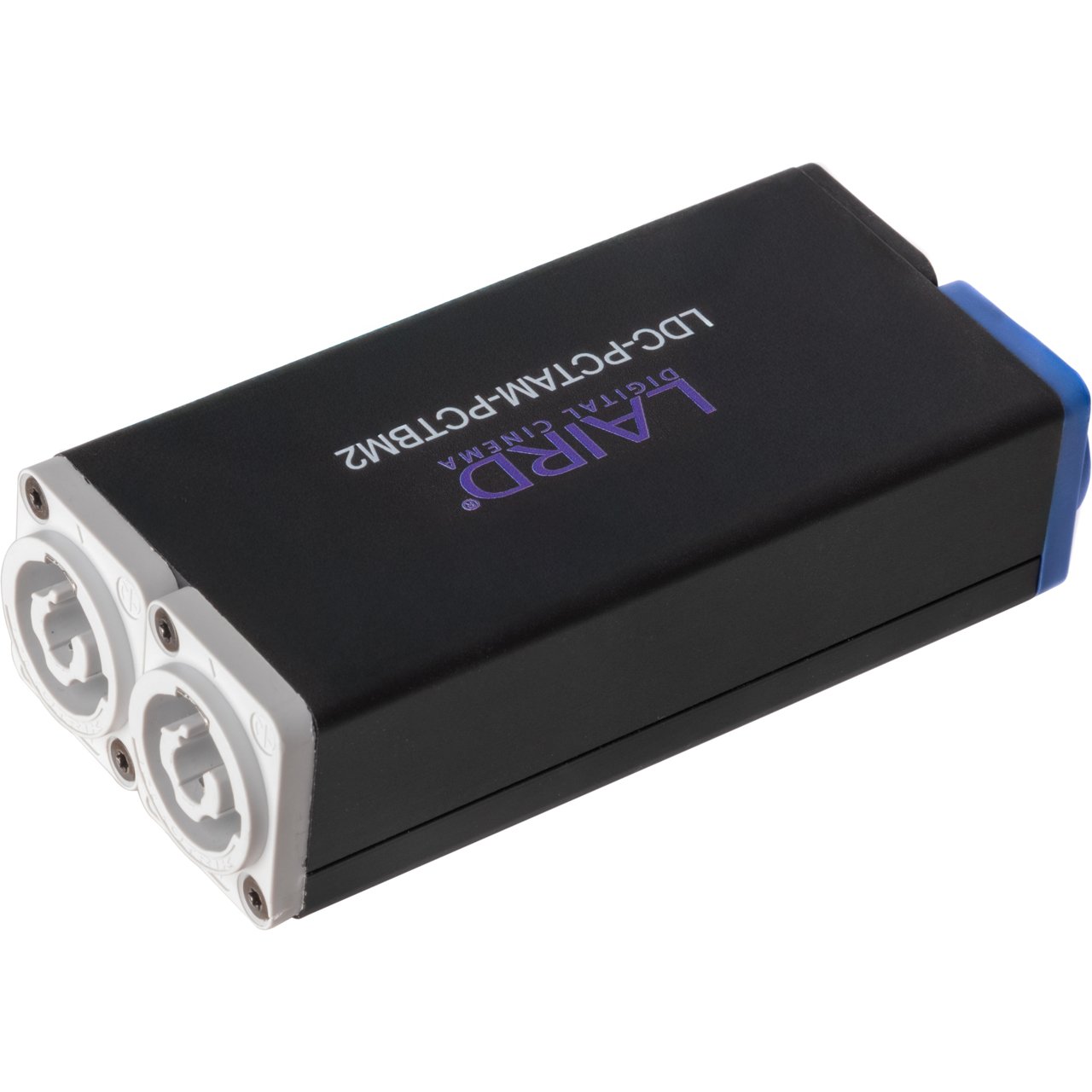

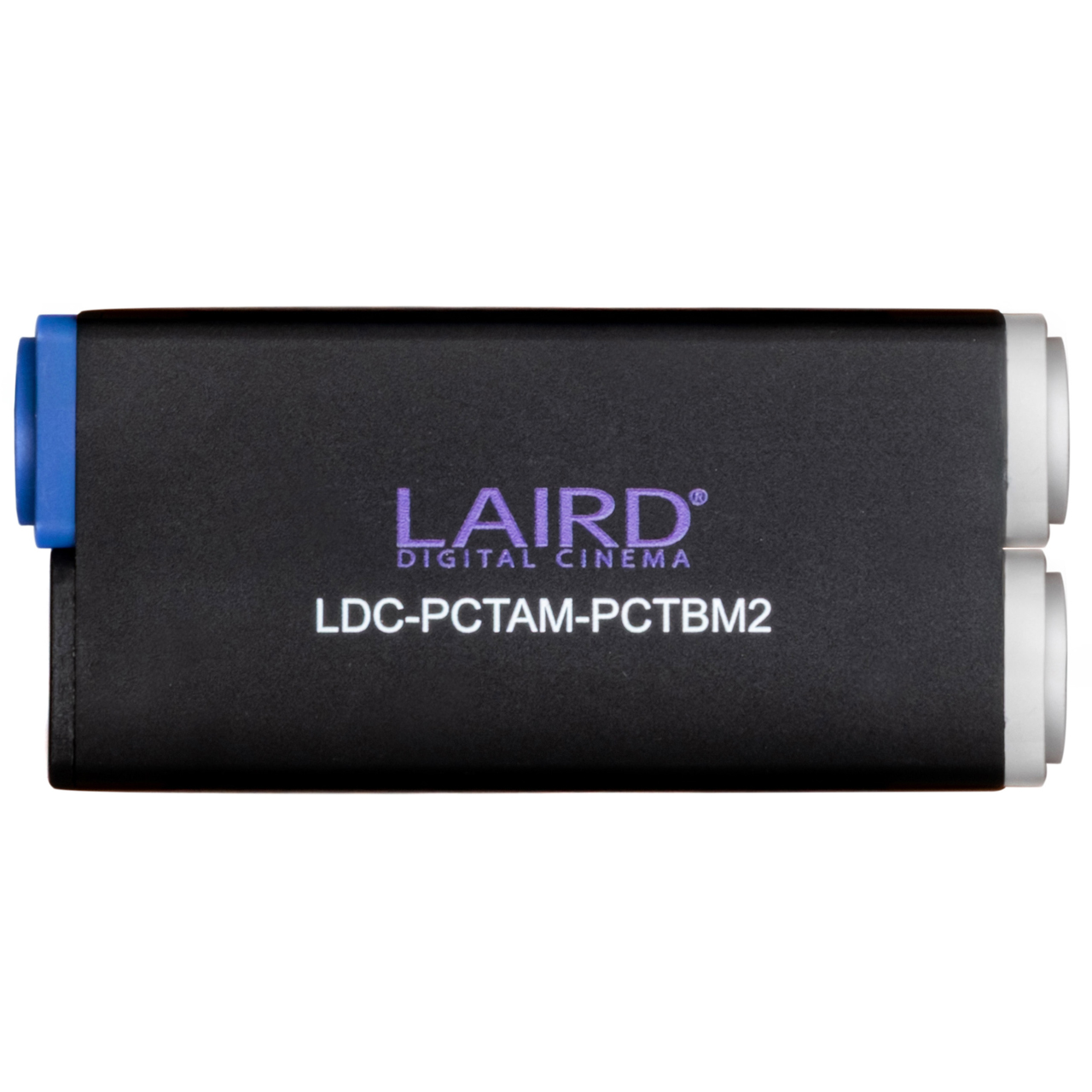

The Laird LDC-PCTAM-PCTBM2 is a powerCON power distribution splitter that sends power via Neutrik powerCON Type A to two powerCON Type B connectors.

powerCON
The use of Neutrik powerCON connectors make the LDC-PCTAM-PCTBM2 a particularly good choice for productions where reliability is key. Thanks to the locking powerCON connectors, you can have peace of mind that your cables will be secure at all time. This makes the LDC-PCTAM-PCTBM2 series ideal for professional audio, lighting rigging and live events.

Feed Through Connectors
Feed-through connectors give you the ability to daisy chain multiple units together for redundancy, ensuring uninterupted power for your mission-critical gear.

  • Features:

    • High-Quality Neutrik powerCON connectors
    • Rugged Aluminum Enclosure
    • Multiple connector options are available

  • Specifications:

      Box Specifications
    • Dimensions: 4" x 2.04" x 1.24"

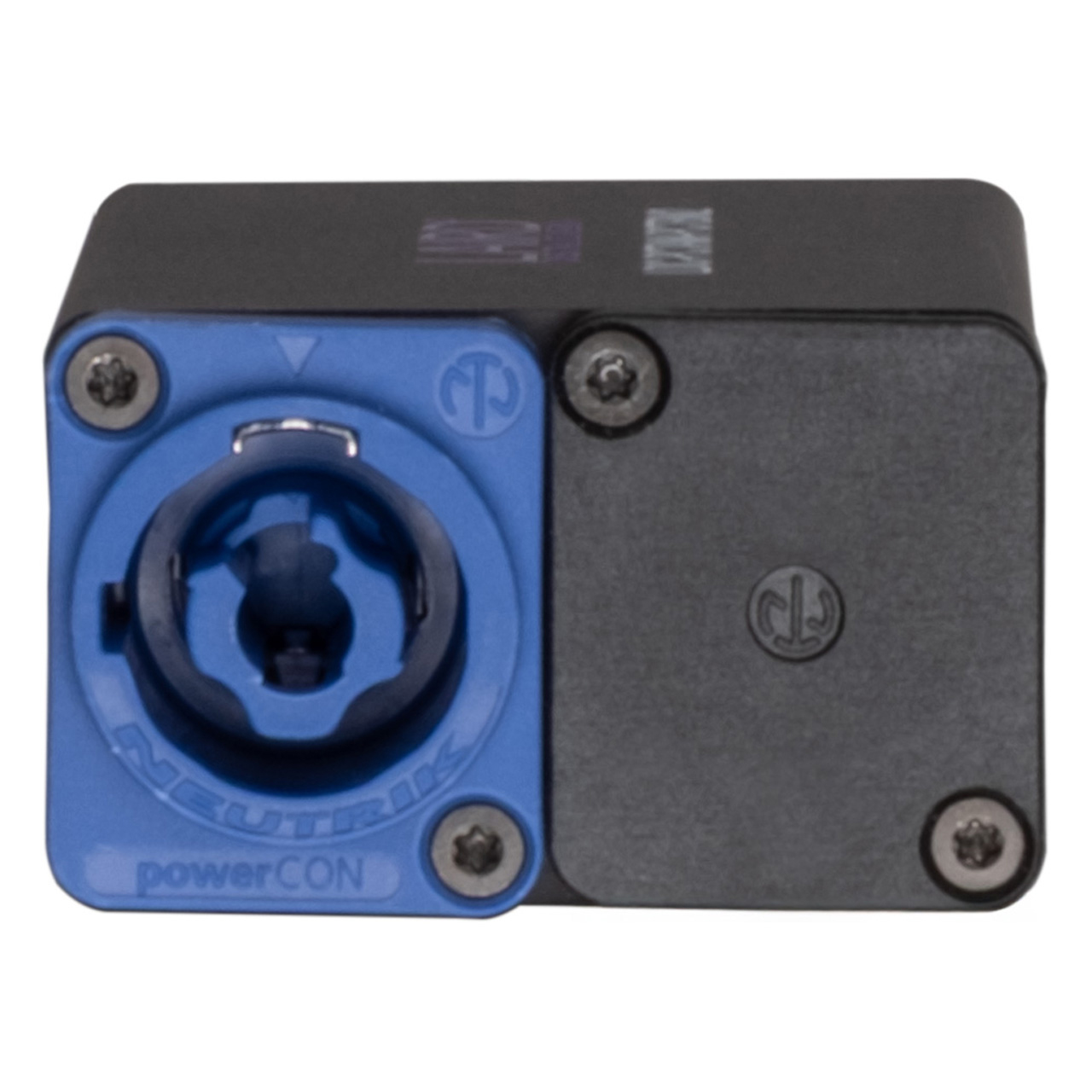

    • Input: 1x Neutrik powerCON Type A

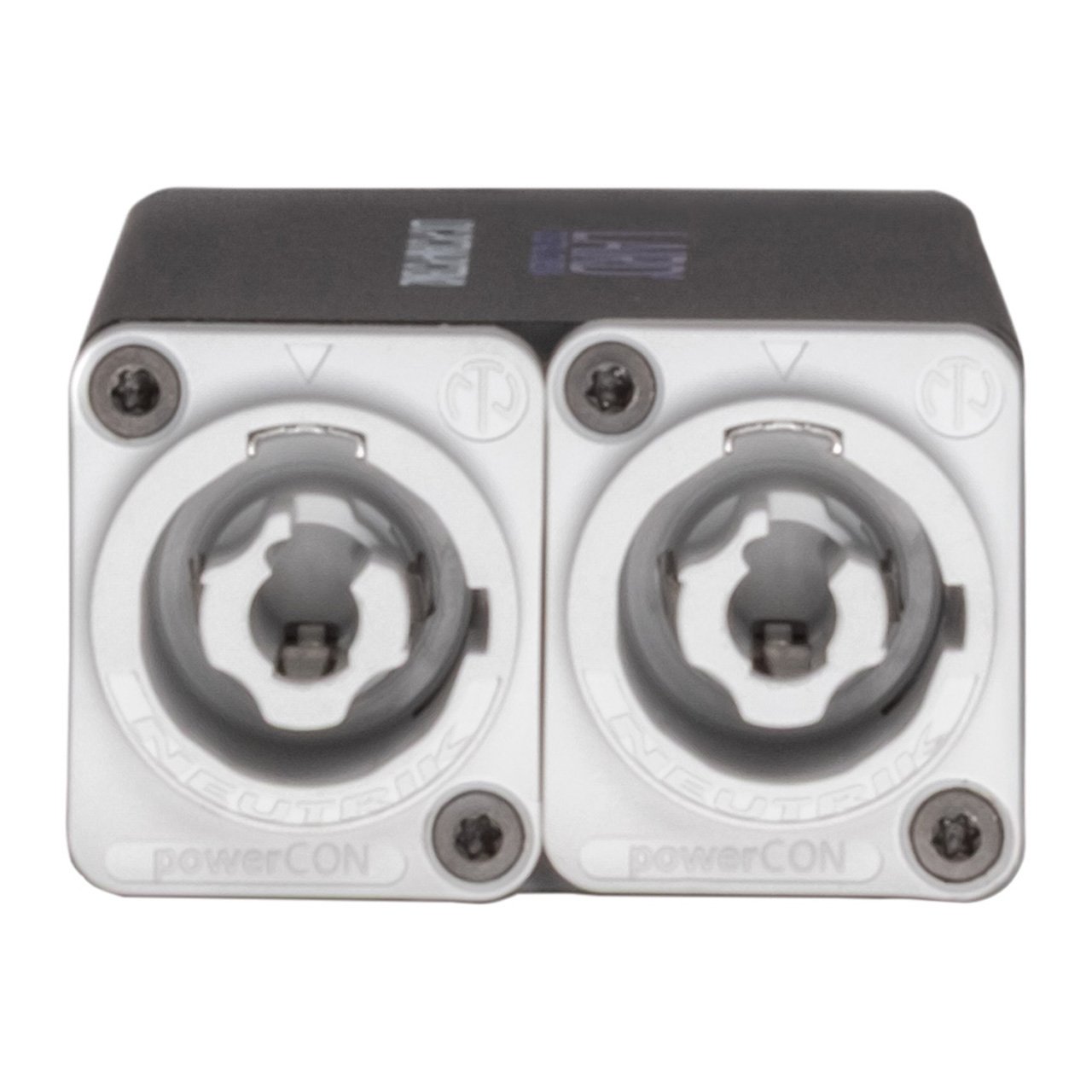

    • Output: 2x Neutrik powerCON Type B

      Neutrik Connectors
    • Contact Resistance: ≤2mΩ
    • Dielectric Strength: 4kVDC/2.8kVAC
    • Rated Amperage: 20A
    • Rated Voltage: 250VAC

  • Warranty:

    • 1 Year
