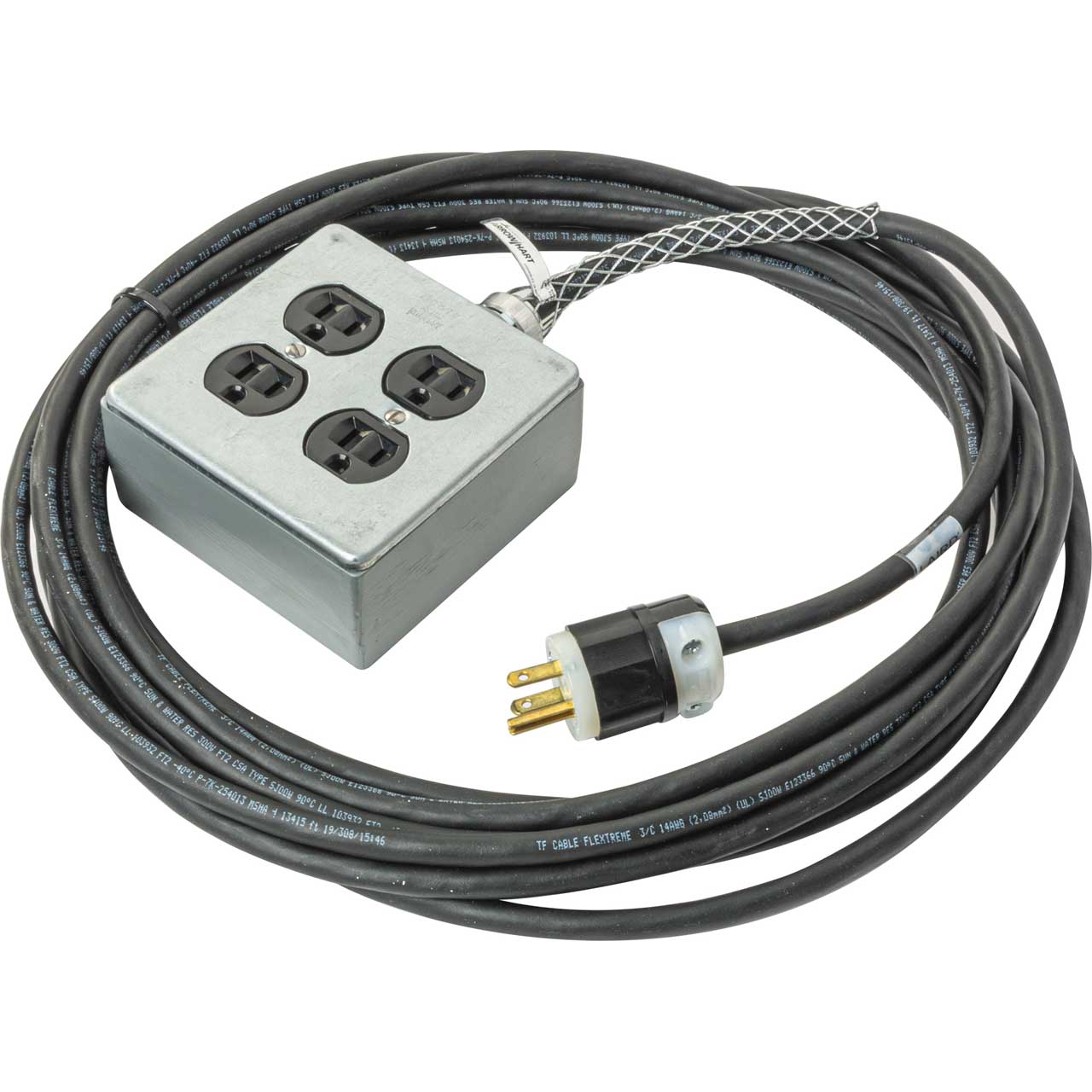

Laird Stage Systems Heavy Duty 15 Amp 12/3 AC Power Extension Cord with Quad Box - 10 Foot

SSPC-10 - Overview

• Features:

  • Cast aluminum 4 outlet stage box with basket strain relief
  • Standarized, heavy-duty, rubber-jacketed cable for usage in dry, moist, and wet rooms as well as outdoors
  • Resistant to Oil, ozone, weathering effects, greases, water, UV radiation (sun resistance)
  • Mine Safety and Health Admininstration (MSHA) approved
  • Flame-Retardant Acc to CSA FT2
  • NEMA 5-15P Rated


• Specifications:

  Laird PWR-12/3-TP:
  • Type: SJOOW
  • Nom. Outer Diameter: 0.45in (11.45mm)
  • Outer Jacket Material: Black Rubber (CPE)
  • Insulation Material: Rubber (EPR)
  • Number of Conductors x AWG: 3x12
  • Min. Bend Raidus:
    •Flexing: 4.5in
    •Static: 2.7in
  • Temperature:
    •Flexing: -4°F to 194°F (-20°C to +90°C)
    •Static: -40°F to 194°F (-40°C to +90°C)
  • Max. Operating Temp of Conductor: 194°F (+90°C)
  • Nominal Voltage: AC U 300 V
  • Test Voltage Conductor: 2500V
  • Carrying Capacity: 25 amps
  • Weight: 0.14lbs/ft (217kg/km)

    Leviton Outlet:
  • Amperage: 15 Amps
  • Voltage: 125 VAC
  • Operating Temperature: -40°F to140°F(-40°C to 60°C)

    Leviton Plug:
  • Amperage: 15 Amps
  • Voltage: 125 VAC
  • Body Material: Impact Modified Nylon


• Warranty:

  • 1 Year
