LDC-PCTAMBM-15NF - Overview

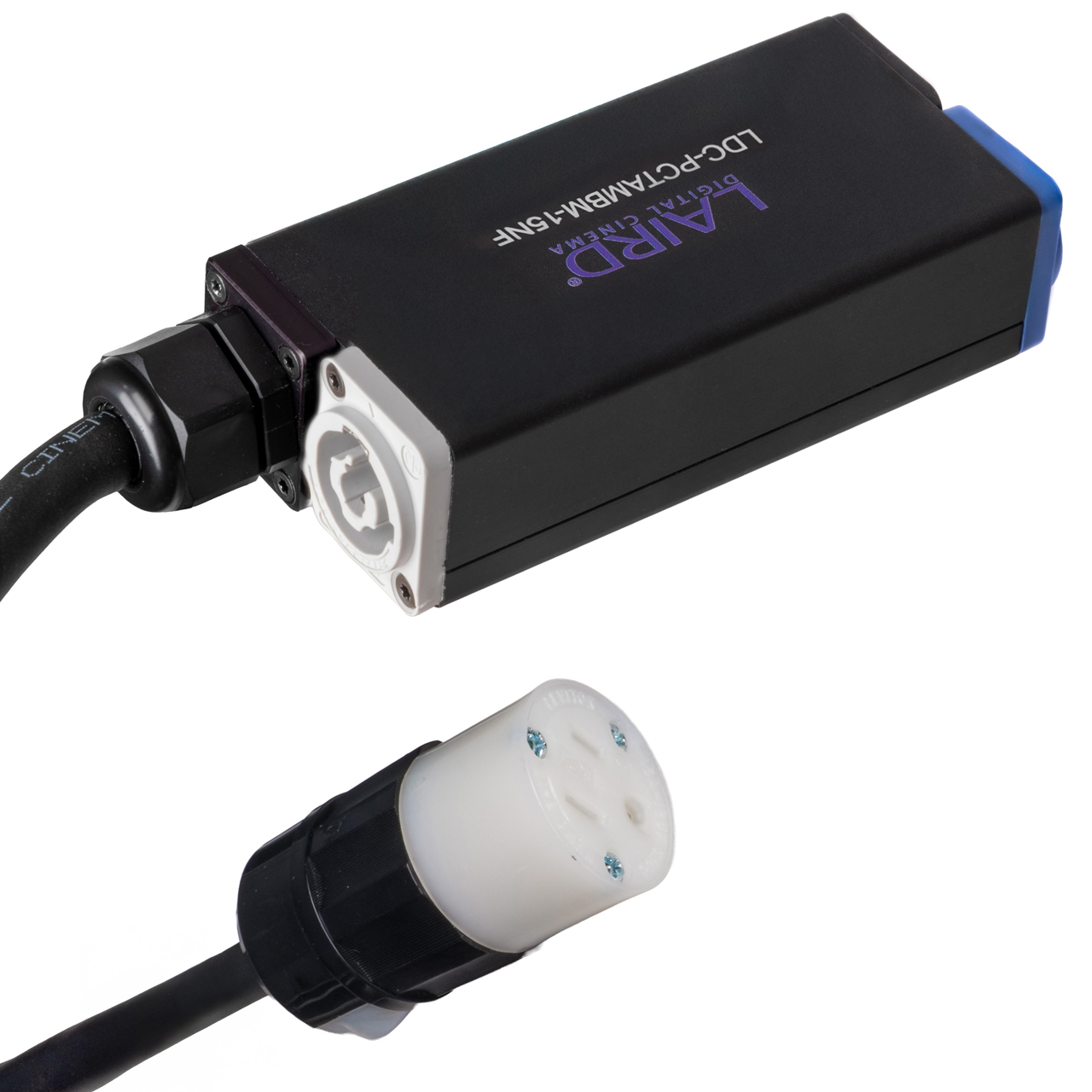

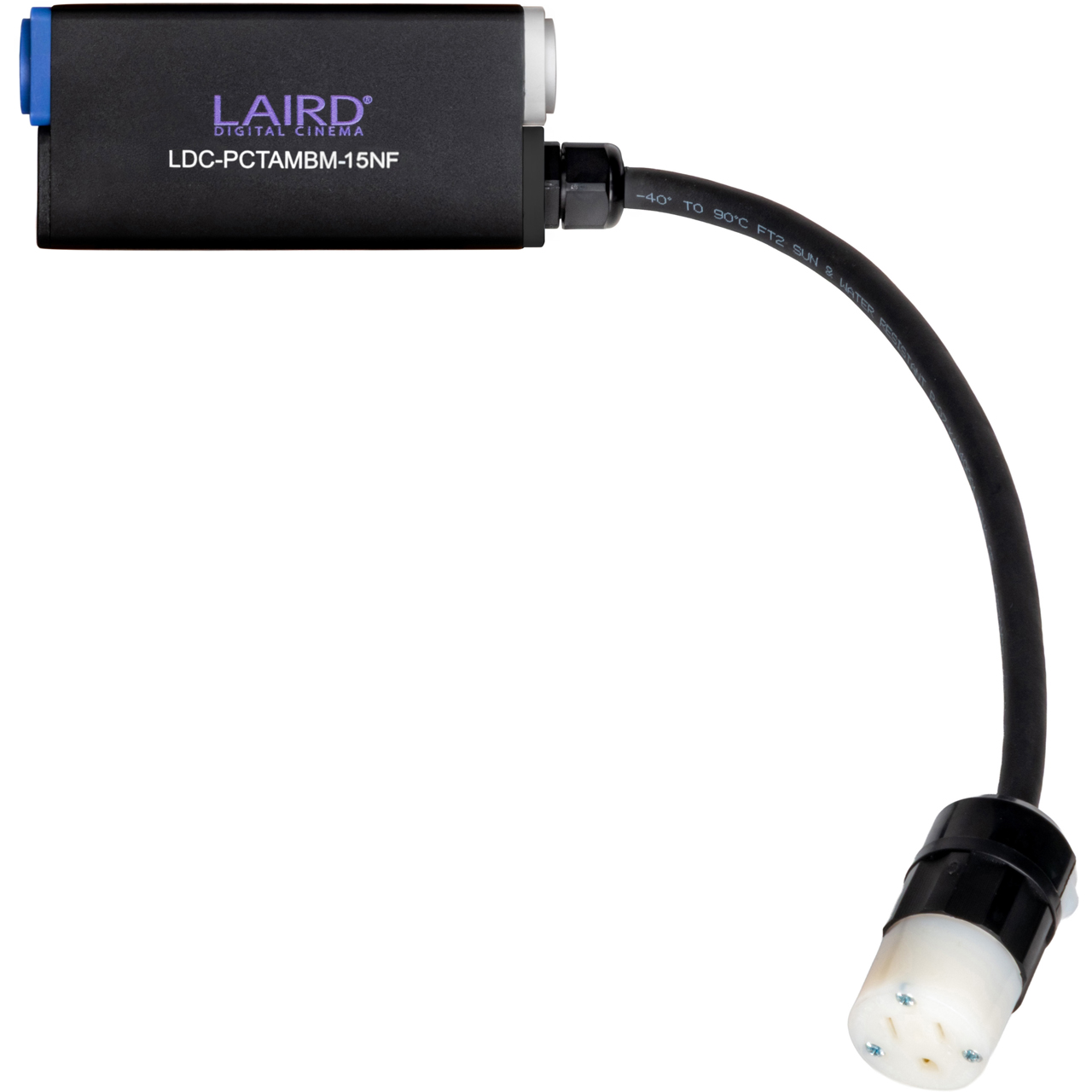

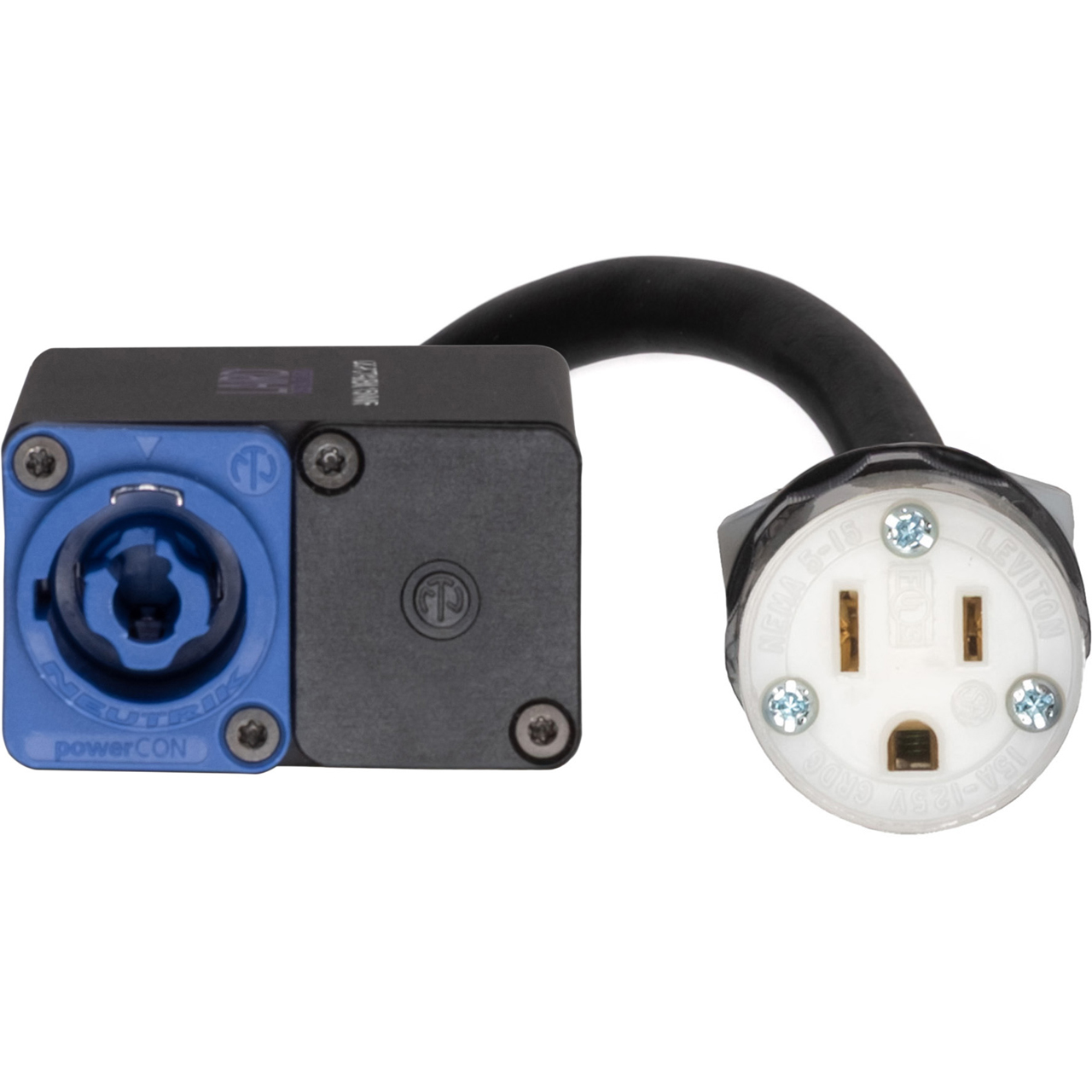

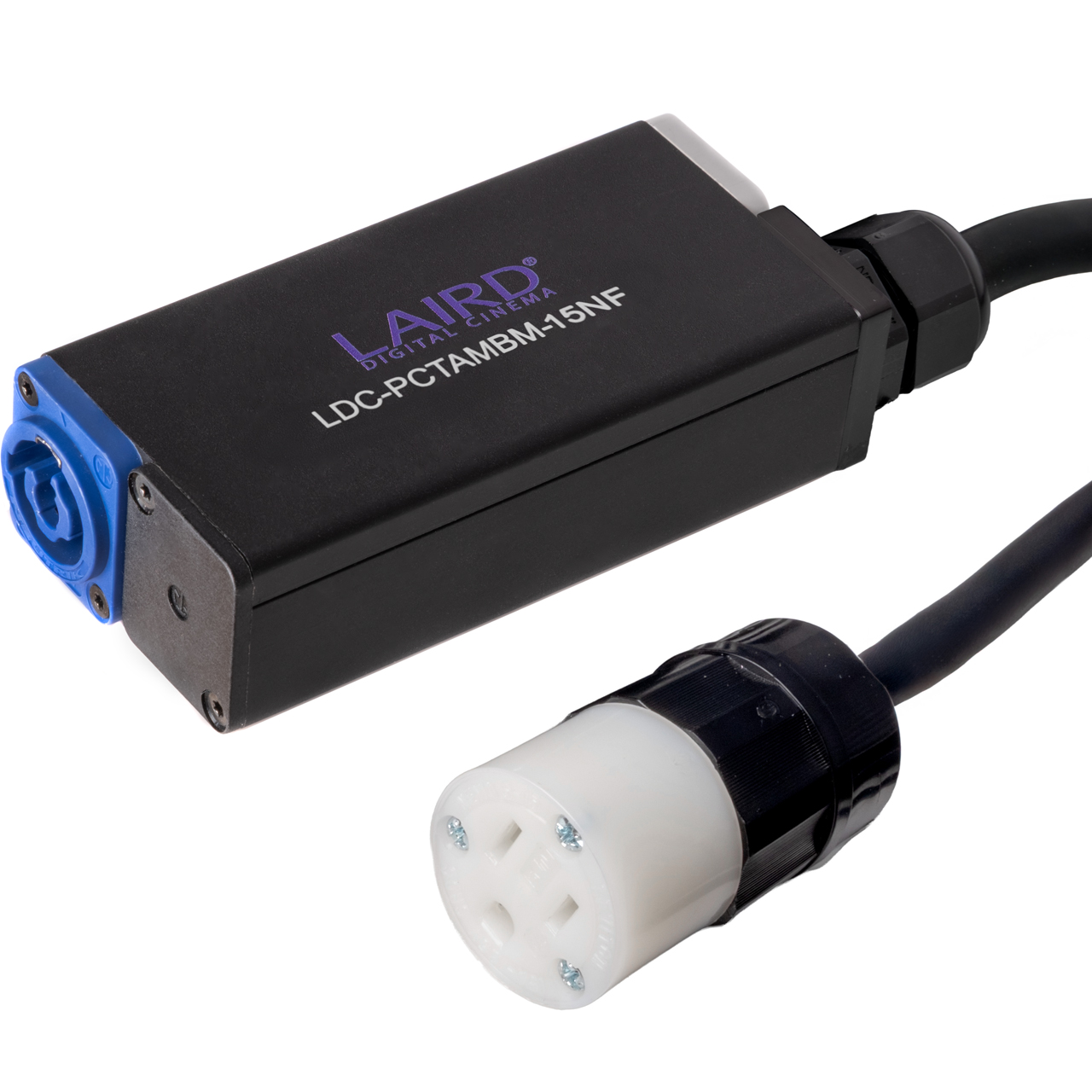

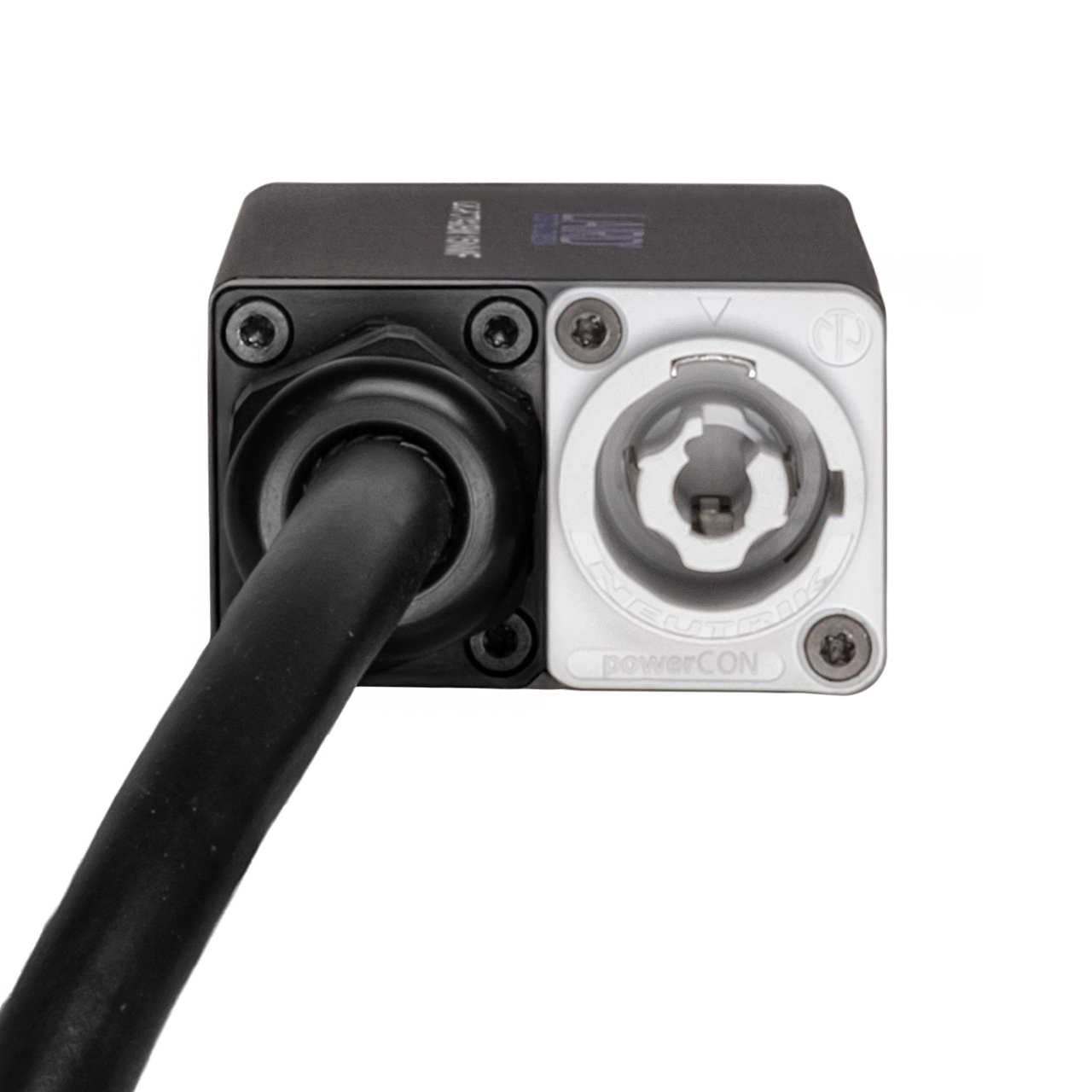

The Laird LDC-PCTAMBM-15NF is a powerCON power distribution splitter that sends power via Neutrik powerCON Type A to one NEMA 5-15 and one powerCON Type B connector.

powerCON
The use of Neutrik powerCON connectors make the LDC-PCTAMBM-15NF a particularly good choice for productions where reliability is key. Thanks to the locking powerCON connectors, you can have peace of mind that your cables will be secure at all time. This makes the LDC-PCTAMBM-15NF series ideal for professional audio, lighting rigging and live events.

5-15 Edison Connector
Sometimes simplicity is key, so on top of a powerCON type B connector, the LDC-PCTAMBM-15NF also features a female Edison connector for any gear that may require it.

Feed Through Connectors
Feed-through connectors give you the ability to daisy chain multiple units together for redundancy, ensuring uninterrupted power for your mission-critical gear.

  • Features:

    • Laird's PWR-12/3-TP Rugged yet flexible power cable
    • High-Quality Neutrik powerCON connectors
    • Rugged Aluminum Enclosure
    • Multiple connector options are available

  • Specifications:

      Box Specifications
    • Dimensions: 4" x 2.04" x 1.24"
    • Input: 1x Neutrik powerCON Type A
    • Output:
      1x Neutrik powerCON Type B
      1x Edison Female receptacle

      Laird PWR-12/3-TP
    • Cable Type: SJOOW
    • Number of Conductors: 3x 12 AWG
    • Current Carrying Capacity: 25A
    • Nom Outer Diameter: 0.42" (10.8mm) - 0.47" (12.1mm)
    • Outer Jacket: Rubber (CPE) Black
    • Cable Insulation: Rubber (EPR)

      Neutrik Connectors
    • Contact Resistance: ≤2mΩ
    • Dielectric Strength: 4kVDC/2.8kVAC
    • Rated Amperage: 20A
    • Rated Voltage: 250VAC

      Leviton Connector
    • Amperage: 15A
    • Rated Voltage: 125VAC
    • Blades/Contact Material: Solid Brass

  • Warranty:

    • Limited Lifetime
