Laird PCTAMBM-PCTF Power Distribution Box Neutrik powerCON Type A to One (1) Type B and One (1) TRUE1 Female

ITEM #: LDC-PCTAMBM-PCTF MFG #: LDC-PCTAMBM-PCTF

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$104.95

Our Price:

$99.95

Availability: In Stock
iAvailability Description Popup


LDC-PCTAMBM-PCTF - Overview

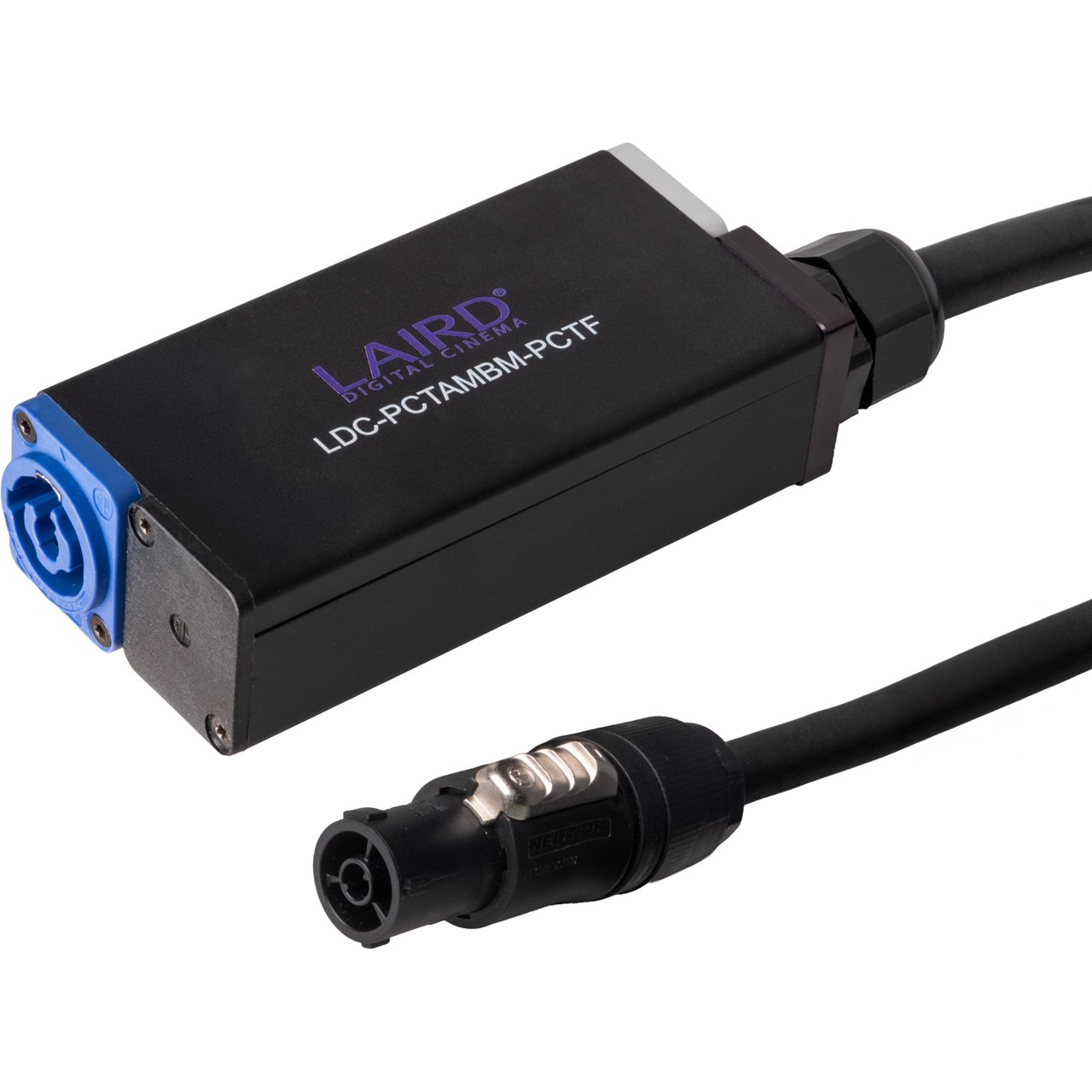

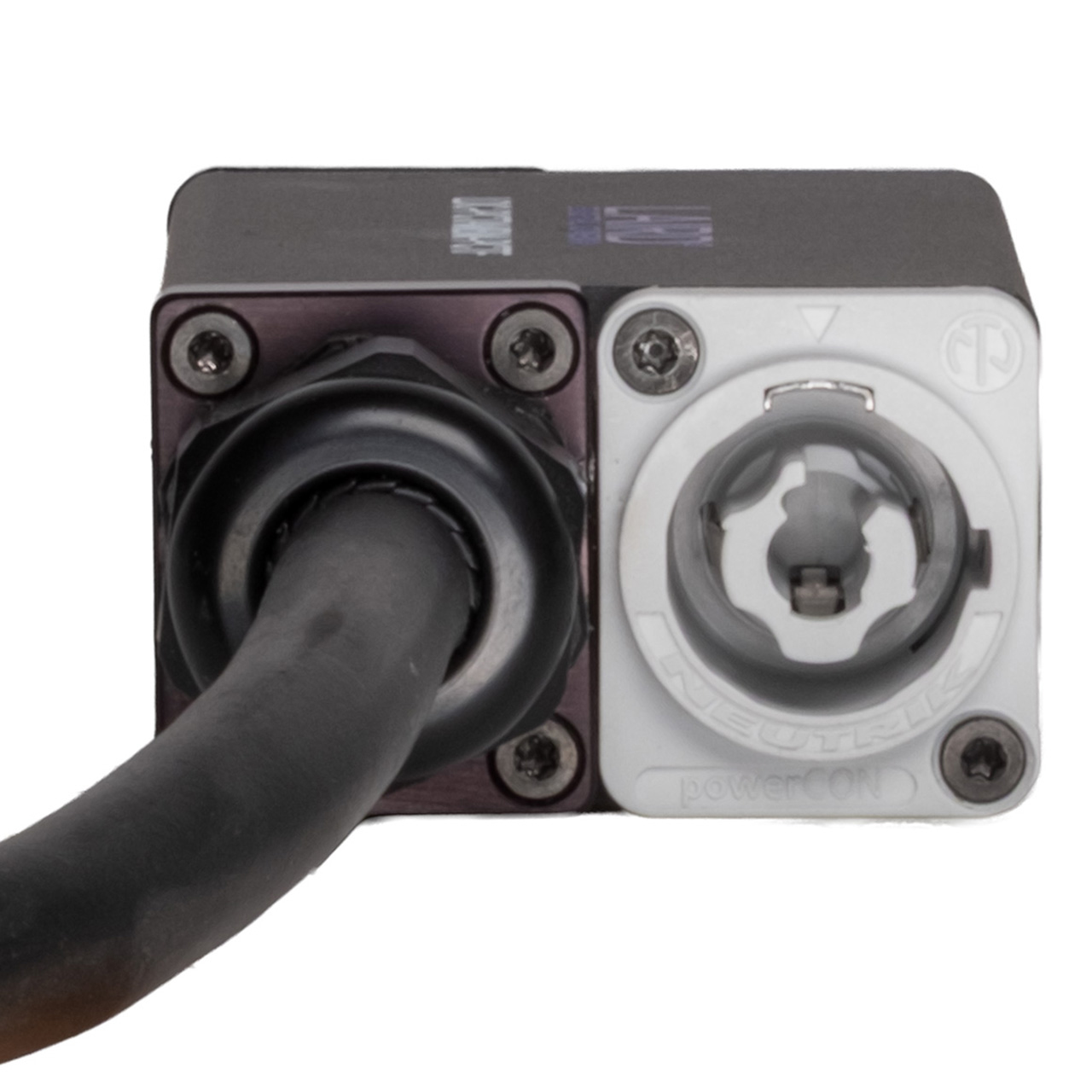

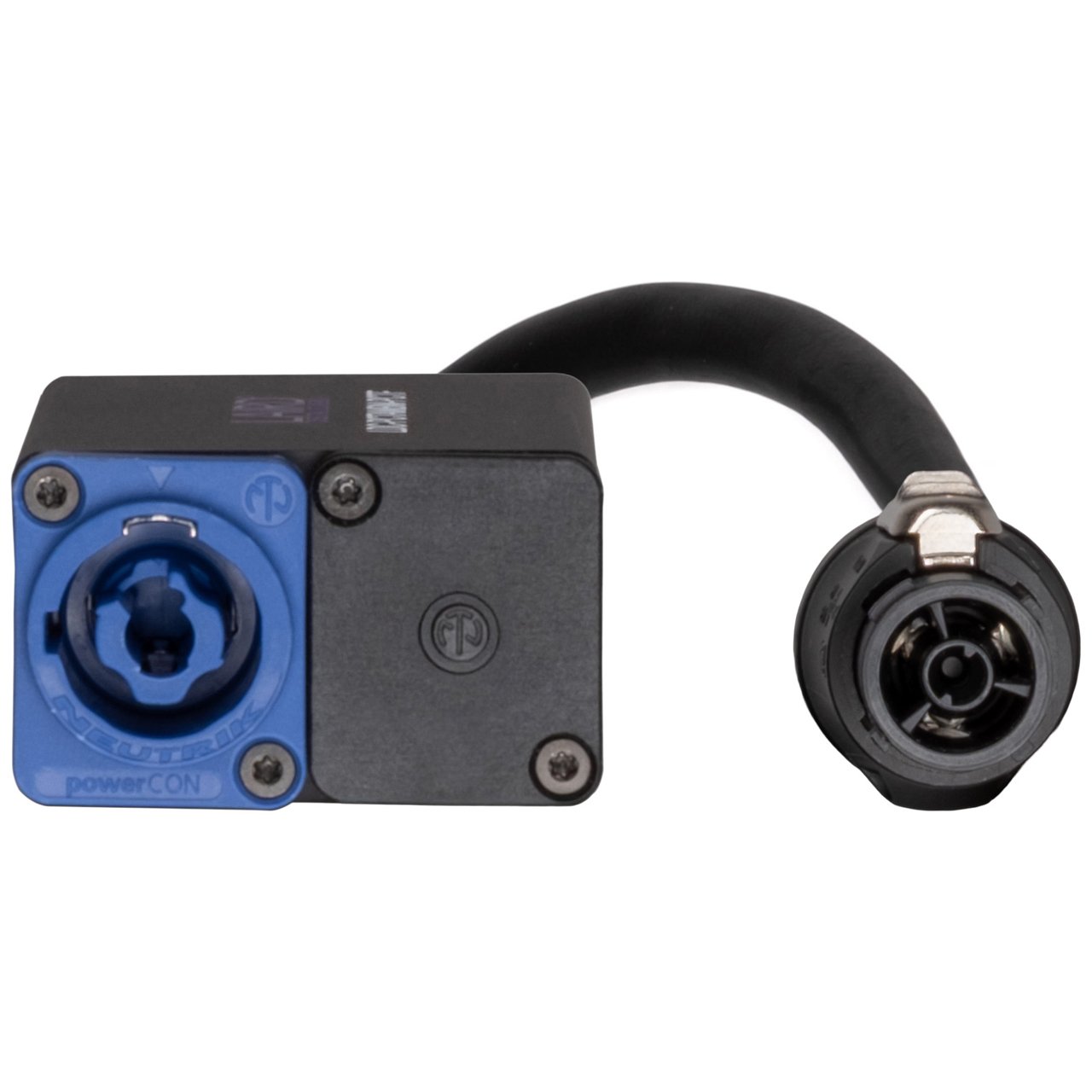

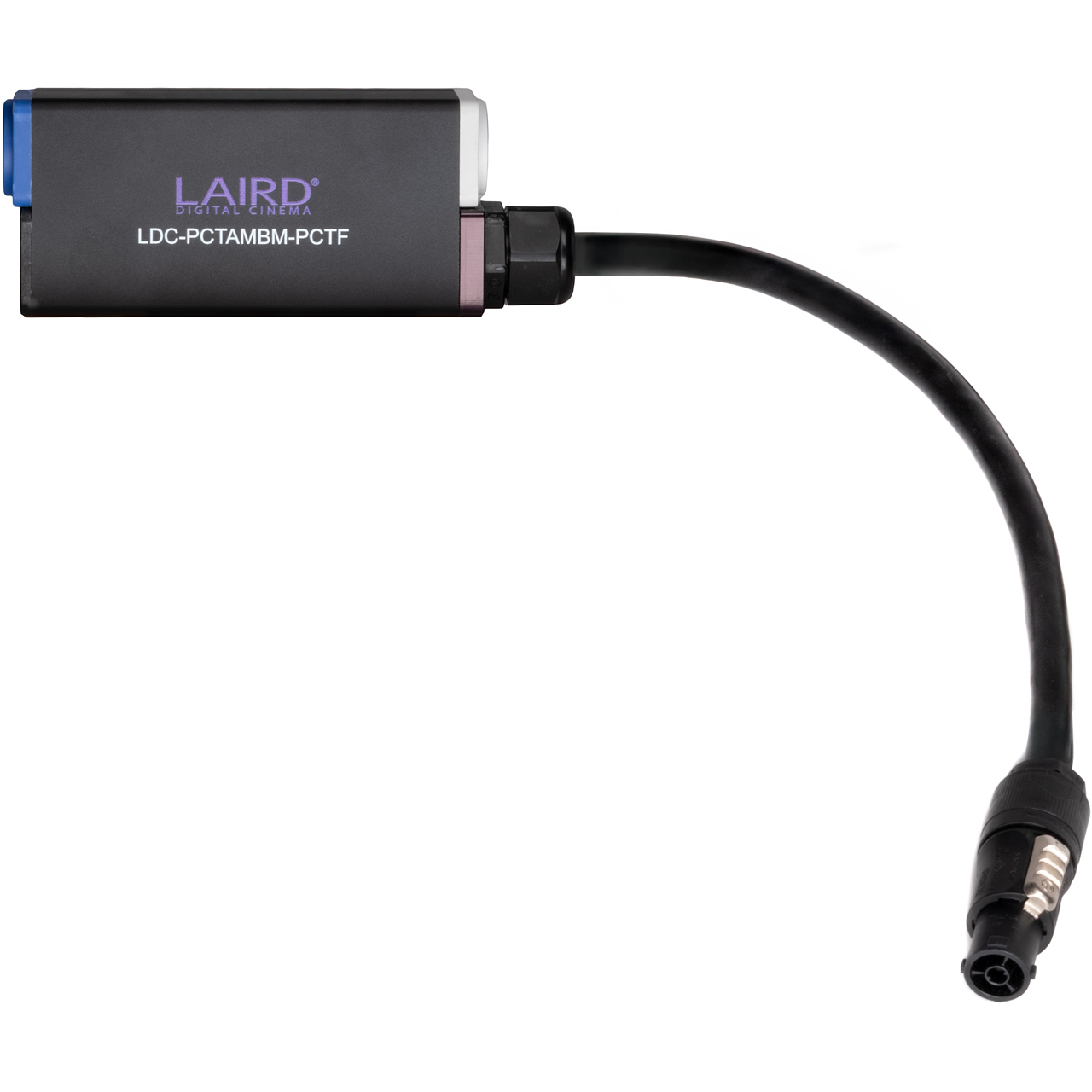

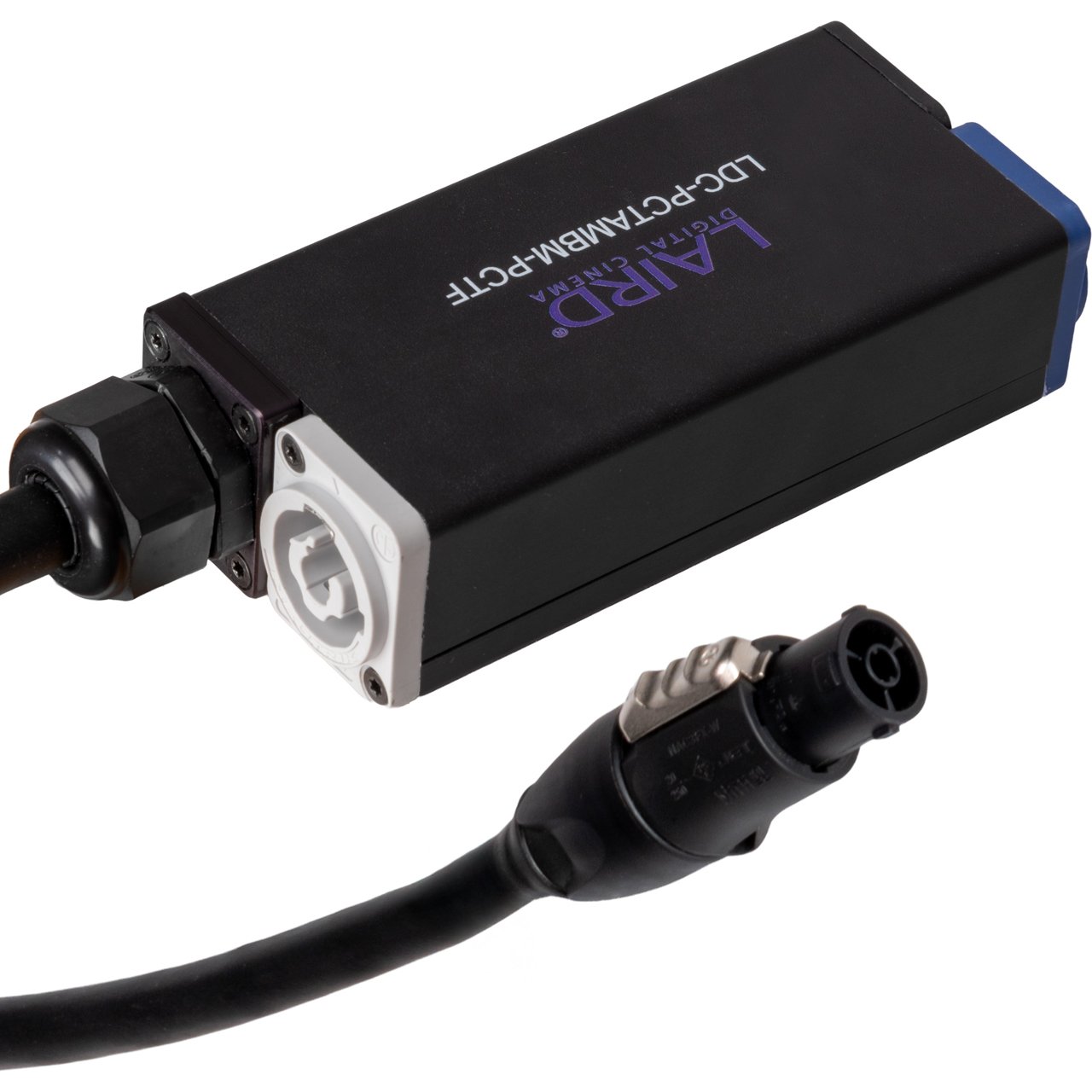

The Laird LDC-PCTAMBM-PCTF is a powerCON power distribution splitter that sends power via Neutrik powerCON Type A to one Neutrik powerCON TRUE1 and one powerCON Type B connector.

powerCON TRUE1
The use of Neutrik powerCON TRUE1 connectors make the LDC-PCTAMBM-PCTF series a particularly good choice for harsh and heavy duty productions that would require environmentally sealed connectors, ensuring reliability and peace of mind. This makes the LDC-PCTAMBM-PCTF series ideal for professional audio, lighting rigging and live events.

Feed Through Connectors
Feed-through connectors give you the ability to daisy chain multiple units together for redundancy, ensuring uninterupted power for your mission-critical gear.

  • Features:

    • Laird's PWR-12/3-TP Rugged yet flexible power cable
    • High-Quality Neutrik powerCON connectors
    • Rugged Aluminum Enclosure
    • Multiple connector options are available

  • Specifications:

      Box Specifications
    • Dimensions: 4" x 2.04" x 1.24"
    • Input: 1x Neutrik powerCON Type A
    • Output:
      1x Neutrik powerCON Type B
      1x Neutrik powerCON TRUE1 Female

      Laird PWR-12/3-TP
    • Cable Type: SJOOW
    • Number of Conductors: 3x 12 AWG
    • Current Carrying Capacity: 25A
    • Nom Outer Diameter: 0.42" (10.8mm) - 0.47" (12.1mm)
    • Outer Jacket: Rubber (CPE) Black
    • Cable Insulation: Rubber (EPR)

      Neutrik Connectors
    • Contact Resistance: ≤2mΩ
    • Dielectric Strength: 4kVDC/2.8kVAC
    • Rated Amperage: 20A
    • Rated Voltage: 250VAC

  • Warranty:

    • 1 Year


LDC-PCTAMBM-PCTF - Required Accessories
