Laird PCTMF-15NF Power Distribution Box Neutrik powerCON TRUE1 Male to One (1) TRUE1 Female and One (1) Edison Female

ITEM #: LDC-PCTMF-15NF MFG #: LDC-PCTMF-15NF

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$114.95

Our Price:

$109.95

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Extended Lead Time; estimated delivery in October.


LDC-PCTMF-15NF - Overview

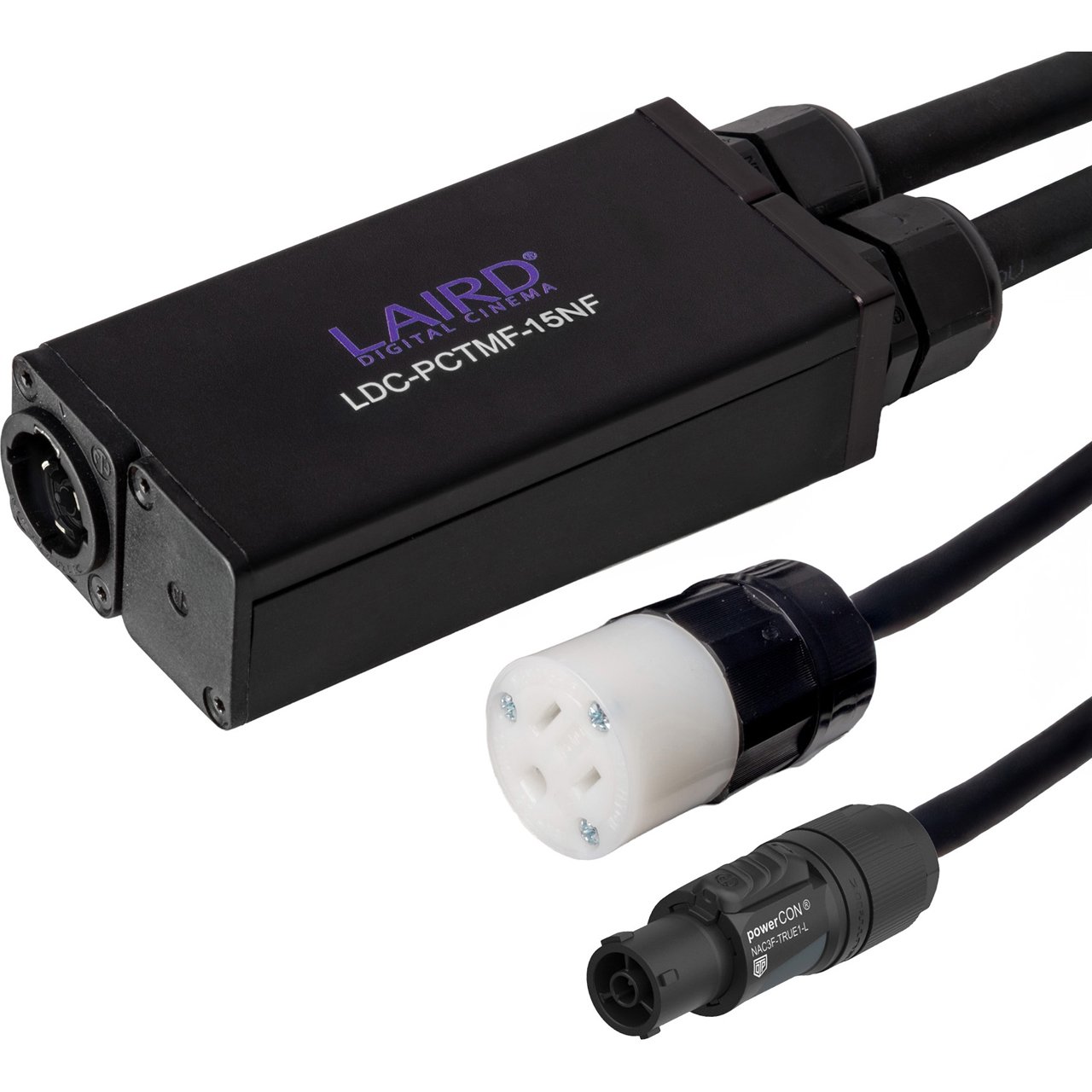

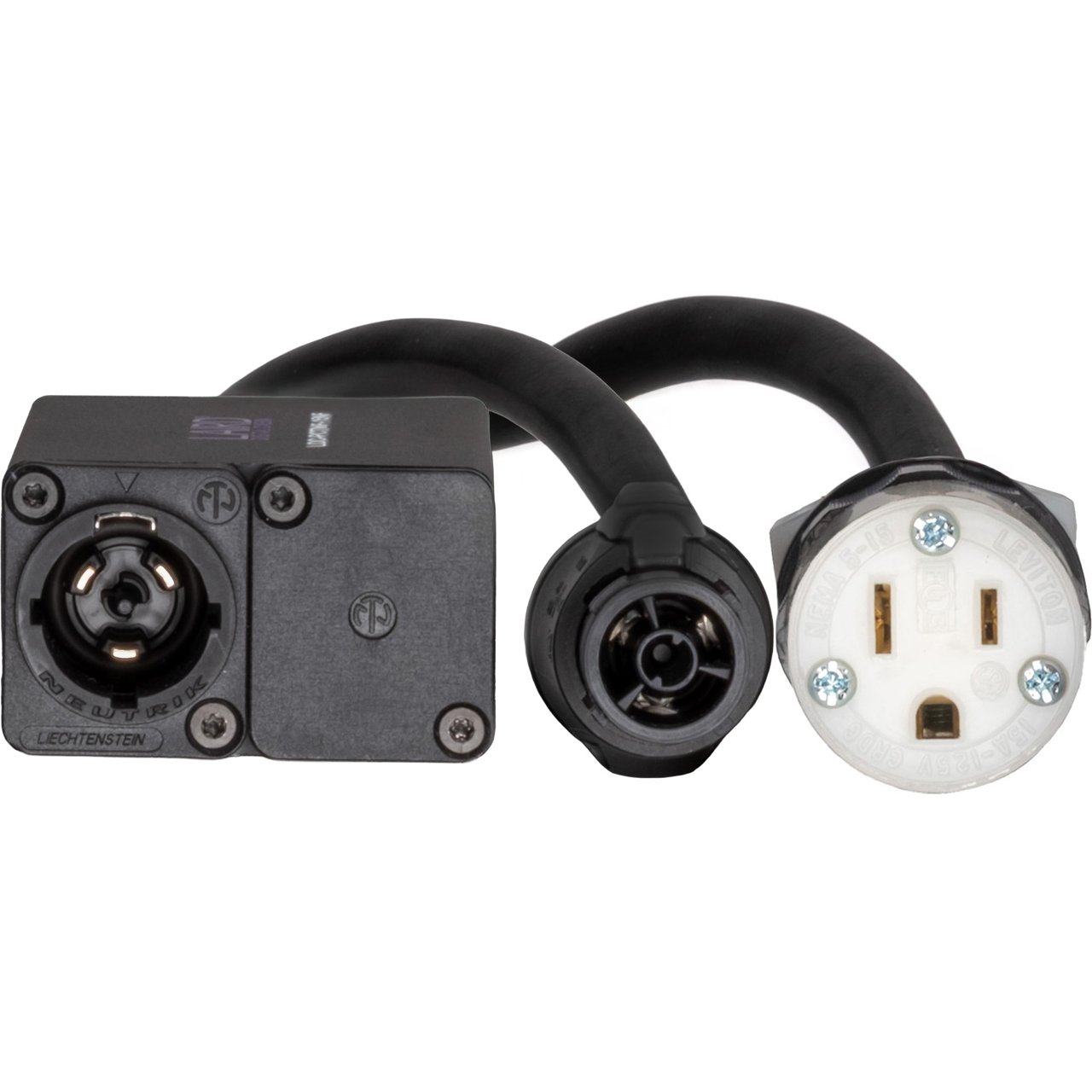

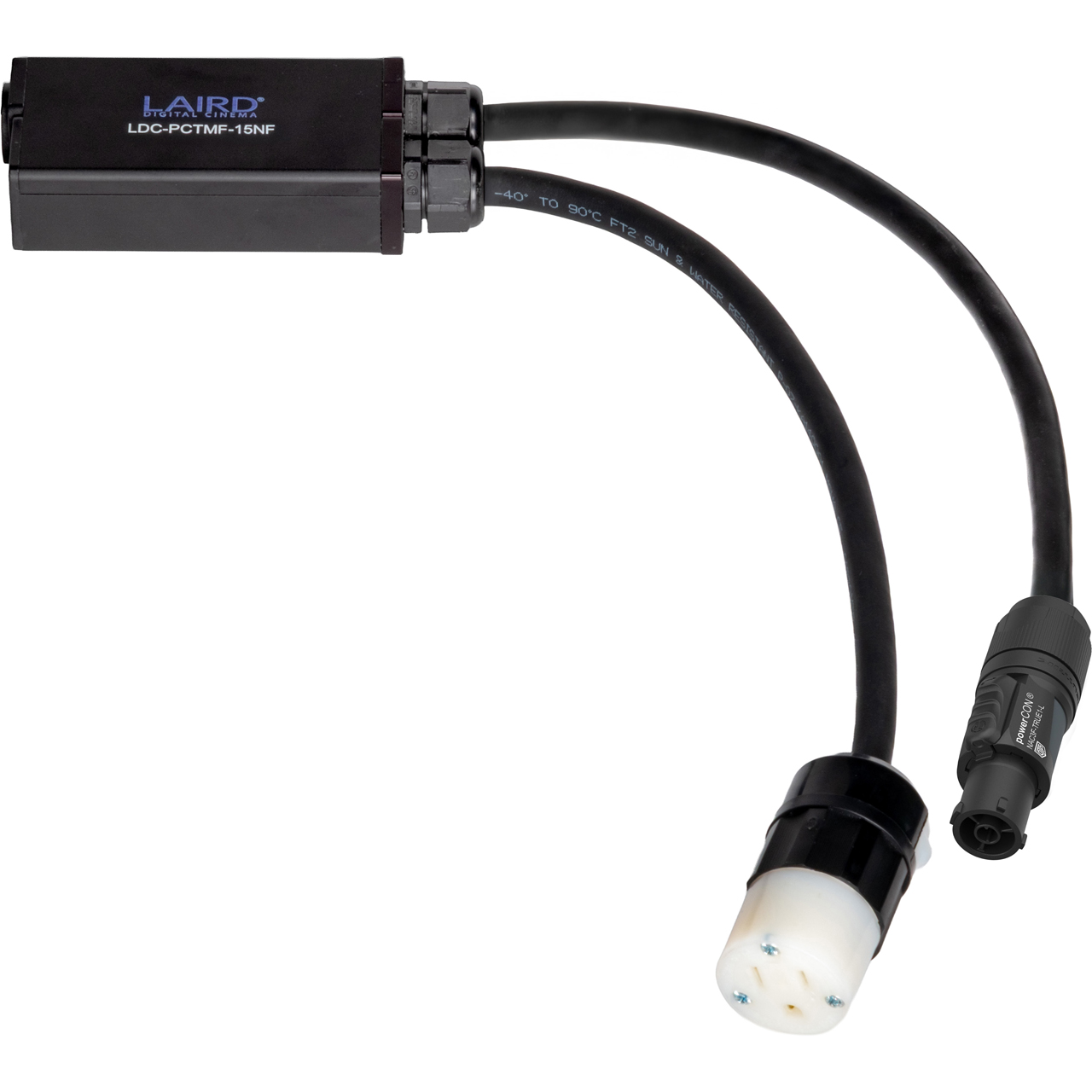

The Laird LDC-PCTMF-15NF is a powerCON TRUE1 power distribution splitter that sends power via a Neutrik powerCON TRUE1 Male connectors to one Neutrik powerCON TRUE1 Female and one NEMA 5-15 Female connector.

powerCON TRUE1
The use of Neutrik powerCON TRUE1 connectors make the LDC-PCTMF-15NF a particularly good choice for harsh and heavy duty productions that would require environmentally sealed connectors, ensuring reliability and peace of mind. This makes the LDC-PCTMF-15NF ideal for professional audio, lighting rigging and live events.

5-15 Edison Connector
Sometimes simplicity is key, so on top of a powerCON TRUE1 connector, the LDC-15NMF-PCTF also features a female edison connector for any gear that may require it.

Feed Through Connectors
Feed-through connectors give you the ability to daisy chain multiple units together for redundancy, ensuring uninterrupted power for your mission-critical gear.

  • Features:

    • Laird's PWR-12/3-TP Rugged yet flexible power cable
    • High-Quality Neutrik powerCON connectors
    • Rugged Aluminum Enclosure
    • Multiple connector options are available

  • Specifications:

      Box Specifications
    • Dimensions: 4" x 2.04" x 1.24"
    • Input: 1x Neutrik powerCON TRUE1 Male
    • Output:
      1x Neutrik powerCON TRUE1 Female
      1x Edison Female Receptacle

      Laird PWR-12/3-TP
    • Cable Type: SJOOW
    • Number of Conductors: 3x 12 AWG
    • Current Carrying Capacity: 25A
    • Nom Outer Diameter: 0.42" (10.8mm) - 0.47" (12.1mm)
    • Outer Jacket: Rubber (CPE) Black
    • Cable Insulation: Rubber (EPR)

      Neutrik Connectors
    • Contact Resistance: ≤2mΩ
    • Dielectric Strength: 4kVDC/2.8kVAC
    • Rated Amperage: 20A
    • Rated Voltage: 250VAC

      Leviton Connector
    • Amperage: 15A
    • Rated Voltage: 125VAC
    • Blades/Contact Material: Solid Brass

  • Warranty:

    • 1 Year
