LD Systems LDS-MAUI11G2(US) MAUI 11G2 Powered All-In-One Column PA System - Black

ITEM #: LDS-MAUI11G2-US MFG #: MAUI11G2-US

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
no free ship

List Price:

$1,199.99

Our Price:

$1,199.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    MAUI11G2-US - Overview

    A complete sound system that you can carry together with your instrument: introducing the MAUI 11 G2. The two column elements in the padded shoulder bag, the subwoofer in one hand and the guitar or keyboard in the other - and off you go! Setting up the complete system, which doubles as a PA and monitor system is just as easy thanks to the special multi-pin cable plugs. The compact and elegant MAUI 11 G2 offers an unbeatable sound quality and wide-ranging sound distribution. It was developed after years of experience in the design of the column systems as a user-friendly solution for small to medium-sized gigs and fixed installations.

    The MAUI 11 G2 is equipped with three 6.5" woofers, eight 3" full-range speakers and two 1" neodymium HF drivers. They are driven by a light Class-D power amplifier boasting 1,000 watts of peak power and producing a grunty bass, balanced mids and precise and silky highs. The DynX® DSP technology from LD Systems provides top-class performance each time and the highest level of freedom from distortion. It includes a multiband limiter which protects against overloading, an EQ, a compressor and a 3-way-crossover with run time correction.

    The design of the MAUI 11 G2 line array achieves a longer range, increased resistance to feedback and a wider space coverage, which makes separate monitor speakers superfluous. The wave guide of the tweeters has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves an homogeneous dispersion - Your audience hears you in the back row just as clearly as in the front.

    With the integrated 4-channel mixer, system presets for mono or stereo configuration and Bluetooth® Audio Streaming, you have full control over the system. Whether you are a singer-songwriter, solo entertainer or DJ, you will be thrilled with the extraordinary sound and portability of the MAUI 11 G2. The column and the subwoofer can be set up separately: thus, the system is extremely flexible and is also an excellent choice for fixed installations. With a selection of clever transport accessories and special mounting hardware, the MAUI 11 G2 is a well thought out overall solution, down to the last details.

    • Specifications:

      • General
      • Weight: 54.89Lbs (24.9kg)
      • Product Type: PA Complete Systems
      • Type: active
      • Color: Black
      • Max. SPL (peak): 124 dB
      • Frequency Response: 50 - 20000 Hz
      • Dispersion (H x V): 120° x 20°
      • Overall Height: 79.92" (2030mm)

        Woofer Characteristics
      • Woofer
        Size: 3 x 6.5" (76.2 x 165.1mm)
        Magnet: Ferrite
        Brand: Custom-made
        Voice Coil: 1.5" (38.1mm)
      • Cabinet
        Construction: Bass Reflex
        Material: 15 mm Plywood
        Surface: texture paint
      • Subwoofer WxHxD: (285 x 650 x 373mm)
      • Subwoofer Weight: 16.9 kg

        Mid/Hi System
      • Midrange:
        Size: 8 x 3" (203.2 x 76.2mm)
        Magnet: Ferrite
        Brand: Custom-made
        Voice Coil: 1" (25.4mm)
      • Horn: Waveguide
      • Tweeter:
        Dimensions: 2 x 1" (20.8 x 25.4mm)
        Magnet: Neodymium
        Brand: Custom-made
        Voice Coil: 1" (25.4mm)
      • Loudspeaker Inputs: 1
      • Speaker input Connections: Custom-made multipin
      • Cabinet Construction mid/high: Closed
      • Mid/Hi System Cabinet Material: Aluminium
      • Mid/Hi System Cabinet Surface: HD coating
      • Mid/Hi System WxDxH: 3.77 x 24.4/28.7 x 4.09" (96 x 620/730 x 104mm)
      • Mid/Hi System Weight: 11.90/5.73Lbs (5.4/2.6kg)

        Amplifier Module (Integrated in Subwoofer)
      • Amplifier: Class D
      • Amplifier Output System (RMS): 500 W
      • Amplifier Output System (peak): 1000 W
      • Protection Circuits: DC protection, Multiband limiter, short circuit, thermal overload
      • Cooling: Convection
      • Operating Temperature: 32° to 104°F (0° to 40°C)
      • Humidity Range: 10% to 80%, (non-condensing)

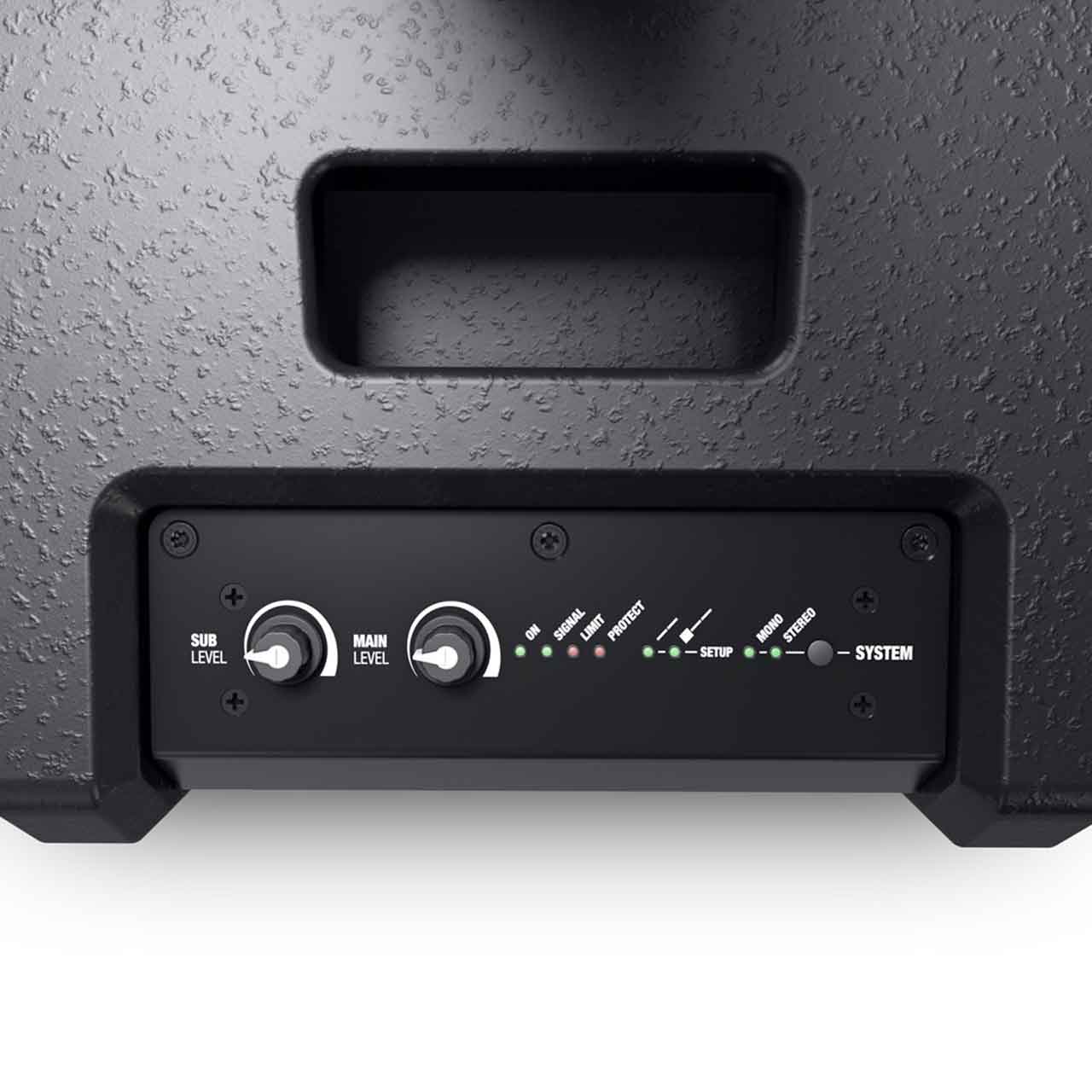

      • Controls: Bluetooth switch, Hi-Z Level, Line level, Main level, Mono/stereo switch, MP3/Bluetooth Level, Power, Sub level
      • Indicators: Limit, mono, On, Protect (protection circuit engaged), Setup, Signal, stereo
      • Power Connector: IEC power cable (included)
      • Operating Voltage: 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching)
      • Power Consumption Off / On / Max.: 0/11/600 W

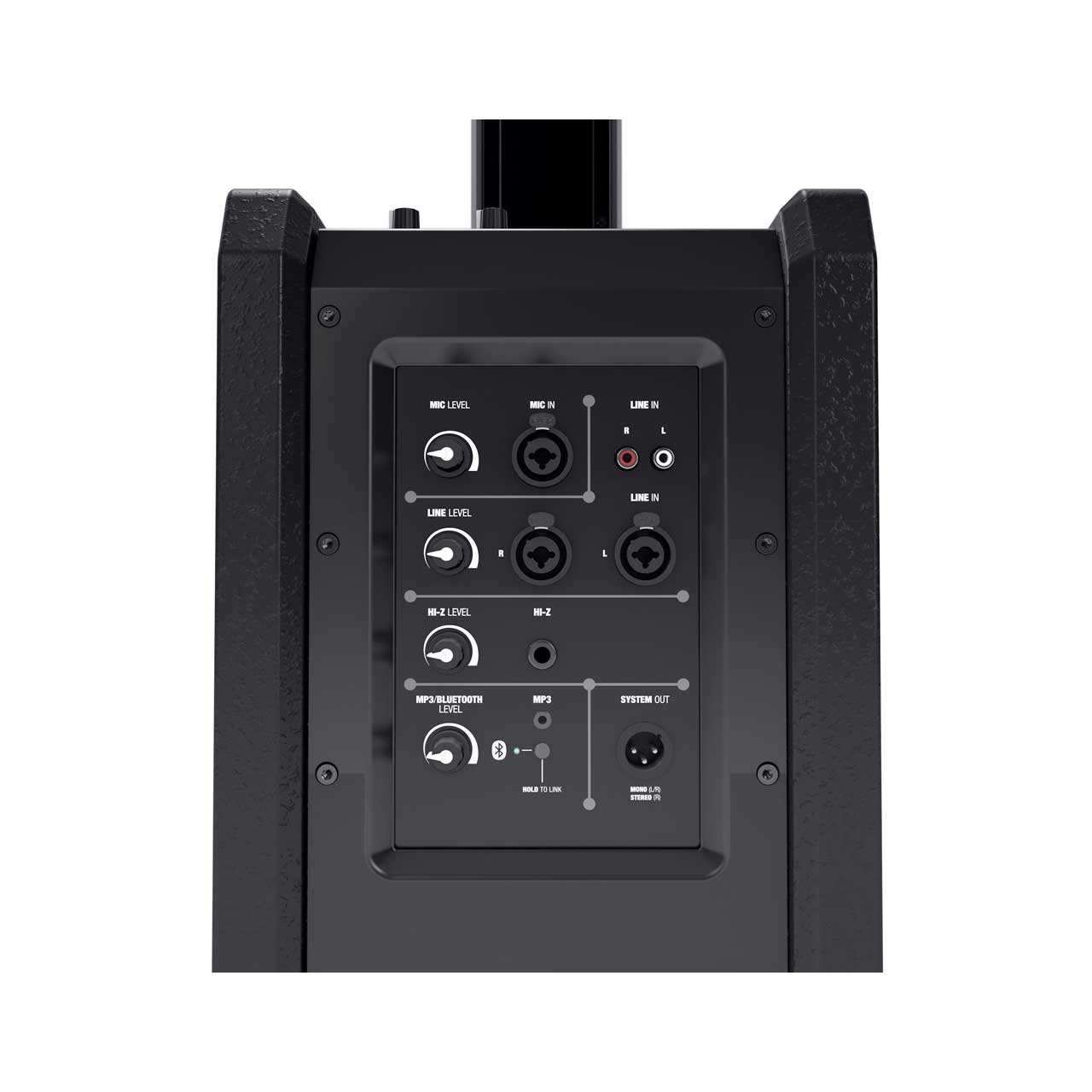

      • Line Inputs: 2x stereo
      • Line Input Connectors: RCA, XLR/6.3mm jack
      • Line Outputs: 1x direct out
      • Line Output Connectors: XLR
      • Mic Inputs: 1
      • Mic inputs: XLR/6.3mm jack
      • MP3 Inputs: 1
      • MP3 input Connectors: 3.5mm jack
      • Hi-Z Inputs: 1
      • Hi-Z input Connectors: 6.3mm jack
      • Loudspeaker Outputs: 1
      • Speaker Output Connections: Custom-made multipin

        DSP Characteristics
      • Bit Depth AD/DA converter: 24 bit
      • Internal Sampling frequency: 48 kHz
      • Signal/Noise Ratio: 100 dB
