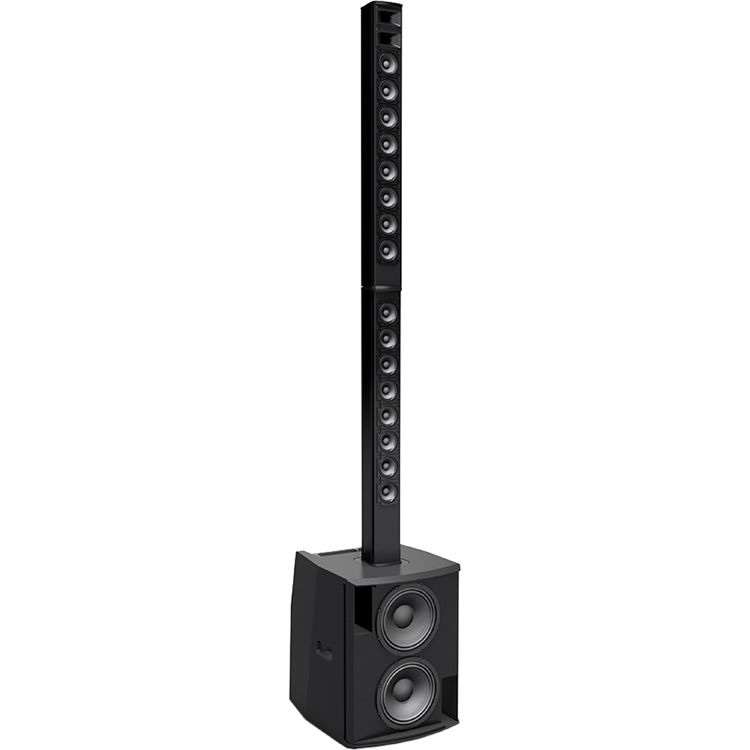

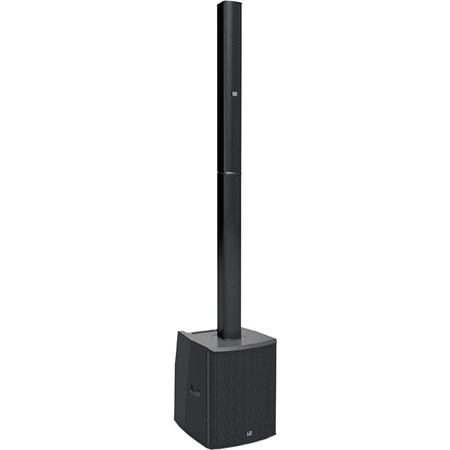

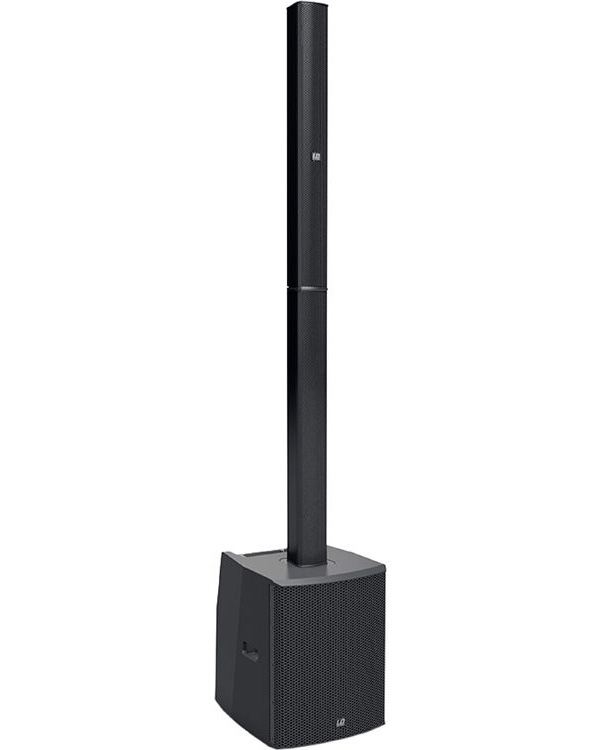

LD Systems MAUI28G2 Compact Column PA System with 4 Channel Mixer & Bluetooth - Black


Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the LDS-MAUI28G2

LDS-MAUI28G2 - Overview

A complete sound system that you can carry together with your instrument - introducing the MAUI 28 G2

The two column elements in the padded shoulder bag, the subwoofer in one hand and the guitar or keyboard in the other - and off you go! Setting up the complete system, which doubles as PA and monitor system is just as easy thanks to the special multi-pin cable plugs. The compact and elegant MAUI 28 G2 offers an unbeatable sound quality and wide-ranging sound distribution. It was developed with year-long experience in the design of the column systems as a user-friendly solution for medium sized gigs and fixed installations.

The MAUI 28 G2 is equipped with two 8" woofers, sixteen 3" full-range speakers and two 1" neodymium HF drivers. They are driven by a light Class-D power amplifier with an enormous 2,000 watts peak power and produce a grunty bass, balanced mids and precise and silky highs. The DynX DSP technology from LD Systems provides a top-class performance every time and the highest level of freedom from distortion. It includes a multiband limiter which protects against overloading, an EQ, a compressor and a 3-way crossover with run time correction.

The design of the MAUI 28 G2 line array achieves a longer range, increased resistance to feedback and a wider space coverage, which makes separate monitor speakers superfluous. The wave guide of the tweeters has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves an homogeneous dispersion - Your audience hears you in the back row just as clearly as in the front.

With the integrated 4-channel mixer, system presets for mono or stereo configuration and Bluetooth Audio Streaming, you have full control over the system. Whether you are a singer-songwriter, solo entertainer, DJ or musician in a small band, you will be thrilled with the extraordinary sound and portability of the MAUI 28 G2. The column and the subwoofer can be set up separately: thus, the system is extremely flexible and is also an excellent choice for fixed installations. With a selection of clever transport accessories and special mounting hardware, the MAUI 28 G2 is a well thought out overall solution, down to the last details.

  • Specifications:

    • General
    • Type: Active
    • Colour: Black
    • Max. SPL (peak): 126dB
    • Frequency response: 45 - 20000Hz
    • Dispersion (H x V): 120° x 20°
    • Overall height: 2059mm
    • Weight: 30.9kg
      Amplifier module (integrated in subwoofer)
    • Amplifier: Class D
    • Amplifier output system (RMS): 1000W
    • Amplifier output system (peak): 2000W
    • Protection circuits: Multiband limiter, DC protection, short circuit, thermal overload
    • Cooling: Convection
    • Operating Temperature: 0 - 40°C
    • Humidity Range: 10% to 80%, (non-condensing)

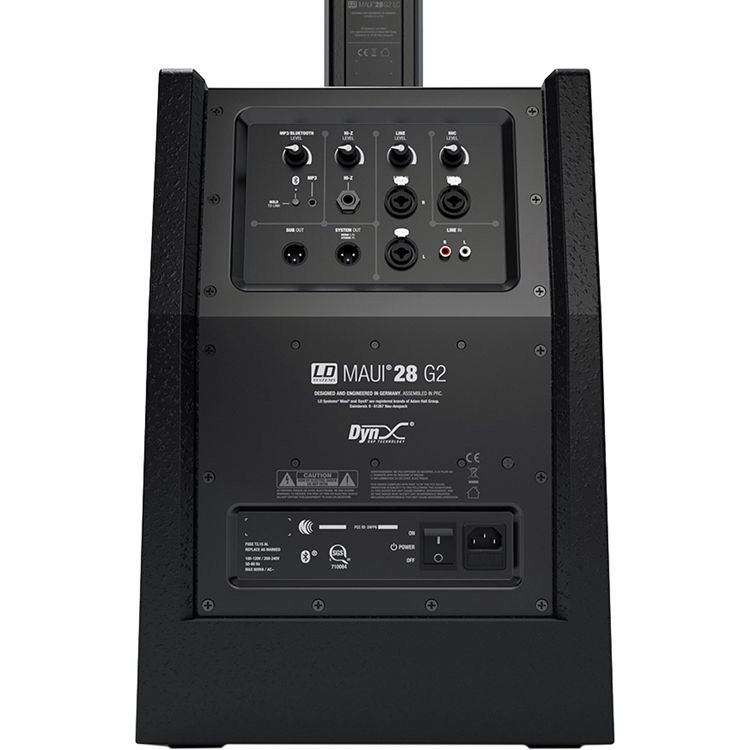

    • Controls: Sub level, Mono/stereo switch, MP3/Bluetooth Level, Bluetooth switch, Hi-Z Level, Main level, Power, Line level
    • Indicators: mono, stereo, On, Signal, Setup, Limit, Protect (protection circuit engaged)
    • Power connector: IEC power cable (included)
    • Operating voltage: 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching)
    • Power consumption Off / On / Max.: 0/11/600W
    • Line inputs: 2 x stereo
    • Line input connectors: XLR/6.3 mm jack, RCA
    • Line outputs: 2 (1x System Out, 1x Sub Out)
    • Line output connectors: XLR
    • Mic inputs: 1, XLR/6.3 mm jack
    • MP3 inputs: 1
    • MP3 input connectors: 3.5 mm jack
    • Hi-Z inputs: 1
    • Hi-Z input connectors: 6.3 mm jack
    • Loudspeaker outputs: 1
    • Speaker output connections: Custom-made multipin
      DSP Characteristics
    • Bit depth AD/DA converter: 24bit
    • Internal sampling frequency: 48kHz
    • Signal/noise ratio: 100dB
