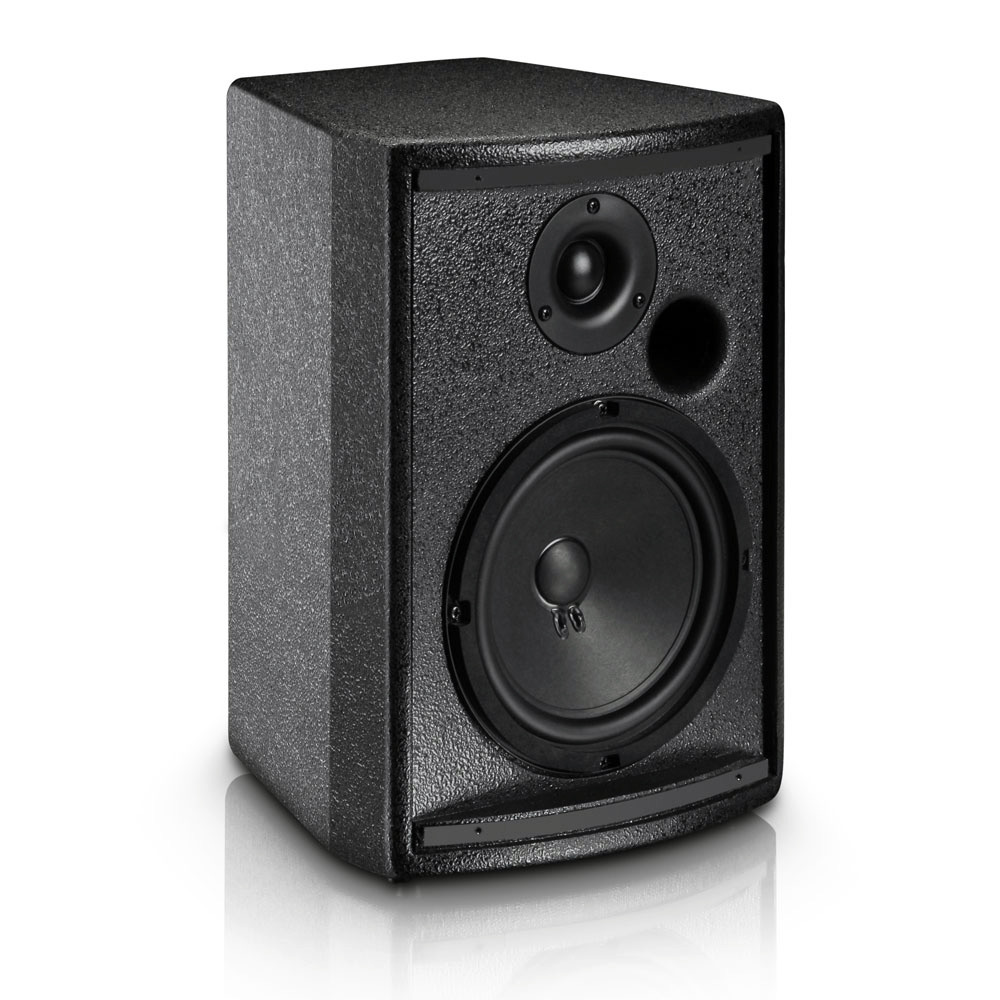

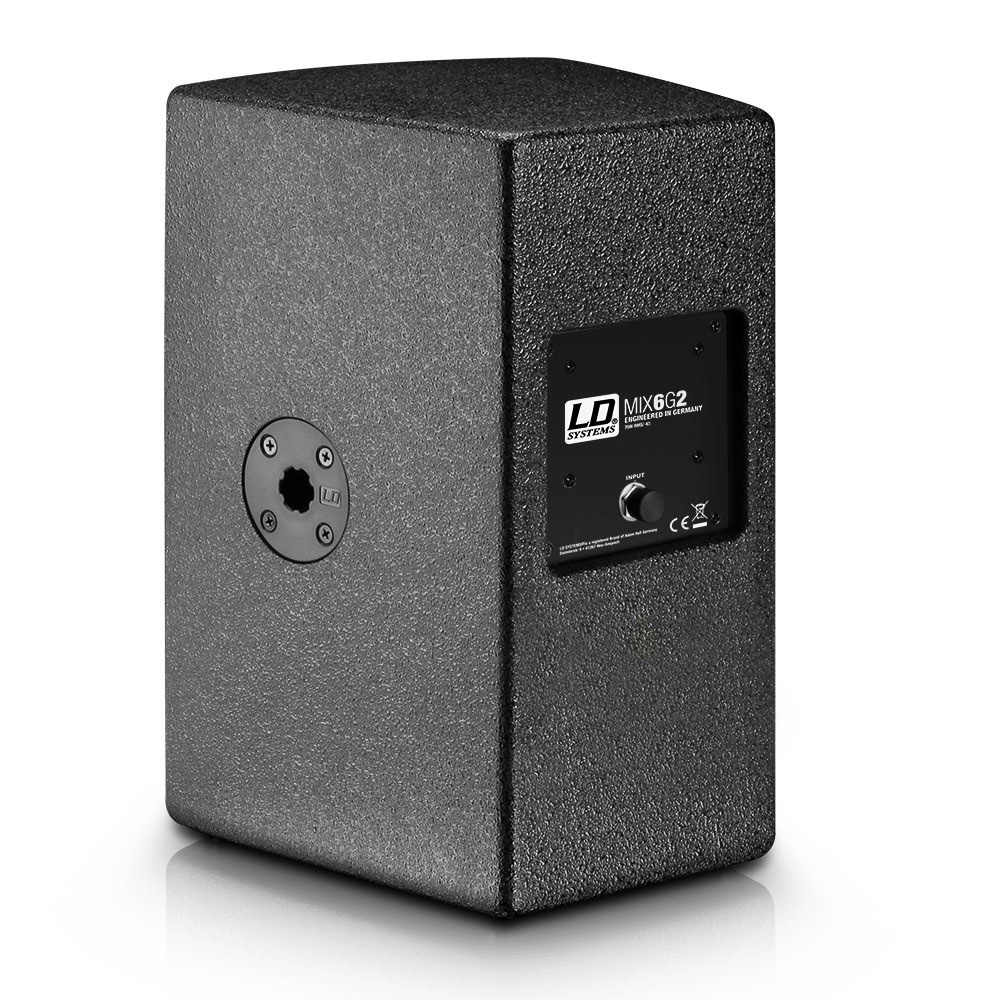

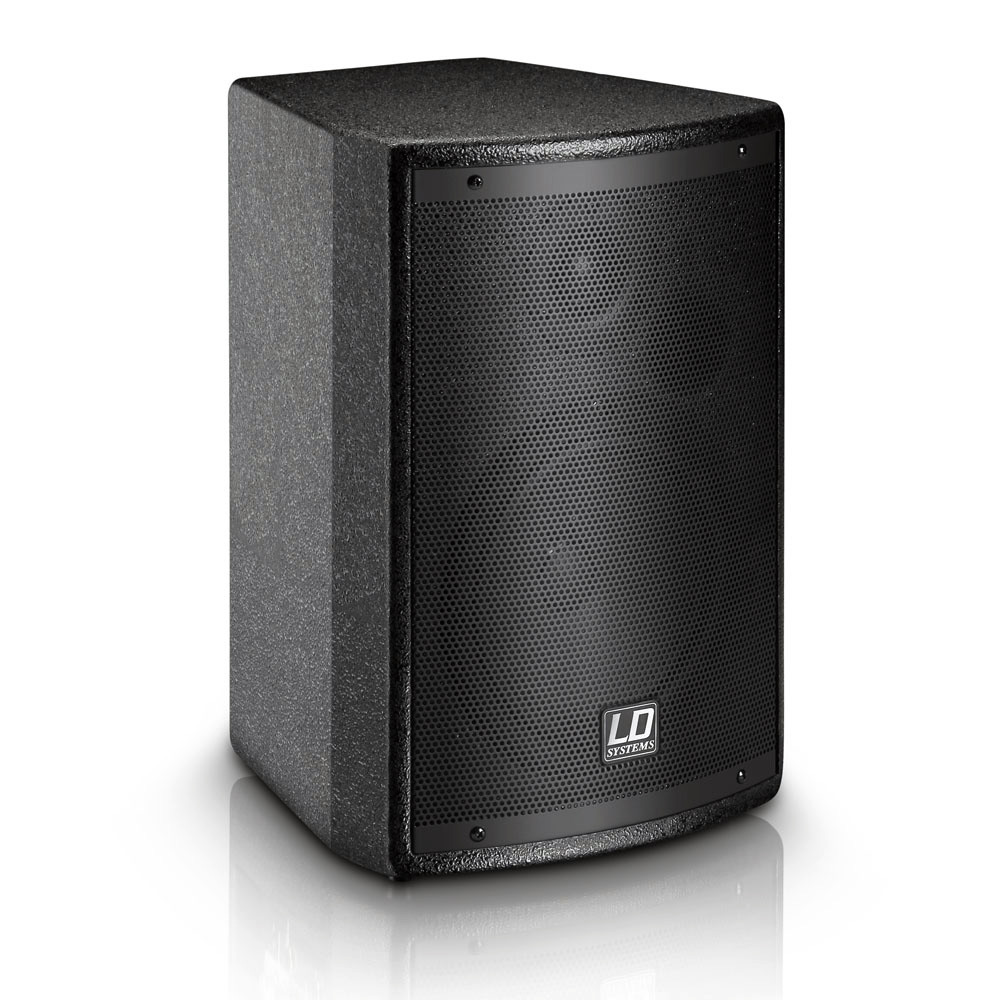

LD Systems MIX6G2 - 6.5 Inch PA Speaker Passive

Manufacturer: LD Systems

Item #: LDS-MIX6G2   •   MFG #: MIX6G2




Share!





Featuring a 6.5" woofer and 1" HF transducer the Stinger MIX 6 G2 is a passive fullrange loudspeaker specifically designed as a slave to the Stinger MIX 6 A G2. It is conveniently powered by the active unit's integrated 2 x 280 watts peak power Class D amplifier.

The Stinger MIX 6 G2 provides an 80 Hz to 20 kHz frequency response and 80° x 70° dispersion delivering high quality audio with clarity and punch. Dual bottom and side stand mount inserts allow for vertical and horizontal alignment.

While the Stinger MIX 6 G2 perfectly complements the active Stinger MIX 6 A G2 with built-in mixer for small-scale PA and personal monitoring applications it can also be used in passive systems powered by dedicated amplifiers.

A transport bag and a speaker stand are available optionally.


  • Specifications

    • Product type: PA loudspeaker
    • Type: passive
    • Low/mid driver dimensions: 8"
    • Low/mid driver dimensions (mm): 203.2mm
    • Woofer magnet: Ferrite
    • Woofer brand: Custom-made
    • Woofer voice coil: 2"
    • Woofer voice coil (mm): 50.8mm
    • Horn: CD horn
    • HF driver dimensions: 1"
    • HF driver dimensions (mm): 25.4mm
    • HF driver magnet: Ferrite
    • HF driver brand: BMS
    • HF driver voice coil: 1"
    • HF driver voice coil (mm): 25.4mm
    • Dispersion (H x V): 100 x 55°
    • RMS: 200W
    • Peak power: 800W
    • Frequency response: 70 - 19000Hz
    • Crossover frequency: 2200Hz
    • SPL (1W/1m): 95dB
    • Max. SPL: 118dB
    • Impedance: 8Ohm(s)
    • Protection circuits: HF Driver
    • Loudspeaker inputs: 1
    • Speaker input connections: Speakon compatible
    • Loudspeaker outputs: 1
    • Speaker output connections: Speakon compatible
    • Cabinet material: 15 mm Plywood
    • Cabinet surface: texture paint
    • Cabinet construction: vented
    • Width: 270mm
    • Height: 450mm
    • Depth: 290mm
    • Features: M10 Thread for SuperClamp, ergonomically shaped insert handles, aluminium speaker stand support 36 mm
    • Weight: 10kg
