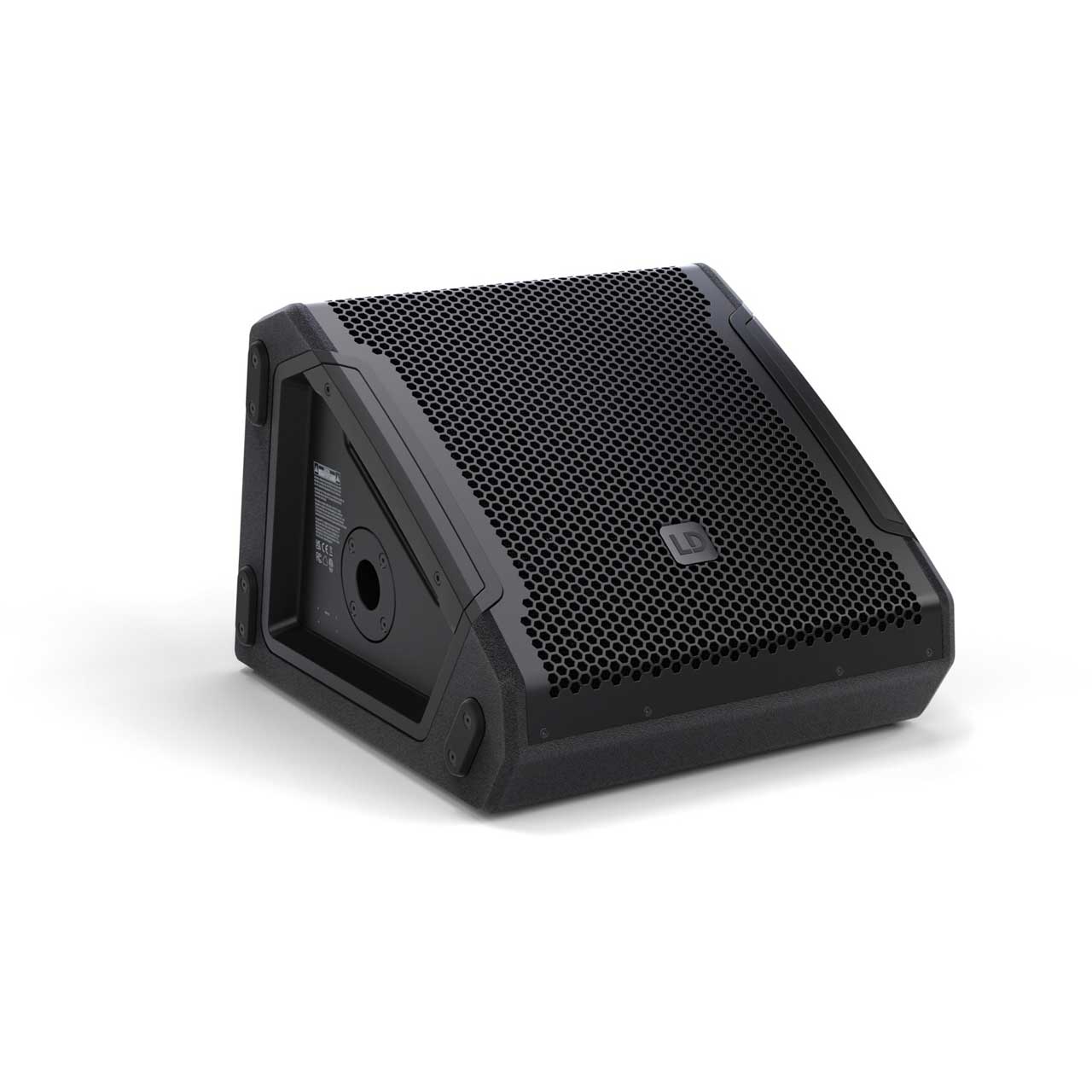

LD Systems MON10AG3 10 Inch Powered Coaxial Stage Monitor

ITEM #: LDS-MON10AG3 MFG #: LDS-MON10AG3(US)

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$559.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    LDS-MON10AG3(US) - Overview

    One Step Beyond

    The LD Systems MON10AG3 belongs to a completely newly developed family of active stage monitors that are designed to meet high performance requirements. The MON G3 series incorporates the advanced technology and high-quality materials found in high-end monitors primarily used in professional applications. This quality is now made available to everyone. These include, for example, advanced coaxial speakers with an integrated 50° x 90° CD horn, which ensure the acoustic ideal of a real point sound source and thus outstanding audio properties even at short listening distances. Added to this is the high level of robustness, the extensive features and the elegant LD Systems design.

    Although the MON10AG3 is still very compact and can therefore be integrated unobtrusively into the stage design, it delivers enough sound pressure to be able to assert itself even in louder band situations. The ideal radiation characteristics of 50° x 90° when used as a monitor or 90° x 50° when used in FOH mode make it an all-rounder that offers the right solution for many different tasks.

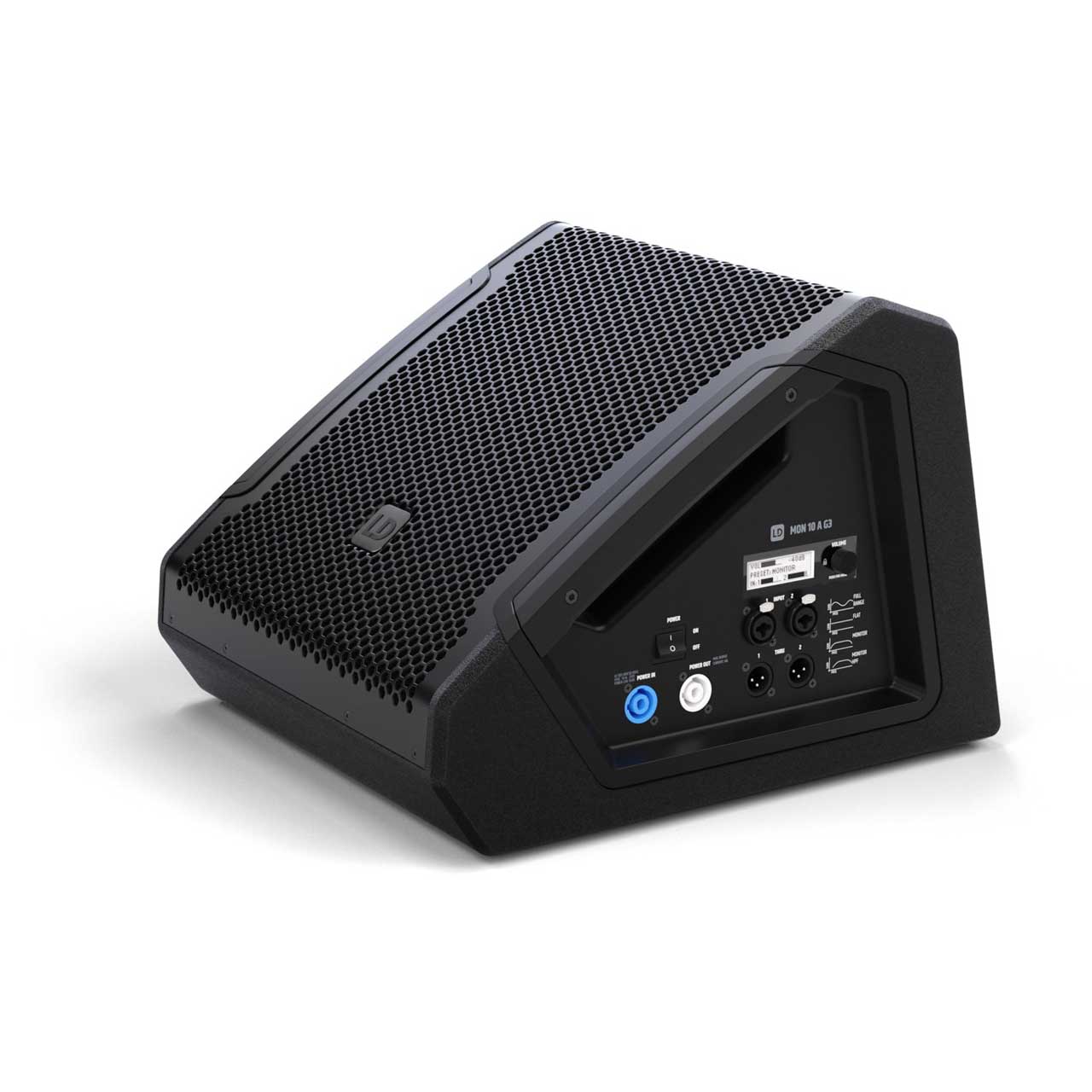

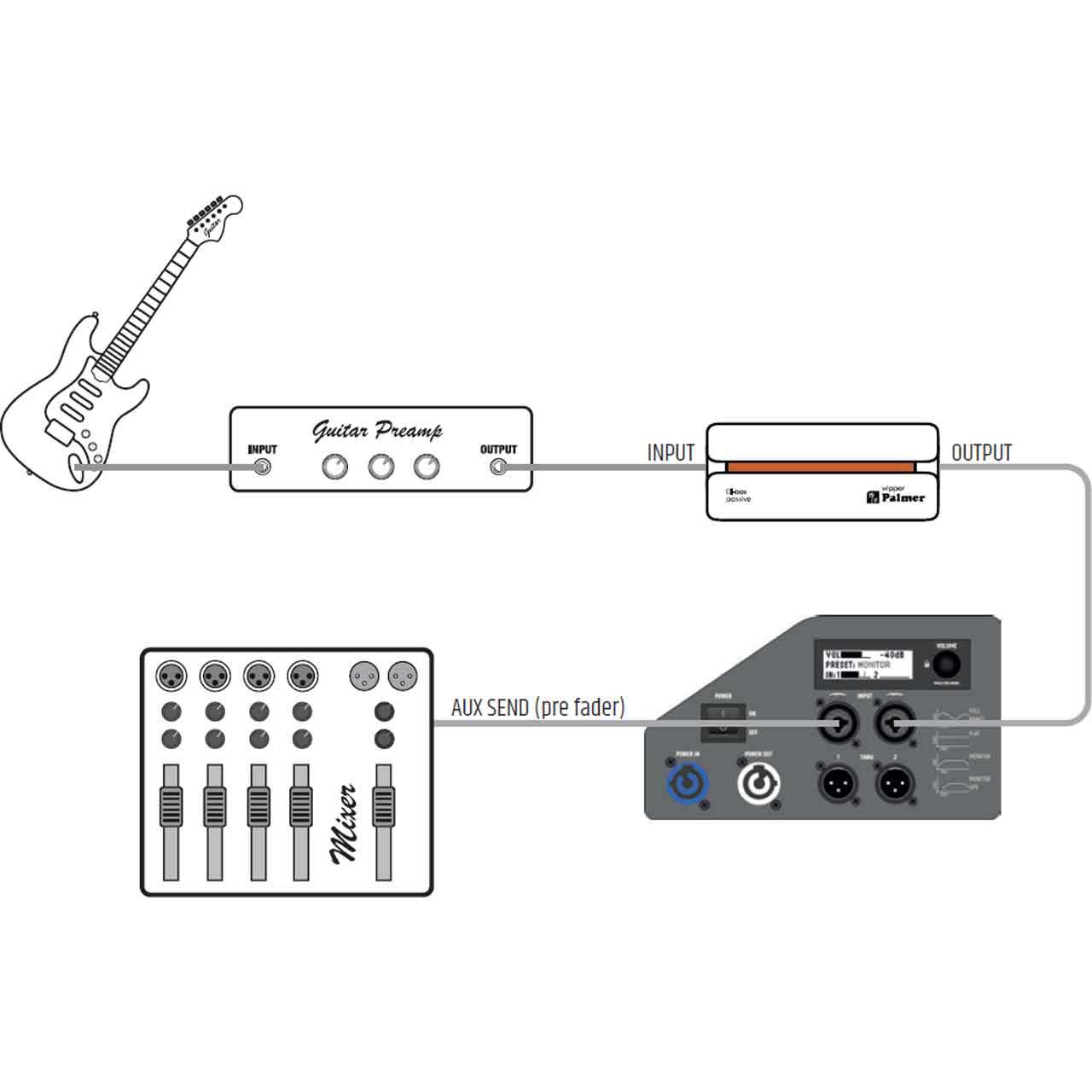

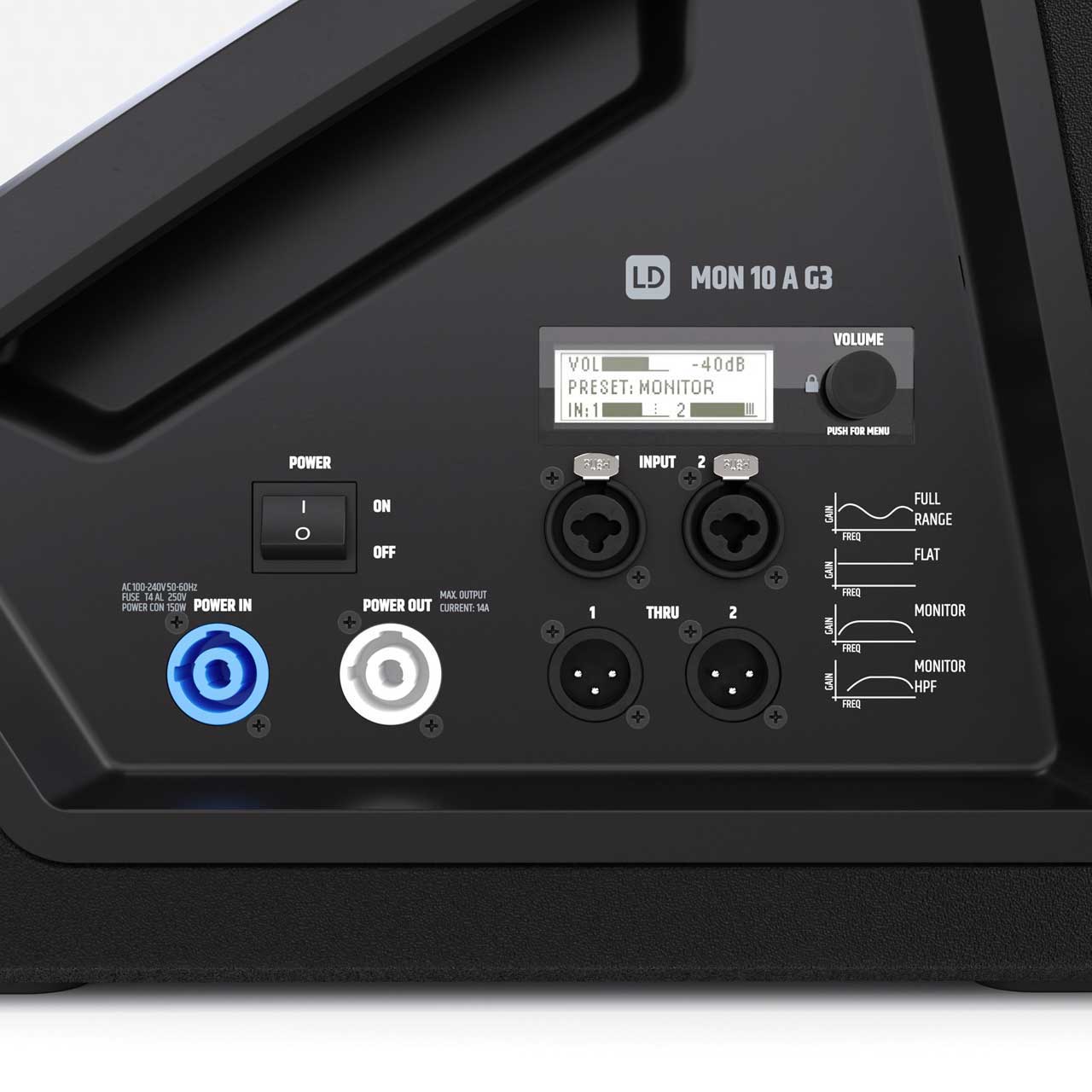

    Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This enables elegant, tidy cabling in multi-monitor setups or distributed sound systems.

    • Features:

      • Compact and powerful stage monitor with high-quality technology
      • Coaxial construction for a true point sound source with a 1.75" titanium diaphragm HF driver
      • Optimized, practical radiation characteristics thanks to the 50° x 90° CD horn
      • 3-band EQ, notch filter, 4 application presets and delay function
      • 35 mm tripod mount for FOH applications
      • Class D power amplifier with 300 W RMS/1200 W peak and 126 dB max. SPL
      • 10" woofer with 2.5" voice coil
      • DynX DSP (Gen.2) for distortion-free playback even at maximum volume
      • PowerCON-compatible, loop-through, professional power connection
      • Durable polyurea coating and robust front grille

    • Specifications:

      • General
      • Type: Active
      • Color: Black
      • System performance (RMS): 300W
      • System performance (peak): 1200W
      • Max. SPL Average (Sine burst): 118 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD)
      • Max. SPL Peak (Sine burst): 126 dB (fullspace @1m, 10% THD)
      • Frequency range (-3 dB): 72 - 18000 HZ
      • Frequency range (-10dB): 58 - 20000 Hz
      • Crossover frequency: 1700Hz
      • Monitor angle: 33°
      • Beam angle (H x V): 50°x90°
      • Dimensions: 11.8" x 16.7" x 12" (380mm x 426mm x 305mm)
      • Features: 3 band EQ (High, Mid, Low), delay line, notch filter
      • Weight: 33.5lbs (15.21kg)

        Woofer
      • Size Woofer: 10" (254 mm")
      • Magnet: Ferrite
      • Woofer type: Coaxial speakers
      • Voice coil woofer: 25" (65mm)
      • Housing design: Bass reflex
      • Case material: 15mm birch plywood, 15mm MDF

        Amplifier module (integrated)
      • Amplifier: Class D
      • Protection Circuits: Multiband limiter, overheating, overvoltage, overcurrent
      • Operating Temperature: 32°F - 104°F (0°C - 40°C)
      • Humidity range: < 80% (non-condensing)
      • Backup: T4AL 250V
      • Controls: Rotary-push encoder, on/off switch
      • Advertisement: LC display
      • Power supply: SMPS
      • Operating voltage: 100V AC - 240V AC / 50 - 60 Hz
      • Power consumption: 150W
      • Current input/output: PowerCON compatible
      • Line inputs: 2
      • Line input connectors: 6.3 mm jack, XLR combo
      • Line passage: 2
      • Line pass-through connection: XLR

    • Item Includes:

      • 1x LD Systems MON10AG3 10" Powered Coaxial Stage Monitor

    • Warranty:

      • 2-Year Limited Warranty
