DM1612F - Overview

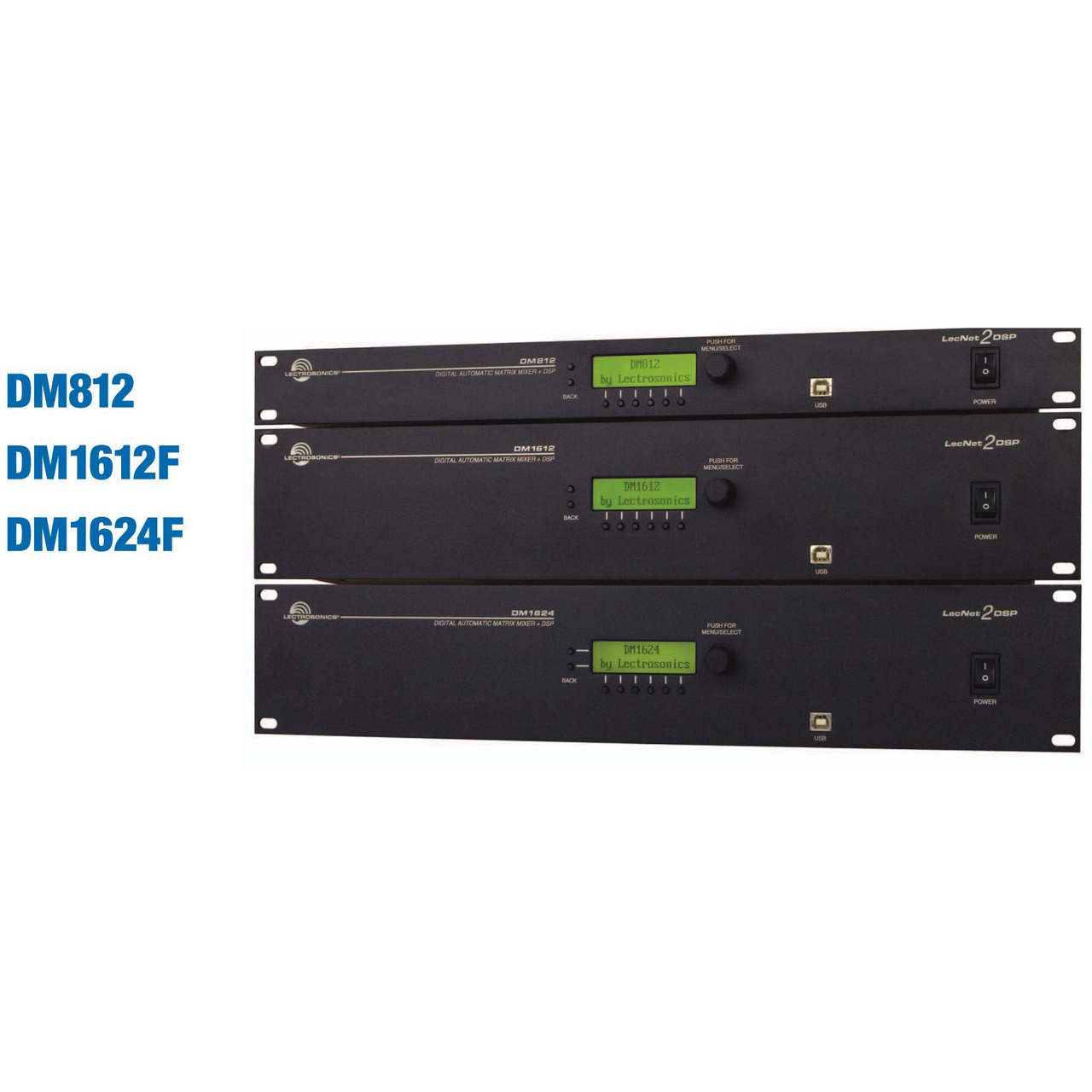

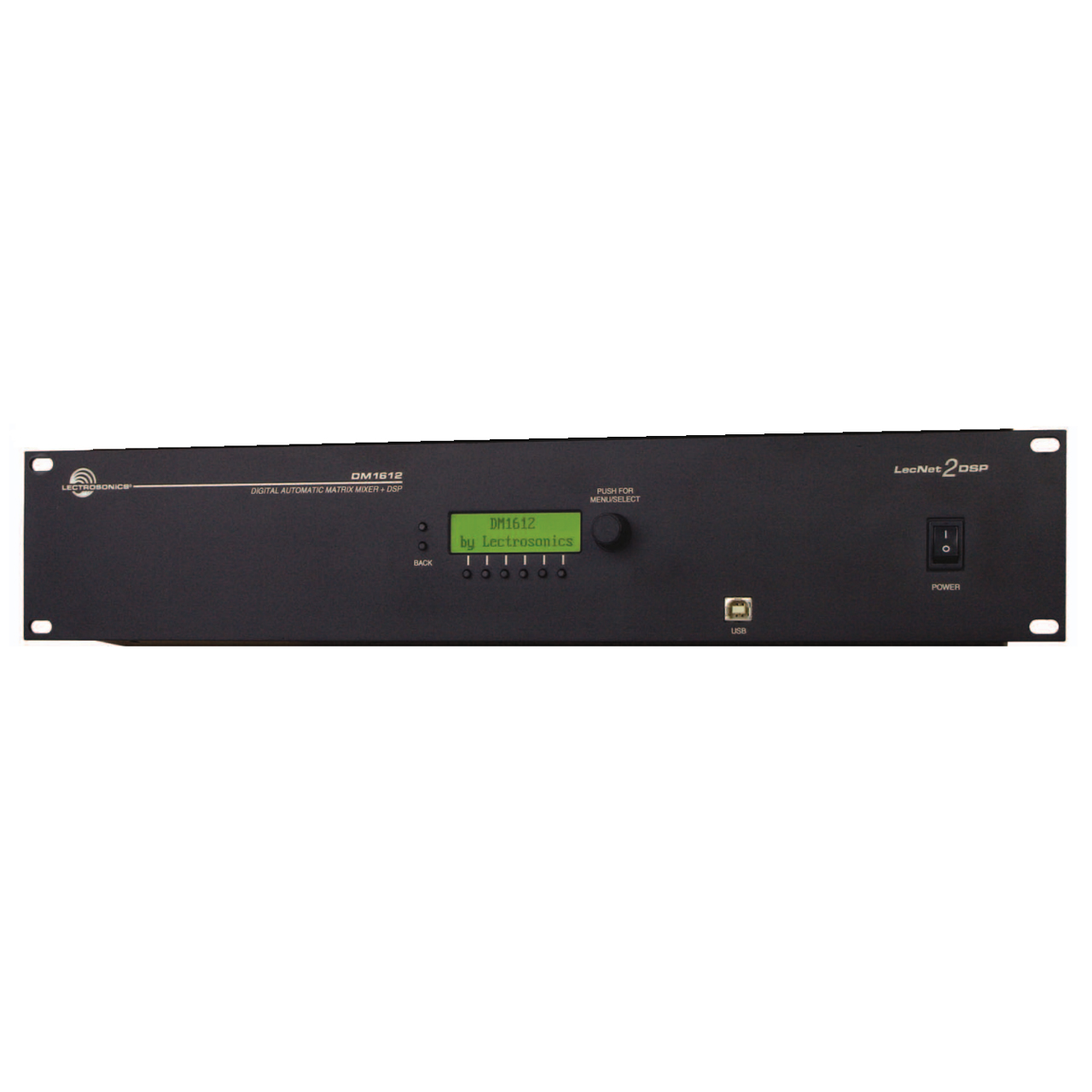

The Lectrosonics DM1612f is a powerful digital audio processing, mixing and routing system. The primary applications are sound reinforcement and conferencing in boardrooms, courtrooms, worship centers, distance learning systems, hotels and other applications with multiple microphones and loudspeakers. The design represents a milestone in DSP technology in its basic architecture and in its processing speed and efficiency.

The basic architecture consists of 16 mic/line inputs and 12 outputs with a full DSP-based crosspoint matrix that allows every input to be routed to any or all outputs. Following the A-D conversion at each input, the signal passes through multiple DSP filters, ADFE (automatic digital feedback eliminator), a compressor and a digital delay. In the matrix, gain is adjustable from -69 to +20 dB in 1 dB steps at each crosspoint. Each of the 12 outputs provides a digital delay, multiple DSP filters and a compressor/limiter.

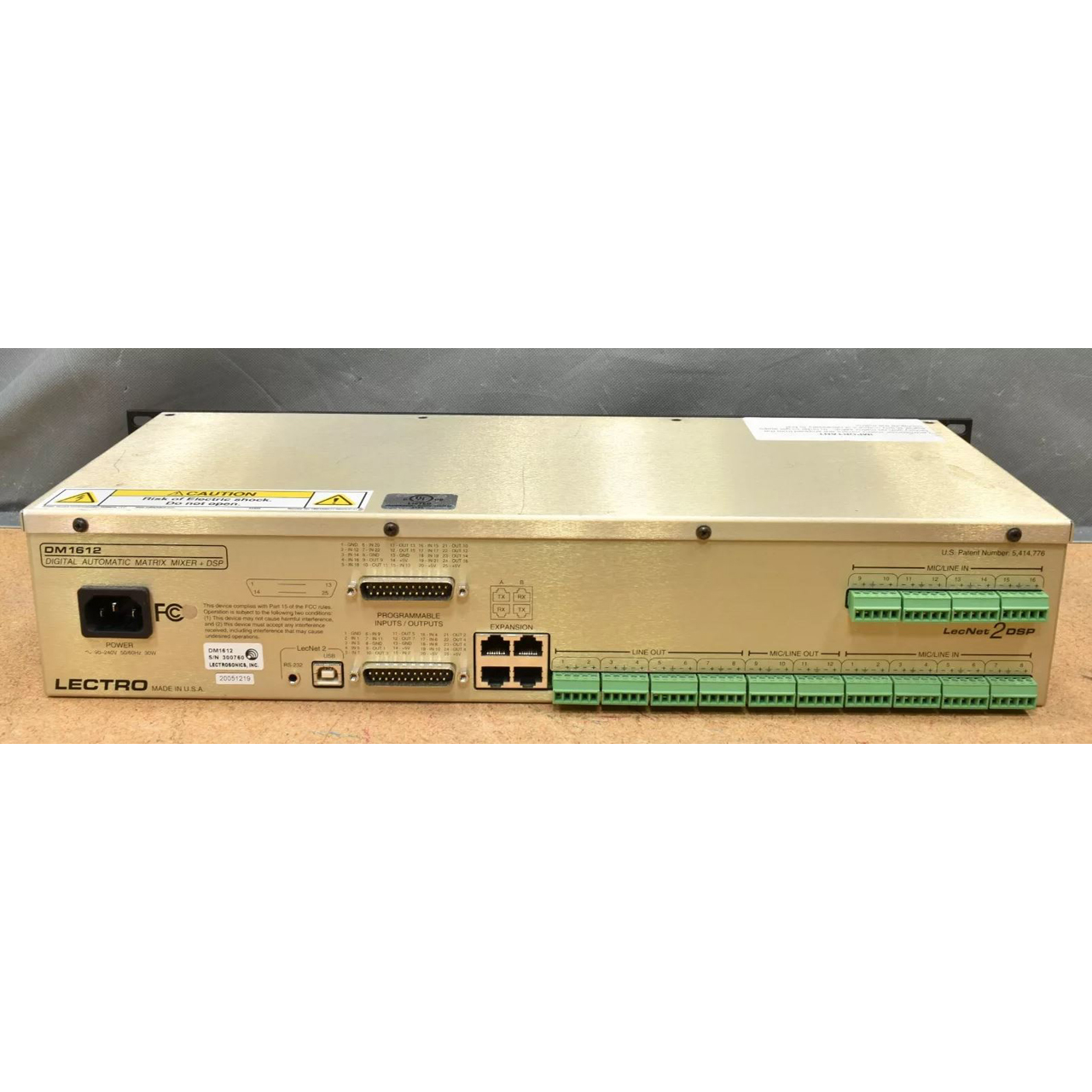

The rear panel of DM Series Matrix Mixers provide all connections for microphones, line inputs, line outputs, external computer control, and EXPANSION ports for "daisy chaining" multiple units or connecting other LecNet2 devices. Logic I/O ports are also provided for remote control and signaling with external pots, switches and LEDs.Industry standard depluggable connectors are used for audio inputs and outputs, DB25 connectors provide taps for logic control. USB and serial jacks are provided for the computer interface. A quad RJ45 connector block provides expansion ports for "daisy chaining" multiple
units, or interfacing with another LecNet2 device.

  • Features:

    • 16 mic/line inputs, 12 line outputs
    • (4 outputs are mic/line switchable)
    • 16 x 12 digital matrix mixing; gain is adjustable from -69 - +20 dB
    • Proportional gain auto mixing algorithm with AutoSkew™ - US Patent 5,414,776 and 5,402,500

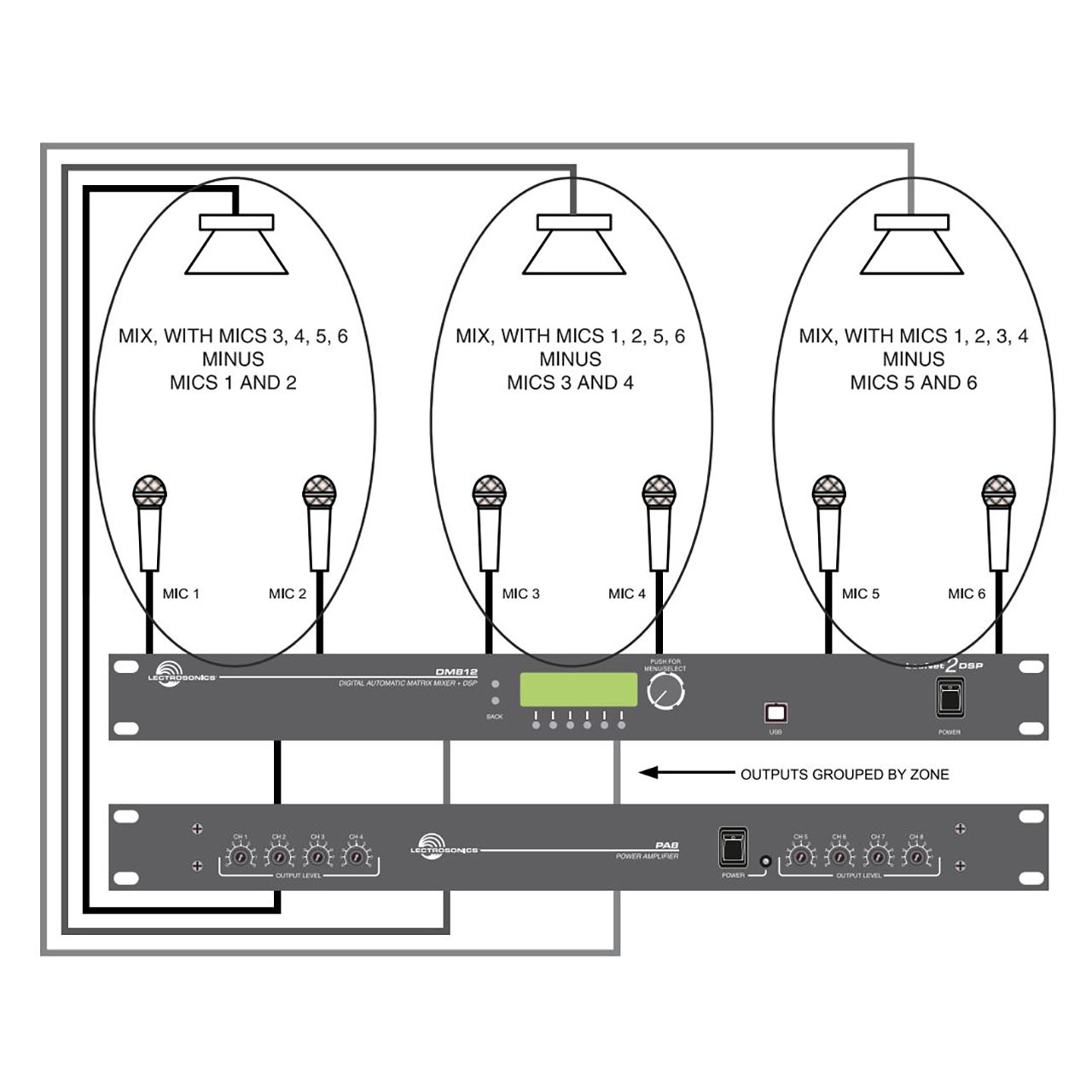

    • Auto mixing operates at the output of the matrix - each input channel can participate differently in each output mix
    • Each output has its own NOM mixing bus
    • 6 filter stages plus compressor, ADFE and delay on each input
    • 9 filter stages plus compressor, limiter and delay on each output
    • 128 macros available for storing up to 64 commands per macro
    • USB and RS-232 interfaces for setup and control
    • Digital I/O ports for "daisy chaining" and to connect other LecNet 2 devices
    • AMX© and CRESTRON™ compatible
    • Simultaneous LecNet2 and Third-Party control
    • Continuous fan cooling

  • Specifications:

    • Audio Inputs
      - Gain: -10dB to +60dB, programmable in 1dB steps
      - Input Impedance: 2.5kΩ
      - Phantom Voltage: 15V, programmable
      - Connector: 5-pin Phoenix
    • Audio Outputs: Floating balanced, either side can be grounded
      - Nominal Level: 0dBu all outputs, -40dBu selectable on outputs 9-12
      Output Impedance:
      - Line Only: 50Ω differential line level only outputs
      - Mic/Line: 600Ω differential programmable outputs at line level, 130Ω differential programmable outputs at microphone level
    • Input Dynamic Range: 96dB at -50dBu input, level 102dB at all other levels (unweighted 20-20kHz)
    • Output Dynamic Range: 105dB (unweighted 20-20kHz)
    • Audio Performance:
      - IMD + noise: 0.1% max, 0.02% nominal input level
      - THD + noise: 0.1% (worst case), 0.02% nominal input level
      - EIN: -126dBu
    • Connectors:
      - Audio I/O: 5-pin Phoenix
      - Expansion: RJ45
      - Logic I/O: DB25
      - Serial: Standard USB and mini TRS
    • Proprietary Network:
      - Physical Level: LVDS (Low Voltage DIfferential Signal) high speed
      - Connector: 4x RJ-45
      - Cable Quality: Shielded CAT-5
      - Transmission Speed: 50Mbits/s
    • Programmable Control Inputs:
      - Number of Inputs: 22
      - Analog Voltage Range: 0V - 5V
      - Logic Input: TTL, LVTTL, CMOS, LVCMOS
    • Programmable Control Outputs
      - Number of Logic Outputs: 16
      - Logic Control: Active low
      - Max Sink Current: 100mA
      - Max Supply Voltage: 40V
      - Supply Voltage for Control I/O: 5V
      - Max Current: 750mA
    • Power Requirements: 100V - 240V AC, 47-63Hz
    • Power Consumption: 30 Watts
    • Fan Cooling: Continuous
    • Dimensions (WxHxD): 19" x 3.5" x 7.5" (482.6mm x 88.9mm x 190.5mm)
    • Weight: 5.25lbs (2.3814kg)

  • Item Includes:

    • 1x Lectrosonics DM1612F
    • 1x Power Cord
    • 1x Interconnect Cable - Black
    • 1x Interconnect Cable - Red
    • 2x 25-Pin Female Connectors
    • 14x 5-Position Plug
    • 1x USB Cable
    • 2x CAT5 Cable
    • 1x Adjustment Tool
    • 1x LecNet2 Software CD
    • 1x Manual

  • Warranty:

    • 1 Year Limited Warranty
