    PF25-470 - Overview

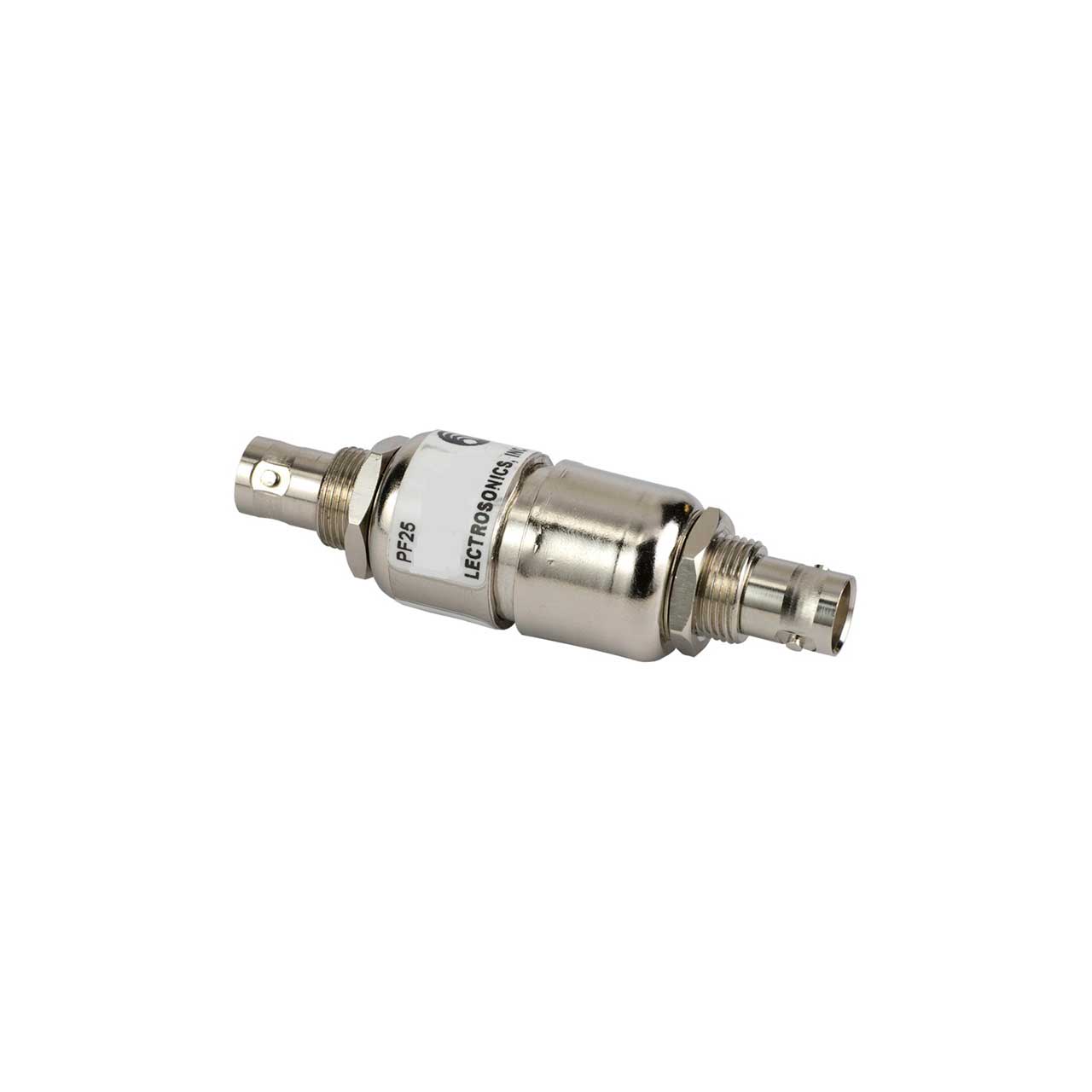

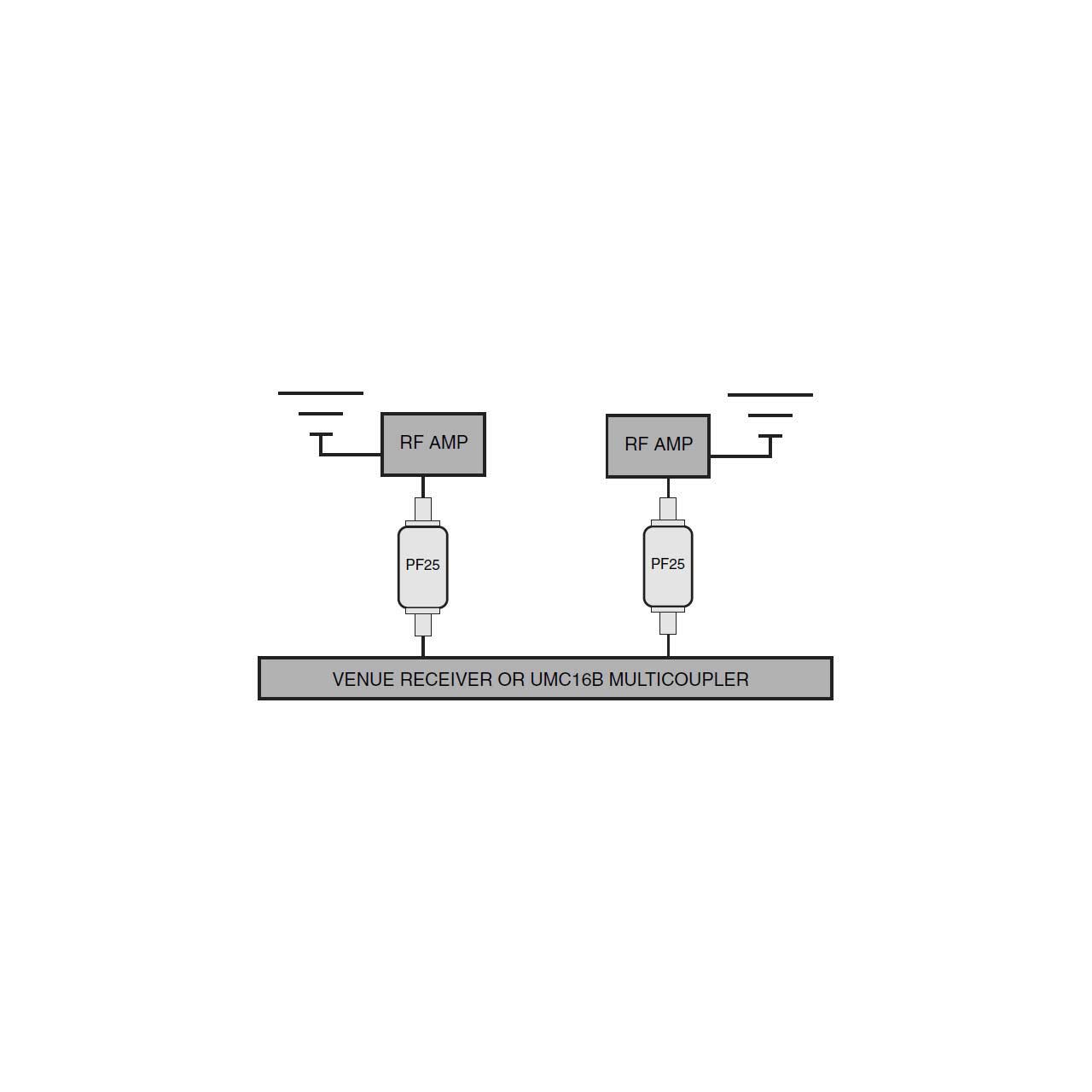

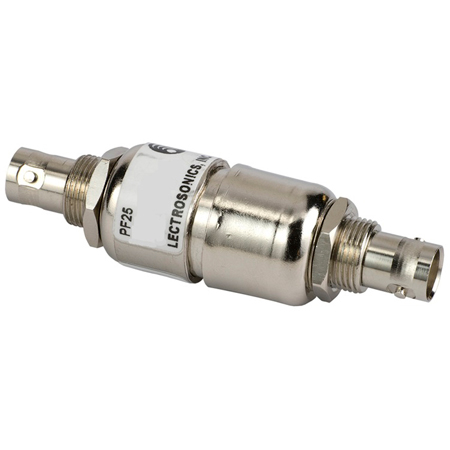

    The PF25-470 is a passive in-line RF filter with 25MHz passband operating in frequency block 470. Designed for use with VRMWB and VRField WB wide-band receiver systems in cases where the full bandwidth of the receiver is not needed.

    • Features:

      • SAW (surface acoustic wave) filter
      • Passes DC power to antenna amplifier
      • Rugged metal housing with standard BNC connectors
      • Bidirectional design for convenience


    • Specifications:

      • Filter Type: SAW (surface acoustic wave)
      • Bandwidth: Varies with frequency block
      • Maximum RF Level: +10 dBm
      • DC Bias Power Capacity: 350 mA max.
      • Input Impedance: 50 Ohm BNC
      • Output Impedance: 50 Ohm BNC
      • Dimensions: 2.97"(75mm) x 0.84"(21mm) dia.
      • Weight: 2.7 ozs. 76 grams


    • Item Includes:

      • 1x Lectrosonics PF25-470 Passive Inline RF Filter


    • Warranty:

      • 1-Year Limited Warranty
