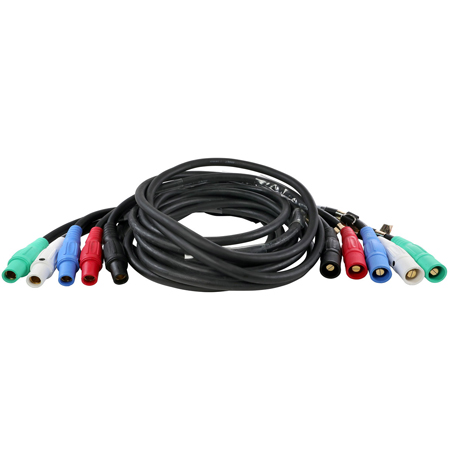

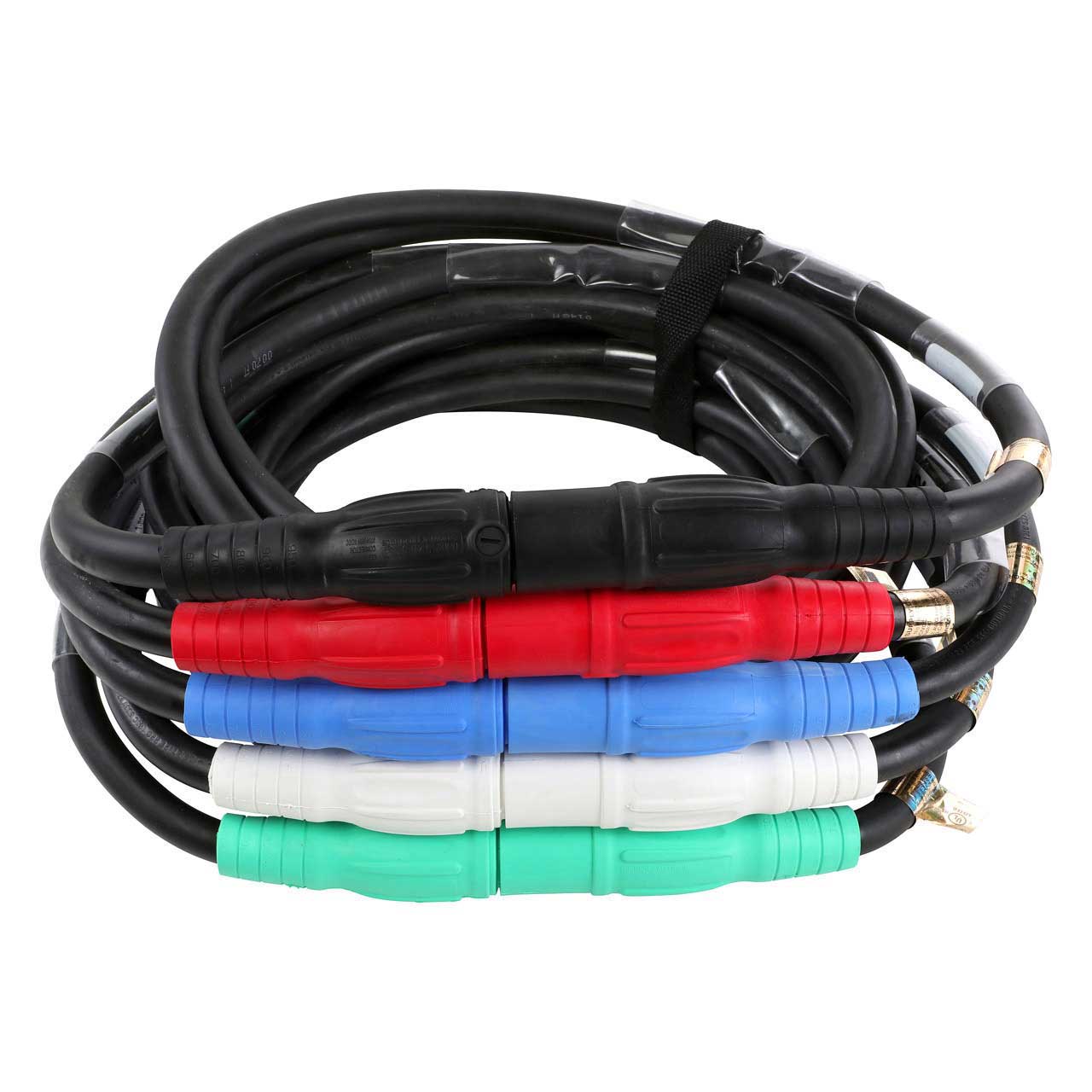

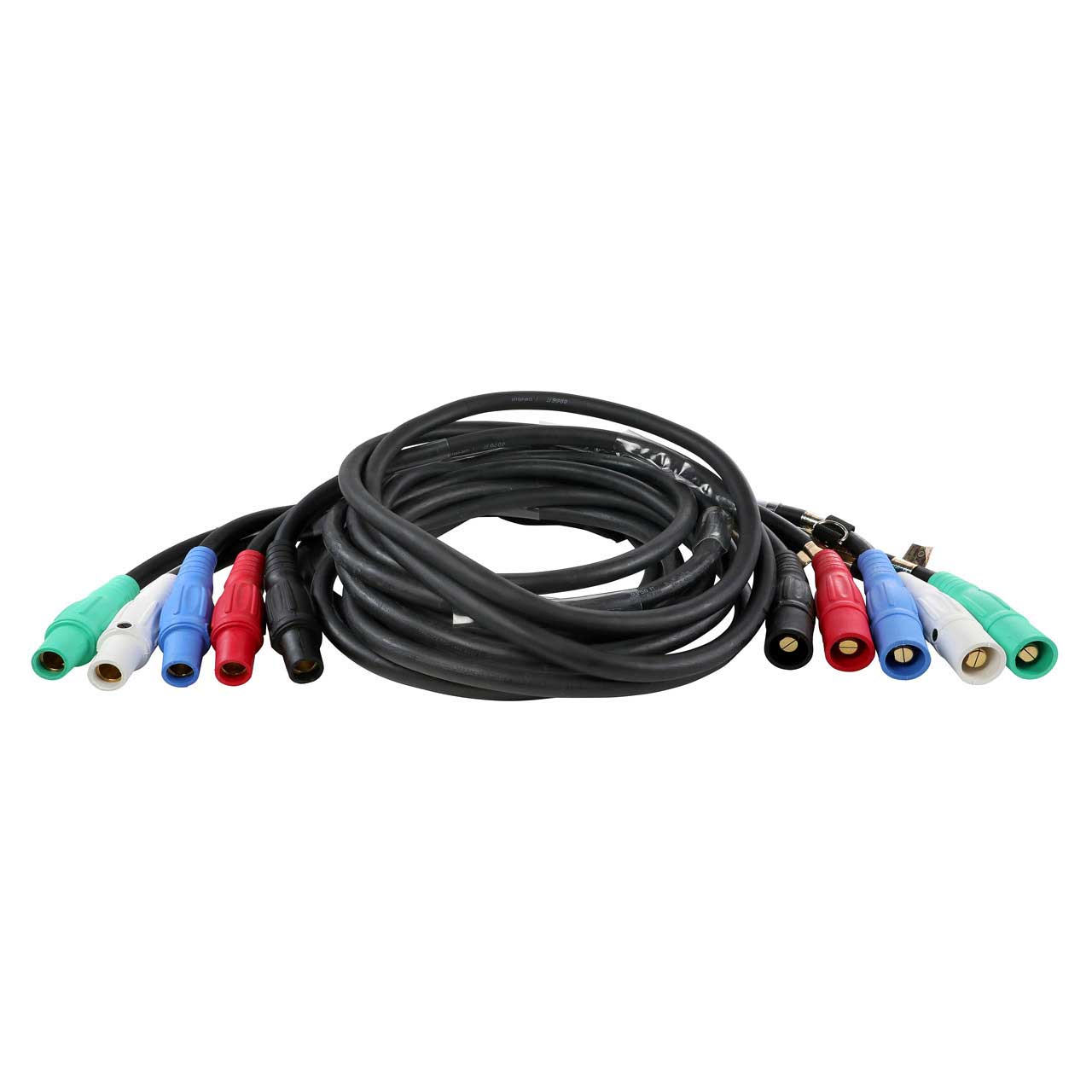

LEX FS505W-50 Type SC Cam-Type Feeder Set for Entertainment Applications - 200A / 600 VAC - 5 Cam-Type M-F - 50 Foot

Name: LEX FS505W-50 Type SC Cam-Type Feeder Set for Entertainment Applications - 200A / 600 VAC - 5 Cam-Type M-F - 50 Foot
Brand: LEX Products Corp
SKU: LEX-FS505W-50
Price: 2484.75 USD
Availability: PreSale

ITEM #: LEX-FS505W-50 MFG #: FS505W-50

LEX Products Corp

Our Price:

$2,484.75

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

FS505W-50 - Overview

LEX LEX-FS505W-50 200A 600 VAC, (5) 16 Series Cam-Type, Single Pole Male (Plugs) Blk, Wht, Red, Blue, Grn to (5) 16 Series Cam-Type, Single Pole Female (Connectors) Blk, Wht, Red, Blue, Grn, #2/0 Type SC, Feeder Set.

Markets Served:
- Theatrical
- Motion Picture & Television Production
- Concert Touring
- Live Events
- Convention Centers
- Generator Rental
- Temporary Power

Features:
- Industry standard series 16 cams allow for quick and convenient connection
- Thermoset jacket provides enhanced durability and resistance to oil and solvents
- Weather and UV resistant type cable
- Industrial strength flexible feeder cable
- Custom labels available for personalization and theft deterrence
Specifications:
- Rating: 200 Amp, 600 VAC, 3-Phase, 4-Pole, 5-Wire

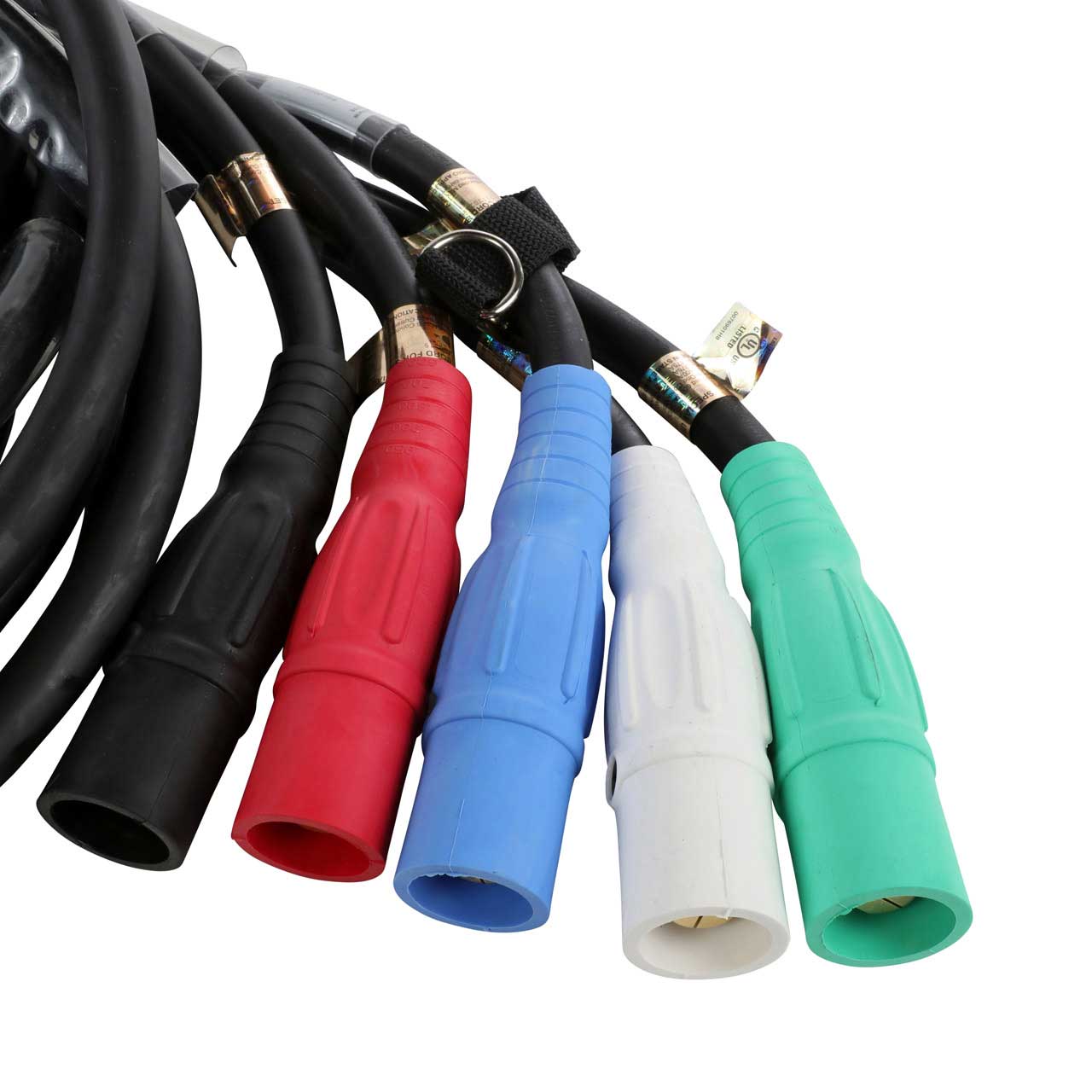

- Male Plug: 5x 16 Series Cam-Type, Single Pole; Black, Red, Blue, White, Green
- Cable/Cord: #2/0 SC, Black, Banded
- Length: Length: 50ft

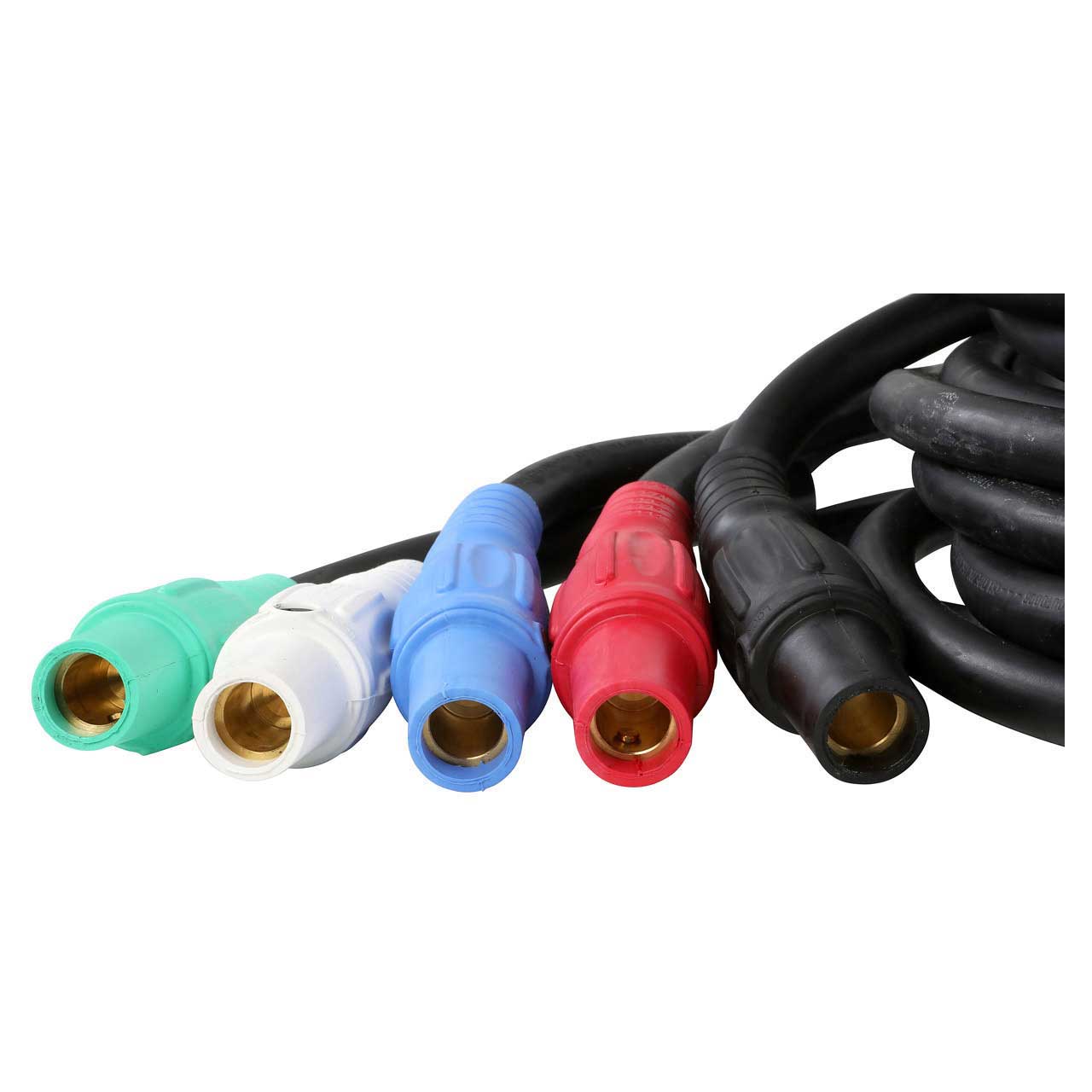

- Female Connector: 5x 16 Series Cam-Type, Single Pole; Black, Red, Blue, White, Green
- Agency Approval: cULus Listed
