Lex PRTR-5 5 Channel 45 Degree Turn Right

ITEM #: LEX-PRTR-5 MFG #: PRTR-5

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$298.80

Our Price:

$246.20

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


PRTR-5 - Overview

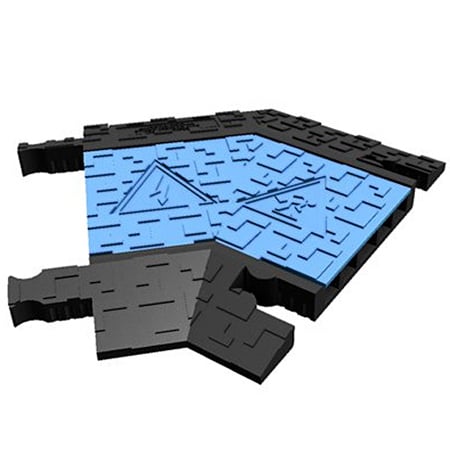

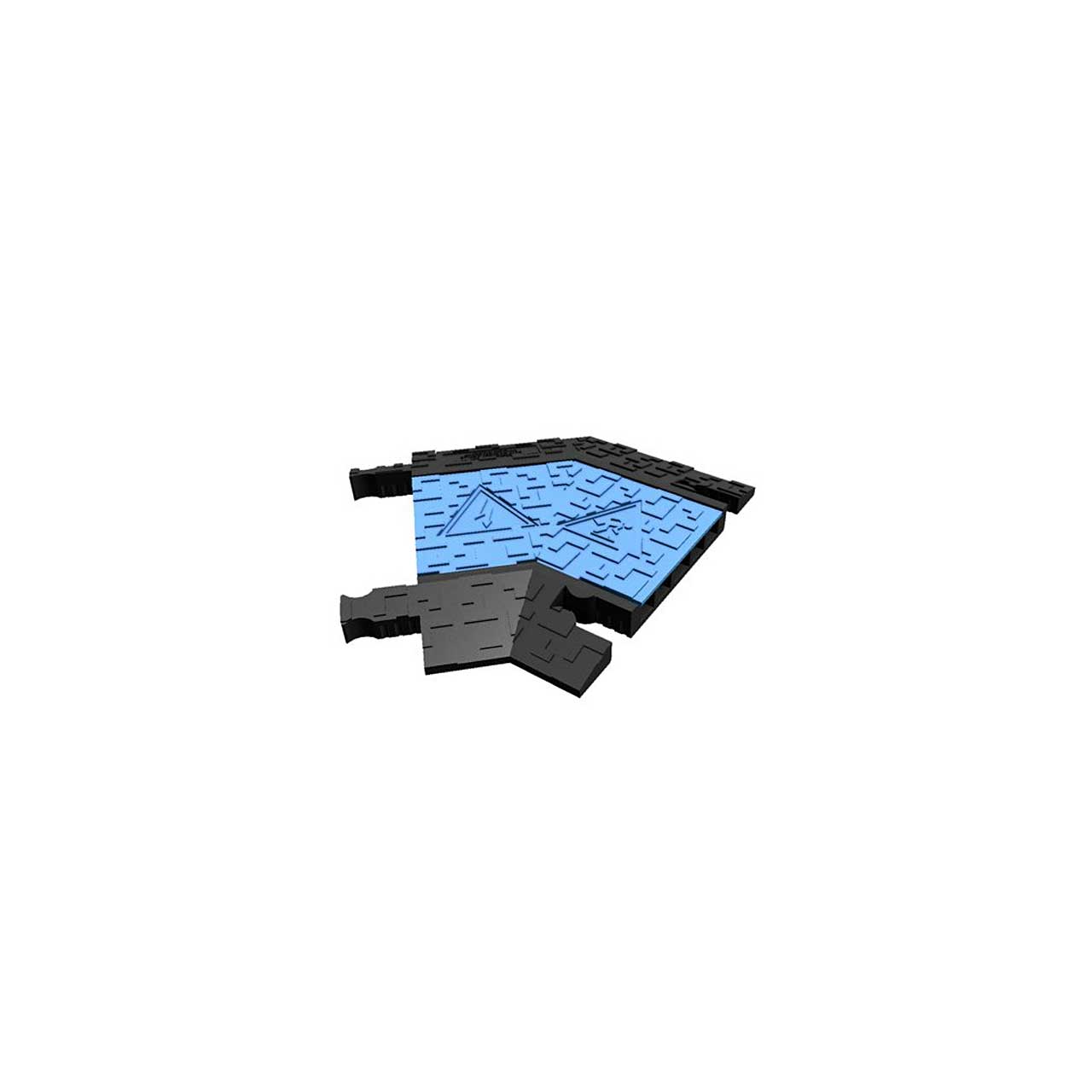

The PRTR-5 Heavy duty, 5-channel, modular 45° right turn unit with hinged lid and rugged industry standard connector is designed to mate with crossover cable protectors and end boots to provide alternate configurations for design flexibility.

Protects cables and hoses from damage when run across roads, parking lots, sidewalks and pathways, providing safe crossing for pedestrian and vehicle traffic. Ideal for indoor and outdoor applications including entertainment venues, sporting events, convention centers, festivals, amusement parks, public events, construction sites, temporary power and disaster relief.

  • Features:

    • Heavy duty, non-conductive polyurethane construction provides safe crossing for pedestrians and vehicles while protecting electrical cables and hose lines
    • Rugged industry standard connectors with exclusive "slip notch" friction release design provides easy mating and un-mating
    • Mates with major cable protector brands and products
    • 5-channel design can accommodate up to 1.25 inch diameter cables and hoses
    • 1.625 inch wide center channel allows for up to 2 AWG 5-wire banded sets
    • Exclusive tread design provides excellent traction
    • Hinged lid provides easy access for insertion and removal of cables and hoses
    • Made from UV stabilized material for prolonged use in direct sunlight
    • High-visibility blue lid and black base

  • Specifications:

    • Length: 25 in.
    • Width: 19.75 in.
    • Height: 2 in.
    • Weight: 15.5 lbs.
    • Slot Height: (5) 1.25 in. Channels
    • Slot Width: (4) 1.25 in. Channels; (1) 1.625 in. Center Channel
    • Material: Base/Lid - Polyurethane; Hinge Pin - Reinforced Fiberglass
    • Load Capacity Per Tire/Axle: 16,300 lbs. Per Tire/32,600 lbs. Per Axle at 70° F
    • Safety Warning: Symbols Per ANSI Z535.3-2011-Molded in Lid
    • Operating Temperature: -40° F to 120° F
