Lightronics TL-5024 Lighting Console 24 Channels x 192 Scenes
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

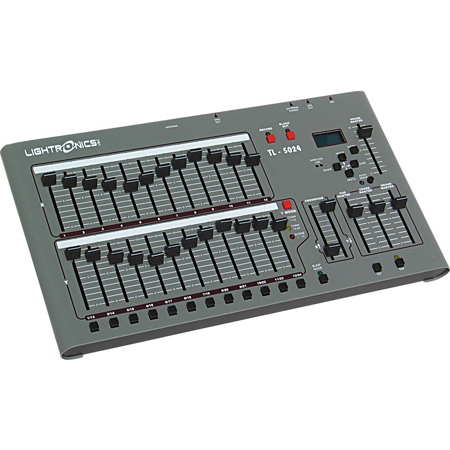

    Lightronics TL-5024 Lighting Console 24 Channels x 192 Scenes

    Manufacturer: Lightronics

    Item #: LGT-TL5024   •   MFG #: LGT-TL5024







    The TL5024 is a 24 channel lighting control console which includes advanced features such as multiple scene banks, softpatching, multiple user programmable chases, and a LCD Status Display. It is suitable for church, stage, theater, disco, night club, live performances and other event and artistic applications.

    The TL5024 may be powered by the dimmers it is controlling which eliminates the need for nearby AC power. The unit may also be powered by an external power supply (Required for DMX only operation). The TL5024 transmits the LMX-128 multiplex lighting control protocol. This signal is compatible with other industry standard multiplex signals. The unit can optionally be factory equipped to transmit the USITT DMX-512 protocol. The DMX-512 option can be factory retrofitted to existing units. The TL5024 transmits 256 channels of DMX-512 and 64 channels of LMX-128.

    • Features

      • LED Compatible
      • Optional Built In Wireless DMX
      • 24 Channels
      • 192 Scenes
      • 12 Chases
      • 240 Scene Cue List
      • Built In Softpatch
      • 2 Line LCD Display
      • Full Go Button
      • LMX-128 Protocol
      • Optional DMX-512
    • Specifications

      • Channels: 24 / 12
      • Operating Modes: 12 Channels x 2 Scenes, 24 Channels x 1 Scene, 12 Channels + 12 Recorded Sc.
      • Scene Memory: 12 Scenes per Bank x 16 Banks, 192 Total Scenes
      • Chase: 12 Programmable 20 Step Chases
      • Control Protocol: LMX-128 (3 pin multiplex) - Transmits 64 Channels, Optional USITT DMX-512 - Transmits 256 Channels
      • Output Connector: 3 Pin XLR Connector, 5 Pin XLR for DMX-512
      • Softpatch: 2 Programmable Pages of 256 DMX Dimmers (128 for LMX)
      • Compatibility: Multiplex Protocol Compatible with other Multiplexed Systems
      • Scene Cue: 240 Scene Cue List (programmable fade in/fade out time)
      • Memory: Non Volatile (retains scene, patch and cue data when powered off)
      • Power Input: 18VAC or +15VDC, Optional External Power Supply
      • Cue Fade: 1 - 99 Seconds (1 second increments)
      • Size: 16.25"W x 9.25"D x 2.5"H
      • Weight: 6.8 Pounds
