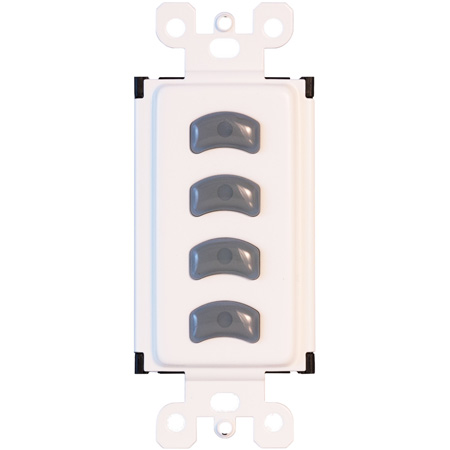

Pathway Connectivity PWWSI V485 B4 WH 4-Button Vignette Wall Station Master Insert - RS485 - DMX512 - White

ITEM #: P700-5432WH MFG #: PWWSI V485 B4 WH

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$455.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    PWWSI V485 B4 WH - Overview

    The Pathway Connectivity P700-5432WH Vignette is a system of modular button and slider wall station inserts that allow you to snapshot four universes of E1.31 sACN or one universe of DMX512 from any control source, and then play back those static looks without further need for any lighting controllers or equipment.

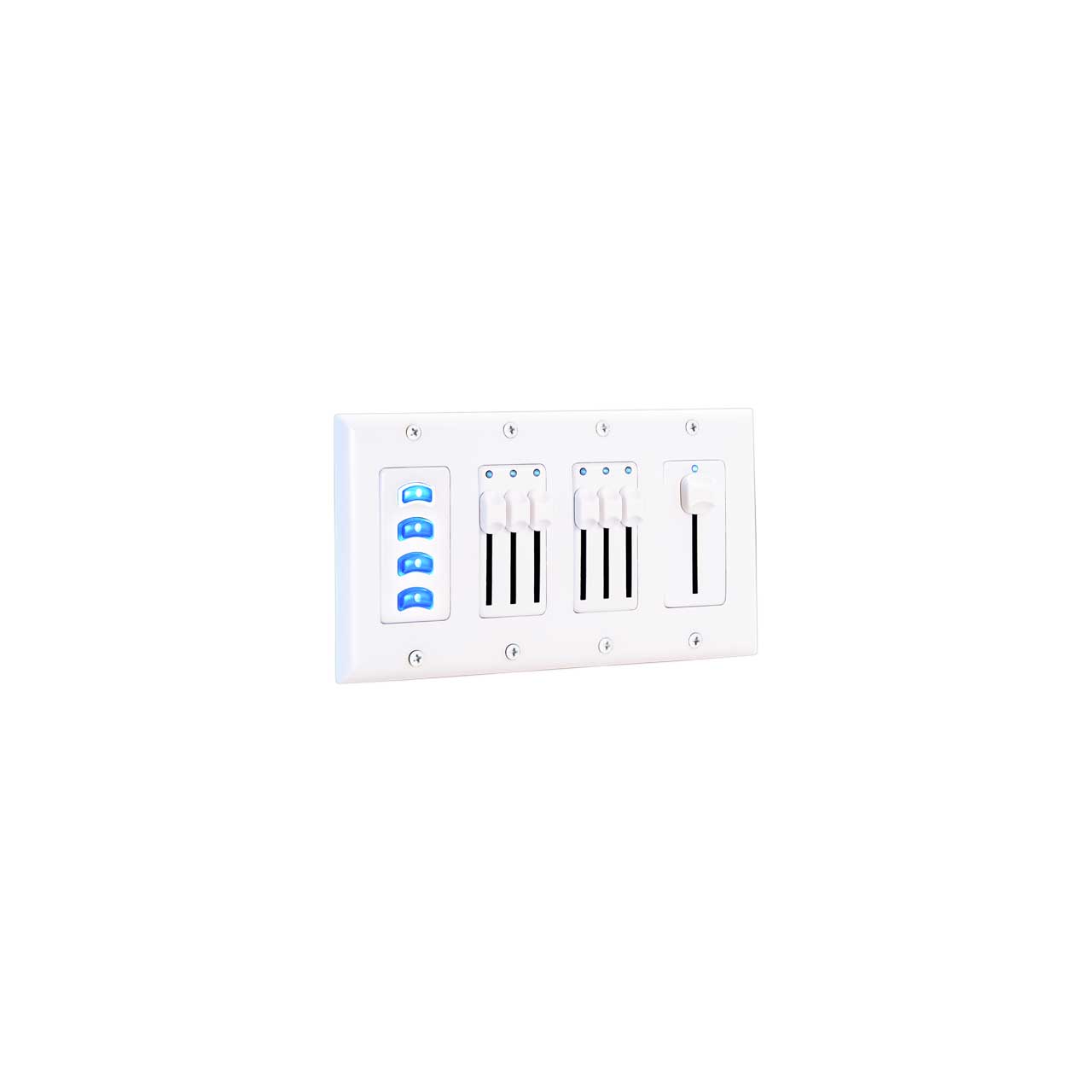

    With PWWSI Vignette Sliders and Buttons Wall Stations, you can design the exact configuration needed for each station, from 1-gang to 6-gang. Vignette is the perfect standalone wall-mounted controller, simple and powerful. It is ideal for applications such as hotels, restaurants, bars and nightclubs, retail, and others where dynamic looks are not needed. To make it easy just use the Pathway System Assembly Tool, a free downloadable software that will allow you to select each insert and build the catalog number, with visual confirmation of the assembly layout.

    • Features:

      • Attractive Decorator-style design in white or black, compatible with Pathway Connectivity or third-party faceplates
      • Master/local inserts available as single or double sliders, or as two or four buttons
      • PoE variant works with the VIA PoE switches and Pathport gateways

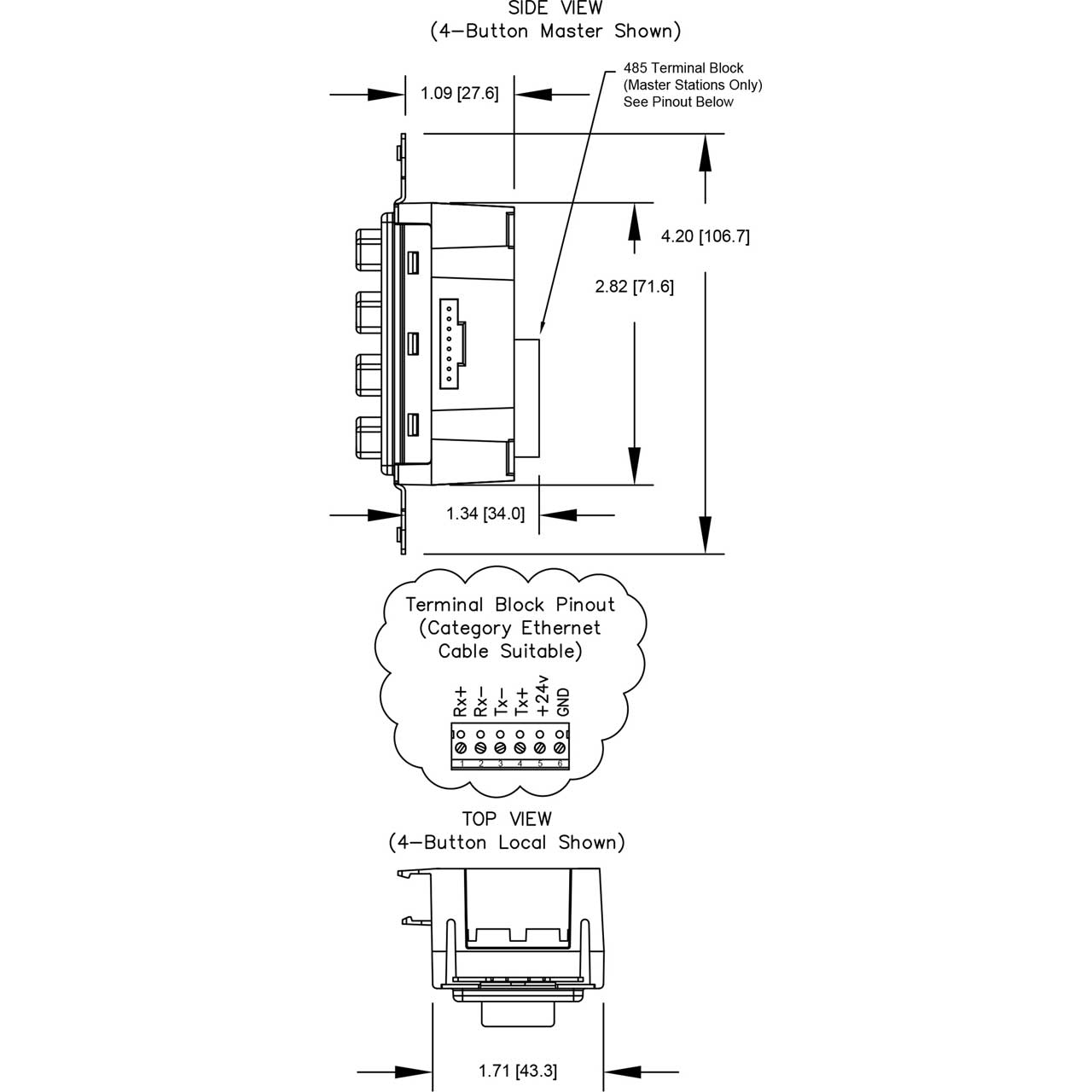

      • RS485 variant requires DIN-rail mounted Vignette Architectural Gateway that includes an ethernet port for configuration, sACN send/receive as well as DMX in/out. Each Gateway can support up to 64 modules across four separate daisy-chain buses
      • Group stations to mirror each other or work independently
      • Works as a snapshot record and playback out of the box. Advanced configuration using Pathscape on Mac OS or Windows PC
      • Buttons have multiple functions including snapshot replay, non-dim zones, record enable and take control
      • Sliders can act as zone control or grand master

    • Specifications:

      • Color: White
      • Control Device Type: Dimming Switch, On/Off Switch, Scene Switch
      • Mounting Location: Wall
      • Mounting Type: Semi-flush
      • Product Type: Wall station
      • Networkable Control: Yes
      • Voltage Rating: 024, Low Voltage
      • # of Comm. Ports: 1
      • Receiving Protocol: Ethernet, sACN
      • Sending Protocol: Ethernet, sACN
      • Dimming Protocol: sACN
      • Compliance Listing: CA Title 1.81.26, ROHS
      • Series: PWWSI, PWWSK
      • Class 2 (PoE or 24V DC RS485 over Cat5 or 3-pair cable) - 7.5 watts maximum power consumption per station - Operating conditions: 14°F-122°F (-10°C to 50°C ), 5-95% relative humidity, non-condensing
      • Cabling PoE: Standard Cat5/5e/6 Ethernet, 330 ft (100 m) max - RS485: Cat5/5e/6 cable, 500 ft (150 m) max; Belden 9773 or equivalent, 1000 ft (300 m) max

    • Item Includes:

      • 1x Pathway P700-5432WH Vignette 485 with Four Button Master Insert - White

    • Warranty:

      • 3 years limited
