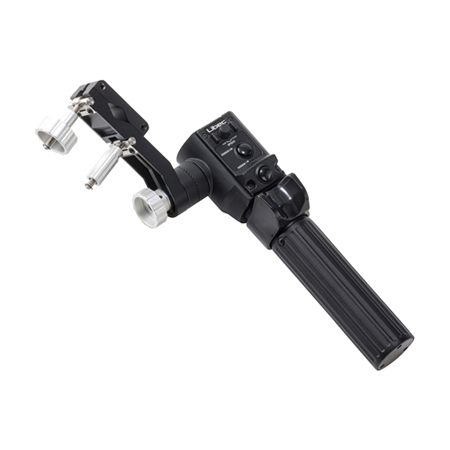

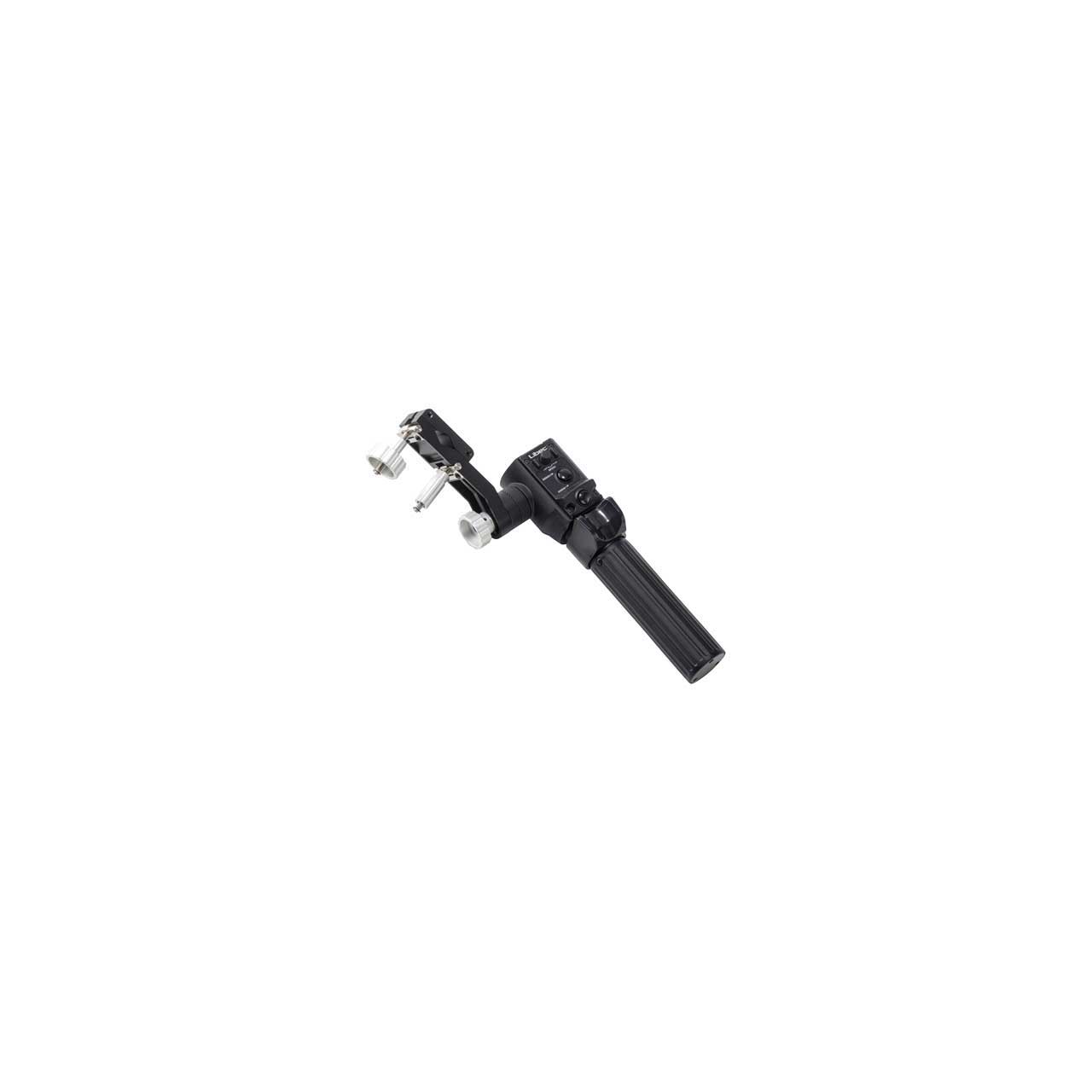

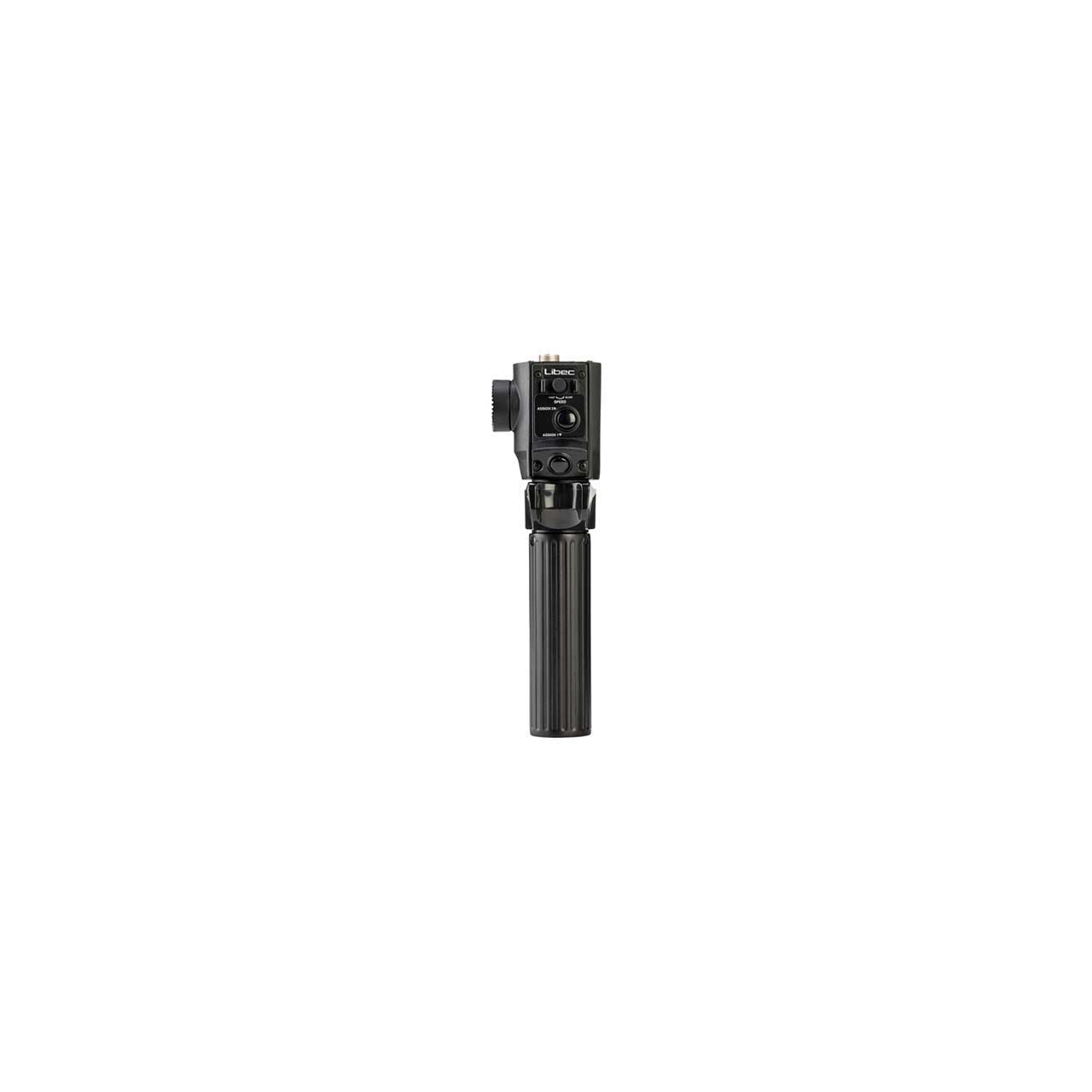

Libec ZD-1 Zoom Demand for Canon/Fujinon Portable Lenses

ZD-1 - Overview

• Features:

  • Compatible with Canon and Fujinon Portable Lenses
  • The zoom demand supports Canon and Fujinon portable lenses with dedicated cables. It features a switch that allows users to change the protocol from Canon to Fujinon.
    Zoom Lever with Great Operability
  • The user-friendly design allows a thumb to fit comfortably in place. The zoom speed is adjustable by the zoom lever angle. In addition, the SLOW/FAST control knob enables the most precise and preferred adjustments.
    Reverse Zoom Directions
  • The Reverse Switch allows users to change the zoom direction. This function helps users to operate stress-free zoom controls allowing users to concentrate on their shots.
    Assign Switch
  • As a default setting, the REC is assigned to ASSIGN 1 and the RETURN to ASSIGN 2. In addition, the Assign Switch toggles the setting between ASSIGN 1 and ASSIGN 2.

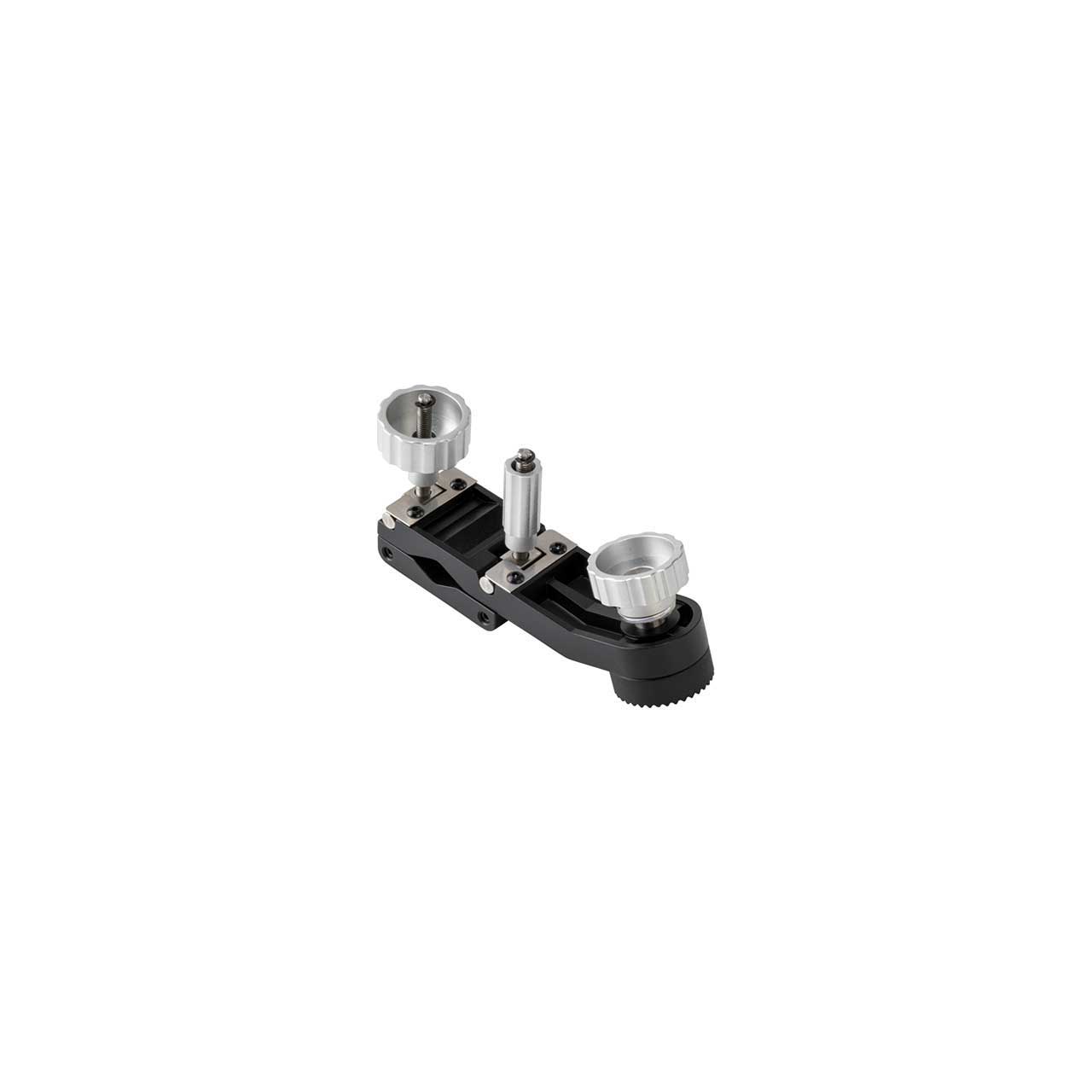

    High-quality Mounting Clamp
  • By adopting a unique design and using aluminum, the mounting clamp is rigid and super lightweight. In addition, it is easy to securely attach this to a pan handle.


• Specifications:

  • Compatible Lenses:
    Canon portable lens (20-pin)
    Fujinon portable lens (12-pin)
  • Zoom Direction: Reversible
  • Zoom Speed: Continuously variable
  • REC: REC Switch
  • Return: RET Switch
  • Assign Switch: REC/RET
  • Mounting Clamp: Included
  • Size: 2.52 x 2.52 x 8.82" (64 x 64 x 224mm)
  • Weight:
    Main Body: .99Lbs (.45kg)
    Mounting Clamp: 0.53Lbs (.24kg)
  • Operation Temperature: 32° to 104°F (0° to 40°C)
  • Storage Temperature: -4° to 140°F (-20° to 60°C)


• GTIN:

  4986397464020
