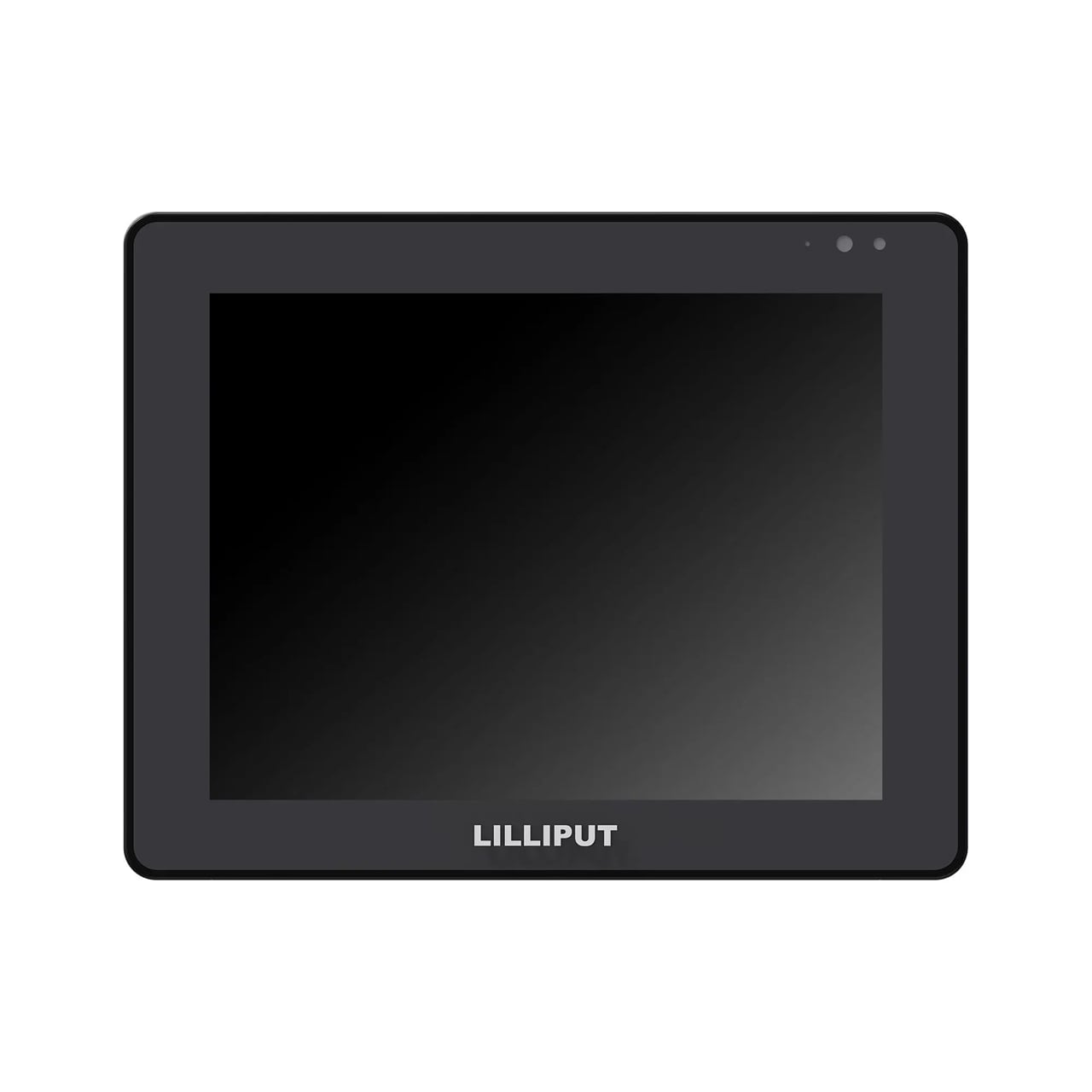

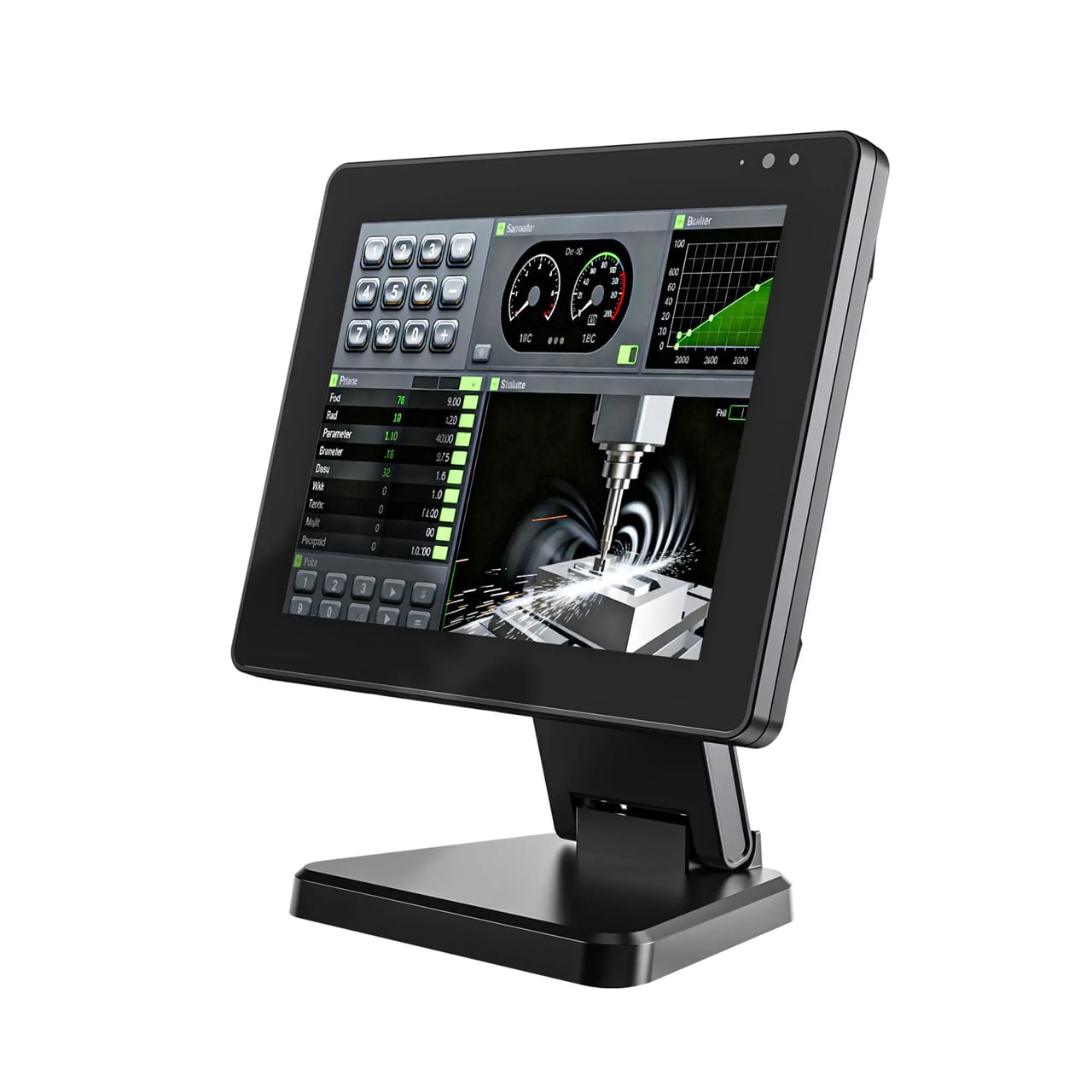

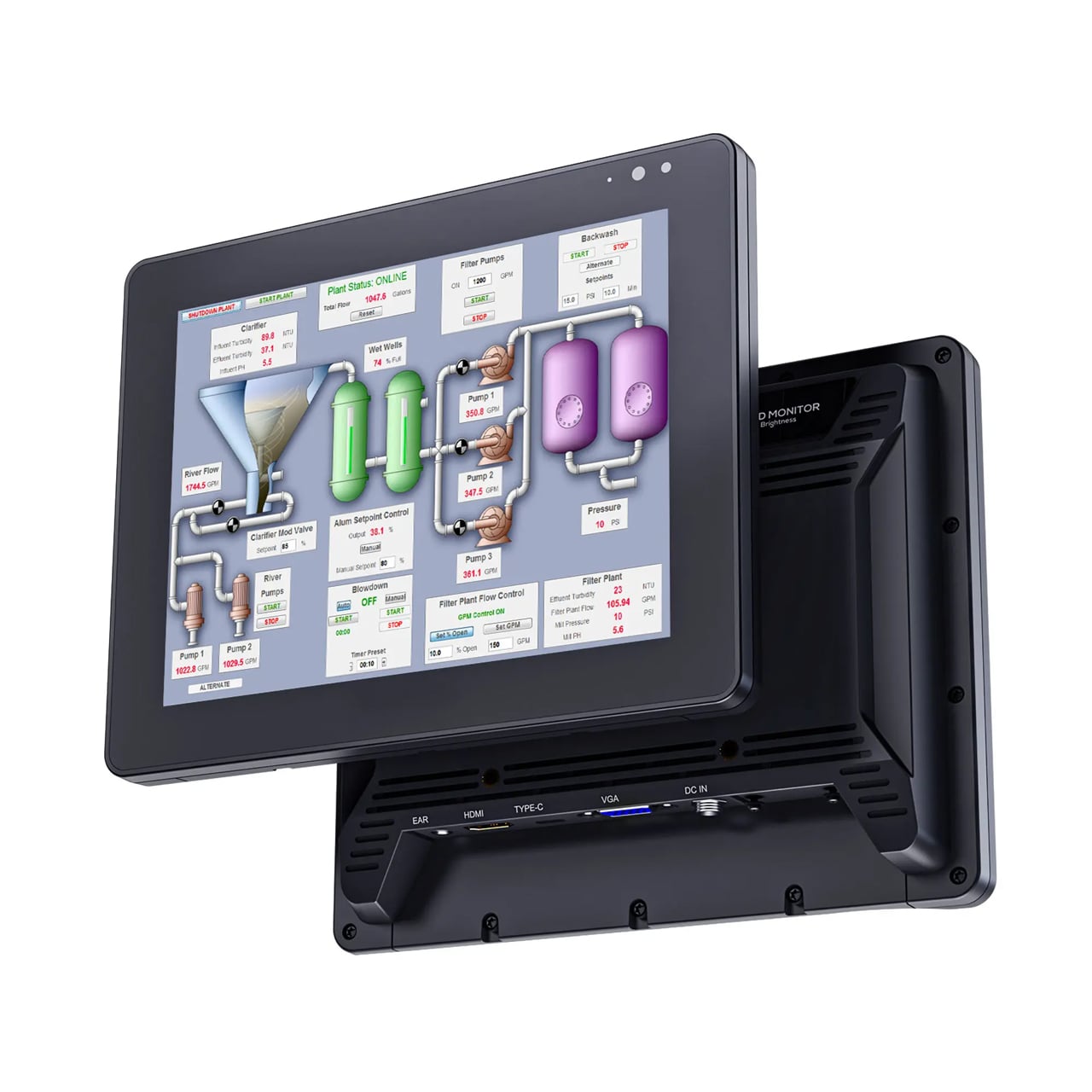

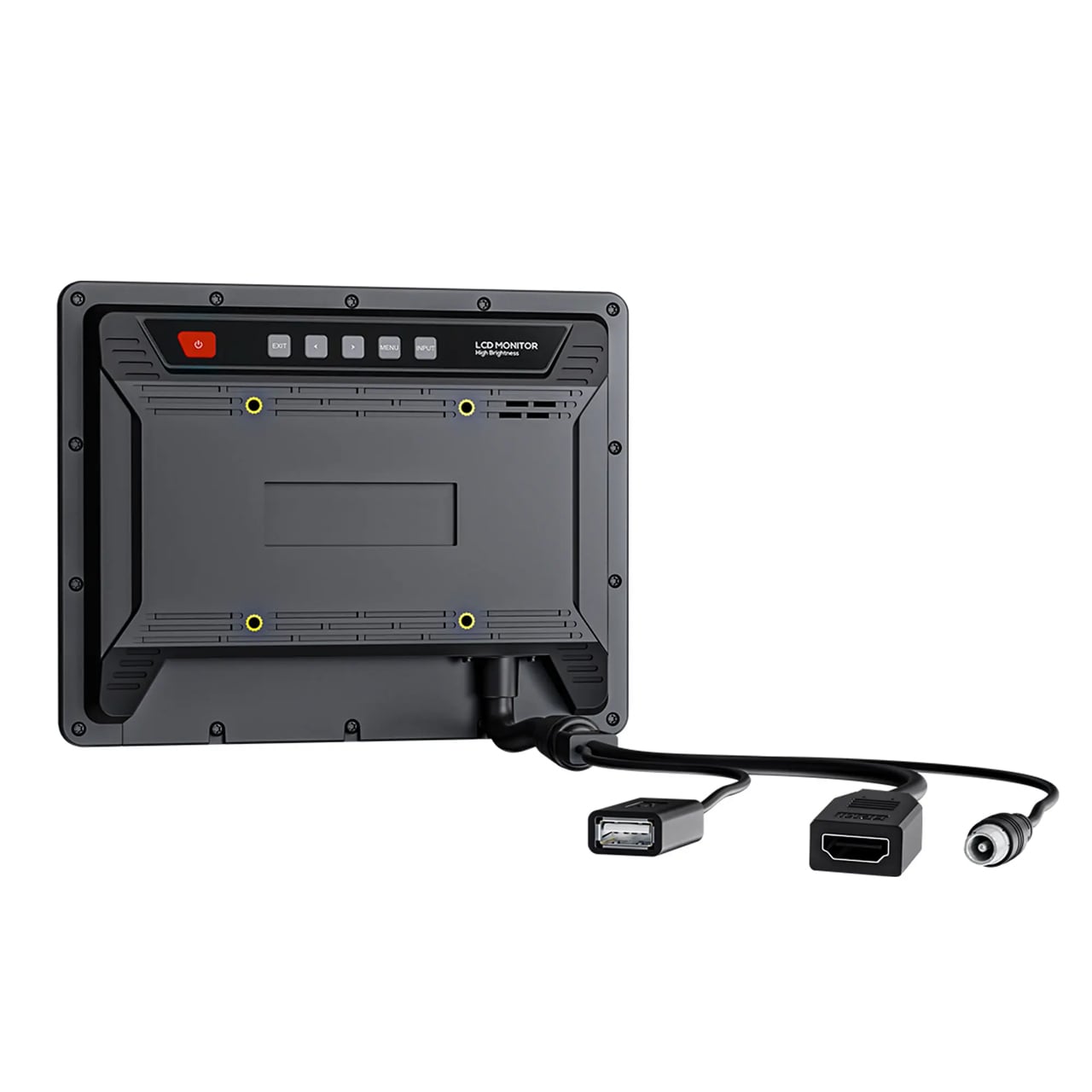

Lilliput Electronics 819H/C 8 Inch 1000 Nits IP65 Industrial Monitor with HDMI Input

819H/C - Overview

• Features:

  • 8 Inch: 8" Industrial-grade touch screen panel with 1024x768 resolution.
  • 1000 NITS: The screen can still be seen clearly in outdoor use without hindering operation.
  • Auto Dimming: Depending on the intensity of ambient light, the brightness of screen will be automatically adjusted to save power.
  • Optical Bonding: Remove the air layer between the LCD and glass, prevent dust and moisture from damage LCD panel.
  • Anti-Glare: Anti-glare screen can reduce reflective glare in the environment.
  • Anti-Fingerprint: Anti-fingerprint screen can reduce fingerprints on the surface of screen panel.


• Specifications:

  Display
  • Panel: 8" LCD
  • Physical Resolution: 1280x768
  • Aspect Ratio: 4:3
  • Brightness: 1000 nits
  • Contrast: 800:1
  • Viewing Angle: 170° / 170° (H/V)
  • LED Panel Life Time: 50000h

    Input
  • HDMI: 1
  • VGA: 1
  • USB: USB-C (For touch+video signal)

    Supported:
  • HDMI: 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
  • VGA: 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60

    Formats:
  • USB Type-C: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60

    Audio In/Out
  • Speaker: 1
  • HDMI: Available
  • Ear Jack: 3.5mm - 2ch 48kHz 24-bit

    Power
  • Input Voltage: DC 9-36V
  • Power Consumption: ≤11W (12V)

    Environment:
  • Operating Temperature: -13°F - 167°F (-25°C - 75°C)
  • Storage Temperature: -31°F - 185°F (-35°C - 85°C)

    Physical:
  • Dimension(LxWxH): 12" (304.8mm) x 9" (228.6mm) x 6" (152.4mm)
  • VESA Mount: 3" (75mm)
  • Weight: 1.7lbs (750g)


• Item Includes:

  • 1x 12V/2A DC Adapter
  • 1x HDMI A-A cable
  • 1x USB-A-C cable (for touch version only)
  • 1x USB-C-C cable (with screw)
