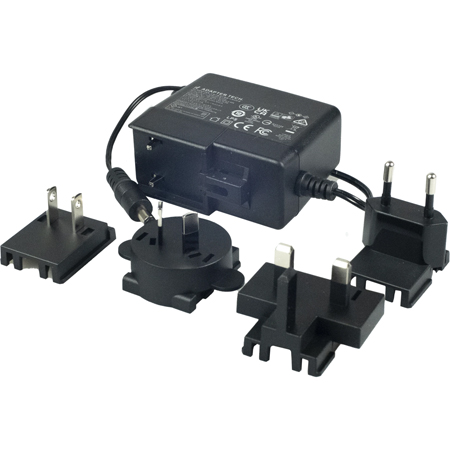

LYNX Technik RPS 1018 yellobrik AC/DC Wall Plug Power Supply Unit - Provides 18-Watts of Continuous Output Power

RPS 1018 - Overview

• Features:

  • Single Output 18W
  • 12V/1.5A
  • Wide Operating Voltage: 100VAC - 240VAC/50 - 60Hz
  • Interchangeable Plug
  • DoE Level VI, Energy Star,
  • ErP Stage 2 CoC Tier 2, NRCan, GEMS Level VI
  • CCC, UK CA, TUV, UL, RoHS, CE and FCC Certified


• Specifications:

  • Input Voltage Range: 100VAC - 240VAC
  • Input Frequency: 50 - 60Hz
  • Output Power Range: 19.2 (max.)
  • Output Voltage Range: 12VDC (±5%)
  • Output Current Range: ~1.6A
  • Input Current: ~0.48A (max.)
  • Time of Transient Response: 0.5ms (50% Load Charge)
  • Hold-Up Time: 10ms (At Full Load)
  • Ripple & Noise: 120mVp-p
  • Leakage Current: 0.25mA (max.)
  • Dielectric Withstanding: 3000VAC
  • Power Consumption: <0.1W (No Load)
  • Efficiency: >85.292%
  • Efficiency Certificates: DoE Level VI, Energy Star, ErP Stage 2 CoC Tier 2, NRCan, GEMS Level VI
  • EMC Standards: EN55032, EN61000-3-2,3 , EN55024
  • Operating Temperature: 0°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 176°F (-20°C - 80°C)
  • Operating Humidity: 20% - 85% RH
  • Storage Humidity: 10% - 90% RH
  • MTBF: 300,000h @ 77°F (25°C)


• Item Includes:

  • 1x LYNX Technik RPS 1018 yellobrik AC/DC Wall Plug Power Supply Unit - Provides 18-Watts of Continuous Output Power


• GTIN:

  0425047931001
