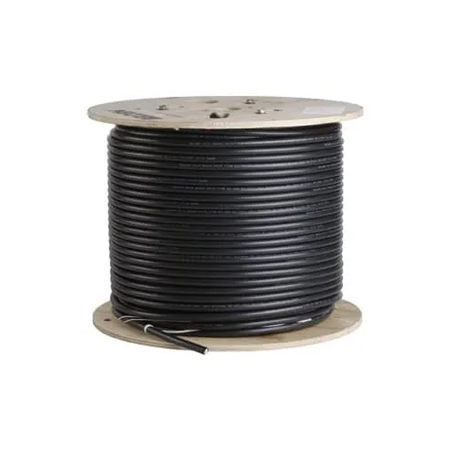

Listen Technologies LA-113-500 RG-8 50 Ohm Low-loss Coaxial Antenna Cable - Black - 500 Foot

ITEM #: LSTN-LA-113-500 MFG #: LA-113-500

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$5,100.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    LA-113-500 - Overview

    The Listen Technologies LA-113 is an RG-8, 50 Ohm, Coaxial Cable for use where additional distance is needed for wireless system antennas to increase coverage. Measured at 500 ft. it's recommended for coaxial runs more than 100 ft. (30.5 m) at 72 MHz or 50 ft. (15.24 m) at 216 MHz. LA-113 will give you better distance with lower loss of signal power. Signal loss for 72 MHz is 1 dB per 50 ft. Signal loss for 216 MHz is 2 dB per 50 ft.

    • Features:

      • For remote antenna locations
      • Long runs with low signal loss

    • Specifications:

      • RF
      • Attenuation: 1 dB per 50 ft. on 72 MHz, 2 dB per 50 ft. on 216 MHz

        Physical
      • Cable Type: RG-8/U Low Loss 50 Ohm
      • Material: Foam Polyethylene Insulation, PVC Jacket, bare copper conductor, bare copper/braided shield
      • Diameter: Outer: .403 in. (10.24 mm), Inner: .285 in. (7.24 mm)
      • Unit Weight: 14.2 lbs. (6.5 kg) per 100 ft.
      • Shipping Weight: 15.0 lbs. (6.8 kg) per 100 ft.

    • Warranty:

      • 1 Year Warranty
