Liberty Wire & Cable 24-4P-P-L6-EN-BLK Cat 6 U/UTP EN Series 23 AWG 4 Pair Unshielded Cable - Black - 1000ft

24-4P-P-L6-EN-BLK - Overview

• Features:

  • 23 AWG solid bare copper conductors
  • HDPE, high-density polyethylene insulation
  • Color striping on white conductors

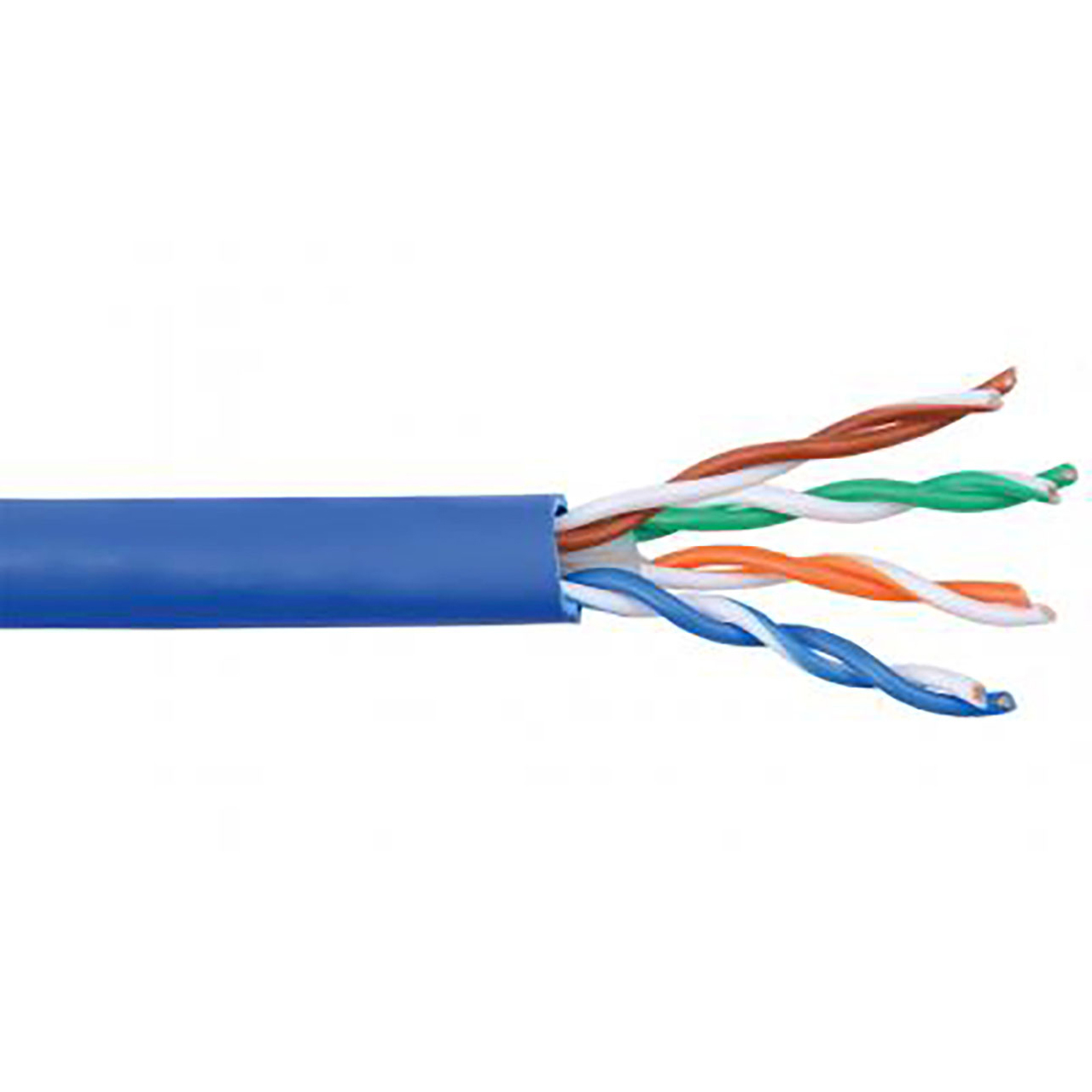

  • Varying lay twisted pairs cabled on a common axis
  • Ripcord under the jacket
  • FR-PVC, flame rated polyvinyl chloride jacket
  • Tested to 550 MHz with a positive ACR spec to 550 MHz
  • Third party (UL, ETL) certified to category 6 performance
  • NEC rated CMR, CEC rated CMR, CMG FT4, RoHS compliant
  • Jacket Color: Black


• Specifications:

  • Conductor: 23 AWG, Solid annealed bare copper conductors
  • Diameter: 0.0226" (0.574mm)
  • DC Resistance: = 20.3Ω/1000ft (66.6Ω/km)
  • DCR Unbalance: = 5%
  • Capacitance: 14.0pF/ft (45.9pF/m)
  • Impedance: 100 ±15Ω
  • Propagation Delay (Skew): 45ns/100m MAX
  • Velocity of Propagation: 68%
  • Voltage Rating: 300V
  • Pair to Ground Capacitance Unbalance: = 330pF/100m
  • Maximum Current: 1.4A @ 77°F (25°C)
  • Insulation: Polyethylene
  • Wall Thickness: 0.008" (0.20mm)
  • Diameter: 0.0386" (0.98mm)
  • Regulatory: ANSI/TIA-568-C Category 6, EU RoHS-2 2011/65/EU Compliant
  • NEC: CMR 167°F (75°C)
  • CEC: CMG FT4 140°F (60°C)
  • Color Code:
    - Pair 1: Orange, White/orange stripe
    - Pair 2: Blue, White/blue stripe
    - Pair 3: Green, White/green stripe
    - Pair 4: Brown, White/brown stripe
  • Weight: 26lbs/1000ft (39kg/km)

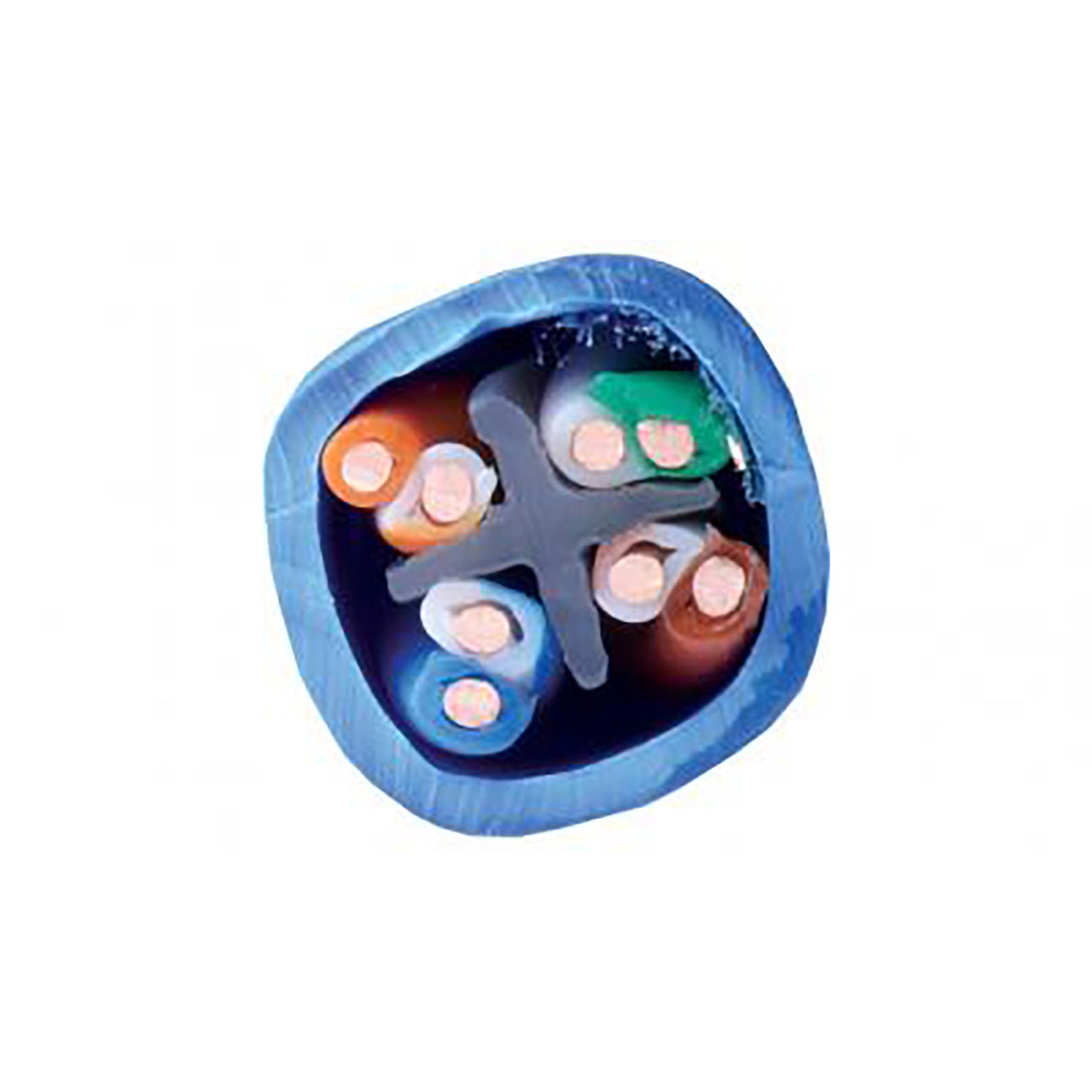

  • Assembly: Pairs twisted in varying lay lengths, Each pair in a polyethylene X separator interstice
  • Pull Tension: 25lbs (111N)
  • Bend Radius: 2.40" (61mm) unloaded
  • Bend Radius: 4.80" (122mm) loaded.
  • Construct: Ripcord under jacket
  • Performance: Passive Baluns up to 2500ft
  • LAN: 300ft
  • Jacket: Flame rated polyvinyl chloride
  • Wall Thickness: 0.024" (0.610mm)
  • Diameter: 0.240" (6.10mm)
  • Final Outside Diameter: 0.24"
