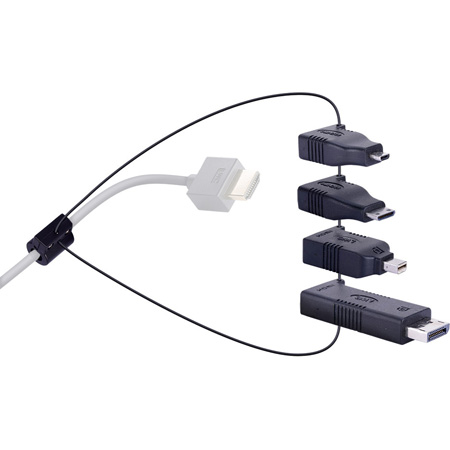

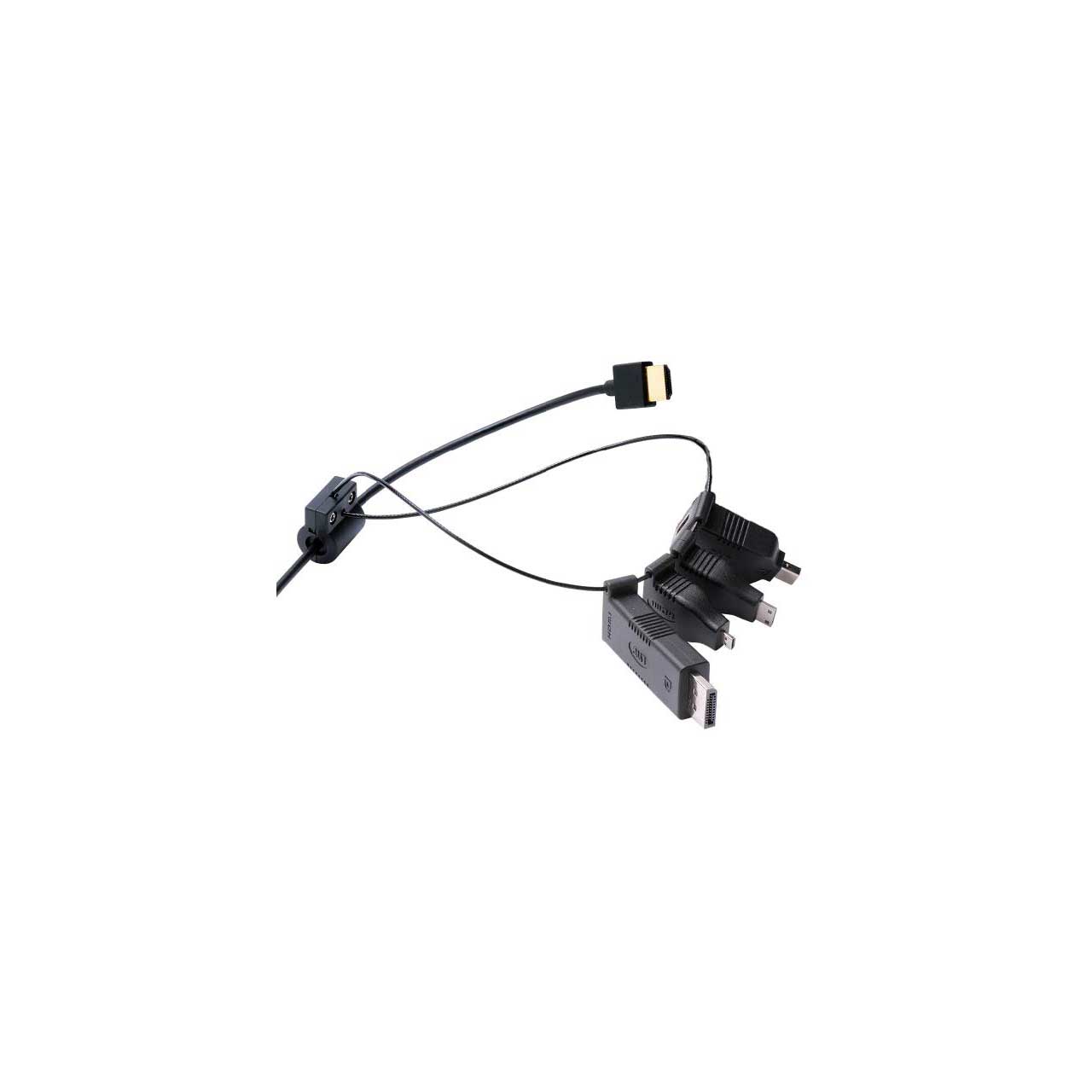

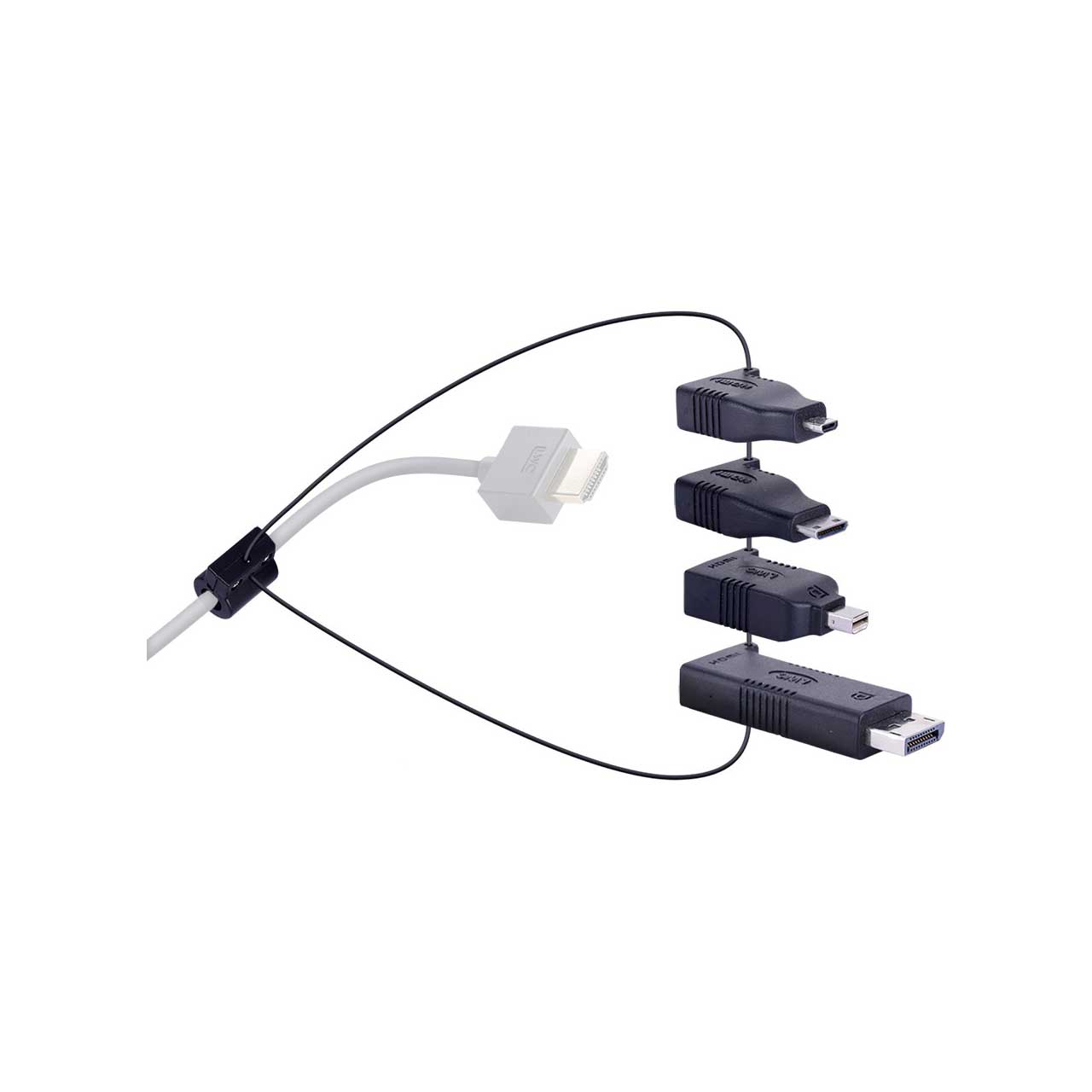

Liberty DL-AR2 Universal HDMI Adapter Ring Complete Assembly With 4 Adapters
  • Liberty DL-AR2 Universal HDMI Adapter Ring Complete Assembly With 4 Adapters
  • Liberty DL-AR2 Universal HDMI Adapter Ring Complete Assembly With 4 Adapters

Questions? Ask a Markertek Expert:
800-522-2025 Email

Liberty DL-AR2 Universal HDMI Adapter Ring Complete Assembly With 4 Adapters

Manufacturer: Liberty Wire and Cable

Item #: LWC-DL-AR2   •   MFG #: DL-AR2



List Price:$120.44
Our Price:$108.40

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.




    Share!





    The DL-AR2 Digital Adapter Keychain was developed to support the rising proliferation of mobile devices used in presentation systems. Most presentation infrastructures only support one or two input formats, usually HDMI for Digital and VGA for Analog. This product permits the presenter easy access to the appropriate adapter for connection to the HDMI infrastructure. Laptops, tablets, smart phones, digital cameras, and net books all have varying connections to display their content. This simple and effective ring of adapters permits the owner of the infrastructure to support mobile device content and keep the adapters secure and in place for the next presenter.

    The full DL-AR2 unit includes the following adapters in the basic format: (1) DisplayPort male to HDMI female, (1) Mini-DisplayPort male to HDMI female, (1) Mini-HDMI "C" male to HDMI female, and (1) Micro-HDMI "D" to HDMI female. The adapters are molded with a very strong eyelet that attach to the aircraft-grade steel cable. The main clamp is ABS and it can connect to HDMI cables up to 11mm in diameter. Two sets of foam rubber inserts for differing cable sizes are included.

    The security features of the ring are two staged. The clamp cannot be opened or installed without a Torx T10 Pin driver. This security screw has the raised pin in the center of the star to prevent standard Torx drivers from use. Inside the clamp is a second security feature, a steel ring with a 1.5mm hex set screw that locks the ends of the cables together. The unit is shipped with four Torx Pin screws and nuts. Two are extra in case of loss. Liberty item T10PD is a simple tool kit of a T10 pin driver and a 1.5mm hex wrench. The T10PD is sold separately.


    • Features

      • Security loop with faux ferrite and 4 adapters to HDMI
      • DisplayPort Plug (Male) to HDMI Jack (Female)
      • Mini DisplayPort Plug (Male) to HDMI Jack (Female)
      • Mini HDMI (C) Plug (Male) to HDMI Jack (Female)
      • Micro HDMI (D) Plug (Male) to HDMI Jack (Female)
      • DisplayPort adapters support audio
      • Faux ferrite and wire loop - attach to HDMI cable
      • Two sizes of foam rubber spacers, standard and micro cable

    • Specifications

      • DisplayPort Adapter (ARDPHD)
      • Input: Male full size DisplayPort connector
      • Output: Female HDMI type A receptacle
      • Compliance: DisplayPort 1.1 for 1.62 and 2.7 Gbps
      • HDMI to 2.25 Gbps
      • Supported video resolutions:
      • PC: Up to 1920x1200
      • HDTV: Up to 1080p

      • Mini DisplayPort Adapter (ARMDPHD)
      • Input: Male mini DisplayPort connector
      • Output: Female HDMI type A receptacle
      • Compliance: DisplayPort 1.1 for 1.62 and 2.7 Gbps
      • HDMI to 2.25 Gbps
      • Supported video resolutions:
      • PC: Up to 1920x1200
      • HDTV: Up to 1080p

      • Mini HDMI Adapter (ARMCHD)
      • Input: Male mini HDMI type C connector
      • Output: Female HDMI type A receptacle
      • Compliance: HDMI to 2.25 Gbps
      • Supported video resolutions:
      • PC: Up to 1920x1200
      • HDTV: Up to 1080p

      • Micro HDMI Adapter (ARMDHD)
      • Input: Male micro HDMI type D connector
      • Output: Female HDMI type A receptacle
      • Compliance: HDMI to 2.25 Gbps
      • Supported video resolutions:
      • PC: Up to 1920x1200
      • HDTV: Up to 1080p

      • Cable and Clamp Assembly (DL-CL)
      • Security Cable Material: Steel with black polyethylene sheath
      • Security Cable Length: 450 mm (17.72 in)
      • Cable Clamp Dimensions (closed): 17 mm x 24 mm x 26.5 mm (0.67 in x 0.94 in x 1.04 in.)
      • Cable Clamp Inner Diameter: 9 mm (0.35 in.)
      • Cable Clamp Material: Black ABS plastic
      • Mid Insert Diameter: 6 mm (0.24 in.)
      • Small Insert Diameter: 4 mm (0.16 in.)
      • Mid, Small Insert Material: Foam rubber

      • Other
      • Warranty: 2 years
      • Included Accessories: Four T-10 screws, Four M3 nuts, one retaining ring, one 1.5 mm hex retaining screw
      • Optional Toolkit: T10PD

    • Item Includes

      • Four T-10 screws
      • Four M3 nuts
      • One retaining ring
      • One 1.5 mm hex retaining screw

    • Warranty

      • 2 years

    • Applications

      • Adapting various mobile content devices to HDMI
      • Interfacing Laptops, Macs, iPad, Smartphone to HDMI
      • Boardroom, Education, House of Worship, Presentations
