Luxi DIY-28DS10B 10 Pack HDMI 28 AWG DIY Connector for Regular Wire Bundle

ITEM #: LXL-DIY-28DS10B MFG #: DIY-28DS10B

free ship

Our Price:

$77.00

Availability: In Stock
iAvailability Description Popup


    DIY-28DS10B - Overview

    The DIY-28DS10B is a 10 pack HDMI 28 AWG DIY connector for regular wire and clamshell bundle. HDMI 2.0 4k compliant. Can be used to terminate Luxi DIY regular wires or repair other broken 28 or 30 AWG HDMI cables. Luxi patented locking connector for secure mating.

    • Features:

      • Simple and reliable HDMI field termination in 10 minutes
      • HDMI 2.0 4k, 32 audio ch., 1536 kHz sampling, dual video stream, multi audio stream, 21:9 aspect, dynamic AV sync, CEC extensions, 3D, HEAC compliance
      • Enabling the bulk wires to be pulled thru the wall
      • Enabling the bulk wires to be cut to length
      • Enabling the damaged HDMI cable and connector repairs in the field
      • Luxi patented HDMI locking connector ensuring secure mating
      • Spool-in-a-box for easy wire handling

    • Specifications:

      • Connector type: HDMI Type A
      • HDMI spec compliance: rev 2.0
      • Compatible raw cable: 28 AWG (0.25 to 0.32 mm conductor OD), regular HDMI wires
      • Supported formats: 4k, 3D, deep color, 1080p, etc.
      • Max data rate: depends on cable length; 24 Gbps at 2 m
      • Max cable length: 12 m (40') at 1080p typical (28 AWG)
      • up to 24 m (80') with HDMI extender
      • Impedance: 100 ohms +6/-0 at the termination point

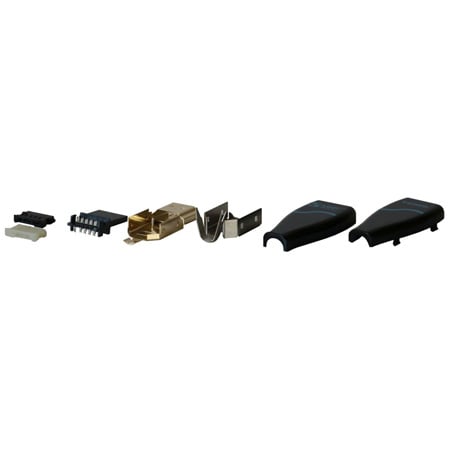

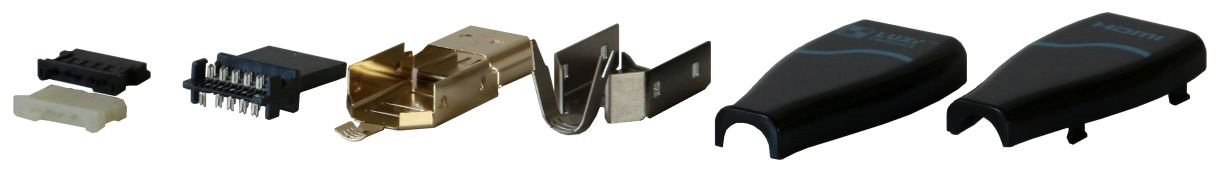

    • Item Includes:

      • Connector core
      • Wire holders
      • Metal shells
      • ABS shells

    • Warranty:

      • 3 years


    DIY-28DS10B - Required Accessories

      DIY-28DS10B - Recommended Accessories
